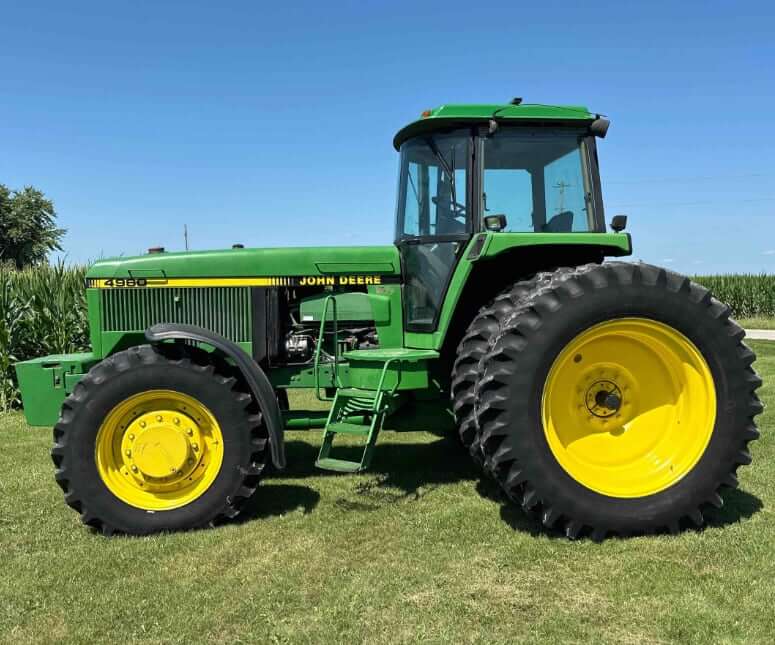

Dimensions
| Overall Length | 177.2 in (4500 mm) |
| Overall Width | 118.5 in (3000 mm) |
| Height to Top of Cab w/ ROPS | 118.8 in (3010 mm) |
| Wheelbase (2WD) | 118.5 in (3000 mm) |
| Wheelbase (4WD) | 117.1 in (2974 mm) |
| Front Tread (4WD) | 66.6 to 87.8 in (1691 to 2230 mm) |
| Rear Tread (4WD) | 64.6 to 115.7 in (1642 to 2938 mm) |
| Height of Drawbar w/ Ballast | 20 in (510 mm) |
| Height of Drawbar w/o Ballast | 19 in (485 mm) |
| Ground Clearance | 16 in (400 mm) |
Operational Specs
| Operating Weight | 18370 lb (8332 kg) |
| Ballasted Weight | 24665 lb (11188 kg) |
| Operating Voltage | 12 V |
| Alternator | 120 amps |
| Battery | 2x 12 V, CCA 925 |
| Max Sound Level (Cab) | 77.5 dB(A) |
| Front Axle | 2WD or Caster/Action MFWD |
| Rear Axle | Rack-and-pinion rear axle |
| Front Tire Size | 16.9R30; 380/85R30; 420/90R30 |
| Rear Tire Size | 20.8R42; 480/80R42; 480/80R46 |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | John Deere |
| Engine Model | John Deere 466T (6466T) |
| Displacement | 466 cu in (7.6 L) |
| Bore | 4.56 in (116 mm) |
| Stroke | 4.75 in (121 mm) |
| PTO Horsepower | 210 hp (156.6 kw) |
| Drawbar Horsepower | 176.48 hp (131.6 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 677 lb ft (918 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged and aftercooled |
| Compression | 15.5:1 |
| Firing Order | 1-5-3-6-2-4 |
| Air Cleaner | Dual dry element |
| Oil Filter | One full flow cartridge |
| Fuel Rate | 75.3 – 82.2 Ib/h (34.2 – 37.3 kg/h) |
Transmission
| Transmission Type | John Deere Full Power-Shift |
| Number Of Forward Gears | 15 |
| Number Of Reverse Gears | 4 |
| Max Travel Speed (Forward) | 19.3 mph (31 km/h) |
| Max Travel Speed (Reverse) | 6.4 mph (10.4 km/h) |
| Drive | 4×2 (2WD) / 4×4 (MFWD 4WD) |
| Steering | Power Steering |
| Service Brakes | Differential hydraulic wet disc brakes |
PTO (Power Take-Off)
| Rear PTO Speed | 1000 rpm |
| Rear PTO Type | Independent |
| PTO Clutch | Hydraulic Disc |
| PTO/Engine Speed | 998 rpm at 2200 rpm |
Hydraulic System
| Type | Closed center |
| Pump Flow Capacity | 30.7 gal/min (116 L/min) |
| Max System Pressure | 2530 psi (17440 kPa) |
| Number Of Remote Control Valves | 3 or 4 |

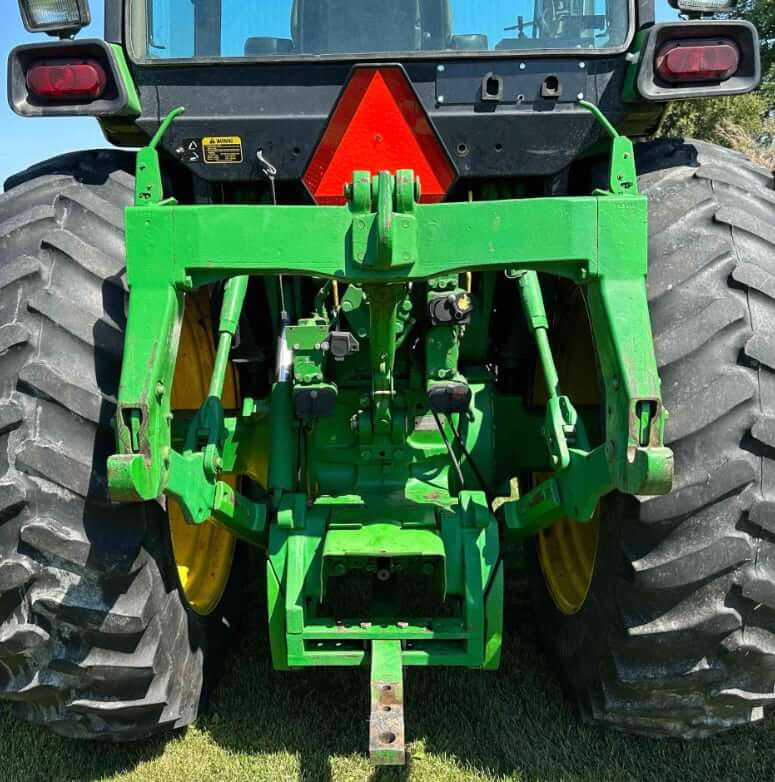

| 3 Point Hitch Category | 3/3N |
| 3 Point Hitch Lift Capacity @ 24″ | 10041 lb (4554 kg) / 11773 lb (5340 kg) |
| Control | Electrohydraulic draft sensing |
Service Refill Capacities
| Fuel Tank Capacity | 102 gal (386 L) |
| Engine Oil Capacity | 5.6 gal (20.8 L) |
| Cooling System Capacity | 8 gal (30.3 L) |
| Transmission / Hydraulic System Capacity | 19.9 gal (75 L) |
