Contents
- Dimensions
- Weights and Ballasts
- Standard Tire Sizes
- Tire Inflation Pressure
- Engine Details
- Operational Specs
- Transmission
- PTO (Power Take-Off)
- Hydraulic System
- Service Refill Capacities
- John Deere 455 Filters
- Serial Numbers & PIN Location
- John Deere 455 Attachments
- Mower Decks for John Deere 455
- Snow Blowers for John Deere 455
- John Deere 40 Loader
- 51″ Rotary Broom JD 1571M
- 54″ Blade JD 1490M

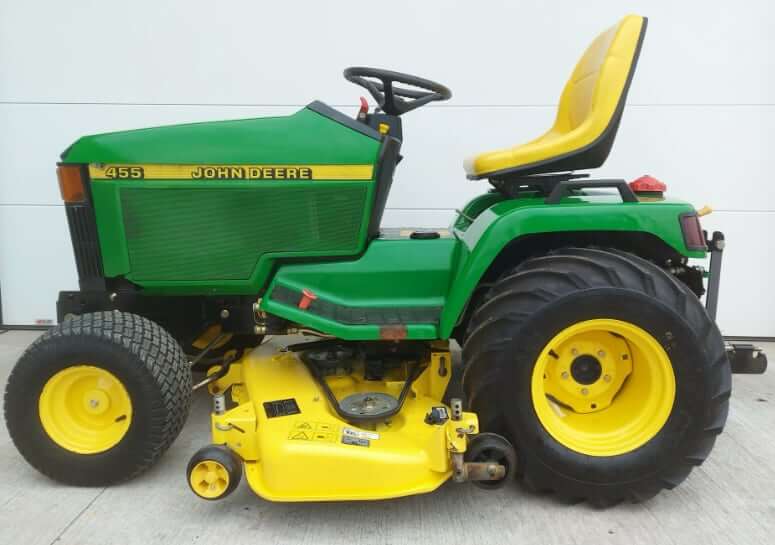

Dimensions
| Overall Length | 75 in (1905 mm) |
| Wheelbase (2WS) | 50.4 in (1280 mm) |
| Wheelbase (AWS) | 49.4 in (1255 mm) |
| Overall Height (23×10.50 tires) | 50.0 in (1270 mm) |
| Overall Height (26×12.00 tires) | 51.5 in (1308 mm) |
| Height to Top of Cab (Optional) | 74 in (1880 mm) |
| Overall Width (Narrow Position, 23×10.50) | 45 in (1138 mm) |
| Overall Width (Wide Position, 23×10.50) | 47 in (1195 mm) |
| Overall Width (Wide Position, 26×12.00) | 49 in (1250 mm) |
Weights and Ballasts
| Operating Weight (2WS) | 965 lb (437 kg) |
| Operating Weight (AWS) | 1060 lb (480 kg) |
| Front Suitcase Weight Ballast, UC13263 (Standard) | 5x 42 lb (19 kg) |
| Front Suitcase Weights, UC13263 (w/ Front Weight Bracket BM20957) | 9x 42 lb (19 kg) |
| Front Wheel Weights (Standard) | 2x 35 lb (16 kg) |
| Front Wheel Weights, BM17964 | 2x 30 lb (13.6 kg) |
| Front Wheel Weights, M84064 | 2x 32 lb (14.5 kg) |
| Front Wheel Weights, UC13499 | 2x 70 lb (32 kg) |
| Rear Suitcase Weights, UC13263 (w/ Rear Weight Bracket BM20779) | 6x 42 lb (19 kg) |
| Rear Wheel Weights, BM17972 | 2x 50 lb (23 kg) |
| Rear Wheel Weights, BM17976 | 2x 50 lb (23 kg) |
| Rear Wheel Weights, BM17973 | 2x 72 lb (33 kg) |
| Rear Wheel Weights, Combo A = BM17973 + BM17972 | 2x 122 lb (56 kg) |
| Rear Wheel Weights, Combo B = BM17973 + BM17972 | 2x 172 lb (78 kg) |

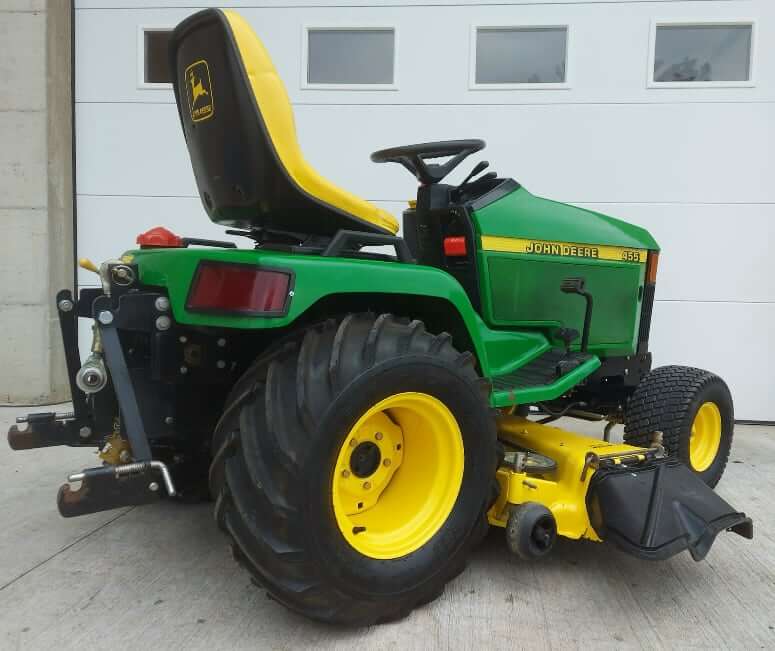

Standard Tire Sizes
| Steering Type | 2WS (Lawn / Turf) | 4WS (Lawn / Turf) |
|---|---|---|
| Front Tire Size | 18×8.50 – 8, Tubeless | 16×7.50 – 8, Tubeless |
| Rear Tire Size | 26×12.00 – 12, Tubeless | 23×10.50 – 12, Tubeless |
Tire Inflation Pressure
| Tire Size | Ply Rating | Pressure |
|---|---|---|
| 16×6.50-8 | 4 | 6-28 psi (40-193 kPa) |
| 16×7.50-8 | 2 | 8-12 psi (56-83 kPa) |
| 18×8.50-8 | 4 | 6-22 psi (40-152 kPa) |
| 23×8.50-12 | 2 | 6-10 psi (40-70 kPa) |
| 23×10.50-12 | 2 | 6-10 psi (40-70 kPa) |
| 26×12.00-12 | 2 | 6-10 psi (40-70 kPa) |
| 26×12.00-12 | 4 | 6-20 psi (40-138 kPa) |

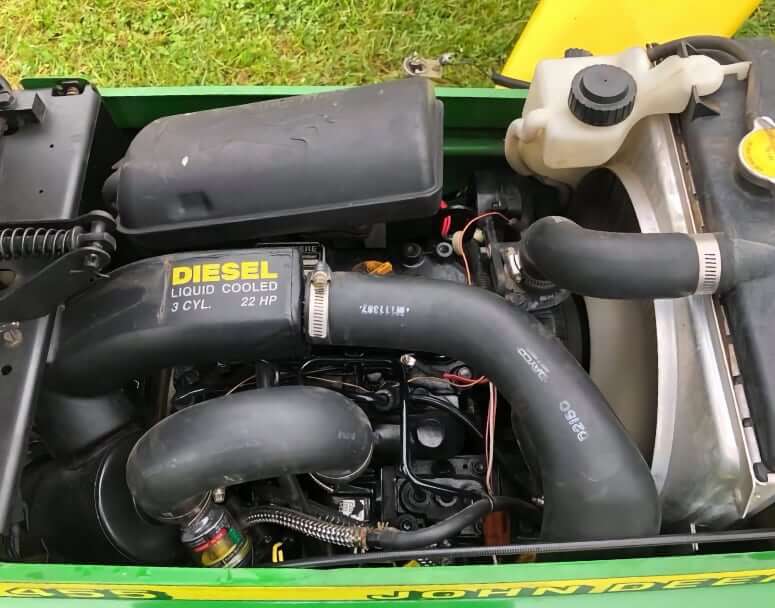

Engine Details
| Number of Cylinders | 3 |
| Engine Make | Yanmar |
| Engine Model | Yanmar 3TNA72UJ3 |
| Fuel Type | Diesel |
| Displacement | 53.8 cu in (0.879 L) |
| Bore | 2.84 in (72 mm) |
| Stroke | 2.84 in (72 mm) |
| Horsepower | 22 hp (16.4 kw) |
| Power Measured @ | 2850 rpm |
| Slow Idle Speed | 1650 rpm |
| Fast Idle Speed | 3350 rpm |
| Compression Ratio | 21.6:1 |
| Combustion Chamber | Special swirl engine type |
| Fuel System | In-line indirect injection |
| Fuel Pump Type | Electric |
| Lubrication System | Forcible lubrication by trochoid pump |
| Cooling System | Liquid-cooled with radiator |
| Air Cleaner | Replaceable paper element |
| Aspiration | Naturally aspirated |
Operational Specs
| Operating Weight (2WS) | 965 lb (437 kg) |
| Operating Weight (AWS) | 1060 lb (480 kg) |
| Operating Voltage | 12 V |
| Alternator | 20 amps |
| Battery | 12 V, CCA 470, JD TY6185 |
| Starter | 12 V, 1.07 hp (0.8 kw) |
| Operator Station | Open Operator Station |
| Operator Cab | Optional Cozy cab (with optional heater) |
| Noise Level | 88 dB(A) |
Transmission
| Type | Shaft-driven hydrostatic transmission (HST) |
| Transaxle Model | Kanzaki Tuff Torq K91 |
| Number of Gears | Infinite forward and reverse |
| Max Forward Speed (23″ tires) | 7.5 mph (12 km/h) |
| Max Reverse Speed (23″ tires) | 4.0 mph (6.0 km/h) |
| Max Forward Speed (26″ tires) | 8.5 mph (13.7 km/h) |
| Max Reverse Speed (26″ tires) | 4.25 mph (6.8 km/h) |
| Drive | 2WD |
| Steering | 2WS hydrostatic power steering / AWS (Optional |
| Steering Wheel | 4-position tilt steering wheel |
| Service Brakes | Internal wet disc brakes |
| Cruise Control | Standard |
| Differential lock | Mechanical rear |

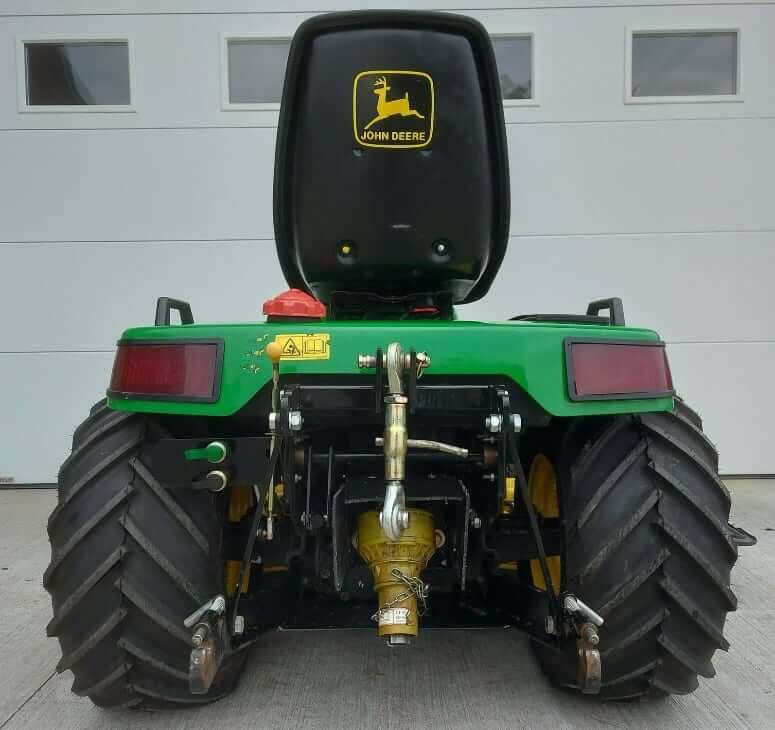

PTO (Power Take-Off)
| Mid PTO (Standard) | Independent (1.375) |
| Mid PTO Clutch | Electro-hydraulic wet disc |
| Mid PTO Speed | 2000 rpm |
| Rear PTO (Optional) | Independent. Tractor must be off for shifting between rear, mid, or both PTOs |
| Rear PTO Clutch | Electro-hydraulic |
| Rear PTO Speed | 540 rpm |
Hydraulic System
| Type | Gerotor |
| Hydraulic Pump Flow | 4.65 gal/min (17.6 L/min) |
| Hydraulic System Pressure | 1000 psi (6895 kPa) |
| Number of Remote Control Valves (Mid) | 2 (4) |
Service Refill Capacities
| Fuel Tank Capacity | 6.5 gal (24.6 L) |
| Engine Oil Capacity (w/ filter) | 0.74 gal (2.8 L) |
| Cooling System Capacity | 0.74 gal (2.8 L) |
| Transaxle Oil Capacity (2WS) w/ filter | 1.7 gal (6.6 L) |
| Transaxle Oil Capacity (AWS) w/ filter | 1.5 gal (5.7 L) |
John Deere 455 Filters
| Engine Air Filter (Primary) | AM108243 |
| Engine Air Filter (Secondary) | M94734 |
| Inline Fuel Filter | CH15553 |
| Engine Oil Filter | AM101378 (M806418) |
| Transaxle / Hydraulic Oil Filter | AM116156 |
Serial Numbers & PIN Location
Serial number plate on the right side of the 425 tractor frame, above and behind the front axle.
| Year | Serial Number | Year | Serial Number |
|---|---|---|---|
| 1993 | 010001 | 1998 | 060001 |
| 1994 | 020001 | 1999 | 070001 |
| 1995 | 030001 | 2000 | 080001 |
| 1996 | 040001 | 2001 | 090001 |
| 1997 | 050001 |

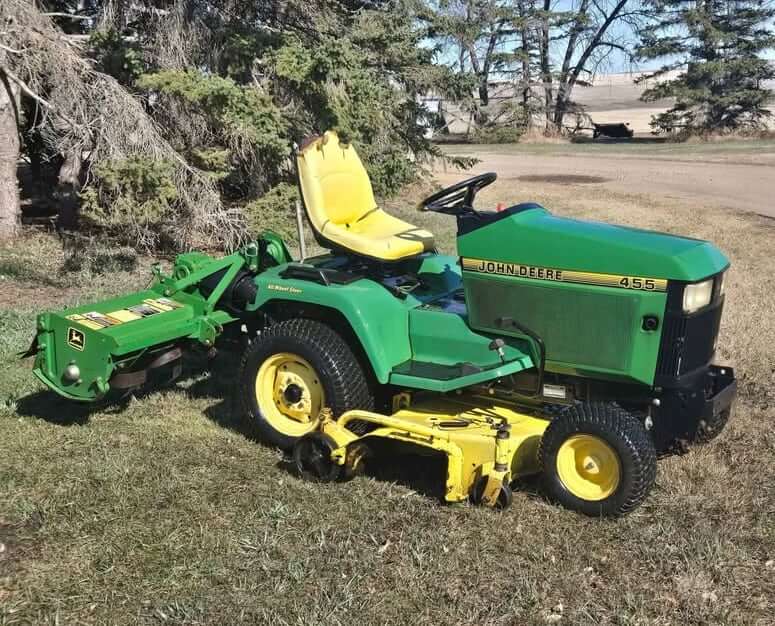

John Deere 455 Attachments
The John Deere 455 lawn tractor was a diesel-powered, heavy-duty garden tractor designed for versatility and year-round performance. It supported a variety of attachments, including mid-mount mower decks in 48″ (BM17205), 54″ (BM17206), and 60″ (BM17220) sizes for precision mowing, as well as powerful winter equipment like the 46″ Snow Thrower (JD 1481M) and 47″ Snow Blower (JD 1471M). Other seasonal and utility tools included the 54″ front blade (JD 1490M) for snow and dirt, and the 51″ Rotary Broom (JD 1571M) for debris sweeping.

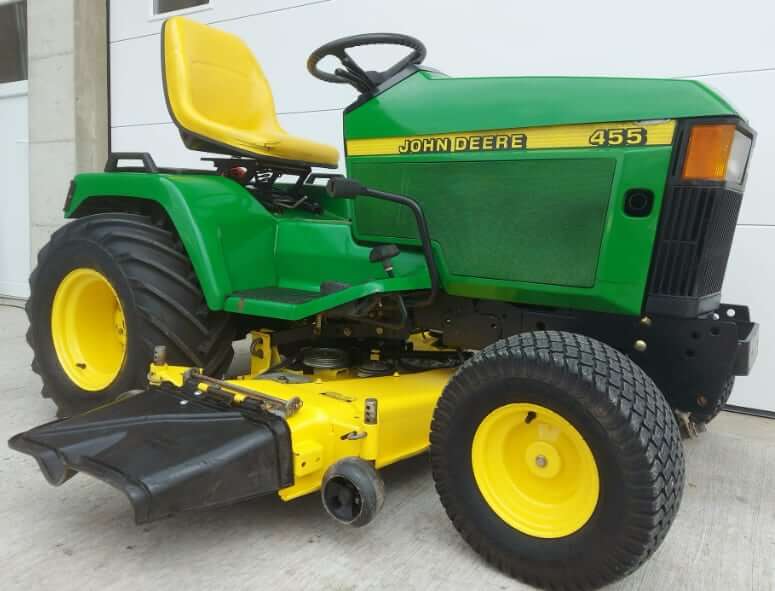

Mower Decks for John Deere 455
| Model | 48″ Mower Deck JD BM17205 | 54″ Mower Deck JD BM17206 | 60″ Mower Deck JD BM17220 |
|---|---|---|---|
| Mount Type | Mid-mount | Mid-mount | Mid-mount |
| Overall Width | 59.9 in (1521 mm) | 65.9 in (1674 mm) | 72.5 in (1842 mm) |
| Cutting Width | 48 in (1219 mm) | 54 in (1372 mm) | 60 in (1524 mm) |
| Cutting Height | 1 to 4 in (25 to 102 mm) | 1 to 4 in (25 to 102 mm) | 1 to 4 in (25 to 102 mm) |
| Cut Adjustments | 25 | 25 | 25 |
| Blades | 3 | 3 | 3 |
| Lift Type | Hydraulic lift | Hydraulic lift | Hydraulic lift |
| Mower Deck Weight | 175 lb (79 kg) | 185 lb (83 kg) | 300 lb (136 kg) |

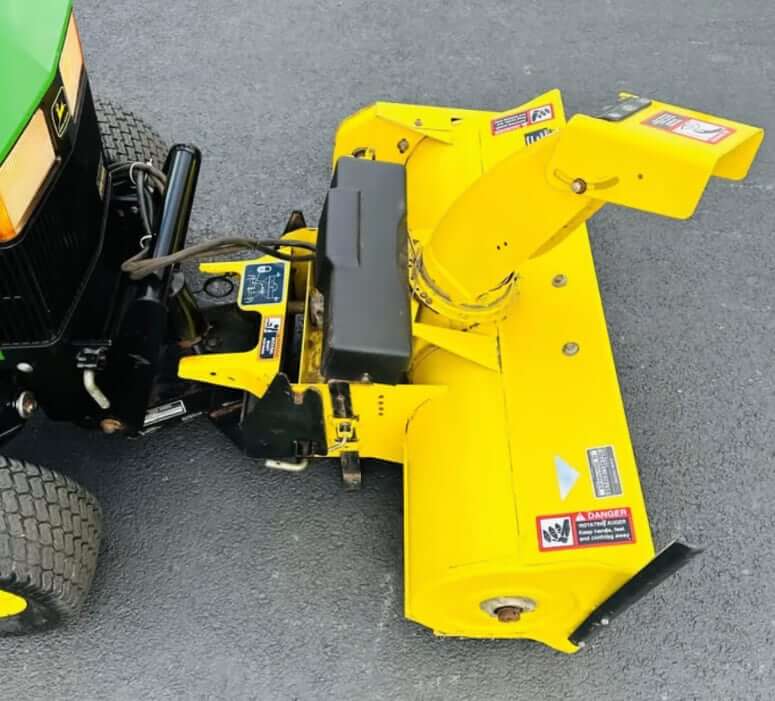

Snow Blowers for John Deere 455
| Model | 46″ Snow Thrower JD 1481M | 47″ Snow Blower JD 1471M |
|---|---|---|
| Mount Type | Front-mount | Front-mount |
| Clearing Width | 46 in (1168 mm) | 47 in (1194 mm) |
| Clearing Height | 30.6 in (778 mm) | 30.6 in (778 mm) |
| Lift Type | Hydraulic Lift | Hydraulic Lift |
| Stage | Single-stage | Dual-stage |
| Weight | 250 lb (113 kg) | 300 lb (136 kg) |

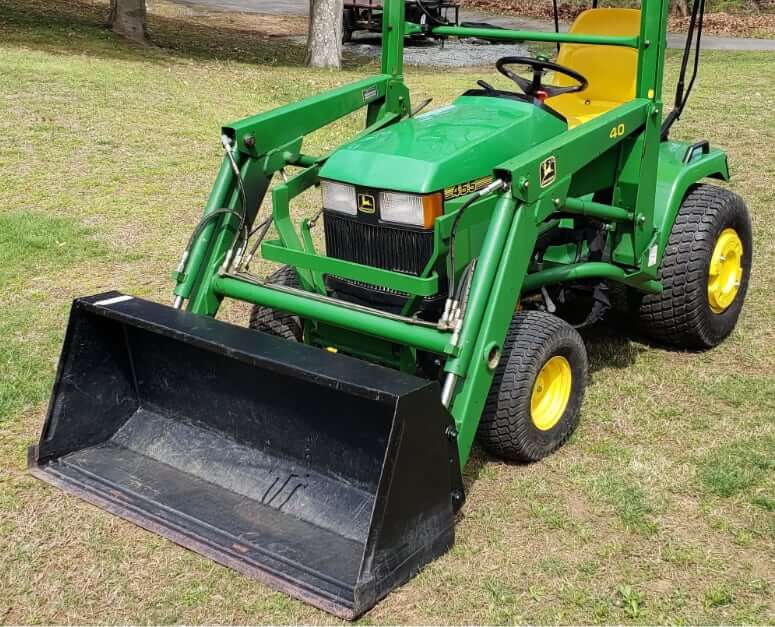

John Deere 40 Loader
| Tractor Tire Sizes (Front/Rear) | 16×6.50-8 23×10.50-12 |
18×8.50-8 26×12.00-12 |
|---|---|---|
| A. Maximum Lift Height | 69 in (1750 mm) | 70 in (1780 mm) |
| B. Maximum Clearance Under Full Dumped Bucket | 52 in (1320 mm) | 53 in (1350 mm) |
| C. Reach with Bucket Dumped 45° at Max Height | 22 in (559 mm) | 22 in (559 mm) |
| D. Maximum Bucket Dump Angle | 50° | 50° |
| E. Reach with Bucket on Ground | 43 in (1090 mm) | 42.5 in (1080 mm) |
| F. Bucket Rollback Angle on Ground | 19° | 18° |
| G. Digging Depth Below Ground Level | 4 in (100 mm) | 3 in (80 mm) |
| Lift Capacity at 36 in (914 mm) | 580 lb (263 kg) | 580 lb (263 kg) |
| Breakout Force (Boom cylinders) | 600 lbf (2.67 kN) | 600 lbf (2.67 kN) |
| Breakout Force (Bucket cylinders) | 350 lbf (1.56 kN) | 350 lbf (1.56 kN) |
| Overall Length (Hitch to bucket front edge) | 125 in (3180 mm) | 125 in (3180 mm) |
| Bucket Width | 48 in (1220 mm) | 48 in (1220 mm) |
| Bucket Capacity (Struck) | 6.2 ft3 (0.176 m3) | 6.2 ft3 (0.176 m3) |
| Hydraulic Pressure | 1000 psi (6900 kPa) | 1000 psi (6900 kPa) |
| Lift Cylinder Diameter | 1.5 in (38 mm) | 1.5 in (38 mm) |
| Bucket Cylinder Diameter | 1.75 in (44 mm) | 1.75 in (44 mm) |
51″ Rotary Broom JD 1571M
| Mount Type | Front-mount, Quick Hitch |
| Clearing Width | 51 in (1295 mm) |
| Diameter | 18 in (460 mm) |
| Sections | 22 convoluted and 2 sloped |
| Speed | 200 rpm |
| Material | Polypropylene |
| Angling | 0-27° each side |
| Height Adjustment | 9 positions. in 0.5 in (13 mm) increments |
| Wheels | 6.3 x 3.1 in (160 x 80 mm) |
54″ Blade JD 1490M
| Mount Type | Front-mount, Quick Hitch |
| Clearing Width (Straight) | 54 in (1372 mm) |
| Clearing Width (Fully Angled) | 48 in (1219 mm) |
| Lift Height | 11 in (279 mm) |
| Cut | 3.5 in (89 mm) |
| Lift Type | Hydraulic lift |
| Angle Type | Hydraulic angle |
| Angling | 0-27° each side |
| Blade Weight | 184 lb (83 kg) |
| Type | Heavy 11-gauge, curved blade |
| Shoes | Two adjustable skid shoes |
The John Deere 40 front-end loader could be used with the 455 only if the tractor featured two-wheel steering. For gardening tasks, the 455 was compatible with a 42-inch hydraulic tiller (M04390X) mounted via the three-point hitch. To operate front-mounted implements like the blade or snowblower, the tractor required the front hitch (BM17347), while the front PTO kit (BM17330) was necessary to power the snowblower. With these attachments, the John Deere 455 proved to be a capable and adaptable machine for homeowners and landscapers alike.
