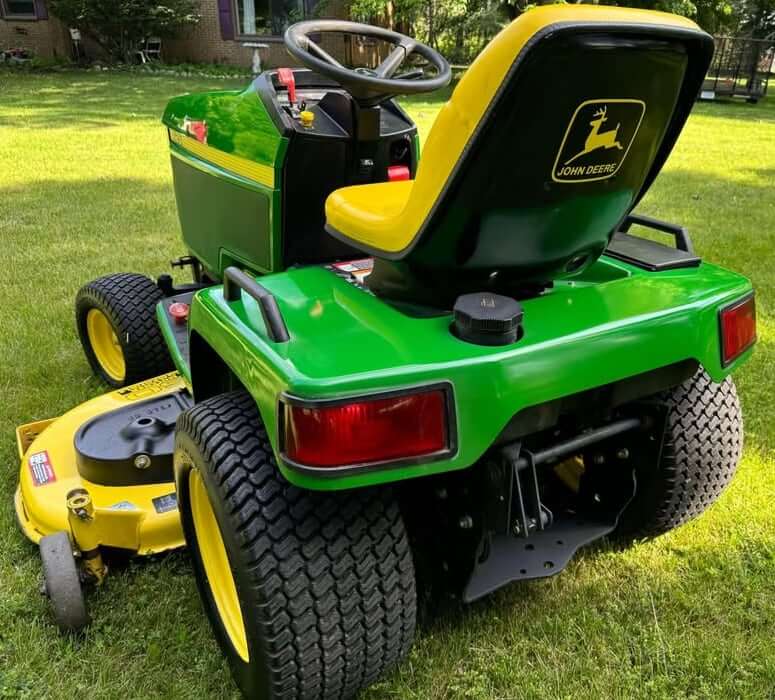

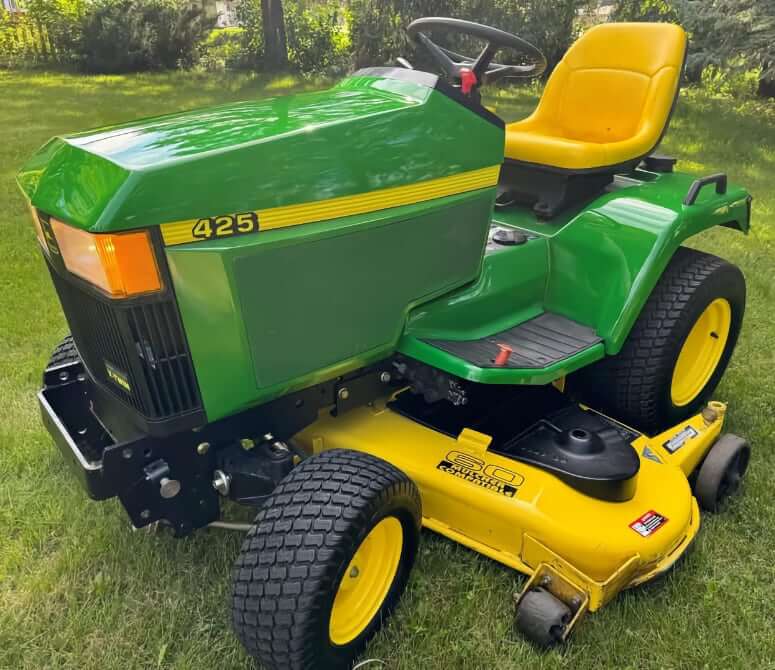

Dimensions
| Overall Length | 75 in (1905 mm) |
| Wheelbase (2WS) | 50.4 in (1280 mm) |
| Wheelbase (AWS) | 49.4 in (1255 mm) |
| Overall Height (23×10.50-12 tires) | 46.0 in (1166 mm) |
| Height to Top of Cab (Optional) | 74 in (1880 mm) |
| Overall Width (Narrow Position, 23×10.50-12) | 45 in (1138 mm) |
| Overall Width (Wide Position, 23×10.50-12) | 47 in (1195 mm) |
| Overall Width (Wide Position, 26×12.00-12) | 49 in (1250 mm) |

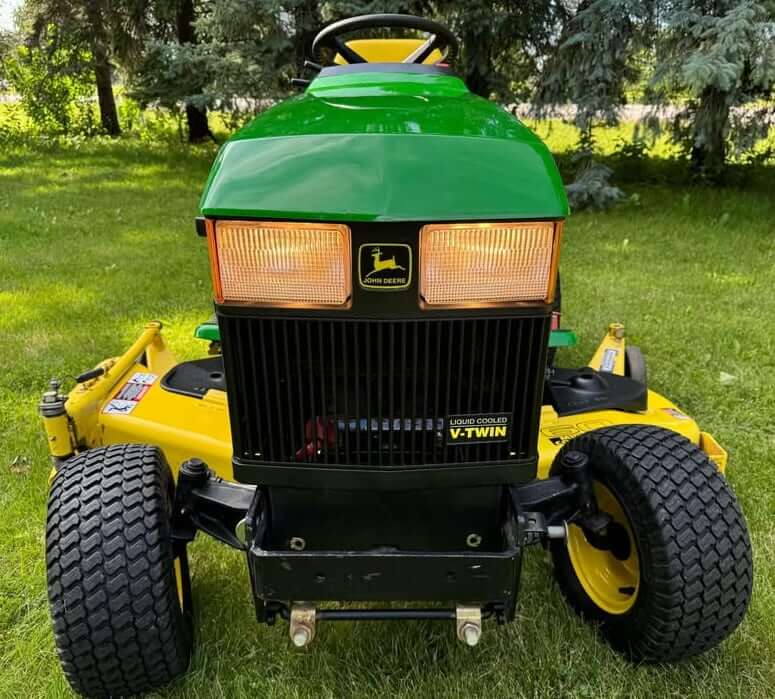

Standard Tire Sizes
| Front Tire Size, Lawn / Turf, Tubeless | 16×7.50-8 |
| Rear Tire Size, Lawn / Turf, Tubeless | 23×10.50-12 |
Tire Inflation Pressure
| Tire Size | Ply Rating | Pressure |
|---|---|---|
| 16×6.50-8 | 4 | 6-28 psi (40-193 kPa) |
| 16×7.50-8 | 2 | 8-12 psi (56-83 kPa) |
| 18×8.50-8 | 4 | 6-22 psi (40-152 kPa) |
| 23×8.50-12 | 2 | 6-10 psi (40-70 kPa) |
| 23×10.50-12 | 2 | 6-10 psi (40-70 kPa) |
| 26×12.00-12 | 2 | 6-10 psi (40-70 kPa) |
| 26×12.00-12 | 4 | 6-20 psi (40-138 kPa) |
Engine Details
| Number of Cylinders | 2 |
| Engine Make | Kawasaki |
| Engine Model | Kawasaki FD620D AS02 |
| Fuel Type | Gasoline |
| Displacement | 37.7 cu in (0.617 L) |
| Bore | 2.99 in (76 mm) |
| Stroke | 2.68 in (68 mm) |
| Horsepower | 20 hp (14.9 kw) |
| Power Measured @ | 3600 rpm |
| Slow Idle Speed | 1450 rpm |
| Fast Idle Speed | 3550 rpm |
| Compression Ratio | 9.0:1 |
| Governor | All speed mechanical fly weights |
| Fuel System | Carburetor |
| Lubrication | Pressure feed by positive displacement pump |
| Cooling System | Pressurized forced circulation type |
| Radiator | 3-rows with louverless corrugated fin |
| Air Cleaner | Dual stage air filter: foam element + paper element |
| Spark Plug | John Deere A-B1BMR7ASD / A-B1BMR6A / A-B1CJ8 / A-B1RJ17LM / A-B1BMR2ASD |
| Spark Plug Gap | 0.03 in (0.762 mm) |
Operational Specs
| Operating Weight (2WS) | 805 lb (365 kg) |
| Operating Weight (AWS) | 900 lb (408 kg) |
| Operating Voltage | 12 V |
| Alternator | 20 amps |
| Battery | 12 V, CCA 340, 22 Ah |
| Starter | 12 V, 1.1 hp (0.8 kw) |
| Operator Station | Open Operator Station |
| Operator Cab | Optional Cozy cab (with optional heater) |
| Noise Level | 79 dB(A) |

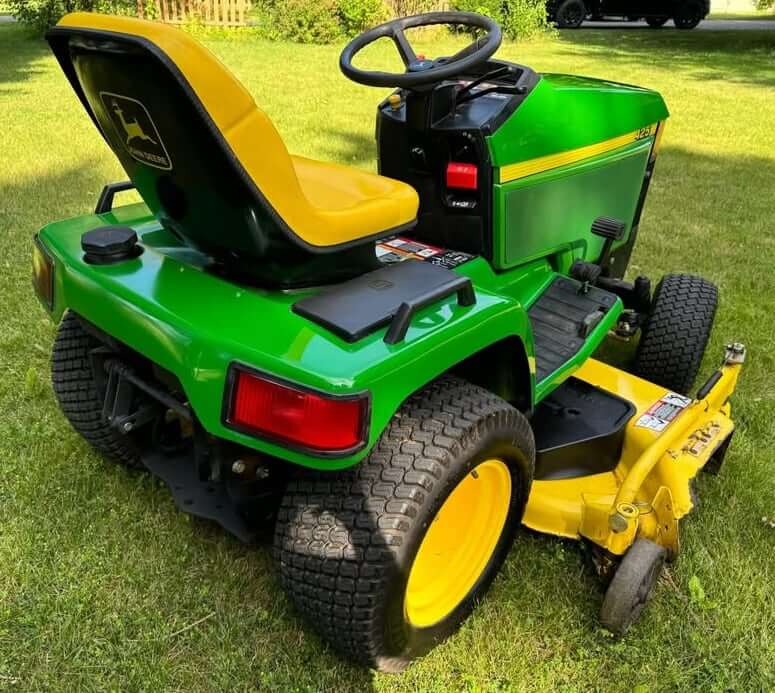

Transmission
| Type | Shaft-driven hydrostatic transmission (HST) |
| Transaxle Model | Kanzaki Tuff Torq K91 |
| Number of Gears | Infinite forward and reverse |
| Max Forward Speed (23″ tires) | 7.5 mph (12 km/h) |
| Max Reverse Speed (23″ tires) | 4.0 mph (6.0 km/h) |
| Max Forward Speed (26″ tires) | 8.5 mph (13.7 km/h) |
| Max Reverse Speed (26″ tires) | 4.25 mph (6.8 km/h) |
| Steering | Hydrostatic power steering |
| Service Brakes | Internal wet disc brakes |
| Cruise Control | Standard |
| Differential lock | Mechanical rear |
PTO (Power Take-Off)
| Mid PTO (Standard) | Independent (1.375) |
| Mid PTO Clutch | Electro-hydraulic |
| Mid PTO Speed | 2000 rpm |
| Rear PTO (Optional) | Independent. Tractor must be off for shifting between rear, mid, or both PTOs |
| Rear PTO Clutch | Electro-hydraulic |
| Rear PTO Speed | 540 rpm |

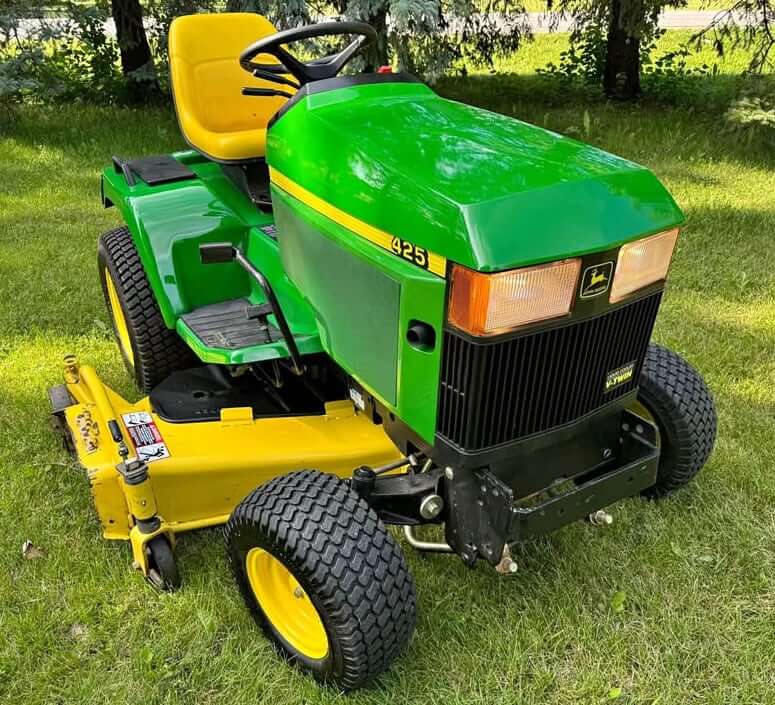

Weights and Ballasts
| Operating Weight (2WS) | 805 lb (365 kg) |
| Operating Weight (AWS) | 900 lb (408 kg) |
| Front Suitcase Weight Ballast, UC13263 (Standard) | 5x 42 lb (19 kg) |
| Front Suitcase Weights, UC13263 (w/ Front Weight Bracket BM20957) | 9x 42 lb (19 kg) |
| Front Wheel Weights (Standard) | 2x 35 lb (16 kg) |
| Front Wheel Weights, BM17964 | 2x 30 lb (13.6 kg) |
| Front Wheel Weights, M84064 | 2x 32 lb (14.5 kg) |
| Front Wheel Weights, UC13499 | 2x 70 lb (32 kg) |
| Rear Suitcase Weights, UC13263 (w/ Rear Weight Bracket BM20779) | 6x 42 lb (19 kg) |
| Rear Wheel Weights, BM17972 | 2x 50 lb (23 kg) |
| Rear Wheel Weights, BM17976 | 2x 50 lb (23 kg) |
| Rear Wheel Weights, BM17973 | 2x 72 lb (33 kg) |
| Rear Wheel Weights, Combo A = BM17973 + BM17972 | 2x 122 lb (56 kg) |
| Rear Wheel Weights, Combo B = BM17973 + BM17972 | 2x 172 lb (78 kg) |
Hydraulic System
| Type | Gerotor |
| Hydraulic Pump Flow | 4.65 gal/min (17.6 L/min) |
| Hydraulic System Pressure | 1000 psi (6895 kPa) |
| Number of Remote Control Valves (Mid) | 2 (4) |

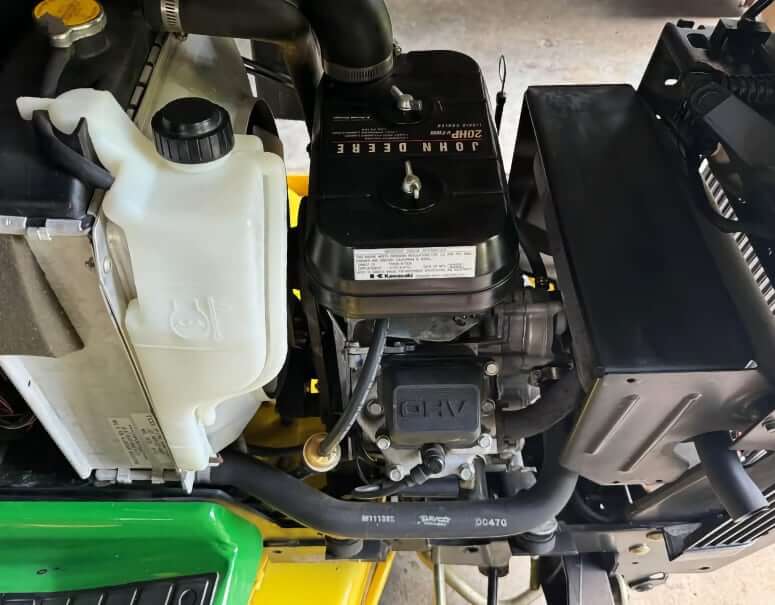

Service Refill Capacities
| Fuel Tank Capacity | 6.5 gal (24.6 L) |
| Engine Oil Capacity (w/ filter) | 0.37 gal (1.4 L) |
| Cooling System Capacity | 0.74 gal (2.8 L) |
| Transaxle Oil Capacity (2WS) w/ filter | 1.7 gal (6.6 L) |
| Transaxle Oil Capacity (AWS) w/ filter | 1.5 gal (5.7 L) |
John Deere 425 Filters
| Engine Air Filter (Primary) | M76076 |
| Engine Air Filter (Secondary) | M117254 |
| Inline Fuel Filter | AM116304 |
| Fuel Pump Filter | M111816 |
| Engine Oil Filter | AM107423 |
| Transmission / Hydraulic Oil Filter | AM116156 |
Serial Numbers & PIN Location
Serial number plate on the right side of the 425 tractor frame, above and behind the front axle.
| Year | Serial Number | Year | Serial Number |
|---|---|---|---|
| 1993 | 010001 | 1998 | 060001 |
| 1994 | 020001 | 1999 | 070001 |
| 1995 | 030001 | 2000 | 080001 |
| 1996 | 040001 | 2001 | 090001 |
| 1997 | 050001 |

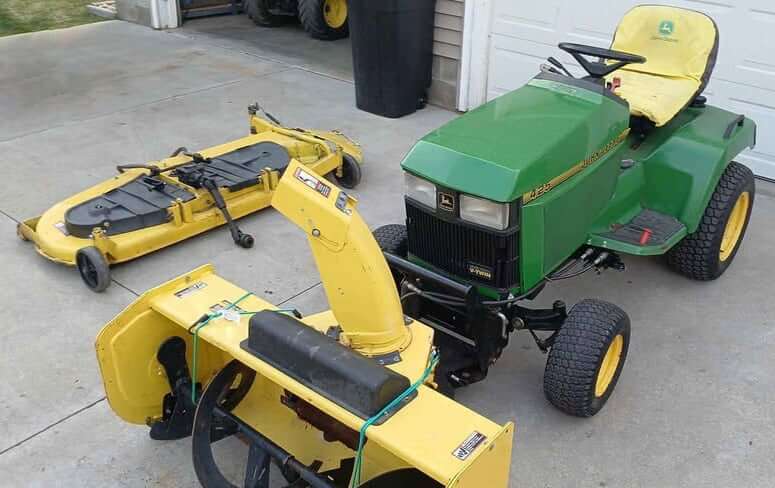

John Deere 425 Attachments
The John Deere 425 lawn tractor was designed as a premium garden tractor, offering versatility through a wide range of compatible attachments for year-round utility. It supports front-end loaders like the John Deere 40 Loader, several mid-mount mower decks in 48″, 54″, and 60″ widths (models BM17205, BM17206, BM17220), and seasonal tools including the 46-inch snow thrower (JD 1481M), 47-inch snow blower (JD 1471M), and 51-inch rotary broom (JD 1571M) for winter and debris management. A 54-inch front blade (JD 1490M) is also available for grading and snow pushing tasks.

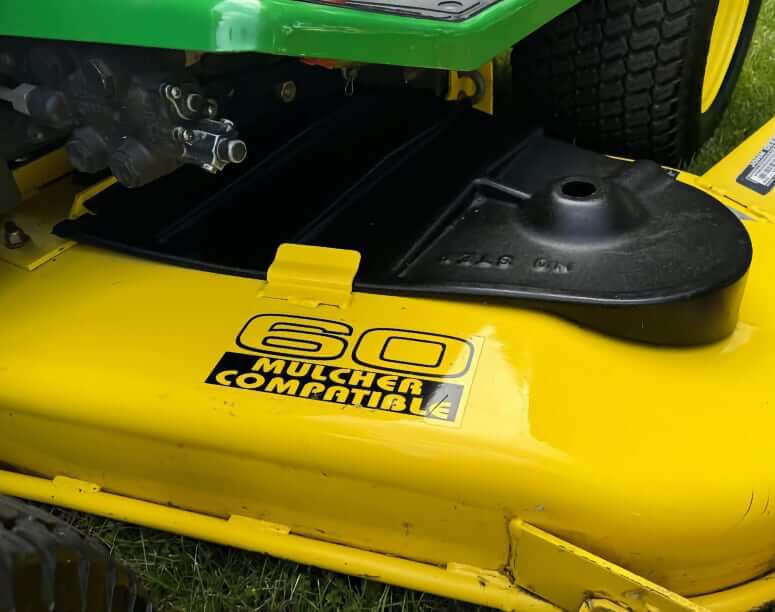

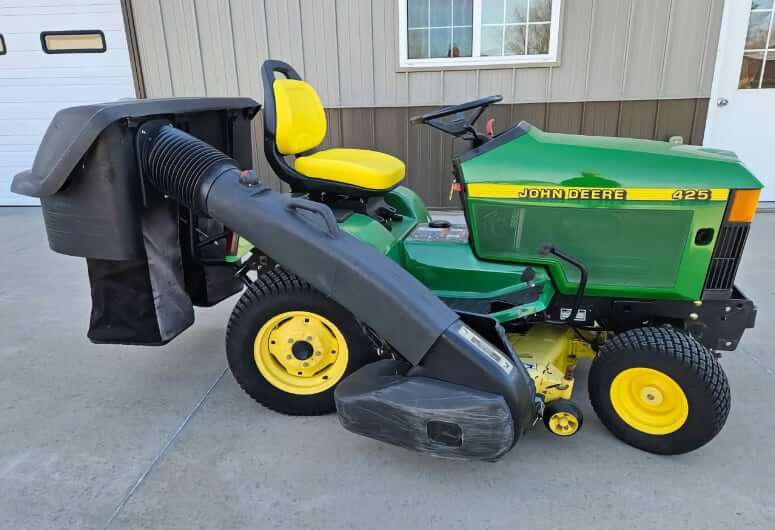

Mower Decks for John Deere 425
| Model | 48″ Mower Deck JD BM17205 | 54″ Mower Deck JD BM17206 | 60″ Mower Deck JD BM17220 |
|---|---|---|---|
| Mount Type | Mid-mount | Mid-mount | Mid-mount |
| Overall Width | 59.9 in (1521 mm) | 65.9 in (1674 mm) | 72.5 in (1842 mm) |
| Cutting Width | 48 in (1219 mm) | 54 in (1372 mm) | 60 in (1524 mm) |
| Cutting Height | 1 to 4 in (25 to 102 mm) | 1 to 4 in (25 to 102 mm) | 1 to 4 in (25 to 102 mm) |
| Cut Adjustments | 25 | 25 | 25 |
| Blades | 3 | 3 | 3 |
| Lift Type | Hydraulic lift | Hydraulic lift | Hydraulic lift |
| Mower Deck Weight | 175 lb (79 kg) | 185 lb (83 kg) | 300 lb (136 kg) |

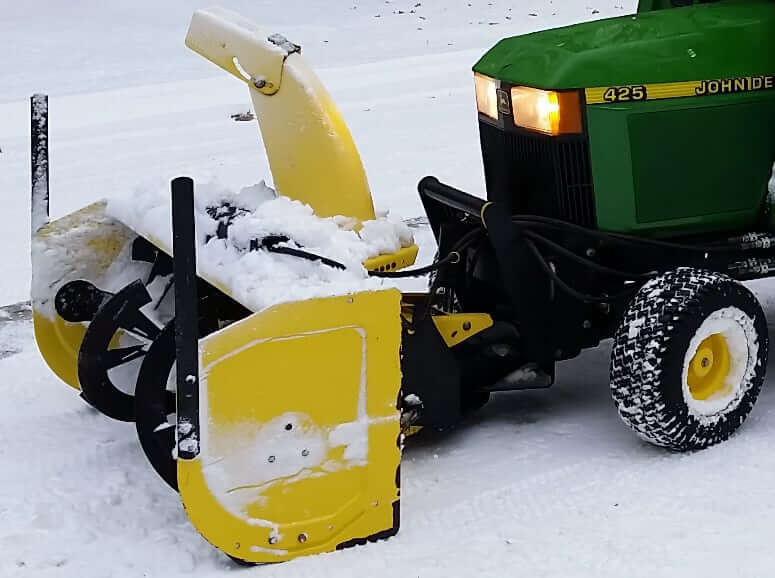

Snow Blowers for John Deere 425
| Model | 46″ Snow Thrower JD 1481M | 47″ Snow Blower JD 1471M |
|---|---|---|
| Mount Type | Front-mount | Front-mount |
| Clearing Width | 46 in (1168 mm) | 47 in (1194 mm) |
| Clearing Height | 30.6 in (778 mm) | 30.6 in (778 mm) |
| Lift Type | Hydraulic Lift | Hydraulic Lift |
| Stage | Single-stage | Dual-stage |
| Weight | 250 lb (113 kg) | 300 lb (136 kg) |

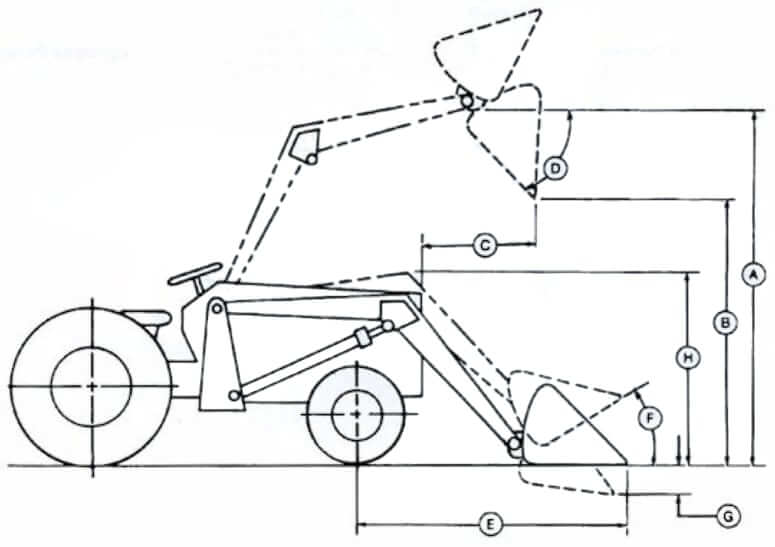

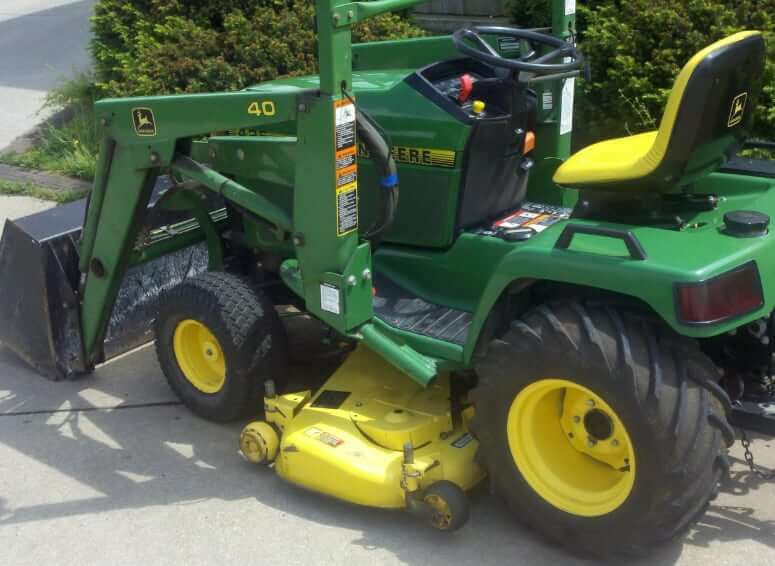

John Deere 40 Loader
| Tractor Tire Sizes (Front/Rear) | 16×6.50-8 23×10.50-12 |
18×8.50-8 26×12.00-12 |
|---|---|---|
| A. Maximum Lift Height | 69 in (1750 mm) | 70 in (1780 mm) |
| B. Maximum Clearance Under Full Dumped Bucket | 52 in (1320 mm) | 53 in (1350 mm) |
| C. Reach with Bucket Dumped 45° at Max Height | 22 in (559 mm) | 22 in (559 mm) |
| D. Maximum Bucket Dump Angle | 50° | 50° |
| E. Reach with Bucket on Ground | 43 in (1090 mm) | 42.5 in (1080 mm) |
| F. Bucket Rollback Angle on Ground | 19° | 18° |
| G. Digging Depth Below Ground Level | 4 in (100 mm) | 3 in (80 mm) |
| Lift Capacity at 36 in (914 mm) | 580 lb (263 kg) | 580 lb (263 kg) |
| Breakout Force (Boom cylinders) | 600 lbf (2.67 kN) | 600 lbf (2.67 kN) |
| Breakout Force (Bucket cylinders) | 350 lbf (1.56 kN) | 350 lbf (1.56 kN) |
| Overall Length (Hitch to bucket front edge) | 125 in (3180 mm) | 125 in (3180 mm) |
| Bucket Width | 48 in (1220 mm) | 48 in (1220 mm) |
| Bucket Capacity (Struck) | 6.2 ft3 (0.176 m3) | 6.2 ft3 (0.176 m3) |
| Hydraulic Pressure | 1000 psi (6900 kPa) | 1000 psi (6900 kPa) |
| Lift Cylinder Diameter | 1.5 in (38 mm) | 1.5 in (38 mm) |
| Bucket Cylinder Diameter | 1.75 in (44 mm) | 1.75 in (44 mm) |
51″ Rotary Broom JD 1571M
| Mount Type | Front-mount, Quick Hitch |
| Clearing Width | 51 in (1295 mm) |
| Diameter | 18 in (460 mm) |
| Sections | 22 convoluted and 2 sloped |
| Speed | 200 rpm |
| Material | Polypropylene |
| Angling | 0-27° each side |
| Height Adjustment | 9 positions. in 0.5 in (13 mm) increments |
| Wheels | 6.3 x 3.1 in (160 x 80 mm) |

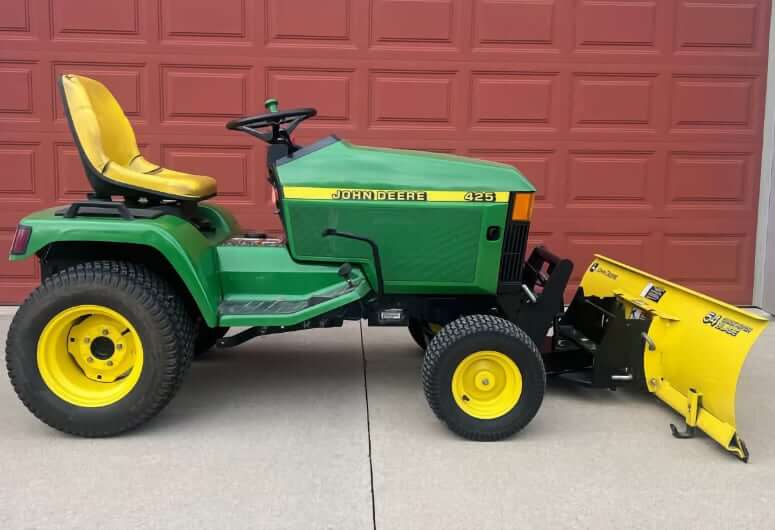

54″ Blade JD 1490M
| Mount Type | Front-mount, Quick Hitch |
| Clearing Width (Straight) | 54 in (1372 mm) |
| Clearing Width (Fully Angled) | 48 in (1219 mm) |
| Lift Height | 11 in (279 mm) |
| Cut | 3.5 in (89 mm) |
| Lift Type | Hydraulic lift |
| Angle Type | Hydraulic angle |
| Angling | 0-27° each side |
| Blade Weight | 184 lb (83 kg) |
| Type | Heavy 11-gauge, curved blade |
| Shoes | Two adjustable skid shoes |
Additionally, the 425 could be equipped with a 42-inch hydraulic tiller (M04390X) mounted via a rear 3-point hitch system for garden preparation.
Mounting the front blade or snowblower requires optional components including the hydraulic couplers (BM17763), front hitch (BM17347), and a front PTO kit (BM17330) for powered implements like the snowblower. These options made the John Deere 425 a highly adaptable tractor for mowing, landscaping, and snow handling duties.
