Dimensions
| Overall Length (w/ 3P hitch) | 103 in (2600 mm) |
| Wheelbase | 58 in (1500 mm) |
| Overall Width (Minimum) | 47 in (1200 mm) |
| Overall Width (Maximum) | 49 in (1300 mm) |
| Front Tread Width | 31.1 in (790 mm) |
| Rear Tread Width | 33.5 in (850 mm) |
| Height to Top of Hood | 44 in (1100 mm) |
| Height to Top of ROPS | 78.9 in (2000 mm) |
| Height to Top of Folded ROPS | 68 in (1720 mm) |
| Ground Clearance (Front Axle, CST) | 9.80 in (249 mm) |
| Ground Clearance (Rear Axle, HST) | 9.84 in (250 mm) |
| Turning Radius (w/ brakes, MFDW off) | 78.7 in (2000 mm) |
| Turning Radius (w/o brakes, MFDW off) | 90.6 in (2300 mm) |

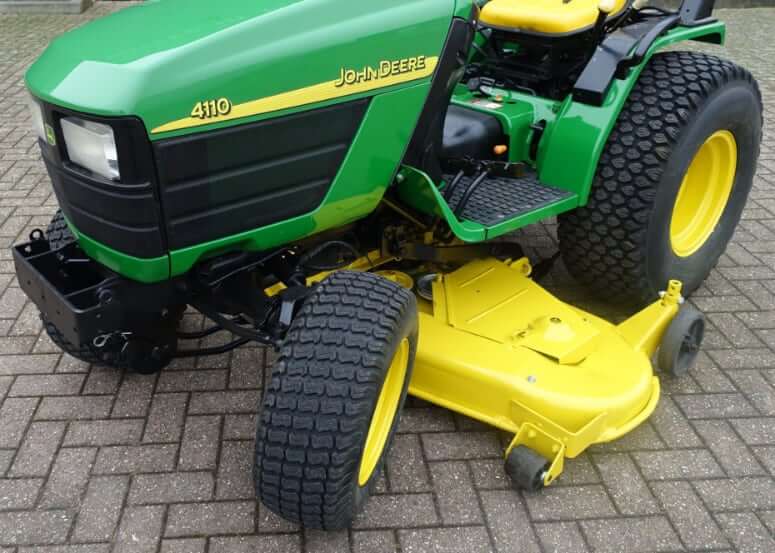

Tire Sizes
| Front Tire Size (Standard) | 7.00-12 R1 |
| Front Tire Size (Optional) | 5.00-12 4PR R1; 23×8.50-12 4PR R4 |
| Rear Tire Size (Standard) | 9.5-16 6PR R1 |
| Rear Tire Size (Optional) | 315/75D-15 4PR R3; 12-16.5 6PR R4 |
Tire Inflation Pressure
| Front Tire (5.00-12 4PR R1) | 33 psi (225 kPa) |
| Front Tire (7.00-12 4PR R1) | 25 psi (170 kPa) |
| Front Tire (23×8.50-12 4PR R4) | 35 psi (240 kPa) |
| Rear Tire (9.5-16 6PR R1) | 30 psi (210 kPa) |
| Rear Tire (315/75D-15 4PR R3) | 14 psi (98 kPa) |
| Rear Tire (12-16.5 6PR R4) | 41 psi (280 kPa) |
Engine Details
| Number of Cylinders | 3 |
| Engine Make | Yanmar |
| Engine Model | Yanmar 3TNE74 |
| Displacement | 61.6 cu in (1.006 L) |
| Bore | 2.91 in (74 mm) |
| Stroke | 3.07 in (78 mm) |
| Gross Horsepower (CST) | 14.9 kW (20 hp) |
| Gross Horsepower (HST) | 15.7 kW (21 hp) |
| PTO Horsepower | 12.7 kW (17 hp) |
| Power Measured @ | 2650 rpm |
| Peak Torque | 44.8 lb ft (60.8 Nm) |
| Torque Measured @ | 1700 rpm |
| Slow Idle Speed | 1000 rpm |
| Hight Idle Speed | 2850 rpm |
| Governor | Mechanical centrifugal governor LAII speed type) |
| Lubrication | Forcible Lubrication By Trochoid Pump |
| Cooling System | Radiator Cooling |
| Fuel System | Indirect Fuel Injection |
| Combustion | Special Swirl Engine Type |
| Air Cleaner | Dry Type w/ Safety Element |
| Aspiration | Naturally aspirated |
Transmission
| John Deere 4110 | CST | HST |
|---|---|---|
| Type | Sliding Gear / Collar Shift | 2 Range Hydrostatic |
| Number of Gears | 8F / 4R | Infinite |
| Max Travel Speed, Forward | 11.2 mph (18.0 km/h) | 12.0 mph (19.2 km/h) |
| Max Travel Speed, Reverse | 5.8 mph (9.4 km/h) | 6.0 mph (9.6 km/h) |
| Cruise Control | – | Standard |
| Mechanical Front Wheel Drive | Standard | Standard |
| MFWD Capability | All Ranges | All Ranges |
| MFWD Engagement | On the Go | On the Go |
| Final Drive | Spur Gear | Spur Gear |
Operational Specs
| Operating Weight (CST) | 1517 lb (688 kg) |
| Operating Weight (HST) | 1579 lb (716 kg) |
| Rear Axle Maximum Load | 1345-1654 |b (610-750 kg) |
| Front Axle Maximum Load | 2426 lb (1100 kg) |
| Operating Voltage | 12 V |
| Alternator | 20 amps |
| Battery | 12 V, CCA 435 |
| Drive | Four-wheel drive (MFWD) |
| Steering | Power steering |
| Service Brakes | Wet disc brakes |
| Operator Station | Open Operator Station with ROPS |
| Cab | Optional cab enclosure |
| ROPS | Two-post folding ROPS |

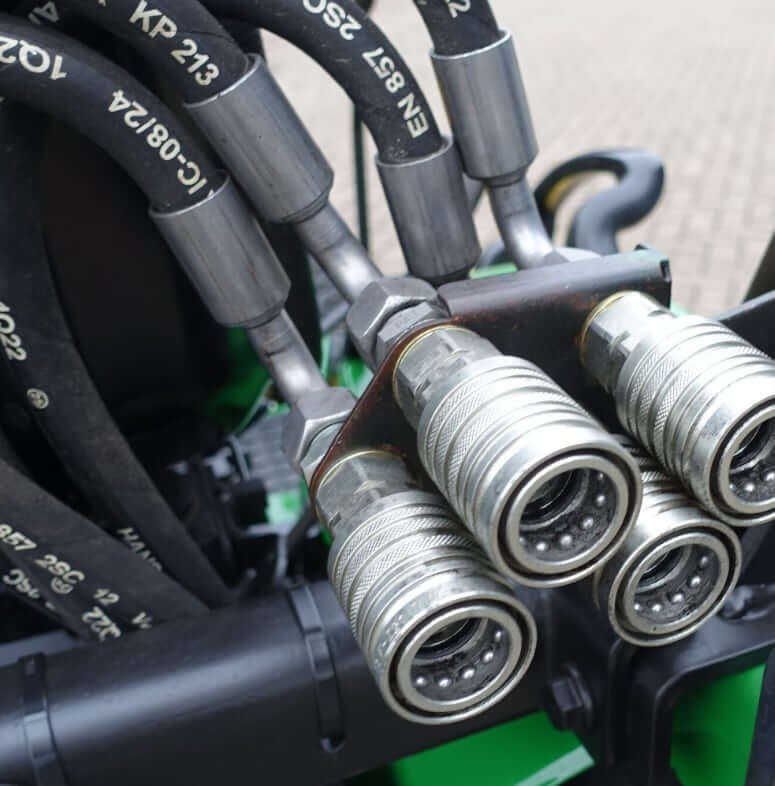

Hydraulic System
| Type | Open center hydraulic system |
| Total Pump Flow | 5.1 gal/min (19.3 L/min) |
| Draft Control Sensing | Position Control |
| Number of Remote Control Valves | 5 |
3-Point Hitch
| 3-Point Hitch Type | Category 1 |
| 3-Point Hitch Lift Capacity @ 24″ | 1150 lb (522 kg) |
| Total Lift Height | 11 in (279 mm) |
| Maximum Drawbar Loads | 562 lb (255 kg) |
PTO (Power Take-Off)
| John Deere 4110 | CST | HST |
|---|---|---|
| PTO Power | 17.4 hp (12.7 kw) | 17.0 hp (12.7 kw) |
| PTO Clutch | Operator Released Clutch | Wet disk |
| Rear PTO Type | Transmission | Independent |
| Rear PTO Speed | 540 rpm | 540 rpm |
| Rear PTO / Engine RPM | 546@2650 | 541@2650 |
| Mid PTO Type | Independent | Independent |
| Mid PTO Speed | 2100 rpm | 2100 rpm |
| Mid PTO / Engine RPM | 2138@2650 | 2117@2650 |

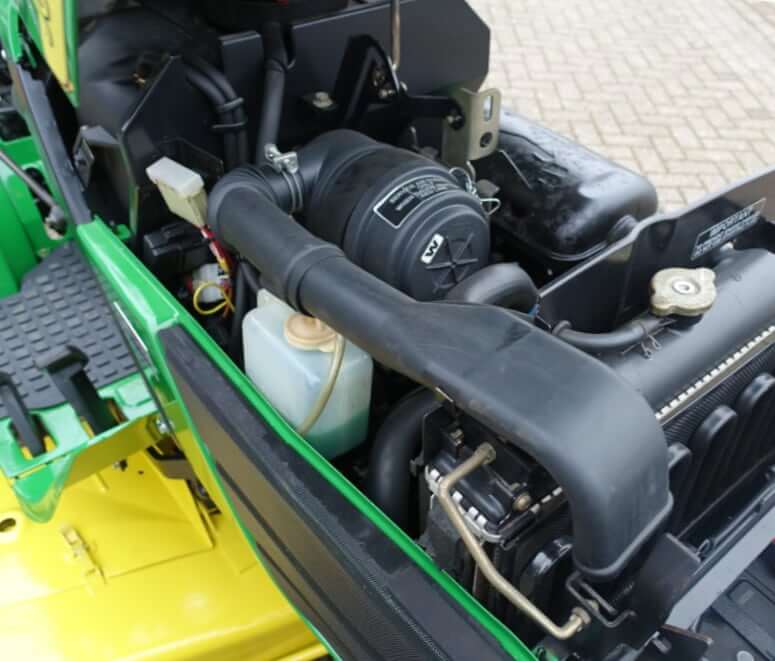

Service Refill Capacities
| Fuel Tank Capacity | 5.8 gal (22 L) |
| Engine Oil Capacity | 0.58 gal (2.2 L) |
| Cooling System Capacity | 0.63 gal (2.4 L) |
| Transmission / Hydraulic Oil Capacity (HST) | 3.5 gal (13.3 L) |
| Transmission / Hydraulic Oil Capacity (CST) | 3.6 gal (13.5 L) |
| Front Axle Fluid Capacity | 0.9 gal (3.4 L) |
John Deere 4110 Filters
| Engine Air Filter (Primary) | M113621 |
| Engine Air Filter (Secondary) | M123378 |
| Fuel Filter | CH15553 |
| Engine Oil Filter | M806418 |
| Transmission Oil Filter | LVU800097 |
| John Deere 4110 Filter Pack | LVA21197 (M806418, CH15553, LVU800097, M113621) |
Serial Numbers & PIN Location
Serial number plate (PIN) on the rear of the John Deere 4110 compact Utility tractor – right side of the tractor frame, above the front axle
| Year | Serial Number |
|---|---|
| 2002 | 110000 |
| 2003 | 210000 |
| 2004 | 310000 |

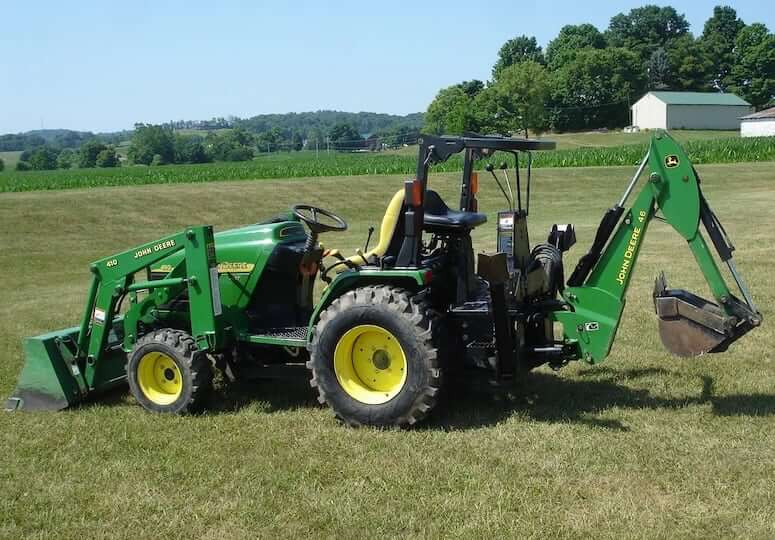

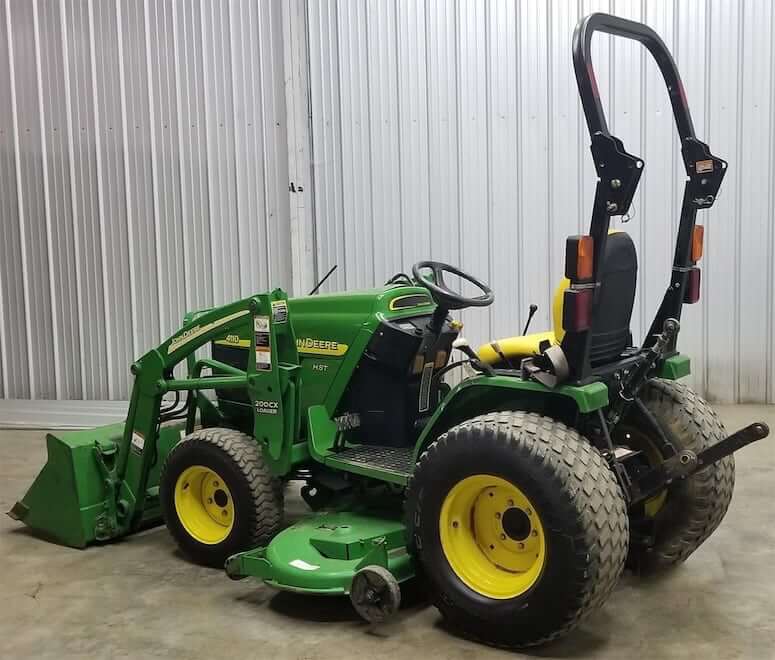

John Deere 4110 Attachments
The John Deere 4110 compact utility tractor is a versatile and efficient machine designed to handle a wide range of landscaping, gardening, and light construction tasks. Engineered with user-friendly features and dependable performance, the 4110 supports a robust selection of attachments that expand its functionality and productivity.
This model is compatible with front-end loaders like the John Deere 410 Loader and the more advanced John Deere 200CX Loader, offering excellent material handling capabilities for tasks such as lifting, hauling, and grading.

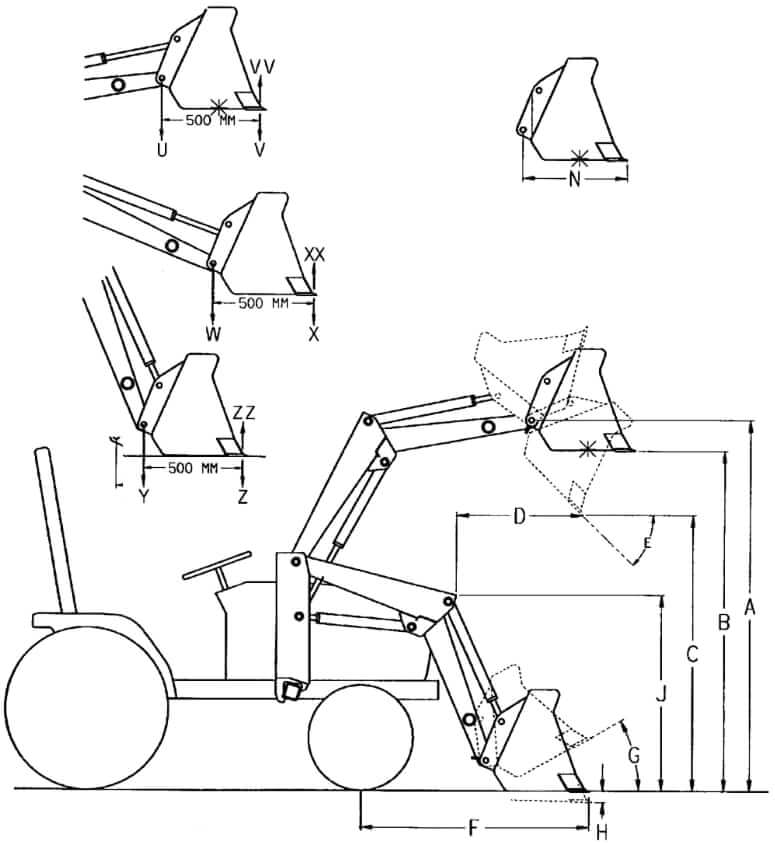

John Deere 410 Loader
| Height to Pin (A) | 74.0 in (1879 mm) |
| Bucket Level (B) | 68.0 in (1722 mm) |
| Bucket Dumped (C) | 55.1 in (1400 mm) |
| Dump Reach at Max Lift Height (D) | 24.8 in (629 mm) |
| Dump Angle (E) | 45° |
| Reach at Ground (F) | 44.6 in (1133 mm) |
| Max Rollback Angle (G) | 25° |
| Digging Depth (H) | 6 in (152 mm) |
| Dump Angle at Ground | 123° |
| Rollback at Full Height | 64° |
| Height in Carry Position (J) | 46 in (1171 mm) |
| Lift to Full Height at Pin (U) | 882 lb (400 kg) |
| Lift to Max Height (V) | 618 lb (280 kg) |
| Lift to 1.5 m at Pin (W) | 1072 lb (486 kg) |
| Lift to 1.5 m at 500 mm (X) | 781 lb (355 kg) |
| Lift w/ Fork to Max Height (U) | 276 lb (125 kg) |
| Breakout Force at Pin (Y) | 2257 lbf (10.0 kN) |
| Breakout Force at 500 mm Forward of Pin (Z) | 1500 lbf (6.7 kN) |
| Bucket Rollback Force at Max Height (VV) | 1858 lbf (8.4 kN) |
| Bucket Rollback Force at 1.5 m Lift Height (XX) | 2166 lbf (9.6 kN) |
| Bucket Rollback Force at Ground Level Line (ZZ) | 1661 lbf (7.4 kN) |
| Bucket Width | 49 in (1250 mm) |
| Bucket Length (N) | 24.3 in (618 mm) |
| Bucket Weight | 154 lb (70 kg) |
John Deere 200CX Loader
| Height to Pin (A) | 78.7 in (2000 mm) |
| Bucket Level (B) | 72.2 in (1835 mm) |
| Bucket Dumped (C) | 58.6 in (1490 mm) |
| Dump Reach at Max Lift Height (D) | 29.3 in (744 mm) |
| Dump Angle (E) | 38° |
| Reach at Ground (F) | 50.1 in (1273 mm) |
| Max Rollback Angle (G) | 25° |
| Digging Depth (H) | 3.8 in (97 mm) |
| Dump Angle at Ground | 118° |
| Rollback at Full Height | 105° |
| Lift to Full Height at Pin (U) | 561 lb (255 kg) |
| Lift to Max Height (V) | 394 lb (179 kg) |
| Lift to 1.5 m at Pin (W) | 706 lb (321 kg) |
| Lift to 1.5 m at 500 mm (X) | 515 lb (234 kg) |
| Breakout Force at Pin (Y) | 1513 lbf (6.7 kN) |
| Breakout Force at 500 mm Forward of Pin (Z) | 1052 lbf (4.7 kN) |
| Bucket Rollback Force at Max Height (VV) | 1254 lbf (5.6 kN) |
| Bucket Rollback Force at 1.5 m Lift Height (XX) | 1508 lbf (6.7 kN) |
| Bucket Rollback Force at Ground Level Line (ZZ) | 1450 lbf (6.5 kN) |
| Bucket Width | 53 in (1350 mm) |
| Bucket Length (N) | 24.9 in (633 mm) |
| Bucket Weight | 169.4 lb (77 kg) |
For digging and excavation work, the John Deere 46 Backhoe provides powerful digging depth and reach, making it ideal for trenching or landscaping applications.

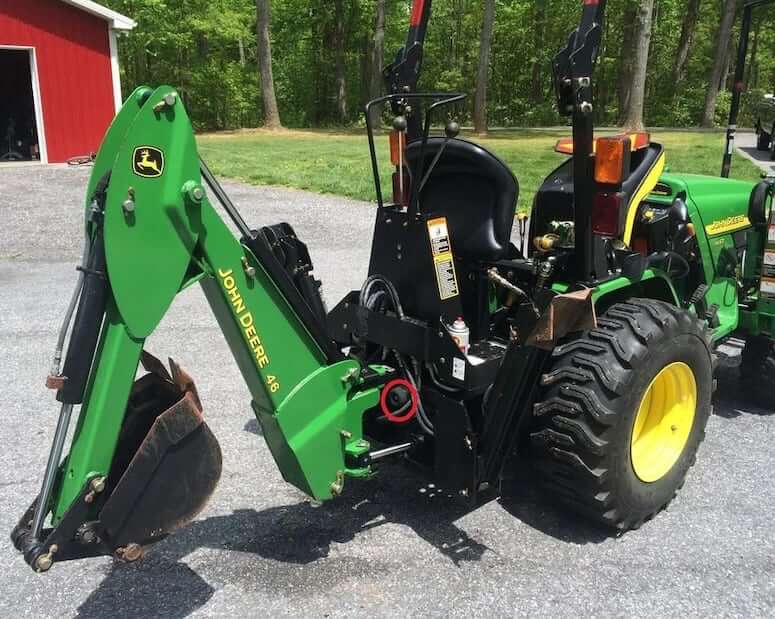

John Deere 46 Backhoe
| Max Digging Depth | 78 in (1980 mm) |
| Digging Depth (flat bottom) | 24 in (610 mm) |
| Loading Height (Bucket at 60°) | 60 in (1524 mm) |
| Reach from Swing Pivot | 101 in (2570 mm) |
| Loading Reach (Bucket at 60°) | 38 in (970 mm) |
| Transport Height | 60 in (1500 mm) |
| Transport Overhang | 41 in (1040 mm) |
| Undercut | 28 in (710 mm) |
| Swing Arc | 180° |
| Bucket Rotation | 180° |
| Stabilizer Spread (Down) | 78 in (1980 mm) |
| Stabilizer Spread (Up) | 47 in (1190 mm) |
| Dipperstick Digging Force (SAE) | 1250 lbf (5.56 kN) |
| Bucket Digging Force (SAE) | 2450 lbf (10.9 kN) |
| Boom Lift Capacity | 348 lb (158 kg) |
| Weight | 896 lb (407 kg) |
| Bucket Control Main Relief Valve Pressure | 2250 psi (15510 kPa) |
| Backhoe Buckets (Width / Capacity) | 9 in (230 mm) / 0.49 ft3 (0.014 m3) 13 in (330 mm) / 0.77 ft3 (0.022 m3) 16 in (410 mm) / 0.98 ft3 (0.028 m3) 20 in (510 mm) / 1.26 ft3 (0.036 m3) 24 in (610 mm) / 1.54 ft3 (0.044 m3) 36 in (910 mm) / 2.38 ft3 (0.067 m3) |
Additionally, the 4110 supports 54-inch and 60-inch Mid-Mount Mower Decks, allowing for efficient and clean mowing performance over large areas. Whether you’re maintaining a property, tackling soil movement, or mowing extensive lawns, the John Deere 4110 is built to adapt and deliver across a wide variety of tasks.
54″ Mid-mount Mower Deck
| Type | Mid-mount |
| Blades | 3 |
| Cutting Width | 54 in (1370 mm) |
| Overall Width | 57.9 in (1470 mm) |
| Weight | 190 lb (86 kg) |
60″ Mid-mount Mower Deck
| Type | Mid-mount |
| Blades | 3 |
| Cutting Width | 60 in (1520 mm) |
| Overall Width | 73.5 in (1860 mm) |
| Weight | 325 lb (147 kg) |
54″ Front-mount Blade
Original John Deere 54″ front-mount snow blade features:
- 54 in Clearing Width Straight;
- 48 in Clearing Width Fully Angled; Replaceable Cutting Edge;
- Heavy 11-Gauge, Curved Blade;
- Angled Left or Right Up to 27 degrees;
- Two Adjustable Skid Shoes;
- Reinforced Angle Bar on Back of Blade Spring Breakaway with Lock-Out Pin
47″ Snow Blower
| Mount | Front-mount |
| Width | 47.5 in (1200 mm) |
| Height | 50 in (1270 mm) |
| Lift Type | Hydraulic Lift |
| Stage | Single-stage |
| Weight | 250 lb (113 kg) |
54″ Snow Blower
The snow blower utilizes a low-speed auger to gather snow and direct it towards the machine’s center, where a high-speed impeller expels it through the discharge chute. Its robust front 3-point hitch enables quick attachment of implements.
- A 23 in (584 mm) housing height;
- A 7.25 in (184 mm) spout diameter;
- A 16 in (406 mm) diameter auger with double center flighting;
- Two drift cutters.
