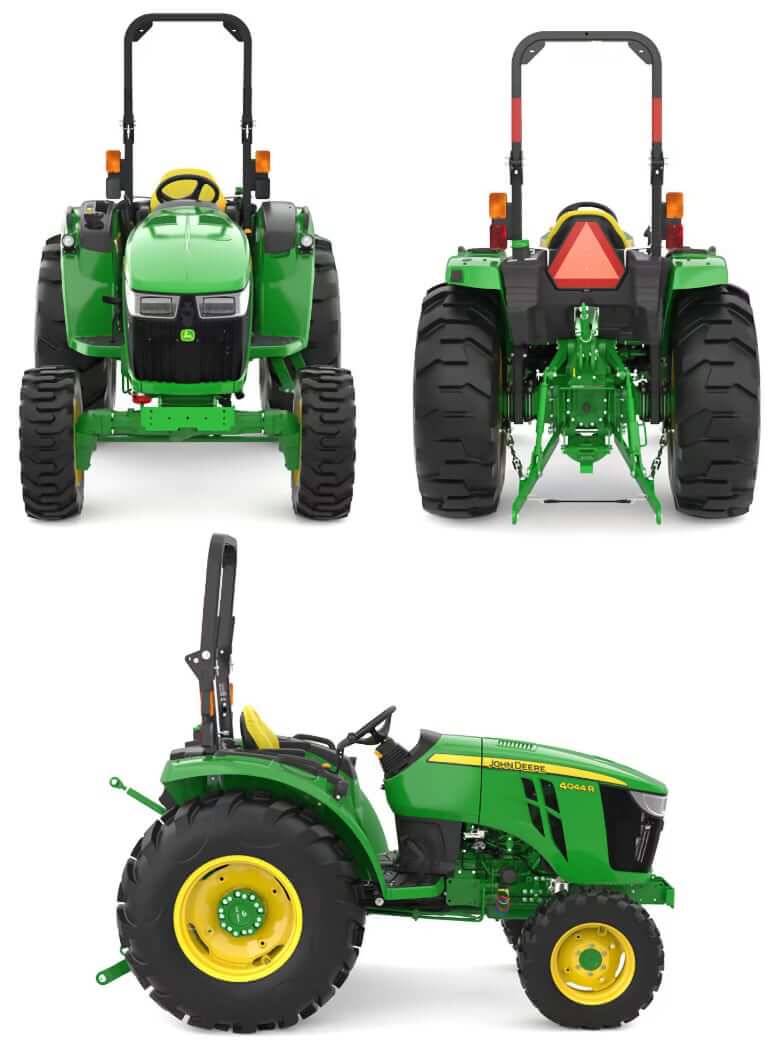

Dimensions
| John Deere 4044R Tires (F/R) | 8.0 x 16 / 13.6 x 28 | 31.5×16.5 / 16.9-24 |
|---|---|---|
| Overall Length with 3-point Hitch | 130.6 in (3317 mm) | 134.7 in (3421 mm) |
| Wheelbase | 73 in (1855 mm) | 73 in (1855 mm) |
| Overall Width | 78.2 in (1986 mm) | 71.3 in (1811 mm) |
| Height to Top of Cab | 97.4 in (2474 mm) | – |
| Height to Top of ROPS (Folded) | 80.5 in (2044 mm) | 69.8 in (1773 mm) |
| Height to Top of ROPS | 100.2 in (2545 mm) | 95.5 in (2426 mm) |
| Front Tread | 53.6 in (1362 mm) | 58.3 in (1481 mm) |
| Rear Tread | 59.9 in (1522 mm) | 54.0 in (1372 mm) |
| Ground Clearance (Front axle) | 15.6 in (395 mm) | 13.8 in (351 mm) |
| Turning Radius (w/ brakes) | 177.2 in (4500 mm) | 110.2 in (2800 mm) |
| Turning Radius (w/o brakes) | 181.1 in (4600 mm) | 118.1 in (3000 mm) |
Weight
| Operating Weight (ROPS) | 3770 lb (1710 kg) |
| Operating Weight (Cab) | 4675 lb (2120 kg) |
| Counterweight / Ballast #1 (each) | 42 lb (19 kg) |
| Counterweight / Ballast #2 (each) | 70 lb (32 kg) |
| Counterweight / Ballast #2 (each) | 100 lb (45 kg) |
| Front Axle Capacity | 3528 lb (1600 kg) |
| Rear Axle Capacity | 5292 lb (2400 kg) |
Tires
| Front Tire Size (Farm) | 8.00-16 (31.5×16.5) |
| Rear Tire Size (Farm) | 13.6-28 (16.9-24) |
| Front Tire Size (Lawn / Turf) | 27×10.50-15 (27x12LL-15) |
| Rear Tire Size (Lawn / Turf) | 44×18-20 (22.5LL-16.1) |
| Front Tire Size (Industrial) | 10-16.5 |
| Rear Tire Size (Industrial) | 16.9Lx24 |
Engine Details
| Number of Cylinders | 3 |
| Engine Make | Yanmar |
| Engine Model | Yanmar 4TNV88C-MJT |
| Displacement | 133.6 cu in (2.189 L) |
| Bore | 3.46 in (88 mm) |
| Stroke | 3.54 in (90 mm) |
| Horsepower (Gross) | 42.5 hp (31.7 kw) |
| PTO Power (PowrReverser transmission) | 33.6 hp (25.0 kw) |
| PTO Power (eHydro transmission) | 32.3 hp (24.1 kw) |
| Power Measured @ | 2600 rpm |
| Peak Torque | 85.6 lb ft (116 Nm) |
| Torque Measured @ | 1690 rpm |
| Lubrication System | Pressurized |
| Cooling System | Water pump |
| Air Cleaner | Dry Type with Safety Element |
| Fuel System | High pressure common rail direct injection |
| Compression Ratio | 19.1:1 |
| Aspiration | Naturally aspirated |
| Emission Standards | US EPA Tier 4 Final + EU Stage V |
Operational Specs
| Operating Weight (ROPS) | 3770 lb (1710 kg) |
| Operating Weight (Cab) | 4675 lb (2120 kg) |
| ROPS Type | Two-post folding ROPS |
| Cab Compliance | OSHA, SAE, ASAE |
| Operator Seat | Air suspension with swivel |
| Noise Level | 78 dB(A) |
| Cruise Control | Optional |
| Operating Voltage | 12 V |
| Alternator | 75 amps |
| Battery | 12 V, CCA 770 |
| Starter | 12 V, 2.68 hp (2 kw) |
Transmission
| Model | PowrReverser (Standard) | eHydro HST (Optional) |
|---|---|---|
| Type | 12 x 12 Power Shuttle transmission | 3 Range Hydrostatic transmission |
| Number of Gears | 12 Forward, 12 Reverse | Infinitely Variable (3 Range) |
| Max Travel Speed, Low | 1.1 mph (1.8 km/h) | 4.2 mph (6.8 km/h) |
| Max Travel Speed, High | 18.6 mph (30 km/h) | 18.6 mph (30 km/h) |
| Drive | 4WD (MFWD) | 4WD (MFWD) |
| MFWD Capability | All Ranges (Standard) | All Ranges (Standard) |
| Steering | Hydrostatic power steering | Hydrostatic power steering |
| Service Brakes | Multi-plate wet disc brakes | Multi-plate wet disc brakes |
| Differential Lock | Mechanical rear | Mechanical rear |
| Final Drive Type | Planetary | Planetary |

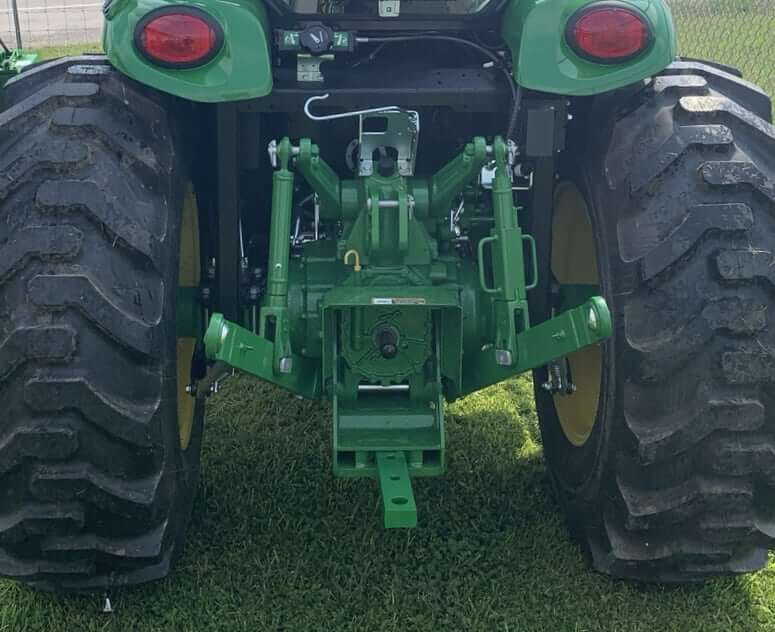

PTO (Power Take-Off)
| Rear PTO Type | Independent |
| PTO Clutch | Wet disc |
| Rear PTO Speed | 540 rpm (540E optional) |
| PTO / Engine RPM | 540@2400 |
| Power (PowrReverser transmission) | 33.6 hp (25.0 kw) |
| Power (eHydro transmission) | 32.3 hp (24.1 kw) |

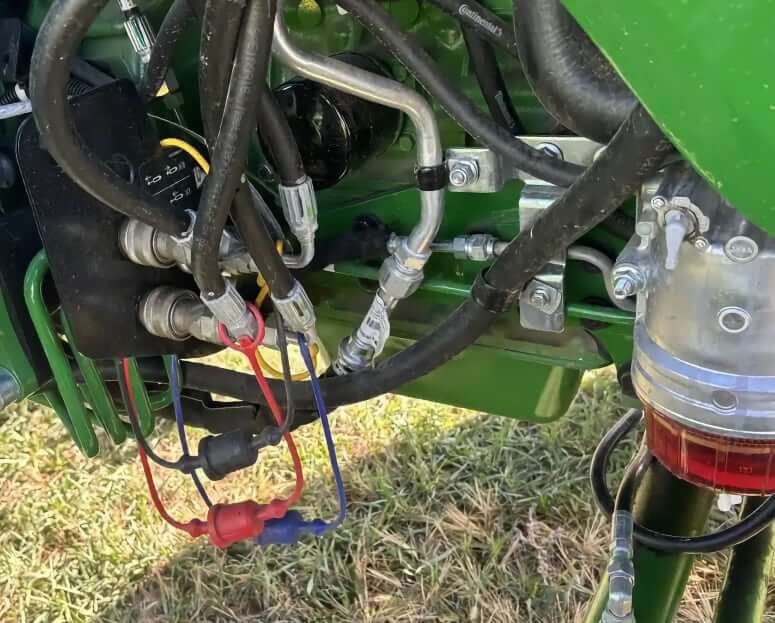

Hydraulic System
| Type | Open Center |
| Pump Type | Single gear pump |
| Implement Pump Flow | 11.2 gal/min (42.3 L/min) |
| Steering Pump Flow | 6.2 gal/min (23.5 L/min) |
| Total Pump Flow | 17.4 gal/min (65.8 L/min) |
| Max Operating Pressure | 2500 psi (17237 kPa) |
| Remote Control Valves | Up to 6 |

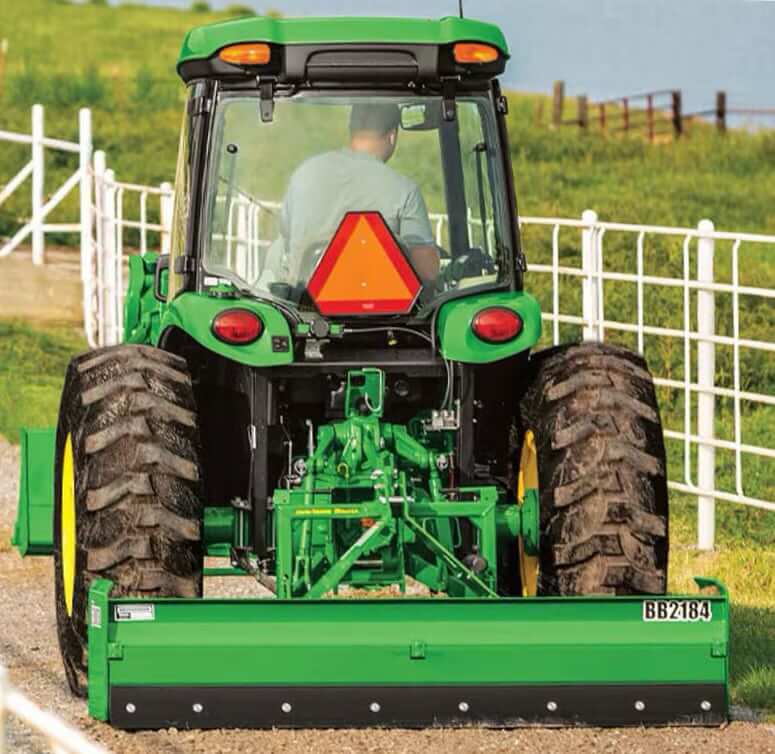

3-Point Hitch
| 3-Point Hitch Type | Category 1 |
| Draft Control Sensing | Position control |
| 3-Point Hitch Lift Capacity @ 24″ | 2500 lb (1135 kg) |
| 3-Point Hitch Lift Capacity @ ends | 3130 lb (1420 kg) |
| Maximum Drawbar Loads | 1103 lb (500 kg) |
Front 3-Point Hitch (Optional)
| Front 3-Point Hitch Type | Category 1 |
| Front 3-Point Hitch Lift Capacity @ 24″ | 1540 lb (700 kg) |
| Front 3-Point Hitch Lift Capacity @ ends | 3400 lb (1540 kg) |

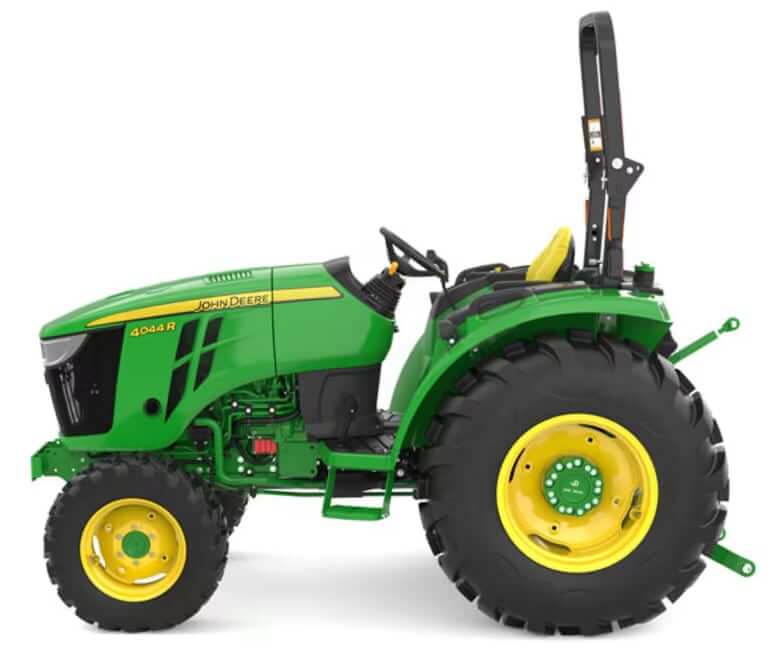

Service Refill Capacities
| Fuel Tank Capacity (Open Operator Station) | 13 gal (49.2 L) |
| Fuel Tank Capacity (Cab) | 13.8 gal (52 L) |
| Engine Oil Capacity (w/ filter) | 1.4 gal (5.4 L) |
| Cooling System Capacity (Open Operator Station) | 1.5 gal (6 L) |
| Cooling System Capacity (Cab) | 2.1 gal (8 L) |
| Front Axle Fluid Capacity | 1.5 gal (5.5 L) |
| Transmission / Hydraulic Oil Capacity | 12.5 gal (47.3 L) |
John Deere 4044R Filters
| Engine Air Filter (Primary) | RE68048 |
| Engine Air Filter (Secondary) | RE68049 |
| Cab Recirculation Air Filter | MIU10011 |
| Cab Fresh Air Filter | MIU10010 |
| Primary Fuel Filter | MIU802421 |
| Final Fuel Filter | MIU803127 |
| Engine Oil Filter | M806419 |
| Transmission Oil Filter | RE45864 |
| Hydraulic Oil Filter | LVA10419 |
| Engine DPF Filter | MIU803276 |
| John Deere 4044R Filter Pack | LVA21039 (M806419, LVA10419, MIU803127, RE45864, RE68048 and MIU802421) |

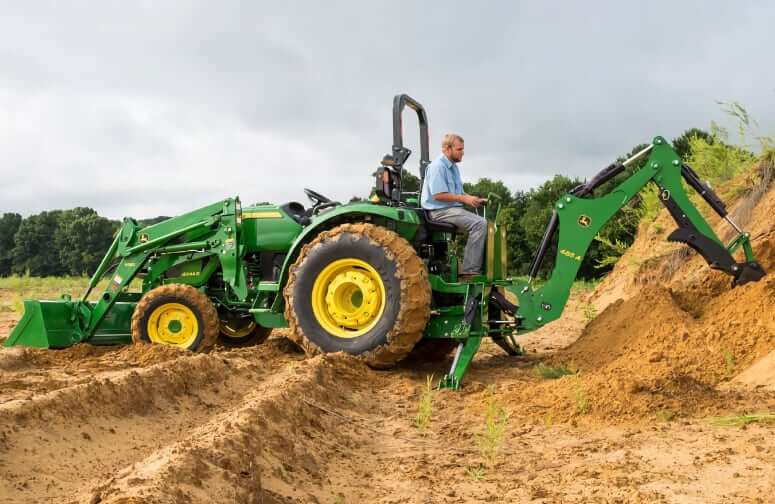

JD 4044R Attachments
The John Deere 4044R Compact Utility Tractor is a premium machine built for operators who demand performance, comfort, and versatility. With its powerful 43.1-horsepower engine, eHydro transmission, and advanced features like LoadMatch and Hitch Assist, the 4044R is engineered to support a full range of implements and attachments, making it a true all-season workhorse.
Whether you’re loading materials, digging, mowing, or maintaining your land, the 4044R is ready to adapt. It works seamlessly with front loaders like the John Deere 400E, 440R, and the high-performance 440R MSL, allowing operators to switch between tasks like lifting, grading, and snow pushing with ease. A full lineup of loader-compatible tools—including forks, spears, blades, and grapples—further expands its utility in both commercial and residential settings.

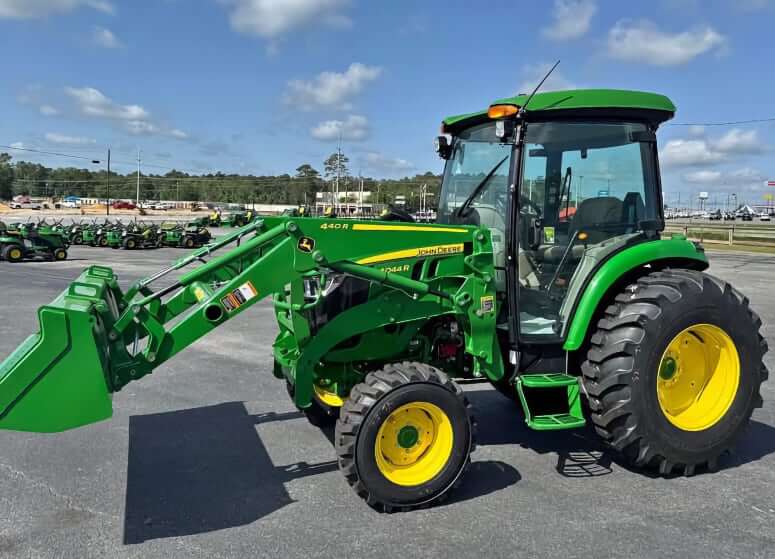

John Deere 400E / 440R / 440R MSL Loaders
| Front Loader | 400E (OOS only) | 440R Loader | 440R MSL Loader |
|---|---|---|---|
| Leveling Configuration | Non-Self-Leveling | Non-Self-Leveling | Mechanical Self-Leveling |
| Overall Length (WB+F) | 139 in (3522 mm) | 138 in (3500 mm) | 139 in (3540 mm) |
| Bucket Width | 73 in (1850 mm) | 73 in (1850 mm) | 73 in (1850 mm) |
| Bucket Weight | 238 lb (108 kg) | 321 lb (146 kg) | 321 lb (146 kg) |
| A. Lift Height to Pivot Pin | 112 in (2850 mm) | 110 in (2799 mm) | 110 in (2796 mm) |
| B. Lift Height to Bucket Level | 104 in (2646 mm) | 102 in (2593 mm) | 102 in (2590 mm) |
| C. Lift Height to Bucket Dumped | 90.4 in (2298 mm) | 86 in (2195 mm) | 90.4 in (2178 mm) |
| D. Reach at Max Height with Bucket Dumped | 28 in (705 mm) | 30 in (753 mm) | 30 in (755 mm) |
| E. Dump Angle (Maximum) | 42° | 47.5° | 46.6° |
| F. Reach Bucket at Ground with Bucket Leveled | 66 in (1672 mm) | 67 in (1703 mm) | 67 in (1703 mm) |
| G. Rollback Angle | 29° | 33.4° | 38.4° |
| H. Digging Depth | 5.7 in (146 mm) | 4.7 in (119 mm) | 4.8 in (122 mm) |
| J. Overall Height In Carry Position | 59 in (1505 mm) | 60 in (1530 mm) | 60 in (1530 mm) |
| Dump Angle at Ground | 128° | 129.5° | 129.5° |
| Lift Capacity to Full Height at Pivot Pin (U) | 2396 lb (1087 kg) | 2539 lb (1154 kg) | 2313 lb (1006 kg) |
| Lift Capacity to Full Height at 19.7 in (500 mm) ahead of Pivot (V) | 1764 lb (800 kg) | 1885 lb (857 kg) | 2222 lb (1010 kg) |
| Lift Capacity to 59 in (1500 mm) at Pivot Pin (W) | 2881 lb (1307 kg) | 3023 lb (1374 kg) | 2779 lb (1263 kg) |
| Lift Capacity to 59 in (1500 mm) ahead of Pivot (X) | 2299 lb (1043 kg) | 2413 lb (1097 kg) | 2642 lb (1201 kg) |
| Boom Breakout Force at Pivot Point (Y) | 3853 lbf (17.14 kN) | 4017 lbf (17.87 kN) | 3835 lbf (17.06 kN) |
| Boom Breakout Force at 19.7 in (500 mm) Forward of Pivot Pin (Z) | 2902 lbf (12.91 kN) | 3029 lbf (13.47 kN) | 3337 lbf (14.84 kN) |
| Bucket Rollback Force at Maximum Height (VV) | 4112 lbf (18.30 kN) | 2068 lbf (9.20 kN) | 3480 lbf (15.48 kN) |
| Bucket Rollback Force at 59 in (1500 mm) Lift Height (XX) | 5191 lbf (23.10 kN) | 3280 lbf (14.59 kN) | 4948 lbf (22.00 kN) |
| Bucket Rollback Force at Ground Level Line (ZZ) | 3487 lbf (15.50 kN) | 3419 lbf (15.20 kN) | 4622 lbf (20.56 kN) |
| Loader Raise Time | 4.26 sec | 2.6 sec | 2.41 sec |
| Loader Lower Time | 3.13 sec | 1.75 sec | 1.62 sec |
| Bucket Dump Time | 3.14 sec | 1.96 sec | 2.46 sec |
| Bucket Rollback Time | 2.42 sec | 1.16 sec | 1.65 sec |

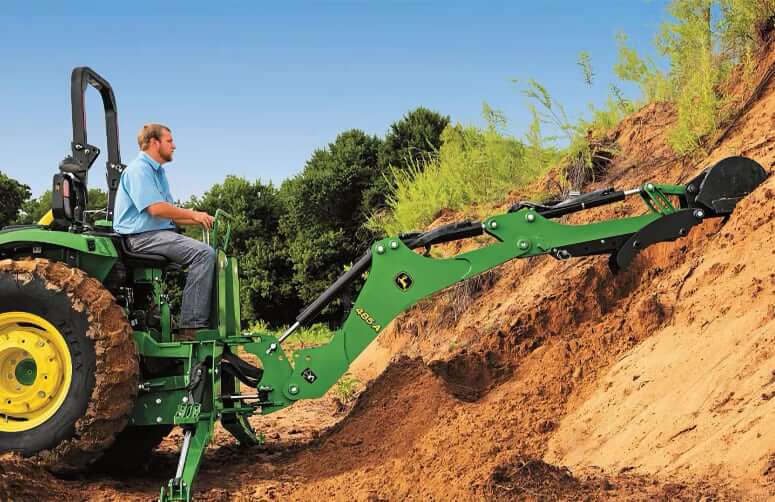

John Deere 485A Backhoe
At the rear, the John Deere 485A Backhoe turns the 4044R into a capable digging machine for trenching, foundation work, and other excavation jobs. Its integration with the tractor’s subframe ensures strength, stability, and operator confidence during demanding operations.
| Backhoe | John Deere 485A |
|---|---|
| A. Digging Depth | 102 in (2590 mm) |
| B. Loading Height (Bucket at 60°) | 79 in (2006 mm) |
| C. Reach from Center Line of Swing Pivot | 140 in (3556 mm) |
| D. Transport Height | 92 in (2337 mm) |
| E. Loading Reach (Bucket at 60°) | 51 in (1295 mm) |
| F. Transport Overhang | 53 in (1346 mm) |
| G. Undercut | 19 in (483 mm) |
| Bucket Rotation | 180° |
| Swing Arc Angle | 170° |
| Stabilizer Spread Width, Raised (Up) | 62 in (1575 mm) |
| Stabilizer Spread Width, Lowered (Down) | 95 in (2413 mm) |
| Boom Lift Capacity | 820 lb (372 kg) |
| Dipperstick Digging Force (SAE) | 2449 lbf (10.89 kN) |
| Bucket Digging Force (SAE) | 3752 lbf (16.69 kN) |
| Bucket Control Main Relief Valve Pressure | 2550 psi (17580 kPa) |
| Bachkoe Weight, w/ 24 in (610 mm) Bucket | 1435 lb (651 kg) |
Buckets for 485A Backhoe
| 485A Backhoe Bucket | Struck Capacity | Heaped Capacity | Shipping Weight |
|---|---|---|---|
| 9 in (228 mm) | 0.84 ft3 (0.024 m3) | 1.01 ft3 (0.029 m3) | 70 lb (32 kg) |
| 12 in (305 mm) | 1.12 ft3 (0.032 m3) | 1.41 ft3 (0.040 m3) | 82 lb (37 kg) |
| 16 in (406 mm) | 1.50 ft3 (0.042 m3) | 1.97 ft3 (0.056 m3) | 92 lb (42 kg) |
| 18 in (457 mm) Heavy Duty | 1.69 ft3 (0.048 m3) | 2.25 ft3 (0.064 m3) | 106 lb (48 kg) |
| 20 in (508 mm) | 1.88 ft3 (0.053 m3) | 2.54 ft3 (0.072 m3) | 106 lb (48 kg) |
| 24 in (610 mm) | 2.26 ft3 (0.064 m3) | 3.11 ft3 (0.088 m3) | 120 lb (54 kg) |
The 4044R also supports a wide array of Category 1 three-point hitch implements, covering tasks from soil preparation, mowing, and seeding to spraying, spreading, and snow removal.

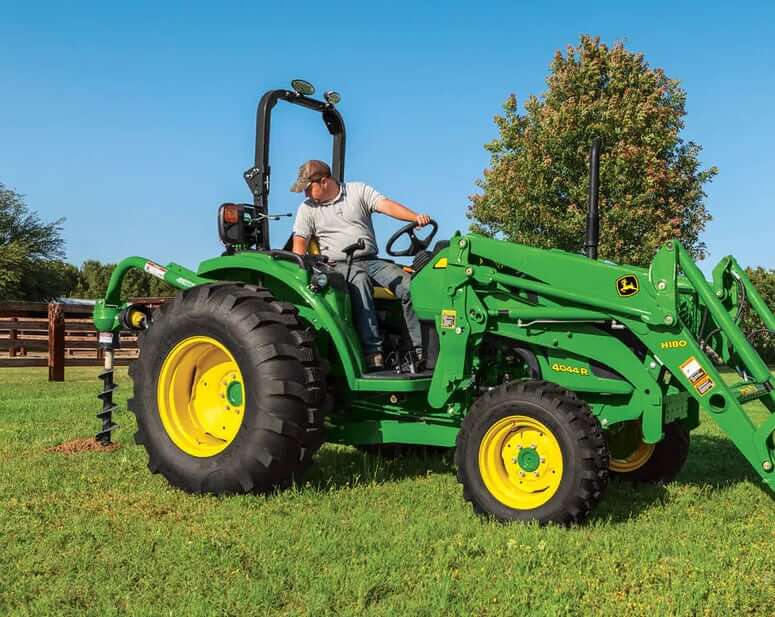

Whether you’re leveling land, tilling soil, digging post holes, clearing fields, or maintaining pastures, this tractor can be quickly equipped with the right tool to meet the job at hand. Designed for year-round productivity, the John Deere 4044R combines power and precision with attachment flexibility to meet the needs of property owners, farmers, and contractors alike.
