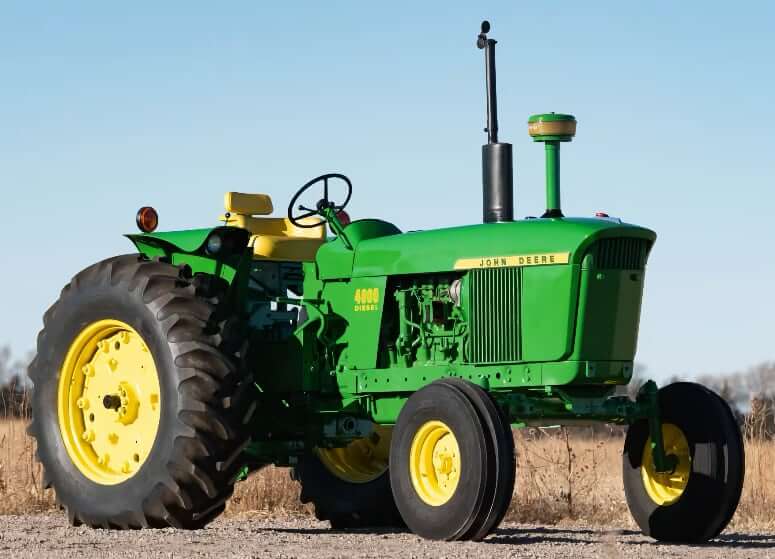

Dimensions
| Overall Length | 152.75 in (3880 mm) |
| Wheelbase (Row crop) | 97.5 or 100.25 in (2476 or 2540 mm) |
| Wheelbase (Standard) | 89.0 or 100.25 in (2261 or 2540 mm) |
| Overall Width (Regular axle) | 89.63 in (2276 mm) |
| Overall Height (Row crop) | 89.25 in (2267 mm) |
| Overall Height (Standard) | 90.37 in (2296 mm) |
| Height to Steering Wheel (Row crop) | 78.37 in (1991 mm) |
| Height to Steering Wheel (Standard) | 79.37 in (2016 mm) |
| Rear Axle Diameter | 3.125 in (79 mm) |
| Front Tread | 58.8 – 87.9 in (1494 – 2233 mm) |
| Rear Tread | 61.2 – 89.6 in (1554 – 2276 mm) |
| Height of Drawbar w/ Ballast | 17.5 in (444.5 mm) |
| Height of Drawbar w/o Ballast | 18 in (457.2 mm) |
| Turning Radius (Row crop) | 128 in (3251 mm) |
| Turning Radius (Standard) | 132 in (3353 mm) |
Weight
| Operating Weight | 8605 lb (3903 kg) |
| Shipping Weight | 7670 lb (3479 kg) |
| Ballasted Weight | 10870 lb (4930 kg) |
| Rear Tire Ballast Weight (each) | 425 lb (193 kg) |
| Front Tire Ballast Weight (each) | 18 lb (8.2 kg) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | John Deere |
| Engine Model | John Deere 6.6L Diesel |
| Displacement | 404 cu in (6.6 L) |
| Bore | 4.25 in (108 mm) |
| Stroke | 4.75 in (121 mm) |
| PTO Horsepower | 96.89 hp (72.3 kw) |
| Drawbar Horsepower | 82.59 hp (61.6 kw) |
| Power Measured @ | 2200 rpm |
| Aspiration | Naturally aspirated |
| Compression | 16.4:1 |
| Air Cleaner | Oil washed wire screen |
Transmission
| Model | John Deere SRT | John Deere PST |
|---|---|---|
| Type | Synchro-Range, constant mesh | Full power shift transmission, planetary gears |
| Number Of Forward Gears | 8 | 8 |
| Number Of Reverse Gears | 2 | 4 |
| Max Travel Speed (Forward) | 16.8 mph (27.0 km/h) | 18.5 mph (29.8 km/h) |
| Max Travel Speed (Reverse) | 5.9 mph (9.5 km/h) | 6.5 mph (9.5 km/h) |
Operational Specs
| Operating Voltage | 12 V |
| Alternator | 35 amps |
| Battery | 2x 6 V |
| Tractor Cab | Open operator station / Cab (optional) |
| Drive | 4×2 2WD |
| Steering | Power Steering |
| Service Brakes | Wet disc hydraulically power actuated operated by 2 foot pedals which can be locked together |
| Front Tire Size | 9.5Lx15 |
| Front Tire Size | 16.9×34 |

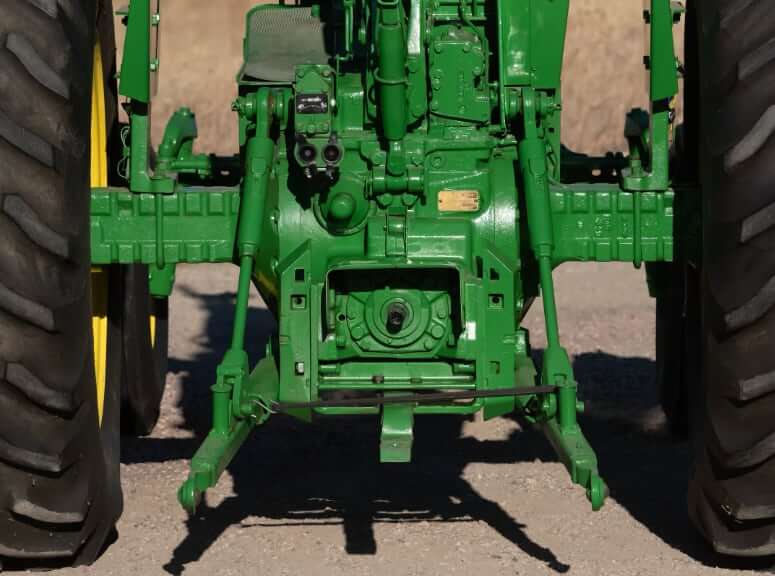

PTO (Power Take-Off)
| PTO Type | Rear, Independent |
| Rear PTO Speed | 540/1000 |
| Rear PTO Speed (Optional) | 1000 |
Hydraulic System
| Type | Closed center, constant pressure |
| Total Pump Flow | 12.5 gal/min (47.3 L/min) |
| Max System Pressure | 2250 psi (15510 kPa) |
| Remote Control Valves | 1 |
| 3 Point Hitch Category | II |
| Hydraulic Control System | Direct engine drive |
John Deere 4000 Filters
| Primary Air Filter (Diesel) | AT33363 |
| Primary Air Filter (Gasoline) | AR39798 |
| Primary Air Filter (LPG) | AR44774 |
| Primary Air Filter (w/o Pre-Cleaner) | AR46976 |
| Fuel Filter (Diesel, TSN 201000- , ESN 280001-) | AR50041 |
| Fuel Filter (Diesel, TSN 201000- , ESN 125000-280000) | 2x AR44077 |
| Fuel Filter (Gasoline, ESN 280001-) | AR50141 |
| Engine Oil Filter | AR26350 |
| Engine Oil Filter Sealing Washer | B3586R |
| Hydraulics Filter Element | R27173 |
| Transmission/Hydraulic Oil Filter (SRT – Qty. 1 / PST – Qty. 2) | AR75603 |
| Transmission Oil Filter Sealing Washer (TSN 091000-) | R34733 |
Service Refill Capacities
| Fuel Tank Capacity (Diesel) | 34 gal (128.7 L) |
| Fuel Tank Capacity (Gasoline) | 34 gal (128.7 L) |
| Fuel Tank Capacity (LPG) | 45 gal (170.3 L) |
| Engine Oil Capacity (Diesel) | 3 gal (14.3 L) |
| Engine Oil Capacity (Gasoline) | 2 gal (7.6 L) |
| Engine Oil Capacity (LPG) | 2 gal (7.6 L) |
| Cooling System Capacity | 6 gal (23 L) |
| Transmission / Hydraulic Oil Capacity (PST) | 14 gal (53 L) |
| Transmission / Hydraulic Oil Capacity (SRT) | 10 gal (37.8 L) |
John Deere 4000 Attachments
| Model | 148 Loader | 158 Loader |
|---|---|---|
| Lift Capacity (full at pin) | 3100 lb (1406 kg) | 3800 lb (1723 kg) |
| Breakout Force | 4700 lb (2131 kg) | 5000 lb (2268 kg) |
| Dump Angle | 38° | 37° |
| Reach (dumped) | 32 in (810 mm) | 32 in (810 mm) |
| Height (at pin) | 126 in (3200 mm) | 156 in (3960 mm) |
| Clearance (dumped) | 102 in (2590 mm) | 132 in (3350 mm) |
| Clearance (level) | 121 in (3070 mm) | 151 in (3830 mm) |
| Boom Cylinder Diameter | 2.5 in (60 mm) | 2.75 in (70 mm) |
| Bucket Cylinder Diameter | 2.5 in (60 mm) | 2.5 in (60 mm) |
| Weight | 1350 lb (612 kg) | 1771 lb (803 kg) |
| Bucket Width | 60 in (1520 mm) 72 in (1820 mm) 84 in (2130 mm) 96 in (2430 mm) |
60 in (1520 mm) 72 in (1820 mm) 84 in (2130 mm) 96 in (2430 mm) |
| Bucket Capacity | 0.5 yd3 (0.4 m3) 0.6 yd3 (0.5 m3) 0.8 yd3 (0.6 m3) 0.9 yd3 (0.7 m3) |
0.5 yd3 (0.4 m3) 0.6 yd3 (0.5 m3) 0.8 yd3 (0.6 m3) 0.9 yd3 (0.7 m3) |
