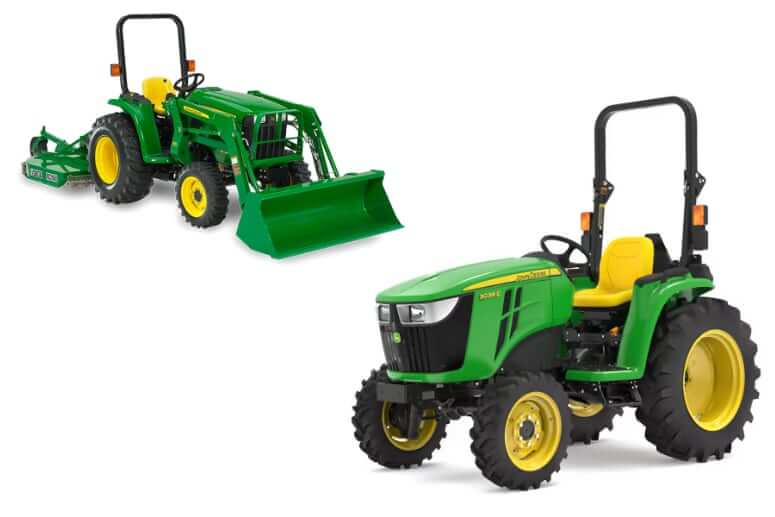

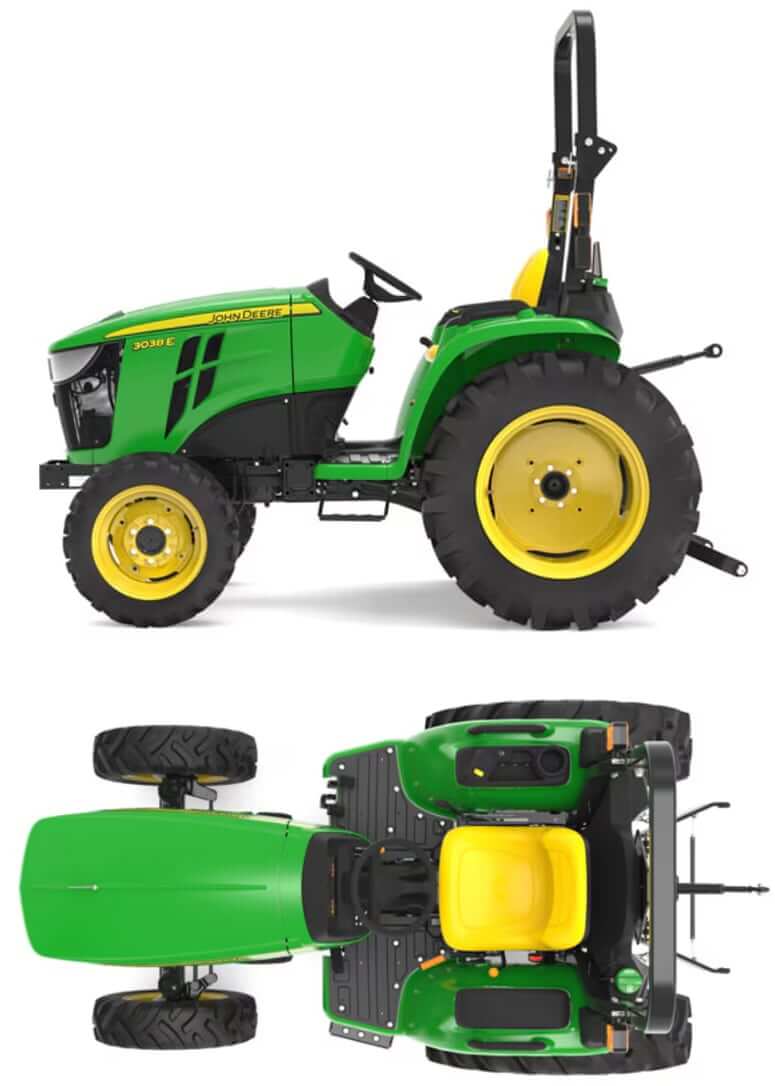

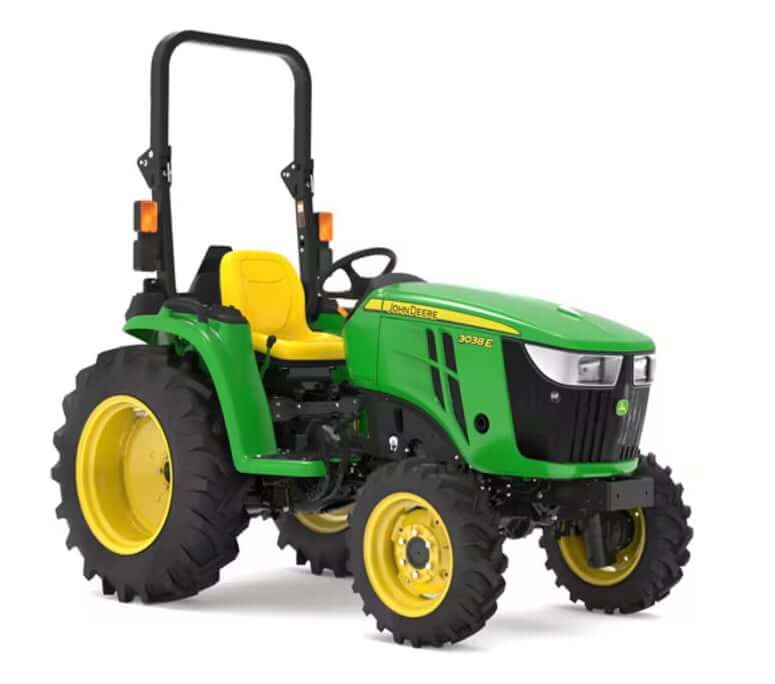

Dimensions
| 3038E Model Year | 2008-2012 | 2013-2025 |
|---|---|---|
| Overall Length | 111 in (2810 mm) | 115.9 in (2940 mm) |
| Wheelbase | 60 in (1520 mm) | 62.7 in (1590 mm) |
| Width | 56.5 in (1430 mm) | 56.9 in (1440 mm) |
| Height (ROPS) | 82.3 in (2090 mm) | 95.3 in (2420 mm) |
| Ground Clearance | 11.8 in (299 mm) | 13.1 in (333 mm) |
Tires
| 3038E Model Year | 2008-2012 | 2013-2025 |
|---|---|---|
| Front Tire Size | 7.00-14 4PR R1 (Standard) 25×8.5-14 4PR R4 (Optional) 27×8.5-15 4PR R3 (Optional) |
7-14 R1 (Standard) 27×8.5-15 R3 (Turf, Optional) 25×8.5-14 R4 (Industrial, Optional) 27×8.5-15 R4 (Industrial, Optional) |
| Rear Tire Size | 11.2-24 4PR R1 (Standard) 15.00-19.5 4PR R4 (Optional) 41×14.0-20 4PR R3 GA (Optional) |
11.2-24 R1 (Standard) 41×14-20 R3 (Turf, Optional) 15-19.5 R4 (Industrial, Optional) 27×8.5-15 R4 (Industrial, Optional) |
| Turning Radius | 114.2 in (2900 mm) | 114.2 in (2900 mm) |

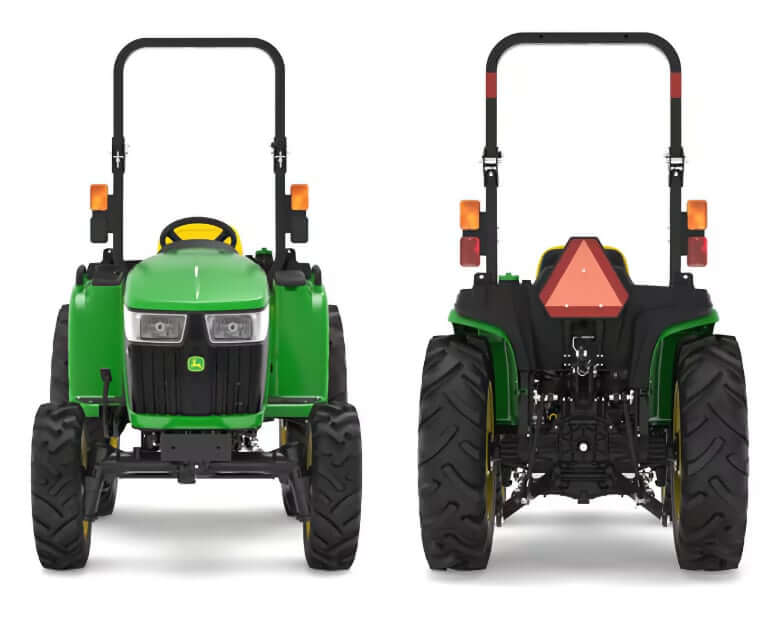

Operational Specs
| John Deere 3038E | 2008-2012 | 2013-2025 |
|---|---|---|
| Operating Weight | 2175 lb (987 kg) | 2668 lb (1210 kg) |
| Front Axle Capacity | 1764 lb (800 kg) | 1940 lb (880 kg) |
| Rear Axle Capacity | 2646 lb (1200 kg) | 2645 lb (1200 kg) |
| Drawbar Tongue Capacity | 882 lb (400 kg) | 882 lb (400 kg) |
| Operating Voltage | 12 V | 12 V |
| Alternator | 40 amps | 55 amps |
| Battery | 12 V, CCA 500 | 12 V, CCA 500 |
| Starter | 1.9 hp (1.4 kw) | 1.9 hp (1.4 kw) |
| ROPS Type | Foldable | Foldable |
| Platform (flat/straddle) | Straddle | Straddle |
Engine Details
| 3038E Model Year | 2008-2012 | 2013-2025 |
|---|---|---|
| Number Of Cylinders | 3 | 3 |
| Engine Make | Yanmar | Yanmar |
| Engine Model | Yanmar 3TNV84T | Yanmar 3TNV86T / 3TNV86CT |
| Displacement | 91.5 cu in (1.496 L) | 95.7 cu in (1.568 L) |
| Bore | 3.31 in (84 mm) | 3.39 in (86 mm) |
| Stroke | 3.54 in (90 mm) | 3.54 in (90 mm) |
| Horsepower (Gross) | 36.3 hp (27.1 kw) | 36.7 hp (27.4 kw) |
| PTO Power | 25 hp (17.9 kw) | 30 hp (22.4 kw) |
| Power Measured @ | 2500 rpm | 2500 rpm |
| Peak Torque | 88.5 lb ft (120 Nm) | 93.7 lb ft (127 Nm) |
| Torque Measured @ | 1680 rpm | 1950 rpm |
| Injection Pump Type | Direct Injection | Direct Injection |
| Cooling System | Water pump | Water pump |
| Compression Ratio | 19:1 | 19.1:1 |
| Aspiration | Turbocharged | Turbocharged |
| Emission Standards | US EPA Tier 4 / EU Stage ⅢA | US EPA Tier 4 Final / EU Stage V |
PTO (Power Take-Off)
| 3038E Model Year | 2008-2012 | 2013-2025 |
|---|---|---|
| Rear PTO Type | Independent | Independent |
| Rear PTO Speed | 540 rpm | 540 rpm |
| PTO Power (claimed) | 25 hp (17.9 kw) | 30 hp (22.4 kw) |
| PTO Clutch | Wet disk | Wet disk |
| PTO Brake | Wet disk | Wet disk |
Transmission
| 3038E Model Year | 2008-2012 | 2013-2025 |
|---|---|---|
| Type | Hydrostatic transmission (HST) | Hydrostatic transmission (HST) |
| Number of Gears | Infinitely Variable (2 Range) | Infinitely Variable (2 Range) |
| Max Travel Speed, Low | 5.8 mph (9.3 km/h) | 6.0 mph (9.7 km/h) |
| Max Travel Speed, High | 12.4 mph (20.0 km/h) | 12.9 mph (20.8 km/h) |
| Drive | 4WD, 4×4 | 4WD, 4×4 |
| Steering | Hydrostatic power steering | Hydrostatic power steering |
| Service Brakes | Wet disc drakes | Wet disc drakes |
| Differential Lock | Mechanical, rear | Mechanical, rear |
| Final Drive Type | Spur Gear | Spur Gear |
Hydraulic System
| 3038E Model Year | 2008-2012 | 2013-2025 |
|---|---|---|
| Type | Open Center | Open Center Hydraulics |
| Pump Type | Tandem gear pump | Dual gear |
| Main Pump Flow | 5.3 gal/min (20.2 L/min) | 5.3 gal/min (20.2 L/min) |
| Steering Pump Flow | 4.0 gal/min (15.0 L/min) | 4.0 gal/min (15.0 L/min) |
| Total Pump Flow | 9.3 gal/min (35.2 L/min) | 9.3 gal/min (35.2 L/min) |
| Steering Pressure | 1500 psi (10342 kPa) | 1500 psi (10342 kPa) |
| Working Pressure | 2500 psi (17240 kPa) | 2495 psi (17200 kPa) |
| Remote Control Valves | Up to 2 (optional) | Up to 2 (optional) |
| Draft Control Sensing | Position control | Position control |
| 3-Point Hitch Category | Cat I | Cat I |
| 3-Point Hitch Lift Capacity @ 24″ | 1356 lb (615 kg) | 1356 lb (615 kg) |

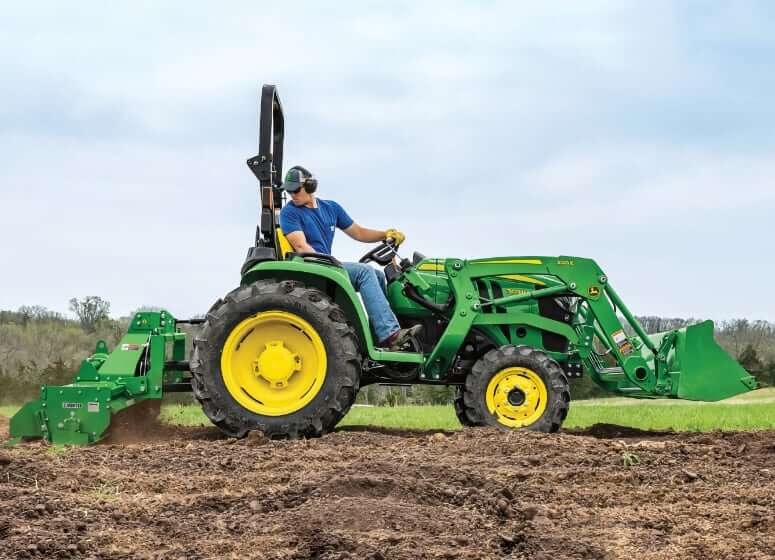

JD 3038E Attachments
The John Deere 3038E is a powerful and versatile compact utility tractor, well-suited for landscaping, digging, light construction, snow removal, and general property maintenance. It supports a wide variety of attachments, making it adaptable to many tasks. Here’s a categorized overview of popular and compatible attachments for the 3038E:

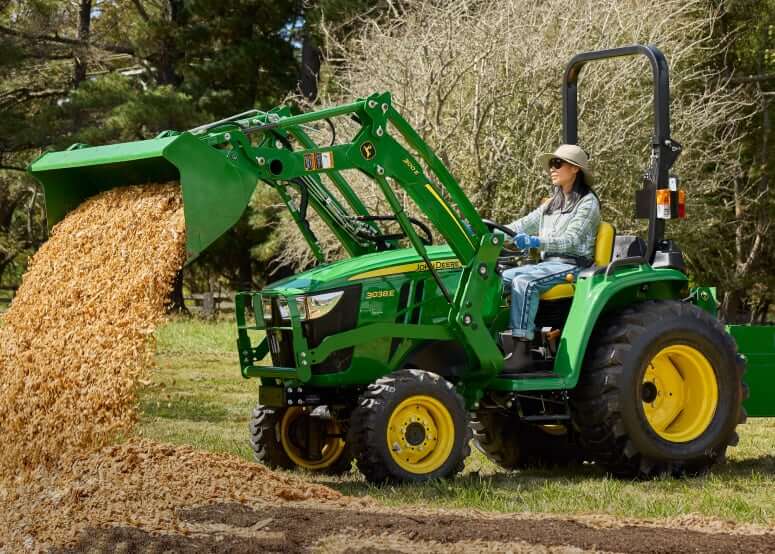

John Deere 300E Loader
| Model | 300E Loader |
|---|---|
| Height (to pin) | 84 in (2140 mm) |
| Clearance, dumped bucket | 63 in (1596 mm) |
| Dump reach | 24 in (603 mm) |
| Dump angle | 43.8° |
| Rollback angle | 31.4° |
| Clearance (at full height – bucket level) | 78 in (1979 mm) |
| Reach (at ground-level) | 54 in (1369 mm) |
| Boom Breakout force (at pin) | 1704 lbf (760 kgf) |
| Boom Breakout force (at 500 mm) | 1204 lbf (537 kgf) |
| Bucket Breakout force (at ground-level) | 1422 lbf (634 kgf) |
| Lift to full height (at pin) | 1186 lb (539 kg) |
| Lift to full height (at 500 mm) | 845 lb (384 kg) |
| Lift to full height (at 500 mm) w/ Mechanical Self-Leveling (MSL) | 1283 lb (583 kg) |
| Lift to 1.5m (at pin) | 1294 lb (588 kg) |
| Lift to 1.5m (at 500 mm) | 977 lb (444 kg) |
| Digging Depth | 5 in (131 mm) |
| Front Loader Weight | 675 lb (306.4 kg) |
| Bucket Weight | 205 lb (93 kg) |
Material Handling
| Model | Description |
|---|---|
| AB11E | Single Tine Bale Spear |
| AF11E | 72 in. Loader Mounted Front Blade |
| AM20F 50″ | 50 in. Manure Fork |
| AM20F 60″ | 60 in. Manure Fork |
| AP11F | Pallet Fork |
| AP12F | Pallet Fork |
| AP13F | Floating Pallet Fork |
| AR10E 66″ | 66 in. Rock Bucket |
| AR10E 75″ | 75 in. Rock Bucket |
| AR10H | 55 in. Rock Bucket |
| AV20F | 53 in. Root Grapple |
| AV50H | 64 in. Hydraulic Root Grapple |
| AY11F | 53 in. 4-in-1 Bucket |
| MG20F | Mechanical Grapple |
| PG11 | Pallet Fork Grapple |
| PG12 | Pallet Fork Grapple |
| SA20F | Skid Steer Carrier Adapter |

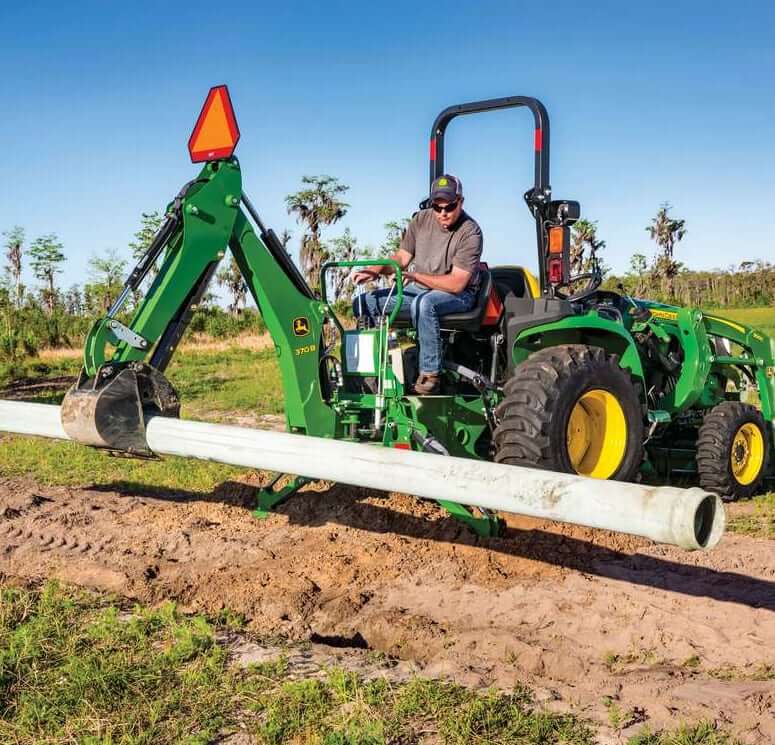

John Deere 370B Backhoe
| Model | John Deere 485 |
|---|---|
| Bucket Digging Force (SAE) | 2692 lbf (11.98 kN) |
| Dipperstick Digging Force (SAE) | 1577 lbf (7.02 kN) |
| Boom Lift Capacity | 302 lb (137 kg) |
| Digging Depth | 81.9 in (2080 mm) |
| Reach from Swing Pivot | 118.1 in (3000 mm) |
| Loading Reach (bucket at 60°) | 46 in (1170 mm) |
| Loading Height (bucket at 60°) | 70.9 in (1800 mm) |
| Bucket Rotation | 176° |
| Swing Arc | 148° |
| Bucket Control Main Relief Valve Pressure | 2500 psi (17240 kPa) |
| Stabilizers Spread Width | 46 in (1170 mm) |
| Transport Height | 78.7 in (2000 mm) |
| Weight | 773 lb (350 kg) |
| Bucket Width | 8 in (203 mm); 12 in (305 mm); 16 in (406 mm) |
Digging Attachments
| Model | Description |
|---|---|
| DT1136 Trencher | Auger length: 36 in (914 mm) |
| PHD200 Post Hole Digger | Auger length: 48 in (1219 mm). Quik-Knect kit available |
| PHD235 Post Hole Digger | Auger length: 48 in (1219 mm). Quik-Knect kit available |
| PHD300 Post Hole Digger | Auger length: 48 in (1219 mm). Quik-Knect kit available |
Blades and Grading
| Model | Description |
|---|---|
| BB2048 Box Blade | Working width: 48 in (1219 mm) |
| BB2060 Box Blade | Working width: 60 in (1524 mm) |
| BB2065 Box Blade | Working width: 66 in (1676 mm) |
| BB2072 Box Blade | Working width: 72 in (1829 mm) |
| BB5060 Box Blade | Working width: 61.5 in (1562 mm) |
| BB5072 Box Blade | Working width: 72 in (1829 mm) |
| BB5084 Box Blade | Working width: 85.5 in (2172 mm) |
| BB5096 Box Blade | Working width: 96 in (2438 mm) |
| LP2160 Land Plane | Working width: 60 in (1524 mm). Scarifiers: 4 |
| LP2172 Land Plane | Working width: 72 in (1829 mm). Scarifiers: 5 |
| PR1160 Power Rake | Working width: 60 in (1524 mm) |
| PR1172 Power Rake | Working width: 72 in (1829 mm) |
| RB2060 Rear Blade | Width: 60 in (1524 mm). Duty: Standard |
| RB2072 Rear Blade | Width: 72 in (1829 mm). Duty: Standard |
| RB2084 Rear Blade | Width: 84 in (2134 mm). Duty: Standard |
| RB2160 Rear Blade | Width: 60 in (1524 mm). Duty: Medium |
| RB2160H Rear Blade | Width: 60 in (1524 mm). Angled and offset hydraulically |
| RB2172H Rear Blade | Width: 72 in (1829 mm). Angled and offset hydraulically |
| RB2184H Rear Blade | Width: 84 in (2134 mm). Duty: Standard Plus |
| RB2196H Rear Blade | Width: 96 in (2438 mm). Angled and offset hydraulically |
| RB2172 Rear Blade | Width: 72 in (1829 mm). Duty: Medium |
| RB2184 Rear Blade | Width: 84 in (2134 mm). Duty: Medium |
| RB2196 Rear Blade | Width: 96 in (2438 mm). Duty: Medium |
| RB5060 Rear Blade | Width: 60 in (1524 mm). Duty: Standard |
| RB5072 Rear Blade | Width: 72 in (1829 mm). Duty: Standard |
| RB5084 Rear Blade | Width: 84 in (2134 mm). Duty: Standard |
| RB5096 Rear Blade | Width: 96 in (2438 mm). Duty: Standard |
Snow Removal Attachments
| Model | Description |
|---|---|
| SB1148 | Rear 3-Point Hitch Snow Blower. Working width: 48 in (1219 mm) |
| SB1154 | Rear 3-Point Hitch Snow Blower. Working width: 54 in (1372 mm) |
| SB1164 | Rear 3-Point Hitch Snow Blower. Working width: 64 in (1626 mm) |
| SB1174 | Rear 3-Point Hitch Snow Blower. Working width: 74 in (1880 mm) |
| SB1164P | Pull Type Snow Blower. Working width: 64 in (1626 mm) |
| SB1174P | Pull Type Snow Blower. Working width: 74 in (1880 mm) |
| AF11E 72″ | 72 in (1829 mm) Loader Mounted Front Blade |
| AS10F 48″ | 48 in (1219 mm) Snow Push |
| AS10F 60″ | 60 in (1524 mm) Snow Push |
| AS10H 72″ | 72 in (1829 mm) Snow Push |
Service Refill Capacities
| John Deere 3038E | 2008-2012 | 2013-2025 |
|---|---|---|
| Fuel Tank Capacity | 6.4 gal (24.2 L) | 7.5 gal (28.5 L) |
| Engine Oil Capacity | 1.2 gal (4.5 L) | 1.1 gal (4.3 L) |
| Cooling System Capacity | 1.1 gal (4.2 L) | 1.37 gal (5.2 L) |
| Transmission / Hydraulic Oil Capacity (HST) | 5.5 gal (21.0 L) | 5.5 gal (20.8 L) |
| Front Axle Fluid Capacity | 1.0 gal (3.8 L) | 1.0 gal (3.8 L) |

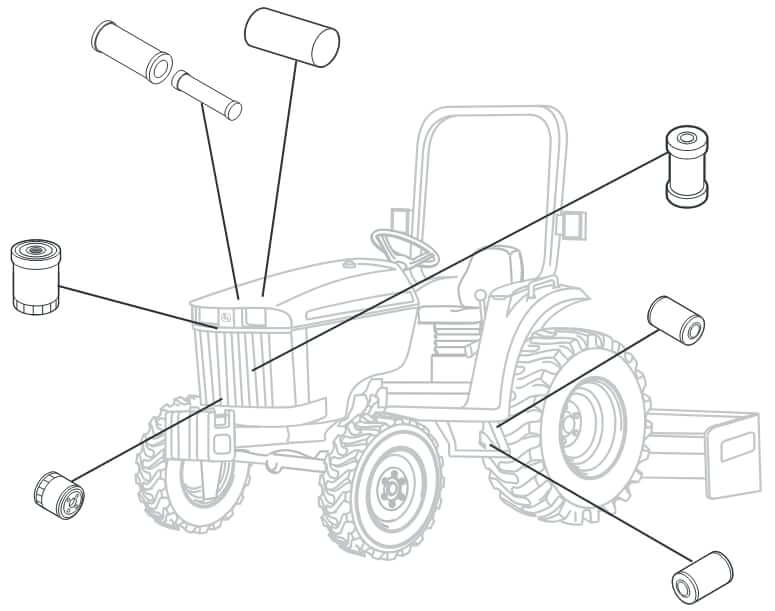

John Deere 3038E Filters
| Engine Air Filter (Primary) | M131802 |
| Engine Air Filter (Secondary) | M131803 |
| Engine Diesel Particulate Filter (DPF) (S/N 610001-) | MIA884119 |
| Fuel Filter (S/N -610000) | MIU800645 |
| Fuel Filter (S/N 610001-) | MIU803127 |
| Fuel/Water Separator (S/N -610000) | M811032 |
| Fuel/Water Separator (S/N 610001-) | MIU802421 |
| Engine Oil Filter | M806419 |
| Hydraulic / Transmission Oil Filter | LVA16054 |
| Hydraulic Oil Filter | LVA14703 |
| Filter Pack (S/N -610000) | LVA21128 |
| Filter Pack (S/N 610001-) | LVA21037 |
Serial Numbers
John Deere 3038E serial number location: PIN plate on right side of the frame, above the front axle.
| Year | Serial Number |
|---|---|
| 2009 (with loader) | 3038E110001 |
| 2009 (no loader) | 3038E140001 |
| 2010 (with loader) | 3038E210001 |
| 2010 (no loader) | 3038E240001 |
| 2011 | 3038ExBHxxxxxx |
| 2012 | 3038ExCHxxxxxx |
| 2013 | 3038ExDHxxxxxx |
| 2014 | 3038ExEHxxxxxx |
| 2015 | 3038ExFHxxxxxx |
| 2016 | 3038ExxGxxxxxx |
| 2017 | 3038ExxHxxxxxx |
| 2018 | 3038ExxJxxxxxx |
| 2019 | 3038ExxKxxxxxx |
| 2020 | 3038ExxLxxxxxx |
| 2021 | 3038ExxMxxxxxx |
| 2022 | 3038ExxNxxxxxx |
| 2023 | 3038ExxPxxxxxx |
| 2024 | 3038ExxRxxxxxx |
| 2025 | 3038ExxSxxxxxx |
