Dimensions
| Overall Length | 152.4 in (3870 mm) |
| Wheelbase | 62.7 in (1593 mm) |
| Height (ROPS) | 95.3 in (2420 mm) |
| Ground Clearance (front axle: min/max) | 11.8 in (299 mm) / 13.1 in (333 mm) |
| Front Tire Size | R1 Bar: 7-14 R3 Turf: 27×8.5-15 R4 Industrial: 25×8.5-14 R4 Industrial: 27×8.5-15 |
| Rear Tire Size | R1 Bar: 11.2-24 R3 Turf: 41×14-20 R4 Industrial: 15-19.5 R4 Industrial: 43×16-20 |
| Turning Radius (w/o Brakes) | 114.2 in (2900 mm) |
Operational Specs

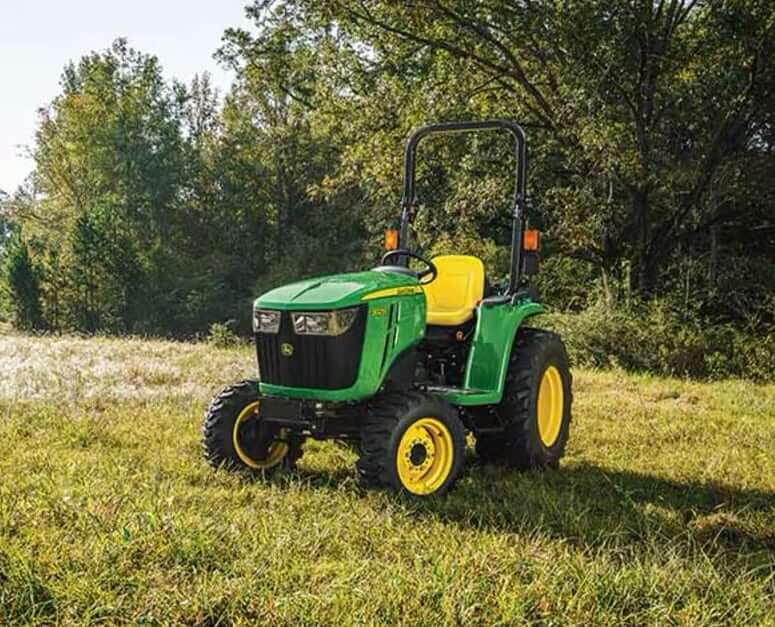

| Shipping Weight | 2603 lb (1181 kg) |
| Front Axle Capacity | 1940 lb (880 kg) |
| Rear Axle Capacity | 2645 lb (1200 kg) |
| Operating Voltage | 12 V |
| Alternator | 55 amps |
| Battery | 12 V, CCA 500 |
| Starter | 1.9 hp (1.4 kw) |
| ROPS Type | Foldable |
| Platform (flat/straddle) | Straddle |
| Gear Shift Location (console/floor) | Left-hand side |

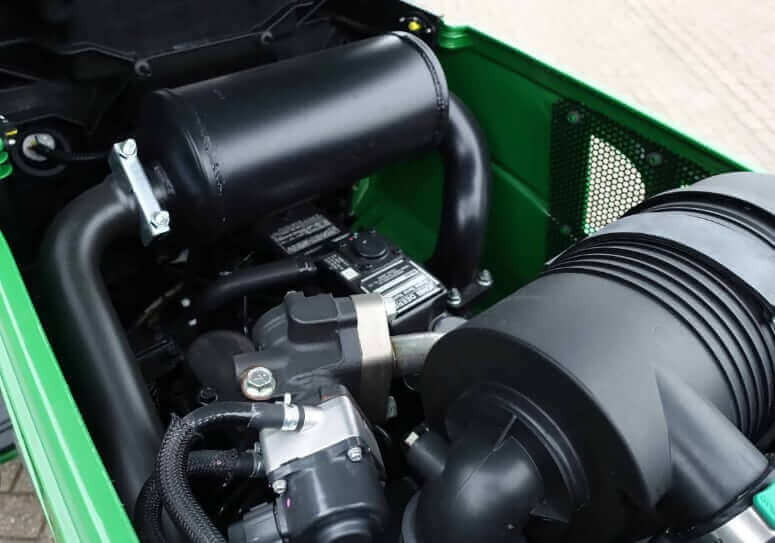

Engine Details
| Number Of Cylinders | 3 |
| Engine Make | Yanmar |
| Engine Model | Yanmar 3TNV88F-EPJT1 (EPJT2) |
| Displacement | 100.2 cu in (1.642 L) |
| Bore | 3.46 in (88 mm) |
| Stroke | 3.54 in (90 mm) |
| Horsepower (Gross) | 24.4 hp (18.2 kw) |
| PTO Power | 17.4 hp (13.0 kw) |
| Power Measured @ | 2400 rpm |
| Peak Torque | 53.4 lb ft (72.4 Nm) |
| Torque Measured @ | 2400 rpm |
| Injection Pump Type | Direct Injection |
| Cooling System | Water pump |
| Air Cleaner | Dual element air filter |
| Compression Ratio | 19.1:1 |
| Aspiration | Naturally aspirated |
| Emission Standards | US EPA Tier 4 Final / EU Stage V |
Transmission
| Type | Hydrostatic transmission (HST) |
| Number of Gears | Infinitely Variable (2 Range) |
| Max Travel Speed, Low | 6.0 mph (9.7 km/h) |
| Max Travel Speed, High | 12.9 mph (20.8 km/h) |
| Drive | 4WD, 4×4 |
| Steering | Hydrostatic power steering |
| Service Brakes | Wet disc drakes |
| Differential Lock | Mechanical rear |
| Final Drive Type | Spur Gear |

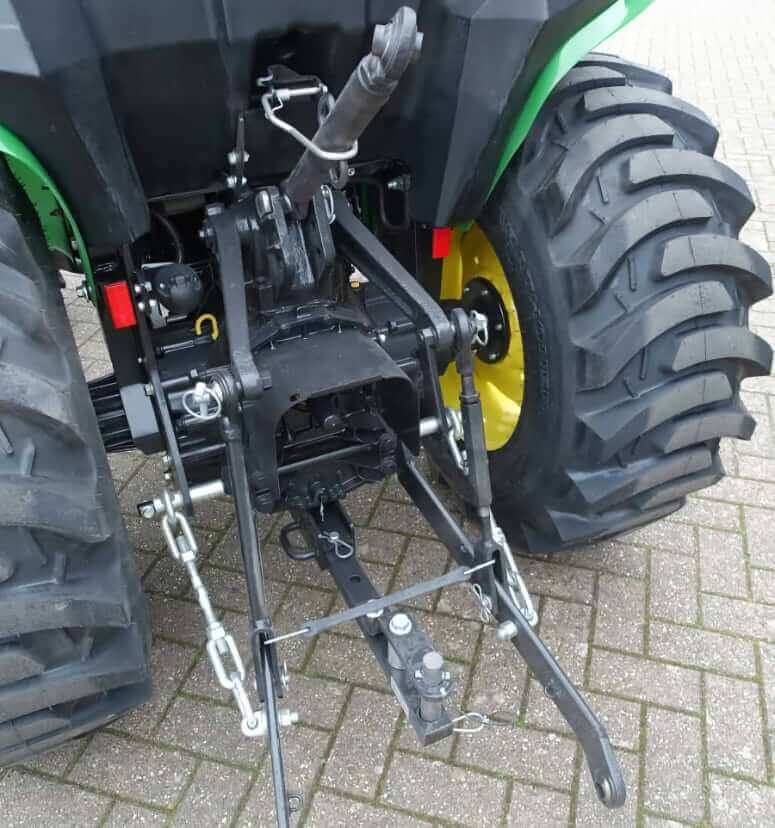

PTO (Power Take-Off)
| Rear PTO Type | Independent |
| Rear PTO Speed | 540 rpm |
| PTO Power | 17.4 hp (13 kw) |
| PTO / Engine RPM | 540@2500 |
| PTO Clutch | Wet disk |
Hydraulic System
| Type | Open Center |
| Pump Type | Dual gear |
| Implement Pump Flow | 5.3 gal/min (20.2 L/min) |
| Steering Pump Flow | 4.0 gal/min (15.0 L/min) |
| Total Pump Flow | 9.3 gal/min (35.2 L/min) |
| Max Operating Pressure | 2495 psi (17200 kPa) |
| Remote Control Valves | Up to 2 (optional) |
| Draft Control Sensing | Position control |
| 3-Point Hitch Category | Cat I |
| 3-Point Hitch Lift Capacity @ 24″ | 1356 lb (615 kg) |

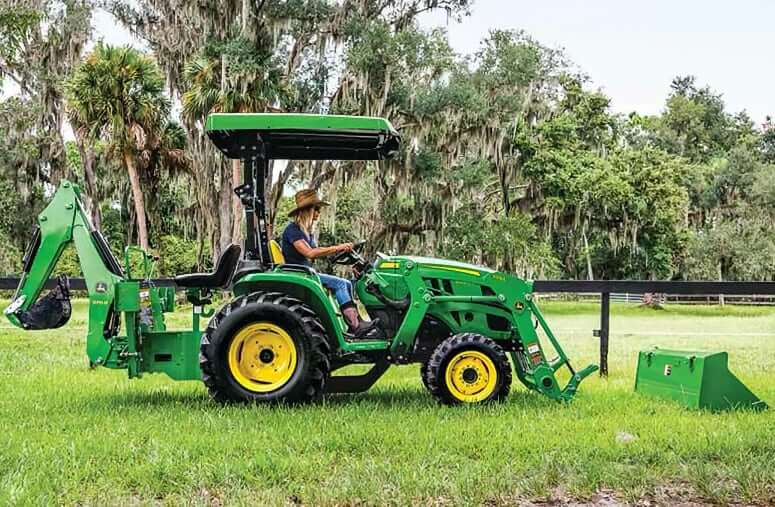

JD 3025E Attachments
The John Deere 3025E compact utility tractor is a versatile machine designed for a wide range of tasks including landscaping, gardening, light construction, and property maintenance. It supports a variety of attachments to extend its functionality.

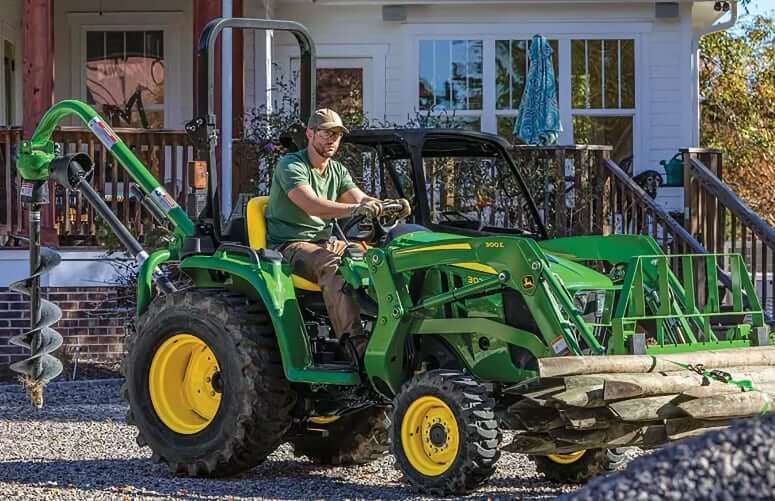

John Deere 300E Loader
| Model | 300E Loader |
|---|---|
| Height (to pin) | 84 in (2140 mm) |
| Clearance, dumped bucket | 63 in (1596 mm) |
| Dump reach | 24 in (603 mm) |
| Dump angle | 43.8° |
| Rollback angle | 31.4° |
| Clearance (at full height – bucket level) | 78 in (1979 mm) |
| Reach (at ground-level) | 54 in (1369 mm) |
| Boom Breakout force (at pin) | 1704 lbf (760 kgf) |
| Boom Breakout force (at 500 mm) | 1204 lbf (537 kgf) |
| Bucket Breakout force (at ground-level) | 1422 lbf (634 kgf) |
| Lift to full height (at pin) | 1186 lb (539 kg) |
| Lift to full height (at 500 mm) | 845 lb (384 kg) |
| Lift to full height (at 500 mm) w/ Mechanical Self-Leveling (MSL) | 1283 lb (583 kg) |
| Lift to 1.5m (at pin) | 1294 lb (588 kg) |
| Lift to 1.5m (at 500 mm) | 977 lb (444 kg) |
| Digging Depth | 5 in (131 mm) |
| Front Loader Weight | 675 lb (306.4 kg) |
| Bucket Weight | 205 lb (93 kg) |
Material Handling
| Model | Description |
|---|---|
| AB11E | Single Tine Bale Spear |
| AF11E | 72 in. Loader Mounted Front Blade |
| AM20F 50″ | 50 in. Manure Fork |
| AM20F 60″ | 60 in. Manure Fork |
| AP11F | Pallet Fork |
| AP12F | Pallet Fork |
| AP13F | Floating Pallet Fork |
| AR10E 66″ | 66 in. Rock Bucket |
| AR10E 75″ | 75 in. Rock Bucket |
| AR10H | 55 in. Rock Bucket |
| AV20F | 53 in. Root Grapple |
| AV50H | 64 in. Hydraulic Root Grapple |
| AY11F | 53 in. 4-in-1 Bucket |
| MG20F | Mechanical Grapple |
| PG11 | Pallet Fork Grapple |
| PG12 | Pallet Fork Grapple |
| SA20F | Skid Steer Carrier Adapter |

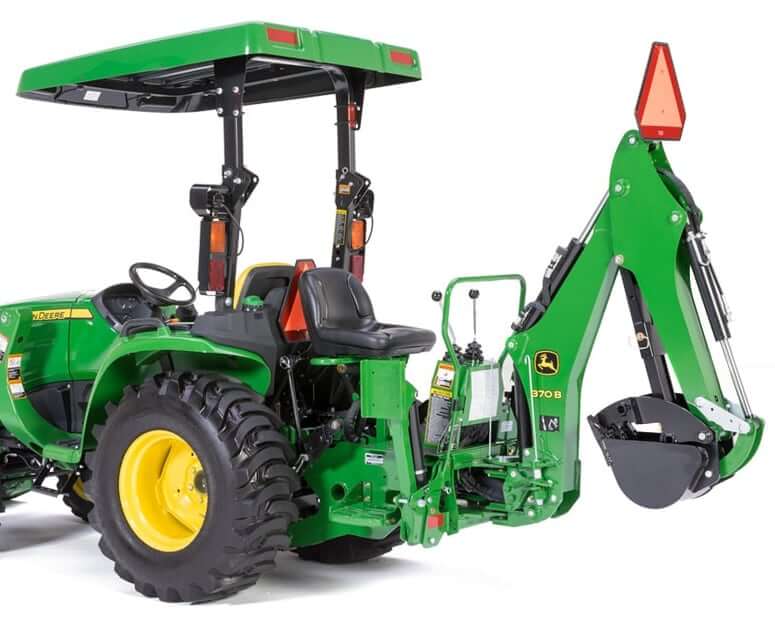

John Deere 370B Backhoe
| Model | John Deere 485 |
|---|---|
| Bucket Digging Force (SAE) | 2692 lbf (11.98 kN) |
| Dipperstick Digging Force (SAE) | 1577 lbf (7.02 kN) |
| Boom Lift Capacity | 302 lb (137 kg) |
| Digging Depth | 81.9 in (2080 mm) |
| Reach from Swing Pivot | 118.1 in (3000 mm) |
| Loading Reach (bucket at 60°) | 46 in (1170 mm) |
| Loading Height (bucket at 60°) | 70.9 in (1800 mm) |
| Bucket Rotation | 176° |
| Swing Arc | 148° |
| Bucket Control Main Relief Valve Pressure | 2500 psi (17240 kPa) |
| Stabilizers Spread Width | 46 in (1170 mm) |
| Transport Height | 78.7 in (2000 mm) |
| Weight | 773 lb (350 kg) |
| Bucket Width | 8 in (203 mm); 12 in (305 mm); 16 in (406 mm) |
Digging Attachments
| Model | Description |
|---|---|
| DT1136 Trencher | Auger length: 36 in (914 mm) |
| PHD100 Post Hole Digger | Auger length: 36 in (914 mm). Quik-Knect kit available |
| PHD200 Post Hole Digger | Auger length: 48 in (1219 mm). Quik-Knect kit available |
| PHD235 Post Hole Digger | Auger length: 48 in (1219 mm). Quik-Knect kit available |
| PHD300 Post Hole Digger | Auger length: 48 in (1219 mm). Quik-Knect kit available |

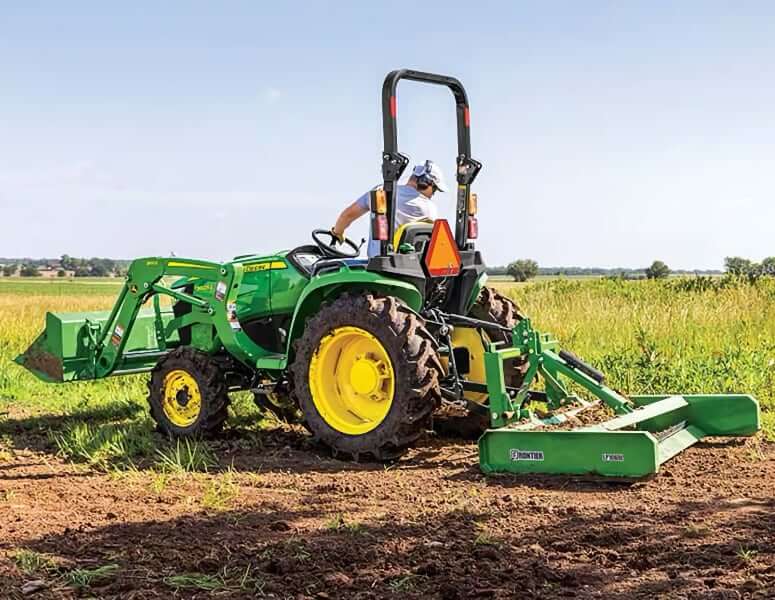

Blades and Grading
| Model | Description |
|---|---|
| BB2048L Box Blade | Working width: 48 in (1219 mm) |
| BB5048L Box Blade | Working width: 48 in (1219 mm) |
| BB5060L Box Blade | Working width: 60 in (1524 mm) |
| BB2048 Box Blade | Working width: 48 in (1219 mm) |
| BB2060 Box Blade | Working width: 60 in (1524 mm) |
| BB2065 Box Blade | Working width: 66 in (1676 mm) |
| BB2072 Box Blade | Working width: 72 in (1829 mm) |
| BB5060 Box Blade | Working width: 61.5 in (1562 mm) |
| BB5072 Box Blade | Working width: 73.5 in (1867 mm) |
| LP2160 Land Plane | Working width: 60 in (1524 mm). Scarifiers: 4 |
| PR1148 Power Rake | Working width: 48 in (1219 mm) |
| PR1160 Power Rake | Working width: 60 in (1524 mm) |
| RB2060 Rear Blade | Width: 60 in (1524 mm). Duty: Standard |
| RB2060L Rear Blade | Width: 60 in (1524 mm). Duty: Economy |
| RB2072 Rear Blade | Width: 72 in (1829 mm). Duty: Standard |
| RB2160 Rear Blade | Width: 60 in (1524 mm). Duty: Medium |
| RB2160H Rear Blade | Width: 60 in (1524 mm). Angled and offset hydraulically |
| RB2172H Rear Blade | Width: 72 in (1829 mm). Angled and offset hydraulically |
| RB2172 Rear Blade | Width: 72 in (1829 mm). Duty: Medium |
| RB5048L Rear Blade | Width: 48 in (1219 mm). Duty: Economy |
| RB5060L Rear Blade | Width: 60 in (1524 mm). Duty: Economy |
| RB5060 Rear Blade | Width: 60 in (1524 mm). Duty: Standard |
| RB5072 Rear Blade | Width: 72 in (1829 mm). Duty: Standard |
Snow Removal Attachments
| Model | Description |
|---|---|
| SB1148 | Rear 3-Point Hitch Snow Blower. Working width: 48 in (1219 mm) |
| SB1154 | Rear 3-Point Hitch Snow Blower. Working width: 54 in (1372 mm) |
| SB1164 | Rear 3-Point Hitch Snow Blower. Working width: 64 in (1626 mm) |
| SB1164P | Pull Type Snow Blower. Working width: 64 in (1626 mm) |
| AF11E | 72 in (1829 mm) Loader Mounted Front Blade |
| AS10F 48″ | 48 in (1219 mm) Snow Push |
| AS10F 60″ | 60 in (1524 mm) Snow Push |
| AS10H | 72 in (1829 mm) Snow Push |
These attachments, particularly those under the Frontier brand, are designed to work seamlessly with the John Deere 3025E, ensuring compatibility and optimal performance. Always check with your local John Deere dealer for the latest models, pricing, and installation compatibility.
Service Refill Capacities
| Fuel Tank Capacity | 7.5 gal (28.5 L) |
| Engine Oil Capacity | 1.1 gal (4.3 L) |
| Cooling System Capacity | 1.3 gal (4.9 L) |
| Transmission / Hydraulic Oil Capacity (HST) | 5.5 gal (20.8 L) |
| Front Axle Fluid Capacity | 1.0 gal (3.8 L) |
John Deere 3025E Filters
| Engine Air Filter (Primary) | M131802 |
| Engine Air Filter (Secondary) | M131803 |
| Fuel Filter | MIU800645 |
| Fuel/Water Separator | M811032 |
| Engine Oil Filter | M806419 |
| Hydraulic / Transmission Oil Filter | LVA16054 |
| Hydraulic Oil Filter | LVA14703 |
| John Deere 3025E Filter Pack | LVA21128 (M806419, LVA14703, MIU800645, LVA16054, M131802) |
Serial Numbers
John Deere 3025E serial number location: PIN plate on right side of the frame, above the tractor’s front axle.
| Year | Serial Number |
|---|---|
| 2013 | 3025ExDHxxxxxx |
| 2014 | 3025ExEHxxxxxx |
| 2015 | 3025ExFHxxxxxx |
| 2016 | 3025ExxGxxxxxx |
| 2017 | 3025ExxHxxxxxx |
| 2018 | 3025ExxJxxxxxx |
| 2019 | 3025ExxKxxxxxx |
| 2020 | 3025ExxLxxxxxx |
| 2021 | 3025ExxMxxxxxx |
| 2022 | 3025ExxNxxxxxx |
| 2023 | 3025ExxPxxxxxx |
| 2024 | 3025ExxRxxxxxx |
| 2025 | 3025ExxSxxxxxx |
