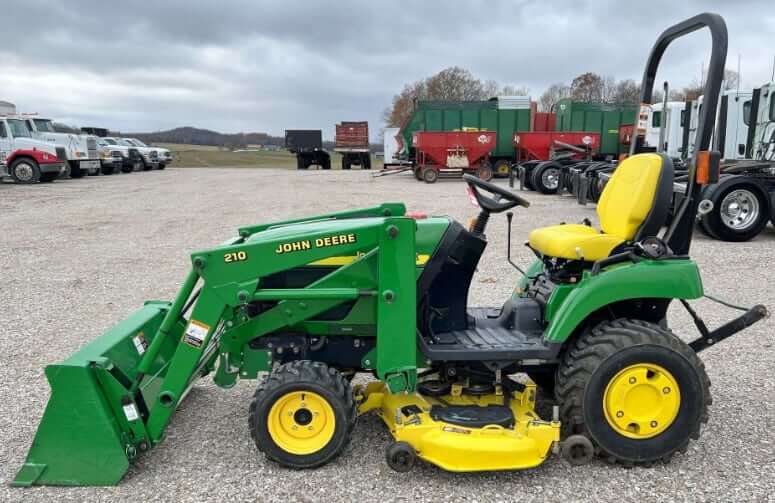

Dimensions
| Overall Length with 3-point Hitch |
104.3 in (2650 mm) |
| Overall Width |
47.2 in (1200 mm) |
| Height to Top of Hood (R1 Tires) |
41.8 in (1061 mm) |
| Height to Top of Hood (R3 Tires) |
41.5 in (1054 mm) |
| Height to Top of ROPS |
85.9 in (2183 mm) |
| Wheelbase |
57.1 in (1450 mm) |
| Front Tread |
35.6 in (905 mm) |
| Rear Tread |
35.3 in (896 mm) |
| Ground Clearance (Front axle) |
7.7 in (195 mm) |
| Turning Radius (MFWD Off) |
88.6 in (2300 mm) |
Tires
| JD 2210 |
Tire Size |
Inflation Pressure |
| Front Tire Size |
18×8.5-10 R1 |
22 psi (152 kPa) |
| Rear Tire Size |
26×12.00-12 R1 |
12 psi (83 kPa) |
| Front Tire Size (Optional) |
18×8.5-10 R3 |
22 psi (152 kPa) |
| Rear Tire Size (Optional) |
26×12.00-12 R3 |
12 psi (83 kPa) |

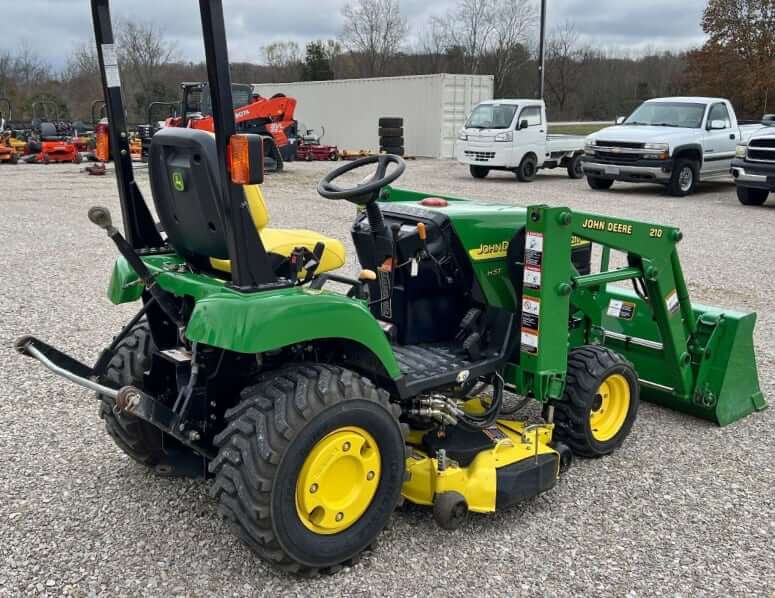

Weights
| Operating Weight |
1429 lb (648 kg) |
| Rear Wheel Counterweight #1 |
50 lb (23 kg) |
| Rear Wheel Counterweight #2 |
72 lb (33 kg) |
| Front Weight Bracket Kit (Quick-Tatch) |
9x 42 lb (9x 19 kg) |
Engine Details
| Number of Cylinders |
3 |
| Engine Make |
Yanmar |
| Engine Model |
Yanmar 3TNE74 |
| Displacement |
61.4 cu in (1.0 L) |
| Bore |
2.91 in (74 mm) |
| Stroke |
3.07 in (78 mm) |
| Gross Horsepower |
23.0 hp (17.1 kw) |
| PTO Horsepower |
17.7 hp (13.1 kw) |
| Power Measured @ |
3000 rpm |
| Fast Idle |
3250 ± 25 rpm |
| Slow Idle |
1400 ± 25 rpm |
| Fuel Sustem |
Indirect Fuel Injection |
| Air Cleaner |
Dry type air filter with safety element |
| Aspiration |
Naturally aspirated |
Operational Specs
| Operating Weight |
1429 lb (648 kg) |
| Operating Voltage |
12 V |
| Alternator |
20 amps |
| Battery |
12 V, CCA 435 |
| ROPS |
Two-post fixed ROPS |
| Steering |
Power steering |
Transmission
| Transmission Type |
2 range hydrostatic transmission |
| Number of Gears |
Infinite forward and reverse (2-range) |
| Max Forward Speed |
8.4 mph (13.3 km/h) |
| Max Reverse Speed |
6.3 mph (10.6 km/h) |
| MFWD Capability |
All ranges |
| MFWD Engagement |
On The Go |
| Final Drive |
Spur gear |
| Service Brakes |
Wet disc brakes |
| Max Front Axle Load |
3120 lb (1415 kg) |
| Max Rear Axle Load |
3120 lb (1415 kg) |
Hydraulic System
| Type |
Open center |
| Implement Pump Flow |
3 gal/min (11.4 L/min) |
| Steering Pump Flow |
2.5 gal/min (9.5 L/min) |
| Total Flow Capacity |
5.5 gal/min (20.8 L/min) |
| Relief Valve Setting |
1987 psi (13700 kPa) |
| Number of Remote Control Valves |
2 |
3-Point Hitch
| 3 Point Hitch Type |
Category I |
| 3 Point Hitch Lift Capacity @ 24″ |
701 lb (318 kg) |
| Hitch Plate Max Vertical Load |
562 lb (255 kg) |
| Total Lift Height |
9.76 in (248 mm) |
PTO (Power Take-Off)
| Rear PTO Type |
Independent |
| Rear PTO Speed |
540 |
| Mid PTO Type |
Independent |
| Mid PTO Speed |
2100 |
| Mid PTO Brake |
Shoe Type |
| PTO Power |
17.7 hp (13.1 kw) |
| Clutch Type |
Wet disc |
Service Refill Capacities
| Fuel Tank Capacity |
5 gal (19 L) |
| Engine Oil Capacity (w/ filter) |
0.55 gal (2.1 L) |
| Cooling System Capacity |
0.8 gal (3 L) |
| Hydraulic / Transmission Oil Capacity |
3.4 gal (13 L) |
| Front Axle Fluid Capacity |
0.66 gal (2.5 L) |
John Deere 2210 Filters
| Engine Air Filter (Primary) |
M113621 |
| Engine Air Filter (Secondary) |
M123378 |
| Fuel Filter |
CH15553 |
| Engine Oil Filter |
M806418 |
| Transmission Oil Filter |
AL221066 |
| Hydraulic Oil Filter |
LVA12812 |
| Filter Pack |
LVA21196 (M806418, CH15553, LVA12812, M113621) |
Serial Numbers & PIN Location

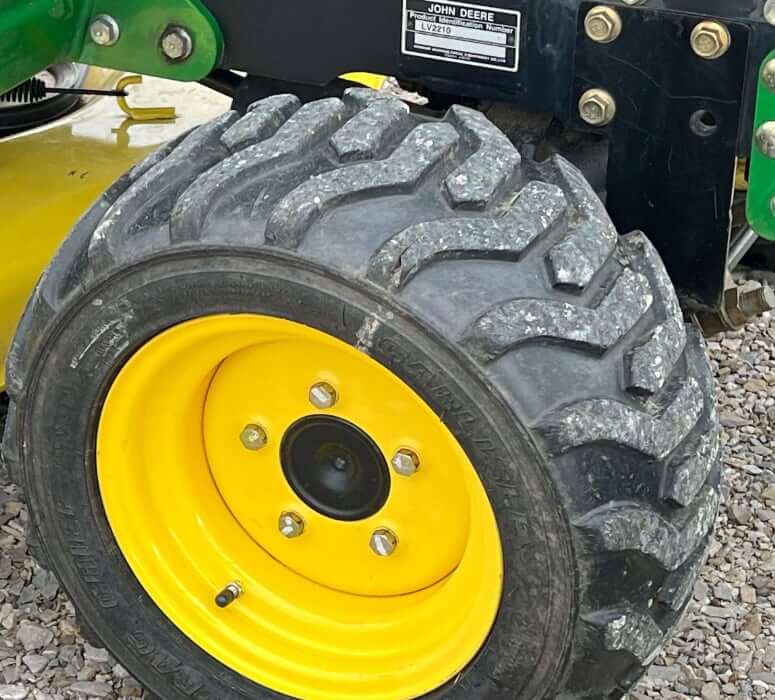

The serial number plate for the John Deere 2210 tractor is located on the right side of the tractor frame, above the front axle
| Year |
Serial Number |
| 2003 |
2100001 |
| 2004 |
3100001 |
| 2005 |
4310001 |

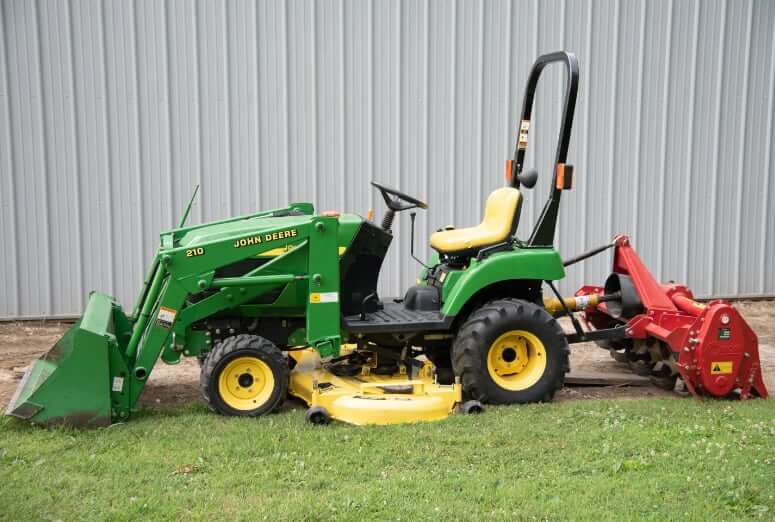

John Deere 2210 Attachments
The John Deere 2210 sub-compact utility tractor combines small size with big capability, supporting a versatile lineup of attachments designed for year-round performance. It’s commonly equipped with the 54-inch JD 54C or 62-inch JD 62C mid-mount mower decks for smooth, precision mowing and lawn care.

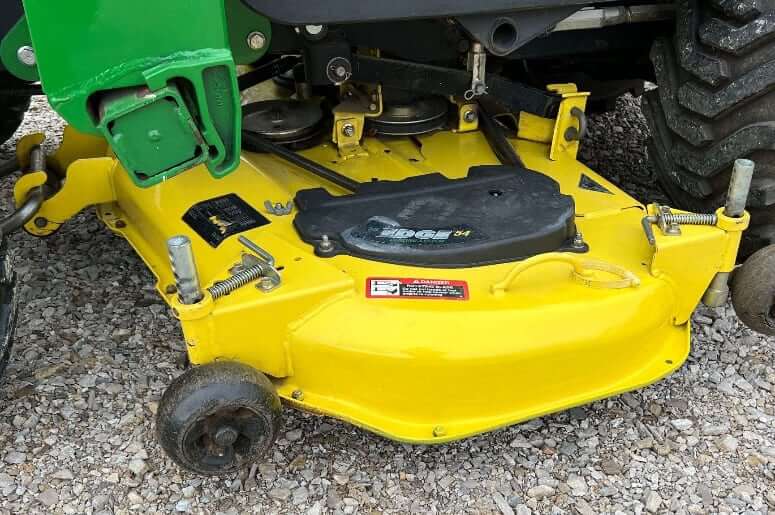

Mower Decks for John Deere 2210
| Model |
54″ Mower Deck JD 54C |
62″ Mower Deck JD 62C |
| Mount Type |
Mid-mount |
Mid-mount |
| Overall Width |
64.5 in (1630 mm) |
72.5 in (1840 mm) |
| Cutting Width |
54 in (1370 mm) |
62 in (1570 mm) |
| Cutting Height |
1 to 5.25 in (20 to 130 mm) |
1 to 5.25 in (20 to 130 mm) |
| Lift Type |
Hydraulic lift |
Hydraulic lift |
| Blades |
3 |
3 |
| Mower Deck Weight |
210 lb (95 kg) |
350 lb (158 kg) |

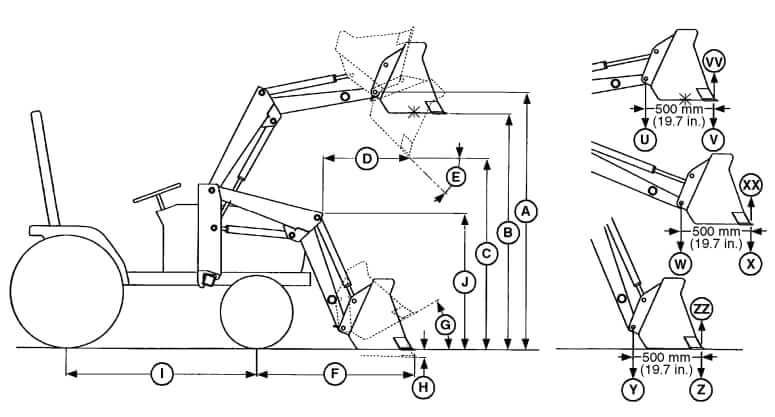

John Deere 210 Loader
| A. Maximum Lift Height to Pivot Pin |
68.5 in (1740 mm) |
| B. Clearance, Bucket Level |
62 in (1582 mm) |
| C. Clearance, Bucket Dumped |
50 in (1280 mm) |
| D. Reach at Max Lift Height |
24.2 in (615 mm) |
| E. Max Dump Angle |
47.2° |
| F. Reach at Bucket on Ground |
50.2 in (1275 mm) |
| G. Max Rollback Angle |
26.5° |
| H. Digging Depth |
7.9 in (200 mm) |
| I. Overall Length |
107.2 in (2725 mm) |
| J. Overall Height in Carry Position |
43.5 in (1105 mm) |
| Max Dump Angle at Ground |
124° |
| Rollback Angle at Full Height (SAE) |
98.2° |
| U. Lift Capacity to Max Height at Pivot Point |
622 lb (282 kg) |
| V. Lift Capacity to Max Height |
437 lb (198 kg) |
| W. Lift Capacity to 1.5 m (59 in) at Pivot Point |
721 lb (327 kg) |
| X. Lift Capacity to 1.5 m (59 in) |
520 lb (236 kg) |
| U. Lift Capacity with Forklift to Max Height |
516 lb (234 kg) |
| Y. Breakout Force at Pivot Point |
1577 lbf (7.02 kN) |
| Z. Breakout Force at 500 mm (19.7 in) Forward of Pivot Point |
1072 lbf (4.77 kN) |
| VV. Bucket Rollback Force at Max Height |
1293 lbf (5.75 kN) |
| XX. Bucket Rollback Force at 1.5 m (59 in) Lift Height |
1488 lbf (6.62 kN) |
| ZZ. Bucket Rollback Force at Ground Level Line |
1650 lbf (7.34 kN) |
| Bucket Width |
49.2 in (1250 mm) |
| Bucket Length |
24.3 in (618 mm) |
| Bucket Weight |
154 lb (70 kg) |
| Loader Raising Time |
3.8 sec |
| Loader Lowering Time |
2.0 sec |
| Bucket Dumping Time |
2.4 sec |
| Bucket Rollback Time |
3.4 sec |

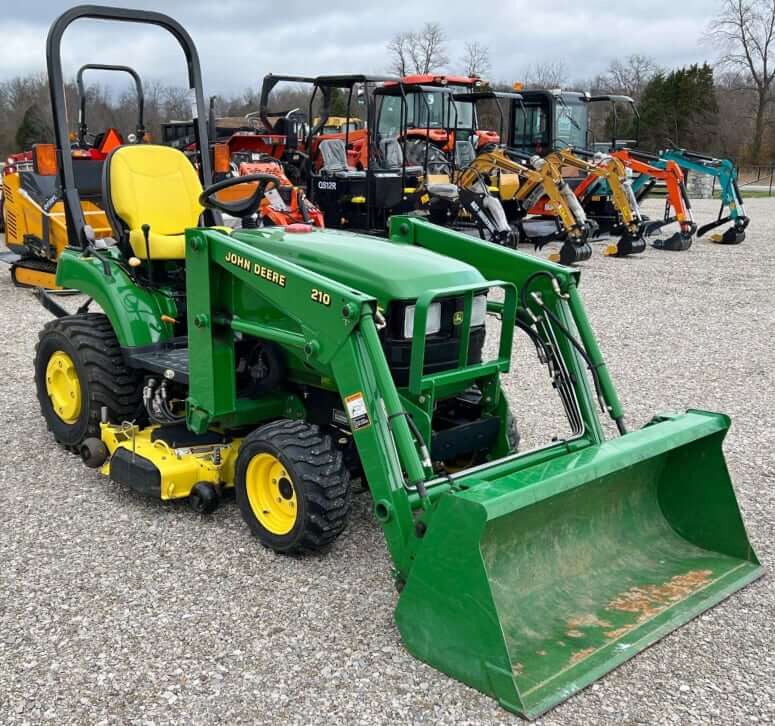

The John Deere 210 front loader adds efficient material-handling power, while the 46-inch snow blower and 54-inch front blade make snow clearing easy and effective through winter.

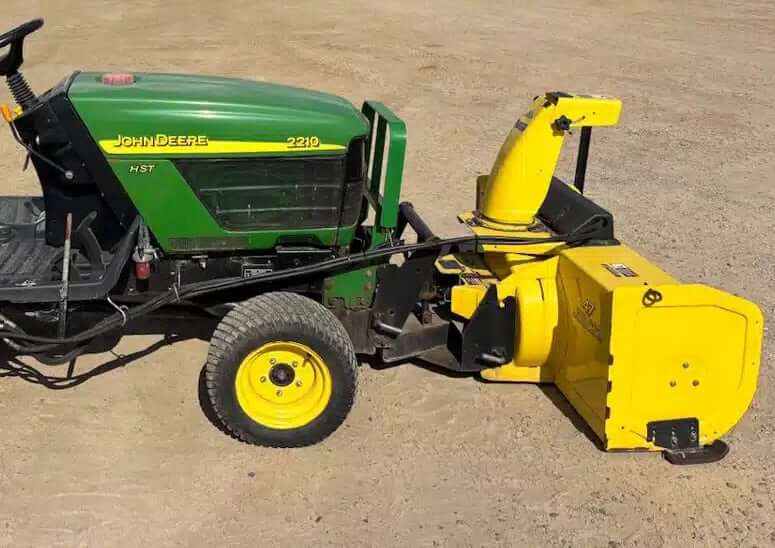

46″ Snow Blower
| Mount Type |
Front-mount |
| Clear Height |
12 in (305 mm) |
| Clearing Width |
46 in (1168 mm) |
| Overall Width |
47.5 in (1206 mm) |
| Lift Type |
Hydraulic Lift |
| Stage |
Single-stage |
| Weight |
250 lb (113 kg) |
54″ Front Blade
| Mount Type |
Front-mount |
| Clearing Width |
54 in (1372 mm) |
| Cut |
3.5 in (89 mm) |
| Lift Height |
11 in (279 mm) |
| Blade Weight |
50 lb (22 kg) |
Compatible with a range of 3-point and front-mounted implements, the 2210 can also operate box blades, tillers, post hole diggers, and landscape tools. With quick-attach options and a full hydraulic system, this compact yet powerful tractor delivers dependable performance for mowing, grading, lifting, or clearing – ideal for property owners who need true versatility in a small, easy-to-handle package.
