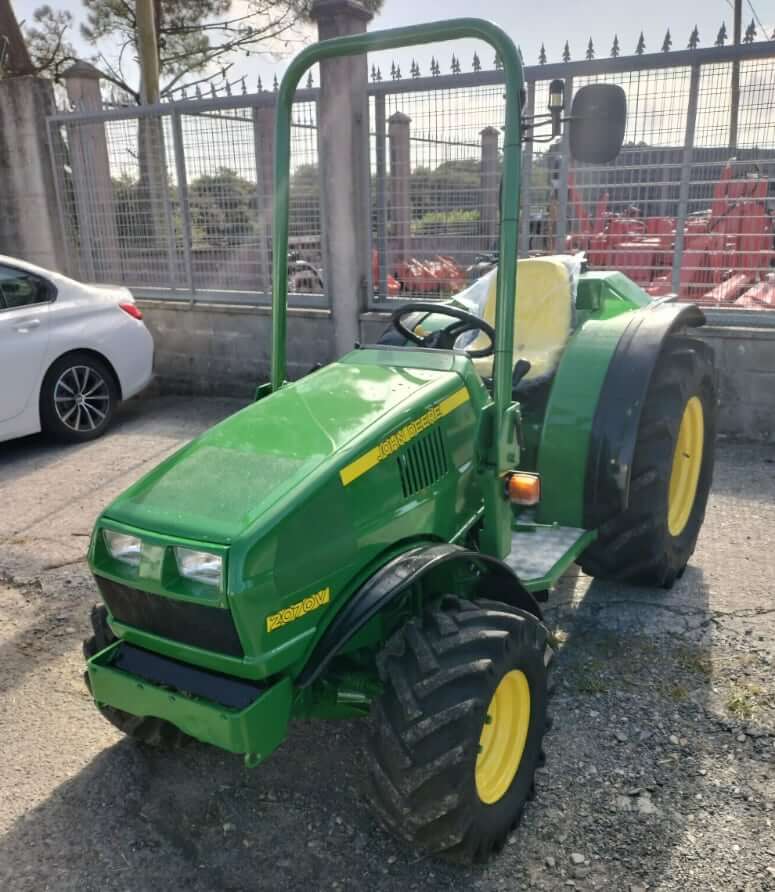

Dimensions
| Overall Length | 121 in (3070 mm) |
| Wheelbase | 66.5 in (1690 mm) |
| Height to Top of ROPS | 81.3 in (2065 mm) |
| Ground Clearance (front axle) | 5.9 in (150 mm) |
| Max Overall Width | 55.9 in (1420 mm) |
| Front Track Width | 35.7-46.6 in (908-1184 mm) |
| Rear Track Width | 32.3-46.5 in (820-1180 mm) |
Operational Specs
| Shipping Weight | 3792 lb (1720 kg) |
| Operating Weight | 3957 lb (1795 kg) |
| Steering | Hydrostatic steering |
| Operating Voltage | 12 V |
| Alternator | 55 amps |
| Battery | 12 V, 80 Ah |
| Starter | 12 V, 3.62 hp (2.7 kw) |
| Front Tire Size | 7.00-12. Optional: 6.5/80-15; 11.0/65-12; 10.0/80-12; 26×12.00-12; 26×12.00-12 |
| Rear Tire Size | 12.4 R20. Optional: 9.5-24; 12.4-20; 320/70 R20; 360/70 R20; 38×14.00-20 |
Engine Details
| Number Of Cylinders | 3 |
| Engine Make | VM Motori |
| Engine Model | VM Motori D703LT |
| Displacement | 127 cu in (2.1 L) |
| Net Power | 71 hp (53 kw) |
| Power Measured @ | 3000 rpm |
| Peak Torque | 146 lb ft (198 Nm) |
| Torque Measured @ | 1600 rpm |
| Torque Rise | 20.2% |
| Aspiration | Turbocharged |
| Emission Standards | EU Stage 1 |
Transmission
| Type | Mechanical synchromesh transmission |
| Clutch | Double disc dry clutch, 9.8 in (250 mm) |
| Number Of Gears | 16+8 with synchronized dual power |
| Rear Axle Type | Bevel gear differential and epicyclic final drive |
| Front Axle Type | System with central shaft bevel gear drive, differential and epicyclic final drives |
| Service Brake | 8 oil bath discs (4 at each rear wheel, mounted before the final drive) |
| Parking Brake | Mechanical, in common with service brake |
| Max Travel Speed, Forward | 18.6 mph (30 km/h) |
| Max Travel Speed, Reverse | 14.9 mph (24 km/h) |
| Differential Lock | None |
Hydraulic System
| Type | Open centre load sensing hydraulic system |
| Pump Type | Hydraulic rotary pump Hidroirma |
| Pump Flow Capacity | 7.3 gal/min (27.5 L/min) |
| Relief Valves Pressure Setting | 2756 psi (19000 kPa) |
| Steering Pump Type | Hydraulic gear pump Hidroirma |
| Steering Working Pressure | 2610 psi (18000 kPa) |
| 3 Point Hitch Type | Cat I and II |
| 3 Point Hitch Lift Capacity @ 24 Inches | 5070 lb (2300 kg) |

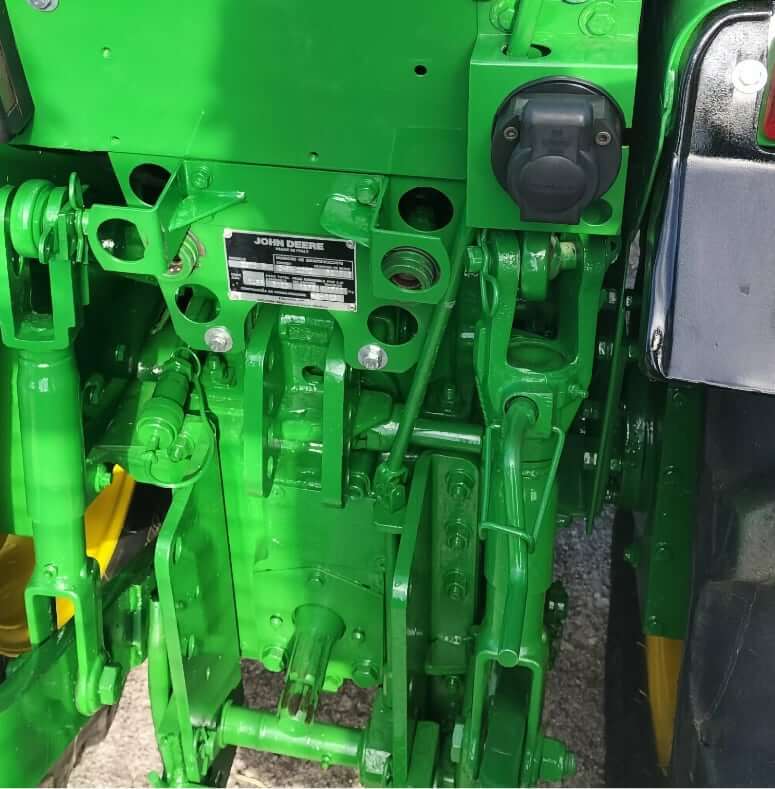

PTO (Power Take-Off)
| Rear PTO Type | Independent PTO |
| PTO Speed | 540 / 750 / 1000 |
| PTO Shaft End Diameter | 1.4 in (35 mm) |
| Height above Ground | 16.5 in (419 mm) |
| Number of Splines | 6, ISO 500:1991 |
Service Refill Capacities
| Fuel Tank Capacity | 10 gal (38 L) |
| Cooling System Capacity | 2.64 gal (10 L) |
| Engine Oil Capacity | 1.58 gal (6 L) |
| Front Axle / Final Drives | 1.06 gal (4 L) |
| Front PTO Oil Capacity | 0.39 gal (1.5 L) |
| Transmission/Hydraulic System Capacity | 8.45 gal (32 L) |
