Operating Specs
| Shipping Weight | 1793 lb (814 kg) |
| Operating Weight (Open station) | 1872 lb (849 kg) |
| Operating Weight (Cab) | 2392 lb (1085 kg) |
| Front Axle Load Capacity | 1349 lb (612 kg) |
| Rear Axle Load Capacity | 2425 lb (1100 kg) |
| Fuel Consumption | 1.5 gal/hr |
| Front Tire Size | R3 Turf – 23×8.50-12, R4 Industrial – 23×8.50-12, R3 Radial – 220/55-R12 |
| Rear Tire Size | R3 Turf – 31×13.5-15, R4 Industrial – 12-16.5, R3 Radial – 280/70-R16 |

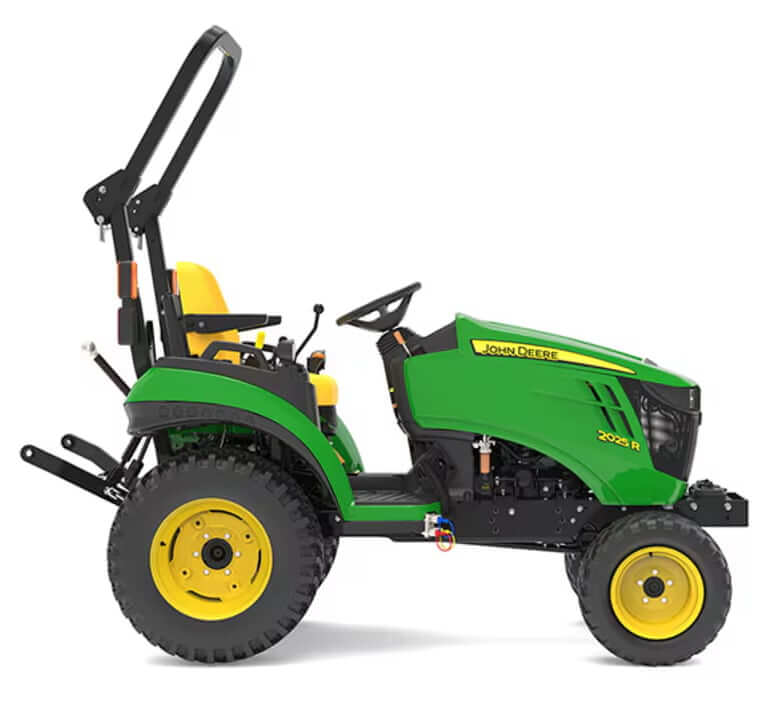

Dimensions
| Wheelbase | 63 in (1600 mm) |
| Length | 109.2 in (2770 mm) |
| Width | 37 in (930 mm) / 51 in (1290 mm) |
| Front Tread Range | 37.5 in (953 mm) |
| Ground Clearance (Front Axle) | 12.5 in (310 mm) |
| Turning Radius w/o Brakes | 104.3 in (2650 mm) |
Engine Details
| Number of Cylinders | 3 |
| Engine Make | Yanmar |
| Family | GYDXL1.27NS1, HYDXL1.27NS1 |
| Engine Model | Yanmar 3TNV80F-NCJT |
| Displacement | 77.3 cu in (1.267 L) |
| Bore | 3.2 in (80 mm) |
| Stroke | 3.4 in (84 mm) |
| Gross Power | 23.9 hp (17.8 kw) |
| Power Measured @ | 3200 rpm |
| Injection Pump Type | Indirect Injection |
| Peak Torque | 39 lb ft (53 Nm) |
| Power Measured @ | 2400 rpm |
| PTO Power | 18 hp |
| Lubrication | Pressurized |
| Cooling System | Water pump |
| Air Cleaner | Dual element |
| Compression Ratio | 23:01 |
| Fuel Consumption | 1.5 gal/hr |
| Aspiration | Naturally aspirated |
| Emissions Compliance | US EPA Tier IV Final, EU Stage V |
Electrical
| Operating Voltage | 12 V |
| Alternator | 40 amps |
| Battery | 12 V, CCA 500 |
| Starter | 1.6 hp (1.2 kw) |
PTO (Power Take-Off)
| PTO Control | Independent |
| Clutch | Wet disc |
| Rear PTO Speed | 540 rpm |
| Mid PTO Speed | 2100 rpm |
| Brake (For Mid and Rear PTO) | Wet disc |
Transmission
| Type | Hydrostatic transmission with 2 ranges |
| Number of Gears | infinite forward and reverse |
| Max Travel Speed (Forward) | 11.3 mph (18.2 km/h) |
| Max Travel Speed (Reverse) | 5.7 mph (9.2 km/h) |
| Service Brakes | Wet disc |
| Cruise Control | Standard |
| Steering | Power steering |
| Creeper | No |
| Differential Lock | Yes |
| Final Drive Type | Spur Gear |
Hydraulic System
| Type | Open Center Hydraulics |
| Pump Type | Gear |
| Steering Pump Flow | 3.5 gal/min (13.25 L/min) |
| Implement Pump Flow | 3.5 gal/min (13.25 L/min) |
| Total Pump Flow | 7.0 gal/min (26.5 L/min) |
| Max Operating Pressure | 1987 psi (13700 kPa) |
| Draft Control Sensing | Position control |
| Remote Control Valves | 2 |
| 3-Point Hitch Category | Category 1 |
| 3-Point Hitch Lift Capacity @ 24″ | 915 lb (415 kg) |
Operator Station
| Rollover Protective Structure | Type Foldable OSHA, SAE, ASAE |
| Platform – Flat/Straddle | Three-piece semi flat |
| Gear Shift Location – Console/Floor | Left Hand Side |
Service Refill Capacities
| Fuel Tank Capacity | 6.1 gal (23 L) |
| Engine Oil Capacity (w/ Filter) | 0.8 gal (3.2 L) |
| Cooling System Capacity | 0.8 gal (3.2 L) |
| Transmission / Hydraulic Oil Capacity | 3.5 gal (13.1 L) |
| Front Axle Fluid Capacity | 0.89 gal (3.4 L) |
John Deere 2025R Filters
| Engine Air Filter (Primary) | M131802 |
| Engine Air Filter (Secondary) | M131803 |
| Fuel Filter | MIU804763 |
| Engine Oil Filter | M806418 |
| Transmission Oil Filter | LVA802810 |
| Hydraulic Oil Filter | AL221066 |
| 2025R Filter Pack | John Deere LVA21204 (M806418, MIU804763, M131802, AL221066, LVA802810) |
