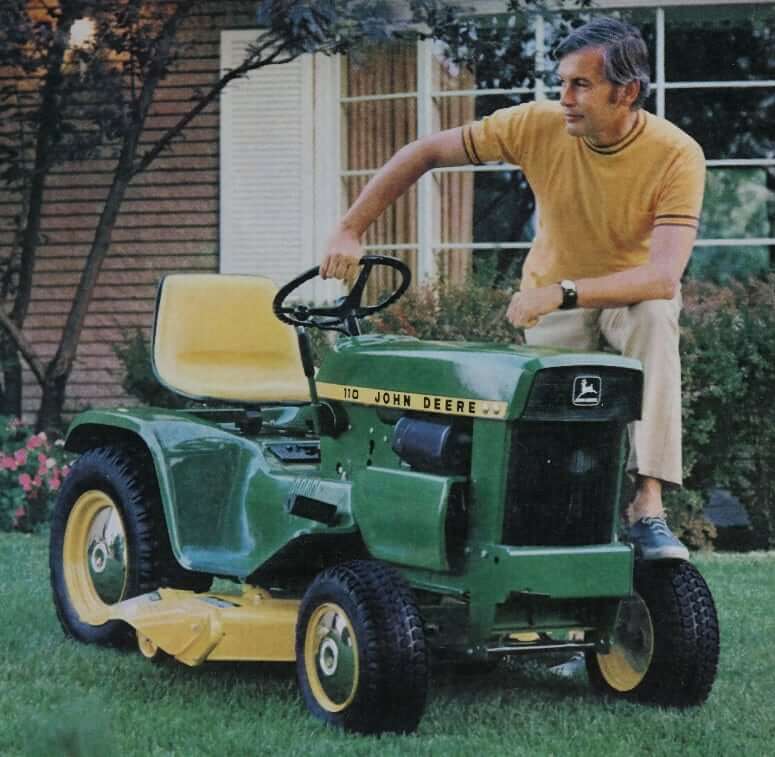

Dimensions
| John Deere 110 | 1963-1967 | 1968-1974 |
|---|---|---|
| Overall Length | 63.0 in (1600 mm) | 66.75 in (1695 mm) |
| Wheelbase | 44.0 in (1118 mm) | 46.0 in (1168 mm) |
| Overall Height | 38.75 in (984 mm) | 41 in (1041 mm) |
| Overall Width (Max, GT-1 / GT-2 Tires) | 39.0 in (991 mm) | 39.0 in (991 mm) |
| Overall Width (Max, GT-3 / GT-4 Tires) | 41.5 in (1054 mm) | 41.5 in (1054 mm) |
Wheel Tread
| Model Year | 1963-1967 | 1968-1974 |
|---|---|---|
| Wheel Tread (Front, GT-1 / GT-2 Tires) | 29 in (737 mm) | 29 in (737 mm) |
| Wheel Tread (Front, GT-3 / GT-4 Tires) | 30 in (762 mm) | 30 in (762 mm) |
| Wheel Tread (Rear) | 27 or 33 in (686 or 838 mm) | 27 or 33 in (686 or 838 mm) |
| Outside Turning Radius (GT-1 / GT-2 Tires) | 30.5 in (775 mm) | 36 in (914 mm) |
| Outside Turning Radius (GT-3 / GT-4 Tires) | 28.5 in (724 mm) | 34 in (864 mm) |
Tire Size and Codes

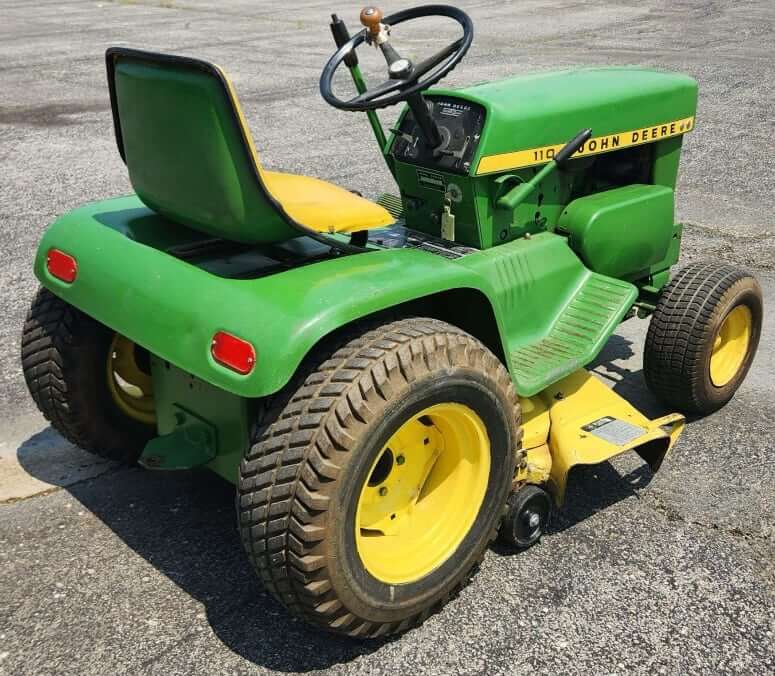

| Tire Code | Front Tire Size | Rear Tire Size |
|---|---|---|
| GT-1, All Purpose | 4.80 / 4.00-8, 2PR | 6-12, 2PR |
| GT-2, Traction | 4.80 / 4.00-8, 2PR | 6-12, 2PR |
| GT-3, High-Flotation | 16×6.50-8, 2PR | 23×8.50-12, 2PR |
| GT-4, Studded | 4.80/ 4.00-8, 4PR | – |
| GT-4, Traction | – | 23×8.50-12, 2PR |
| GT-5, High-Flotation | 16×6.50-8 | 23×10.50-12 |
| GT-8 Bar Tread, High-Flotation | 16×6.50-8 or 4.80/ 4.00-8 | – |
| GT-8 Bar Tread, Traction | – | 23×10.50-12 |
Weight
| Operating Weight (SN: -3350, Manual lift, GT-2) | 500 lb (227 kg) |
| Operating Weight (SN: 3351-15000, Manual lift, GT-2) | 513 lb (233 kg) |
| Operating Weight (SN: 15001-40000, Manual lift, GT-2) | 531 lb (241 kg) |
| Operating Weight (SN: 40001-100000, Manual lift, GT-2) | 545 lb (247 kg) |
| Operating Weight (SN: 40001-100000, Hydraulic lift, GT-2) | 566 lb (257 kg) |
| Operating Weight (SN: 250001-, Hydraulic lift, GT-3) | 770 lb (349 kg) |
| Operating Weight (SN: 250001-, Electric lift, GT-3) | 774 Ib (351 kg) |
| Front Weights, 2x | 39 lb (18 kg) |
| Rear Weights, 2x | 39 lb (18 kg) |
| Rear Ballast Box | 270 lb (122 kg) |

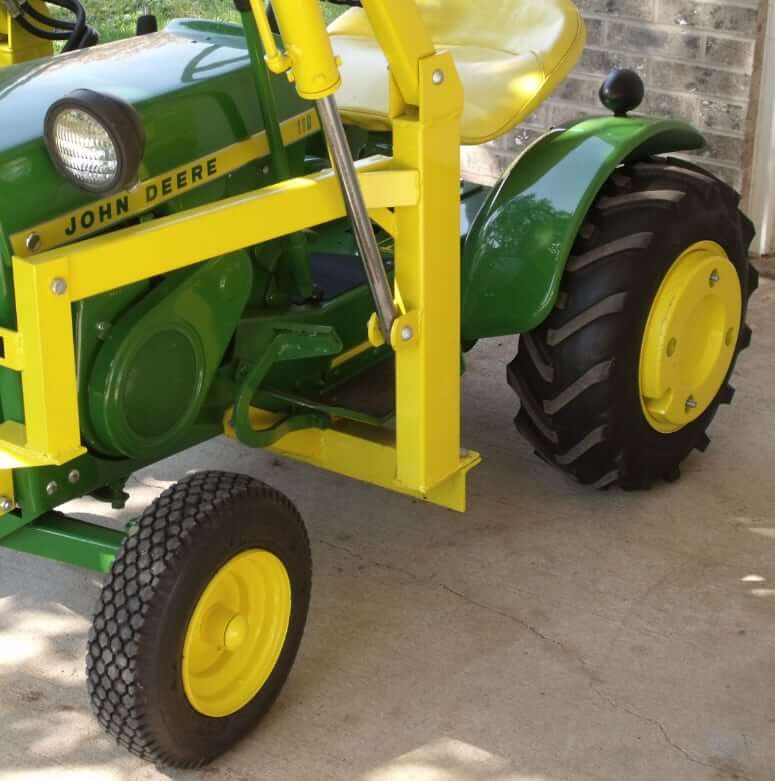

| Rear Wheel Weights, 2×2 | 58 lb (36 kg) |
Engine Details
| Model Year | 1963, 7 hp | 1964-74, 8 hp | 1972-74, 10 hp |
|---|---|---|---|
| Engine Model | Kohler K161S | Kohler K181S | Kohler K241AS |
| Tractor Serial Number | -3550 | 3551-320000 | 260001-272000; 285001-310000; 320001- |
| Number of Cylinders | 1 | 1 | 1 |
| Fuel Type | Gasoline | Gasoline | Gasoline |
| Displ. | 16.2 cu in (0.267 L) | 18.6 cu in (0.305 L) | 23.9 cu in (0.391 L) |
| Bore | 2.88 in (73 mm) | 2.94 in (75 mm) | 3.25 in (83 mm) |
| Stroke | 2.50 in (64 mm) | 2.75 in (70 mm) | 2.88 in (73 mm) |
| Power | 7 hp (5.2 kw) | 8 hp (6.0 kw) | 10 hp (7.4 kw) |
| Power Measured @ | 3600 rpm | 3600 rpm | 3600 rpm |
| Slow Idle Speed | 1200 rpm | 1200 rpm | 1200 rpm |
| Fast Idle Speed | 3800 rpm | 3800 rpm | 3800 rpm |
| CR | 6.2:1 | 6.8:1 | 7.1:1 |
| Cooling System | Air cooled | Air cooled | Air cooled |
| Spark Plug Gap | 0.025 in (0.65 mm) | 0.025 in (0.65 mm) | 0.02 in (0.5 mm) |
| Breaker Point Gap | 0.02 in (0.5 mm) | 0.02 in (0.5 mm) | 0.02 in (0.5 mm) |
| Fuel System | Carburetor | Carburetor | Carburetor |
| Air Cleaner | Dry cartridge type | Dry cartridge type | Dry cartridge type |
| Aspiration | Naturally aspirated | Naturally aspirated | Naturally aspirated |
Operational Specs
| Max Curb Weight (w/ electric lift) | 774 Ib (351 kg) |
| Operating Voltage | 12 V |
| Ground | Negative |
| Alternator | 10 amps (15 amps) |
| Battery (8 hp, Kohler K181S) | 12 V, CCA 135, RC: 30 min, BCI Group U1 |
| Battery (10 hp, Kohler K241AS) | 12 V, CCA 255, RC: 55 min, BCI Group 22F |
| Ignition System | Magneto-Ignition (for 8 hp engine only) / Battery-Ignition (for 8 and 10 hp engines) |
| Starter | 12 V, gear type |
| Operator Station | Open Operator Station |

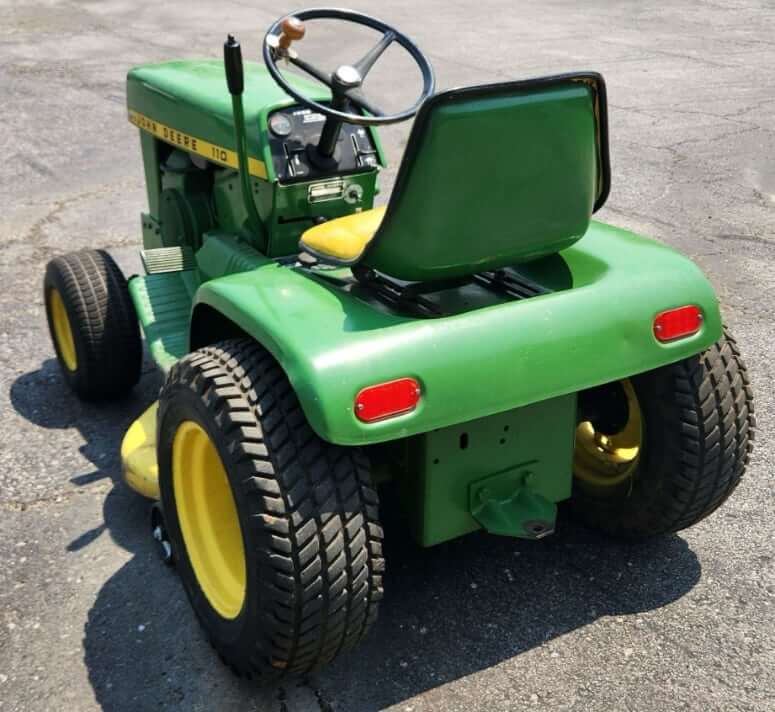

| Rear Tractor Hitch | Sleeve hitch (Optional) |
| Lift Linkage | Manual (Standard) / Electric, Hydraulic (Optional for Deere 110H with Kohler K241AS engine) |
| Lubrication System | Gear Lubrication System |

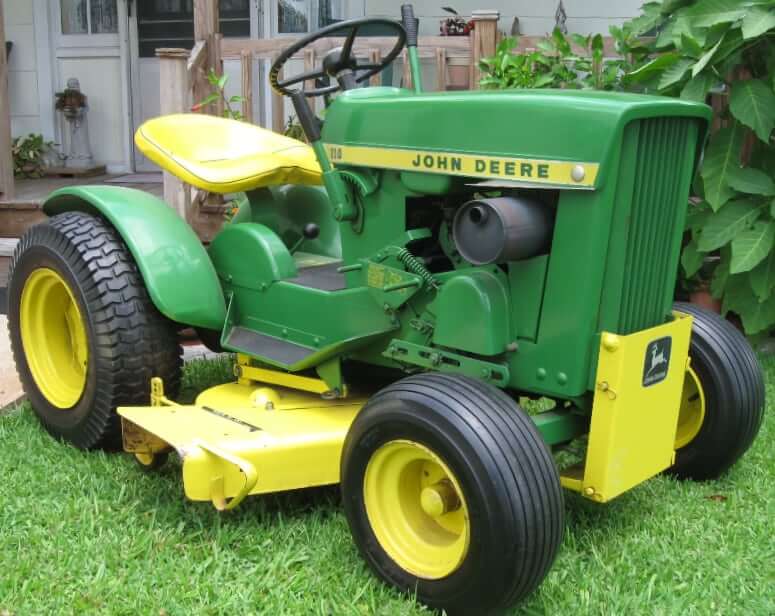

Transmission
| Model | Peerless (SN: -15000) | Peerless 2300 (SN: 15001-) | Peerless 2300 (SN: 250001-) |
|---|---|---|---|
| Type | 3-speed belt-driven gear with mechanical CVT | 4-speed belt-driven gear with mechanical CVT | 4-speed belt-driven gear with mechanical CVT |
| Number of Gears | 3F / 1R | 4F / 1R | 4F / 1R |
| Max Forward Speed | 6.5 mph (10.5 km/h) | 6.5 mph (10.5 km/h) | 7.4 mph (11.9 km/h) |
| Max Reverse Speed | 3.4 mph (5.5 km/h) | 2.9 mph (4.7 km/h) | 3.3 mph (5.3 km/h) |
| Drive | 2WD | 2WD | 2WD |
| Steering | Manual steering. Enclosed gear | Manual steering. Enclosed gear | Manual steering. Enclosed gear |
| Service Brakes | Drum and shoe, pedal operated | Drum and shoe, pedal operated | Drum and shoe, pedal operated |
| Parking Brake | Hand lock to foot brake | Hand lock to foot brake | Hand lock to foot brake |
PTO (Power Take-Off)
| Mid PTO | Independent |
| Mid PTO Clutch | Manual idler pulley |
Hydraulic System (Deere 110H)
| Type | Open center |
| Pump Type | Gear pump |
| Hydraulic Pump Flow | 1.5 gal/min (5.7 L/min) |
| Relief Valve Pressure | 800 psi (5516 kPa) |
Service Refill Capacities
| John Deere 110 w/ | Kohler K161S | Kohler K181S | Kohler K241AS |
|---|---|---|---|
| Fuel Tank Capacity | 1.9 gal (7.2 L) | 1.9 gal (7.2 L) | 1.75 gal (6.6 L) |
| Engine Oil Capacity (w/ filter) | 0.31 gal (1.2 L) | 0.31 gal (1.2 L) | 0.38 gal (1.4 L) |
| Transaxle Oil Capacity (w/ filter) | 0.38 gal (1.42 L) | 0.44 gal (1.66 L) | 0.44 gal (1.66 L) |
| Hydraulic System Capacity (for Deere 110H) | – | – | 0.25 gal (0.95 L) |
John Deere 110 Filters
| Engine Air Filter (Primary) | M45800 |
| Engine Air Filter Element | AM31400 (Kohler 231847) |
| Sediment Bowl Fuel Filter | AM30069 |
| Hydraulic Oil Filter (for Deere 110H) | AM30726 |
Serial Numbers & PIN Location

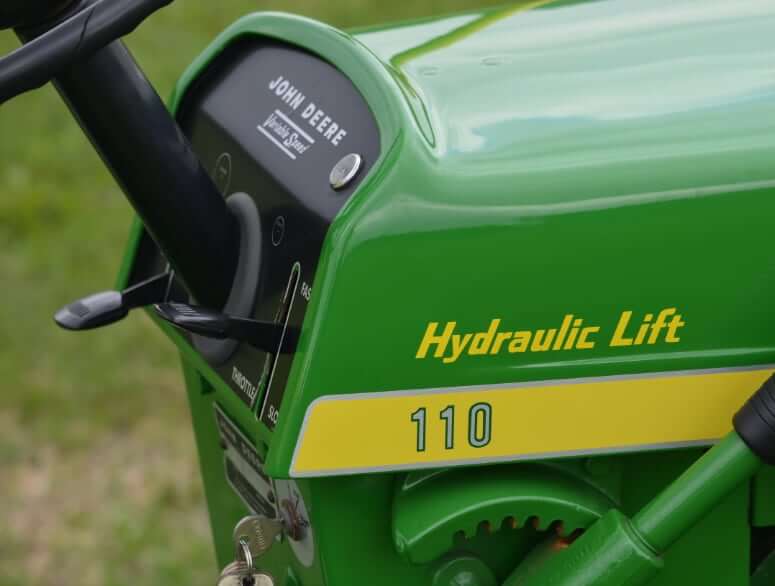

The John Deere 110 tractor serial number is located on the pedestal below the steering wheel.
| Year | Serial Number | Year | Serial Number |
|---|---|---|---|
| 1963 | 2550 | 1969 | 130001 |
| 1964 | 3551 | 1970 | 160000 |
| 1965 | 15001 | 1971 | 185001 |
| 1966 | 40001 | 1972 | 250001 |
| 1967 | 65001 | 1973 | 272001 |
| 1968 | 100001 | 1974 | 310001 |
John Deere 110 Attachments
The John Deere 110 lawn tractor was designed with versatility in mind, offering a full lineup of attachments to handle a wide range of lawn, garden, and light-duty agricultural tasks. From mowing and tilling to snow removal and material handling, these attachments transform the 110 into a true all-season workhorse.
Mower Decks for John Deere 110

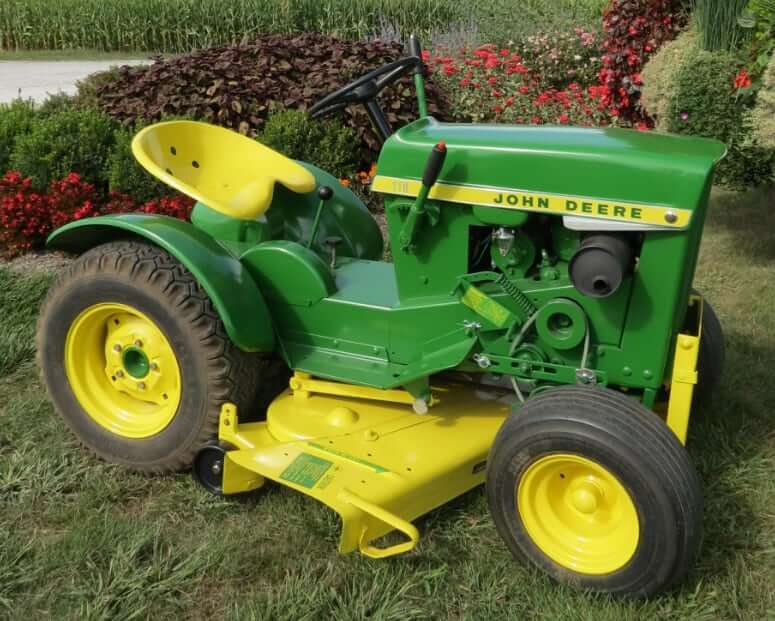

| Model | JD 38 Mower Deck (for 110, 1963-1967) | JD 39 Mower Deck (for 110, 1968-1974) | JD 47 Mower Deck (for 110, 1968-1974) |
|---|---|---|---|
| Mount Type | Mid-mount | Mid-mount | Mid-mount |
| Cutting Width | 38 in (965 mm) | 38 in (965 mm) | 46 in (1168 mm) |
| Overall Width | 44 in (1118 mm) | 49.25 in (1251 mm) | 57 in (1448 mm) |
| Cutting Height | 1.5 to 3.5 in (38 to 89 mm) | 1.5 to 3.5 in (38 to 89 mm) | 1.5 to 3.5 in (38 to 89 mm) |
| Belt | M40223 | M45998 | M45998 |
| Blades | 3 | 3 | 3 |
| Lift Type | Manual / Hydraulic (Optional) | Hydraulic lift | Hydraulic lift |
| Mower Deck Weight | 102 lb (46 kg) | 85 lb (38 kg) | 113 lb (51 kg) |
John Deere 39 and 47 Mid-Mount Mower Deck Belt Part Numbers:
- M45998 V-Belt (SN: -176558) (A) Drive (39) 83.1″ (2111 mm)
- M47043 V-Belt (SN: 76559-) (A) Drive (39) 79.3″ (2014 mm)
- M47765 Belt (SN: -176558) (B) Drive (39) 84.0″ (2134 mm) (Sub for M89327)
- M47766 Belt (SN: 176559-) (B) Drive (39) 80.1″ (2035 mm)
- M45998 V-Belt (SN: -205468) (A) Drive (47) 83.1″ (2111 mm)
- M47043 V-Belt (SN: 205469-) (A) Drive (47) 79.3″ (2014 mm)
- M47765 Belt (B) Drive (47) 84″ (2134 mm) (Sub for M89327)
- M40223 Belt (Blade-To-Blade) (39)
- M41960 Belt (Blade-To-Blade) (47)

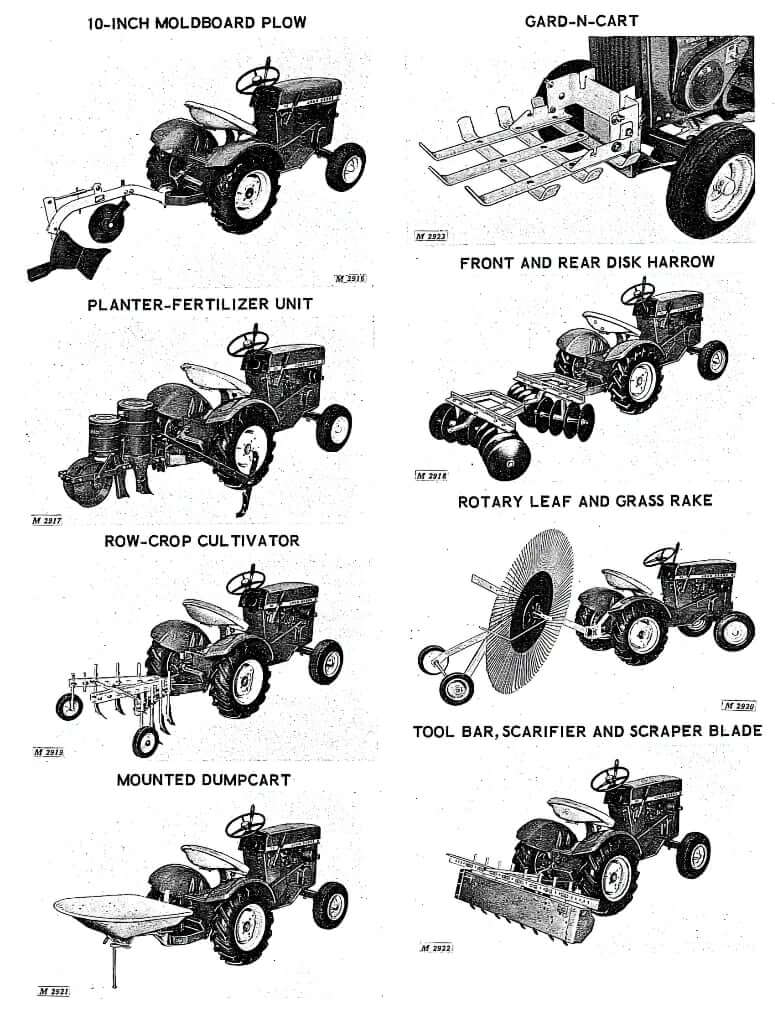

Owners could equip their tractor with implements like the 38″ Rotary Mower Deck (M 3536) for precise lawn care, the 42″ Blade (M 3510) and 36″ Snow Thrower for efficient snow and dirt management, or the 30 Integral Rotary Tiller (M 3556) and 10″ Moldboard Plow (M 2916) for garden preparation. For crop and soil work, options included the Planter-Fertilizer Unit (M 2917), Row-Crop Cultivator (M 2919), and Front & Rear Disk Harrow (M 2918).
Snow Blowers for John Deere 110
| Model | JD 36 Snow Thrower (for 110, 1963-1967) | JD 37A Snow Blower (for 110, 1968-1974) |
|---|---|---|
| Mount Type | Front-mount | Front-mount |
| Clearing Width | 36 in (914 mm) | 38 in (965 mm) |
| Stage | Single-stage | Single-stage |
| Rotor Speed | 715 rpm | 950 rpm |
| Weight | 220 lb (99 kg) | 180 lb (81 kg) |
| Lift Type | Manual Lift | Manual Lift |
Blades for John Deere 110

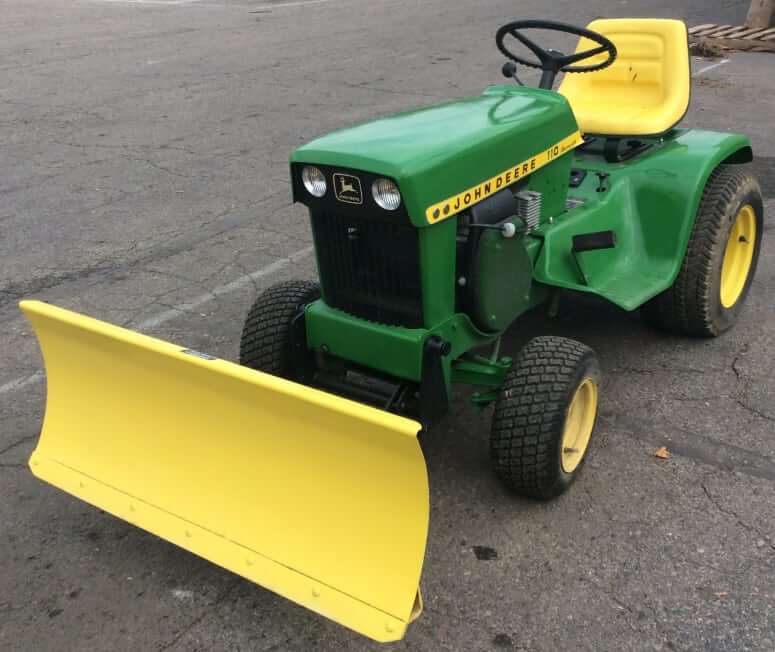

| Model | JD 42 Blade (for 110, 1963-1967) | JD 43 Blade (for 110, 1968-1974) | JD 43C Blade (for 110, 1968-1974) |
|---|---|---|---|
| Mount Type | Front-mount | Front-mount | Center-mount |
| Clearing Width | 42 in (1067 mm) | 42 in (1067 mm) | 42 in (1067 mm) |
| Height | 16 in (406 mm) | 18 in (457 mm) | – |
| Lift Height | 8 in (203 mm) | 8 in (203 mm) | 5.75 in (146 mm) |
| Cut | 3 in (76 mm) | 2 in (51 mm) | |
| Lift Type | Manual lift | Manual lift | Manual lift |
| Angle Type | Manual angle | Manual angle | Manual angle |
| Angling | 0-23° each side | ||
| Blade Weight | 138 lb (62 kg) | 68 lb (30 kg) |
Material handling was covered by attachments like the Danco Loader (M 3539) or Jonson 10 Loader (M 3557), Deere 80 Cart (M 3514), and Rear Mounted Dumpcart (M 2921), while sprayers such as the Deere N5 (M 3535) and Deere N7 (M 2963) simplified chemical applications.

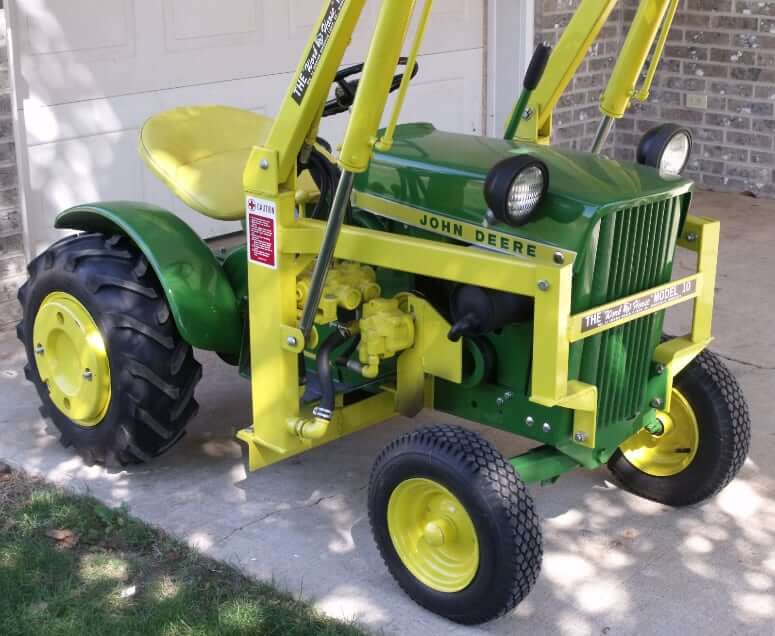

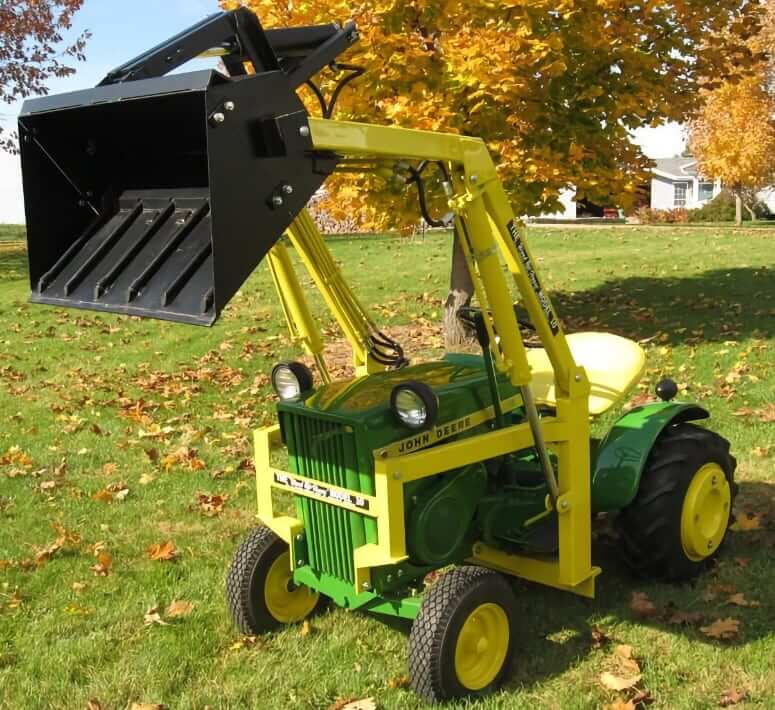

Johnson 10 Front Loader
| Lift Capacity at Full Height | 300 lb (136 kg) |
| Max Lifting Height | 71.5 in (1816 mm) |
| Max Clearance, Full Dump | 43.25 in (1100 mm) |
| Bucket Width (Standard) | 30 in (762 mm) |
| Bucket Width (Optional) | 48 in (1220 mm) |
| Breakout Force | 625 lbf (2.78 kN) |
| Relief Valve Setting | 400 psi (2758 kPa) |
| Cylinder | 2 in (50.8 mm) double acting |
| Dump Lever | Right side |
| Hydraulic Valve | Right side |
| Hydraulic Pump | Belt driven from engine PTO (crank shaft) |
| Loader Weight | 220 lb (99 kh) |
Specialty tools like the Rotary Leaf & Grass Rake (M 2920), Rotary Broom (M 3538), Sickle Bar Mower (M 3540), Electric Spreader (M 3555), and Front Mounted Air Compressor (M 3537) rounded out the lineup, ensuring there was an attachment for nearly every need. With such a broad range of implements, the John Deere 110 stood out as one of the most adaptable lawn tractors of its era, offering unmatched performance and convenience for property owners.
