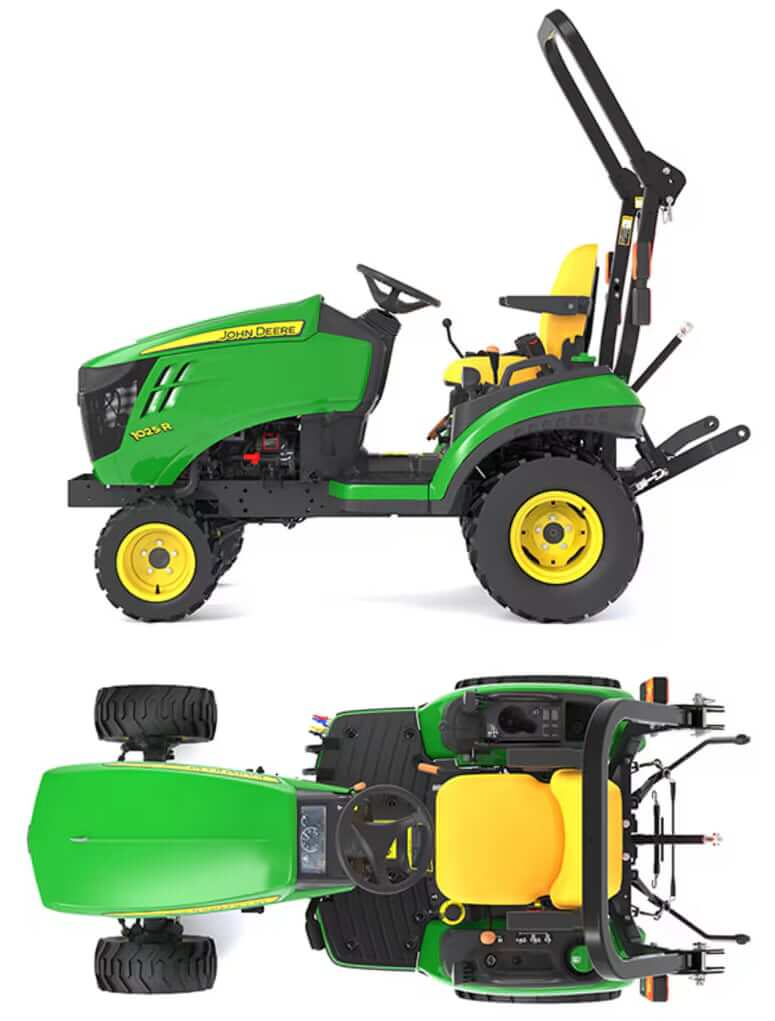

Dimensions
| Length |
87.6 in (2220 mm) |
| Overall Length w/ Hitch |
102.6 in (2600 mm) |
| Overall Length w/ Backhoe and Front Loader |
177 in (4490 mm) |
| Wheelbase |
57.1 in (1450 mm) |
| Width (R3 tires) |
47.2 in (1190 mm) |
| Front Tread |
36.7 in (931 mm) |
| Rear Tread |
35.2 in (895 mm) |
| Height (ROPS) |
86.2 in (2180 mm) |
| Height (Hood) |
41.5 in (1050 mm) |
| Ground Clearance (front axle) |
7.7 in (195 mm) |
Operational Specs
| Shipping Weight (Open station) |
1556 lb (706 kg) |
| Shipping Weight (Cab) |
1996 lb (906 kg) |
| Front Axle Capacity (Continuous) |
1349 lb (612 kg) |
| Rear Axle Capacity (Continuous) |
1576 lb (715 kg) |
| Operating Voltage |
12 V |
| Alternator |
40 amps |
| Battery |
12 V, CCA 500 |
| Starter |
1.6 hp (1.2 kw) |
| ROPS Type |
Foldable |
| Platform (Flat/straddle) |
One-piece semi flat |
| Gear Shift Location |
Console/floor Left-hand side |
| Cab HVAC |
Heat only |
Engine Details
| Number Of Cylinders |
3 |
| Engine Make |
Yanmar |
| Engine Model |
Yanmar 3TNV80F-NCJT |
| Displacement |
77.3 cu in (1.267 L) |
| Bore |
3.15 in (80 mm) |
| Stroke |
3.31 in (84 mm) |
| Horsepower (Gross) |
23.9 hp (17.8 kw) |
| PTO Power |
18.2 hp (13.6 kw) |
| Power Measured @ |
3200 rpm |
| Peak Torque |
39.2 lb ft (53.1 Nm) |
| Torque Measured @ |
3200 rpm |
| Injection Pump Type |
Indirect injection |
| Cooling System |
Water pump |
| Air Cleaner |
Dual element with mechanical restriction indicator |
| Compression Ratio |
23.1:1 |
| Aspiration |
Naturally aspirated |
| Emission Standards |
US EPA Tier 4 Final / EU Stage V |
Transmission
| Type |
Hydrostatic transmission (HST) |
| Number of Gears |
Infinitely Variable (2 Range) |
| Max Travel Speed, Low |
4.1 mph (6.6 km/h) |
| Max Travel Speed, High |
9.1 mph (14.6 km/h) |
| Drive |
4WD, 4×4 |
| Steering |
Hydrostatic power steering |
| Service Brakes |
Wet disc drakes, left-hand pedal |
| Differential Lock |
Mechanical, rear |
| Final Drive Type |
Spur Gear |
Tires
| Front Tire Size (Standard) |
R4: 18×8.5-10 |
| Front Tire Size (Optional) |
R3 Turf: 18×8.50-10 |
| Front Tire Size (Optional) |
R3 Turf Radial: 18×8.50-10 |
| Rear Tire Size (Standard) |
R4: 26×12-12 |
| Rear Tire Size (Optional) |
R3 Turf: 26×12-12 |
| Turning Radius (w/o Brakes) |
98.8 in (2510 mm) |
PTO (Power Take-Off)
| PTO Type |
Independent |
| Rear PTO Speed |
540 rpm |
| Mid PTO Speed |
2100 rpm |
| PTO Power |
18.2 hp (13.6 kw) |
| PTO Clutch |
Wet disk |
Hydraulic System
| Type |
Open Center |
| Pump Type |
Single gear |
| Implement Pump Flow |
3.5 gal/min (13.2 L/min) |
| Steering Pump Flow |
3.5 gal/min (13.2 L/min) |
| Max Pump Flow |
6.3 gal/min (24 L/min) |
| Max Operating Pressure |
2000 psi (13800 kPa) |
| Remote Control Valves |
3 |
| Draft Control Sensing |
Position control |
| 3-Point Hitch Category |
Limited Category 1 |
| 3-Point Hitch Lift Capacity @ 24″ |
758 lb (344 kg) |
JD 1025R Attachments
The John Deere 1025R is a highly capable sub-compact utility tractor designed for homeowners, landscapers, and small property owners. It supports a wide range of attachments, making it ideal for year-round use including mowing, digging, hauling, grading, and snow removal.

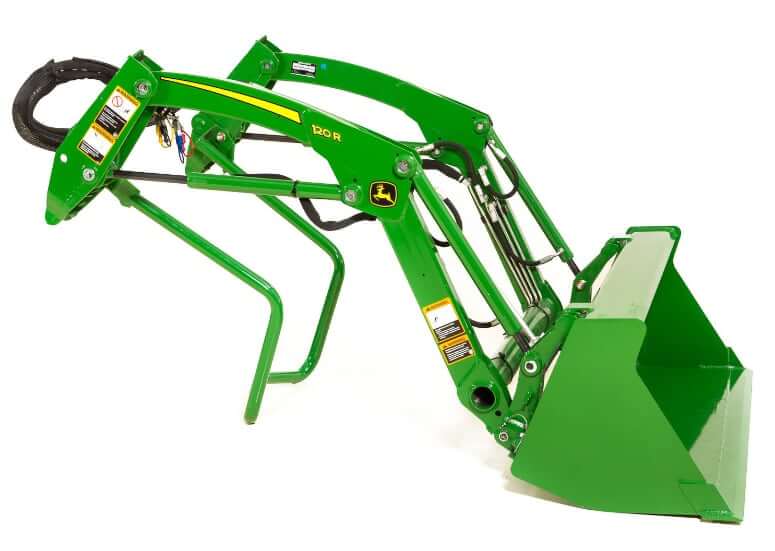

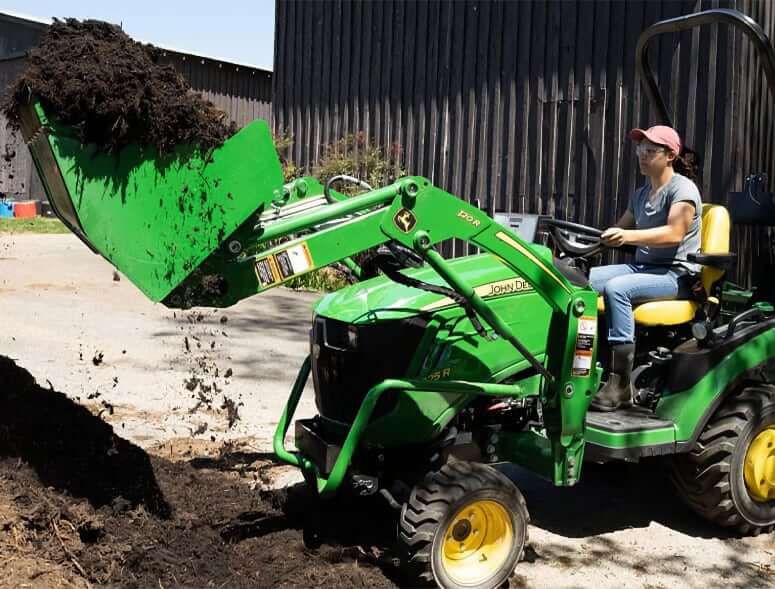

Front Loaders for 1025R
| Model |
120R Loader |
D120 Loader |
| Height (to pin) |
72 in (1828 mm) |
71.2 in (1808 mm) |
| Clearance (at full height – bucket level) |
65.6 in (1666 mm) |
65.1 in (1653 mm) |
| Clearance, dumped bucket |
51.3 in (1304 mm) |
54.0 in (1371 mm) |
| Dump Reach (at maximum height) |
27.5 in (698 mm) |
22.5 in (571 mm) |
| Reach (at ground level – bucket level) |
50.7 in (1288 mm) |
46.3 in (1176 mm) |
| Dump angle |
40.5° |
40.1° |
| Dump angle, ground |
115.4° |
114.0° |
| Rollback angle |
30.8° |
31.2° |
| Boom Breakout force (at pin) |
1963 lbf (890 kgf) |
1808 lbf (806 kgf) |
| Boom Breakout force (at 500 mm) |
1335 lbf (606 kgf) |
1238 lbf (552 kgf) |
| Bucket Breakout force (at ground-level) |
1659 lbf (753 kgf) |
1559 lbf (707 kgf) |
| Bucket Breakout force (at maximum height) |
1428 lbf (648 kgf) |
1330 lbf (593 kgf) |
| Lift to full height (at pin) |
803 lb (364 kg) |
825 lb (375 kg) |
| Lift to full height (at 500 mm) |
553 lb (251 kg) |
570 lb (259 kg) |
| Lift to full height (at 500 mm) w/ MSL |
726 lb (330 kg kg) |
– |
| Lift to 1.5m (at pin) |
957 lb (434 kg) |
944 lb (429 kg) |
| Lift to 1.5m (at 500 mm) |
688 lb (312 kg) |
680 lb (309 kg) |
| Digging Depth |
3.4 in (86 mm) |
2.0 in (51 mm) |
| Front Loader Weight |
626 lb (283.9 kg) |
486 lb (220.5 kg) |
| Bucket Weight |
183 lb (83 kg) |
117 lb (53 kg) |

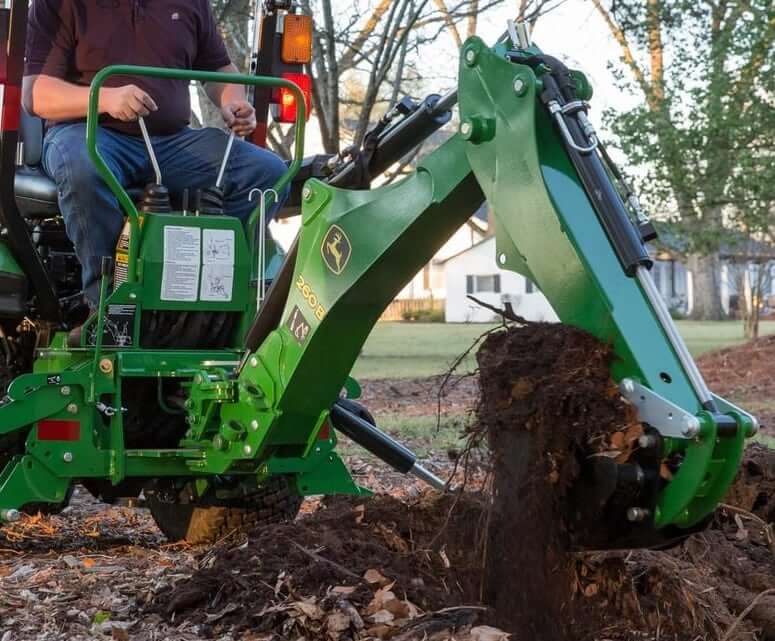

John Deere 260B Backhoe
| Model |
John Deere 260B |
| Bucket Digging Force (SAE) |
2036 lbf (9.06 kN) |
| Dipperstick Digging Force (SAE) |
1187 lbf (5.28 kN) |
| Boom Lift Capacity |
285 lb (129 kg) |
| Digging Depth |
74.8 in (1900 mm) |
| Reach from Swing Pivot |
102.4 in (2600 mm) |
| Loading Reach (bucket at 60°) |
31.5 in (800 mm) |
| Loading Height (bucket at 60°) |
59 in (1500 mm) |
| Bucket Rotation |
180° |
| Swing Arc |
150° |
| Angle of Departure |
20° |
| Stabilizers Spread Width |
59 in (1500 mm) |
| Transport Height |
66.9 in (1700 mm) |
| Weight (w/ 16″ bucket) |
682 lb (309 kg) |
| Bucket Width / Capacity |
8 in (203 mm) / 0.42 cu ft (0.011 m3)
12 in (305 mm) / 0.66 cu ft (0.019 m3)
16 in (406 mm) / 0.9 cu ft (0.025 m3) |
Material Handling
| Model |
Description |
| AF10F |
60 in Loader Mounted Front Blade |
| AM20F 50″ |
50 in Manure Fork |
| AM20F 60″ |
60 in Manure Fork |
| AP10F |
Pallet Fork |
| AP11F |
Pallet Fork |
| AV20F |
53 in Root Grapple |
| AY11F |
53 in Bucket 4-in-1 |
| MG20F |
Mechanical Grapple |
| PG11 |
Pallet Fork Grapple |
| SA20F |
Skid Steer Carrier Adapter |
| 52 in Rotary Broom |
Quick-Hitch. Angle broom from 0-27°, right or left |
| 64 in Rotary Broom |
Angle broom from 0-27°, right or left |
Digging Attachments
| Model |
Description |
| PHD100 Post Hole Digger |
Auger length: 36 in (914 mm). Quik-Knect kit available |
| PHD125 Post Hole Digger |
Auger length: 36 in (914 mm). Quik-Knect kit available |
| 260B Backhoe |
Digging depth: 74.8 in (1900 mm) |

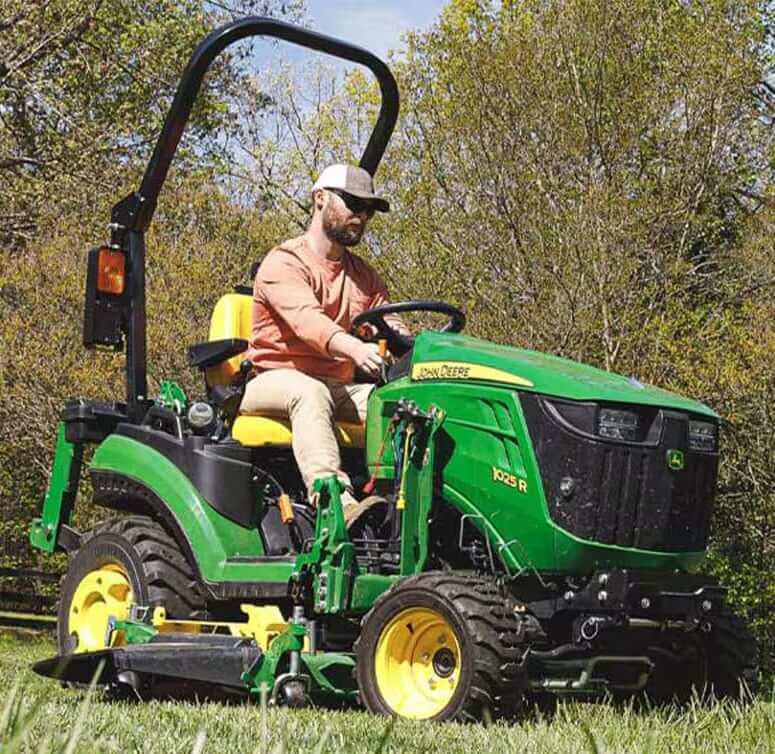

Mowing and Cutting
| Model |
Description |
| FL1053 Flail Mower |
Working width: 53 in (1350 mm). Rigid mount with no offset capabilities (fixed to the rear 3-point hitch of the tractor) |
| FL1061 Flail Mower |
Working width: 61 in (1550 mm). Fixed to the rear 3-point hitch of the tractor |
| GM1048E Grooming Mower |
Working width: 48 in (1219 mm). Duty: Economy |
| GM1060E Grooming Mower |
Working width: 60 in (1524 mm). Duty: Economy |
| GM4060E Grooming Mower |
Working width: 60 in (1524 mm). Duty: Economy |
| MC2014 Material Collection System |
Hopper capacity: 14 bushel (393.3 L) |
| MC2120 Material Collection System |
Hopper capacity: 20 bushel (704.8 L) |
| RC2048 Rotary Cutter |
Working width: 47.2 in (1200 mm) |
| RC4048 Rotary Cutter |
Working width: 4 ft (1.2 m) |
| 54D AutoConnect Mid-Mower |
54 in cutting width.1 to 4 in (25-102 mm) cutting height adjustable from tractor seat |
| 60D AutoConnect Mid-Mower |
60 in cutting width. Up to 5.5 in (140 mm) cutting height adjustable from tractor seat, model dependent |
| 3-Bag Power Flow Material Collection System |
14 bushel (493.3 L) capacity. Large diameter chute. Sealed hopper top |
Blades and Grading
| Model |
Description |
| BB2048L Box Blade |
Working width: 48 in (1219 mm) |
| BB5048L Box Blade |
Working width: 48 in (1219 mm) |
| BB5060L Box Blade |
Working width: 60 in (1524 mm) |
| LP2054 Land Plane |
Working width: 54 in (1372 mm). Scarifiers: 4 |
| LP2160 Land Plane |
Working width: 60 in (1524 mm). Scarifiers: 4 |
| PR1148 Power Rake |
Working width: 48 in (1219 mm) |
| RB2060L Rear Blade |
Width: 60 in (1524 mm). Duty: Economy |
| RB5048L Rear Blade |
Width: 48 in (1219 mm). Duty: Economy |
| RB5060L Rear Blade |
Width: 60 in (1524 mm). Duty: Economy |

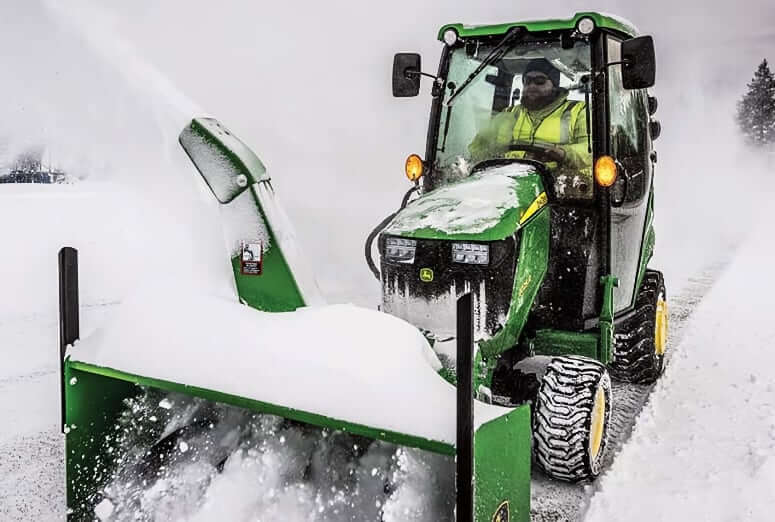

Snow Removal Attachments
| Model |
Description |
| SB1148 |
Rear 3-Point Hitch Snow Blower. Working width: 48 in (1219 mm) |
| SB1154 |
Rear 3-Point Hitch Snow Blower. Working width: 54 in (1372 mm) |
| AF10F |
60 in Loader Mounted Front Blade |
| AS10F 48″ |
48 in (1219 mm) Snow Push |
| AS10F 60″ |
60 in (1524 mm) Snow Push |
| 54″ Front Blade |
Quick-Hitch Front Blade |
| 60″ Front Blade |
Quick-Hitch Front Blade |
| 52″ Quick-Hitch Rotary Broom |
Angle broom from 0-27°, right or left |
| 60″ Rotary Broom |
Angle broom from 0-27°, right or left |
| 47″ Quick-Hitch Snow Blower |
Fingertip control of lifting/lowering blower |
| 54″ Quick-Hitch Snow Blower |
Hydraulically lift and lower blower with your fingertips |
| 47″ Heavy Duty Snow Blower |
16 in (406 mm) diameter auger features double-center flighting |
| 54″ Heavy Duty Snow Blower |
Cast-iron gearcase protects helical gears allowing steel impeller to maximize engine horsepower and provide superior snow throwing capacity and distance |
Pairing the 1025R with a loader + mower deck + backhoe creates a powerful “mini TLB” (Tractor-Loader-Backhoe) setup perfect for homeowners, landscapers, or small farm tasks.
Service Refill Capacities
| Fuel Tank Capacity |
5.6 gal (21.5 L) |
| Engine Oil Capacity |
0.71 gal (2.7 L) |
| Cooling System Capacity |
0.98 gal (3.7 L) |
| Transmission / Hydraulic Oil Capacity (HST) |
3.3 gal (12.3 L) |
| Front Axle Fluid Capacity |
0.74 gal (2.8 L) |

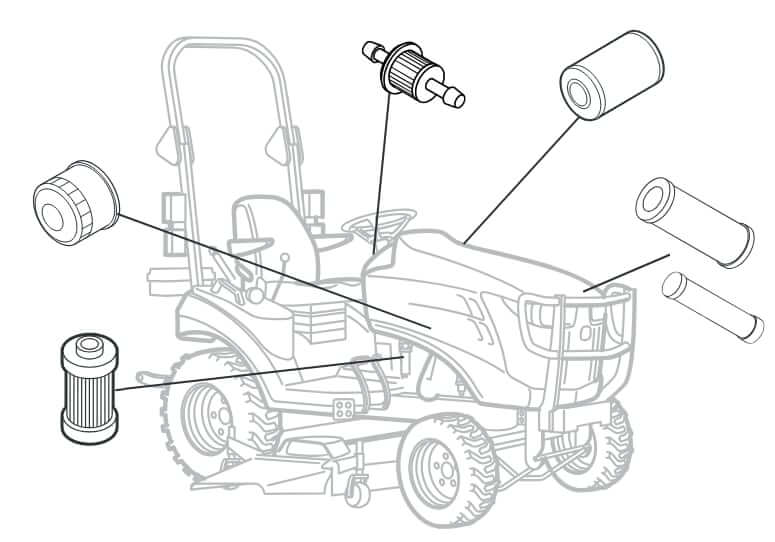

John Deere 1025R Filters
| Engine Air Filter (Primary) |
M131802 |
| Engine Air Filter (Secondary) |
M131803 |
| Fuel Filter |
M801101 |
| Inline Fuel Filter |
AM116304 |
| Engine Oil Filter |
M806418 |
| Hydraulic / Transmission Oil Filter |
LVA16054 |
| John Deere 1025R Filter Pack |
LVA21036 (M806418, LVA16054, AM116304, M131802, M801101) |
