Dimensions
| A. Height to Top of Cab with ROPS | 3450 mm |
| B. Height to Deck | 2060 mm |
| C. Wheelbase | 3130 mm |
| D. Track Width | 2030 mm |
| E. Overall Length | 5650 mm |
| F. Overall Width | 2550 mm |
| G. Ground Clearance | 600 mm |
| H. Width Between Tires | 1100 mm |
Tires
| Pattern | Tire Size | Track Width |
|---|---|---|
| Agricultural | VF 540/65R38 + VF 710/60R42 | 78.7 – 72.2 in (2000 + 1835 mm) |
| Agricultural | VF 600/60R38 + VF 710/60R42 | 78.7 – 78.7 in (2000 + 2000 mm) |
| Agricultural | IF 650/65R34 + 900/50R42 | 86.9 – 80.3 in (2208 + 2040 mm) |
| Utility | 440/80R34 + 650/65R38 | 83 – 75 in (2109 + 1905 mm) |
| Utility | 600/70R34 + 650/65R42 | 78.7 – 78.7 in (2000 + 2000 mm) |
| Agricultural (Row crop) | VF 480/70R38 + VF 480/80R46 | Variable |

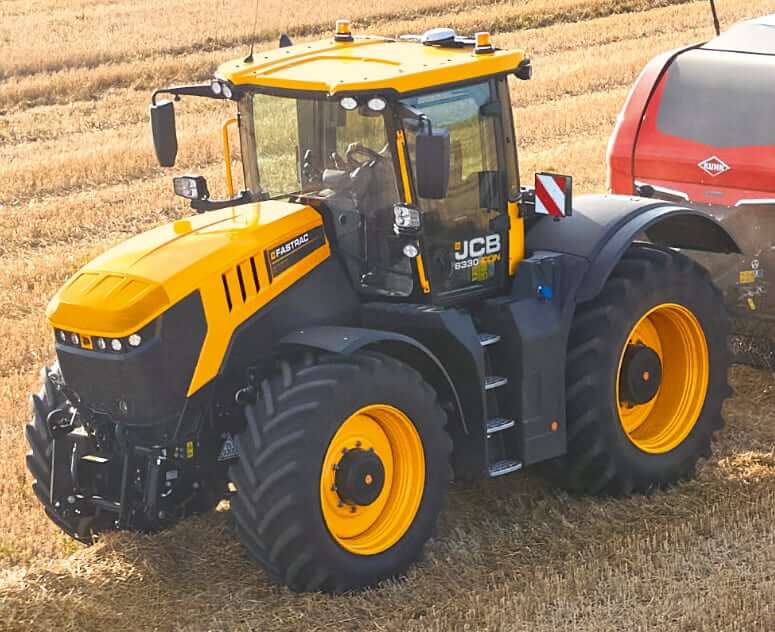

Weight Distribution
| JCB Fastrac 8330 | Base Machine Weight | Max Permissible Weight |
|---|---|---|
| Front Axle | 13051 lb (5920 kg) | 19842 lb (9000 kg) |
| Rear Axle | 11751 lb (5330 kg) | 25353 lb (11500 kg) |
| Total | 24802 lb (11250 kg) | 39683 lb (18000 kg) |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | AGCO Power |
| Engine Model | AGCO 84 AWF |
| Displacement | 514 cu in (8.419 L) |
| Bore | 4.4 in (111 mm) |
| Stroke | 5.8 in (145 mm) |
| Gross Power | 348 hp (260 kw) |
| Net Power | 335 hp (250 kw) |
| Power Measured @ | 2100 rpm |
| Peak Torque | 1070 lb ft (1450 Nm) |
| Torque Measured @ | 1500 rpm |
| Cooling Method | Viscous coupling fan. (Optional – variable pitch reverse fan) |
| Injection System | Common rail Bosch CP4 |
| Air Cleaner | Powercore dry element |
| Aspiration | Twin turbocharged and intercooled |
| Emission Standards | US EPA Tier 4 Final + EU Stage V |
Operational Specs
| Operating Weight | 24802 lb (11250 kg) |
| Operating Weight (w/ front PTO) | 27712 lb (12570 kg) |
| Max Operating Weight | 39683 lb (18000 kg) |
| Operating Voltage | 12 V |
| Alternator | 200 amps |
| Battery | 2x 12 V, 110 Ah |
| Working Lights | 6 Front 6 Rear Halogen Work Lights |
| Working Lights (Optional) | 6 Front 6 Rear LED Work lights + LED Road Lights (Including LED Aux Headlights) |
| ISOBUS Level 2 | Available for JCB Fastrac 8330 Field Pro / Pro Line |
| Axle Type | Beam with outboard epicyclic reduction hubs |
| Wheel Mountings | 10 stud front axle, 16 stud rear axle |
| 4WD Engagement | Electrohydraulic front & rear |
| Differentials | Front & Rear: electrohydraulic soft engage |
| Steering System | Dual line hydrostatic, fixed ratio. Tilt and telescope adjustable steering column |
| Steering System (Optional) | GPS ready with Rapid Steer |

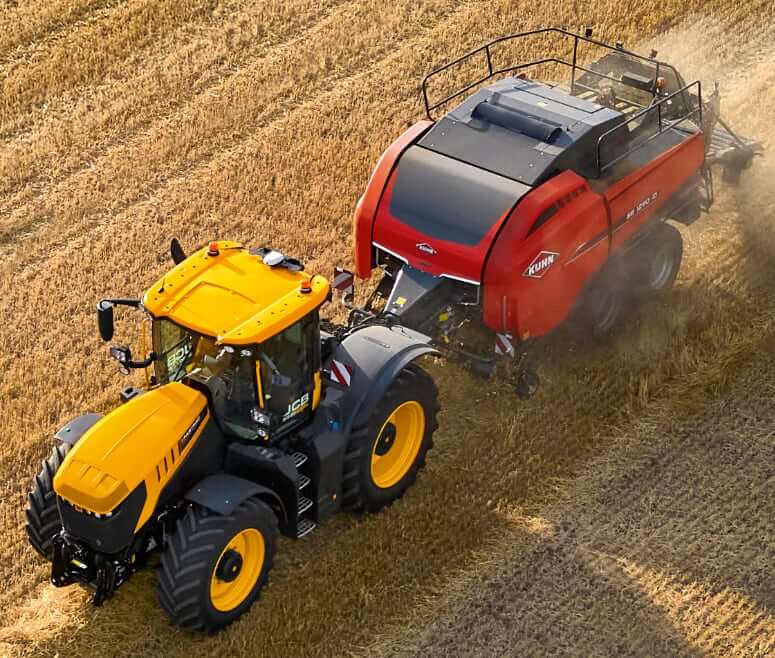

Transmission
| Type | 2 range continuously variable transmission with 6 modes of operation. |
| Transmission Model | AGCO ML260 CVT |
| Max Travel Speed, Low | 24.8 mph (40 km/h) |
| Max Travel Speed, High | 43.5 mph (70 km/h) |
| Suspension System | Front and rear: Hydro-pneumatic self levelling. 2.5 in (63 mm) double-acting |
| Service Brakes | Outboard ABS disc brakes all round with electronically controlled park brake |
| Trailer Brakes | Twin line air trailer brakes. Territory specific single line hydraulic trailer brakes. Air trailer brake automatically applied by tractor park brake. 12V trailer ABS supply socket as standard |
Hydraulic System
| Main Pump Flow Capacity | 47 gal (178 L/min) |
| Hydraulic Flow Per Slice | 37 gal (140 L) |
| Operating Pressure | 3045 psi (21000 kPa) |
| Number of Remote Control Valves | 4 rear spools with rear free flow return |
| Number of Remote Control Valves (Optional) | 4 or 5 rear spools, 0, 1 or 2 front spools, front free flow return, rear load sensing hydraulic connection (power beyond) |
3-Point Hitch
| 3 Point Hitch Type | Category 3; Quick attach hook ends, eye end top link (Cat 4N available) |
| 3 Point Hitch Lift Capacity @ 24″ | 22046 lb (10000 kg) |
| Front 3 Point Hitch Type (Optional) | Category 3N; Quick attach hook ends, folding arm |
| Front 3 Point Hitch Lift Capacity @ 24″ | 7716 lb (3500 kg) |
| Control | Electronic raise/lower with depth, draft/position intermix, rate of drop and max lift height control plus external lift and lower |

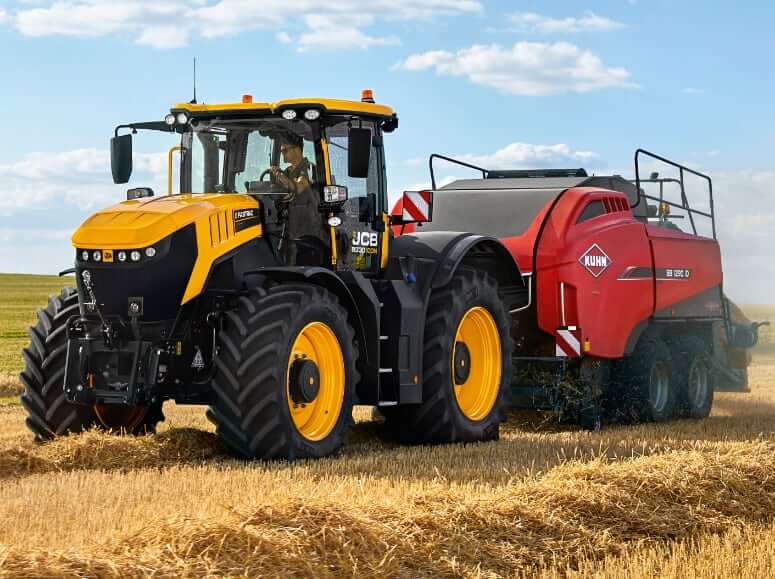

PTO (Power Take-Off
| Rear PTO Type | 2-speed PTO with electro-hydraulic soft engage and electro-hydraulic speed shift |
| Rear PTO Speed | 1000 rpm |
| PTO Horsepower | 310 hp (231 kw) |
| Front PTO Speed (Optional) | 1000 rpm |
| PTO Engine RPM | 1000 @ 2030 |
Service Refill Capacities
| Fuel Tank Capacity | 158.5 gal (600 L) |
| DEF Tank Capacity | 18.5 gal (70 L) |
| Engine Oil Capacity (w/ filter) | 6.3 gal (24 L) |
| Cooling System Capacity | 9 gal (34 L) |
| Hydraulic System Capacity (w/ tank) | 44.9 gal (170 L) |
| Hydraulic Tank Capacity | 30.1 gal (114 L) |
| Transmission Oil Capacity | 19.8 gal (75 L) |
| Font Hydraulic Brakes Capacity | 0.2 gal (0.75 L) |
| Rear Hydraulic Brakes Capacity | 0.2 gal (0.75 L) |
| Front Differential Fluid Capacity | 5.3 gal (20 L) |
| Rear Differential Fluid Capacity | 13.7 gal (52 L) |
| Front Hub Reductions Capacity (each) | 1 gal (4 L) |
| Rear Hub Reductions Capacity (each) | 1.8 gal (7 L) |
