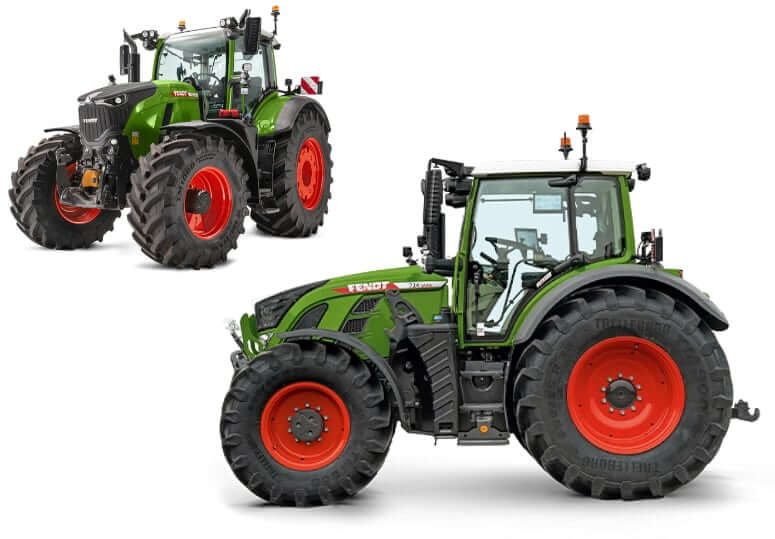

Dimensions
| Overall Length (incl. front linkage) | 217.2 in (5516 mm) |
| Wheelbase | 114.2 in (2900 mm) |
| Overall Width | 100.4 in (2550 mm) |
| Overall Height (w/o Fend Guide) | 123.7 in (3142 mm) |
| Overall Height (w/ Fend Guide) | 125.7 in (3192 mm) |
| Ground Clearance | 22.4 in (570 mm) |
| Front Track Width | 76.8 in (1950 mm) |
| Rear Track Width | 73.6 in (1870 mm) |
Tire Sizes
| Front Tire Size | 540/65R30 |
| Rear Tire Size | 650/65R42 |
| Front Tire Size (Optional) | 600/65R28 |
| Rear Tire Size (Optional) | 710/70R38 |
| Turning Radius | 32.8 ft (10 m) |
Weight
| Empty Weight | 19400 lb (8800 kg) |
| Max Operating Weight | 33069 lb (15000 kg) |
| Max Trailer Hitch Drawbar Load | 4409 lb (2000 kg) |
| Max Front Axle Load | 15211 lb (6900 kg) |
| Max Rear Axle Load | 25353 lb (11500 kg) |

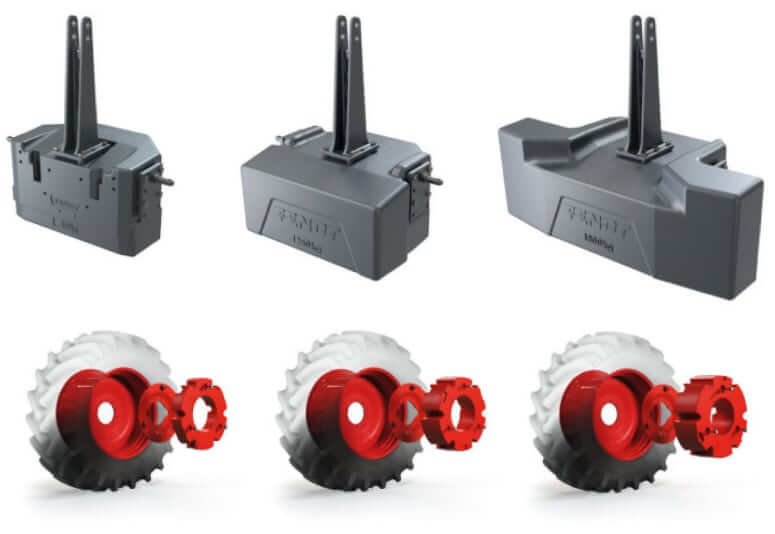

| Front Ballast | 1918 lb (870 kg) 2756 lb (1250 kg) 3968 lb (1800 kg) |
| Rear Axle Ballast | 2x 661 lb (2x 300 kg) 2x 1323 lb (2x 600 kg) 2x 2205 lb (2x 1000 kg) |

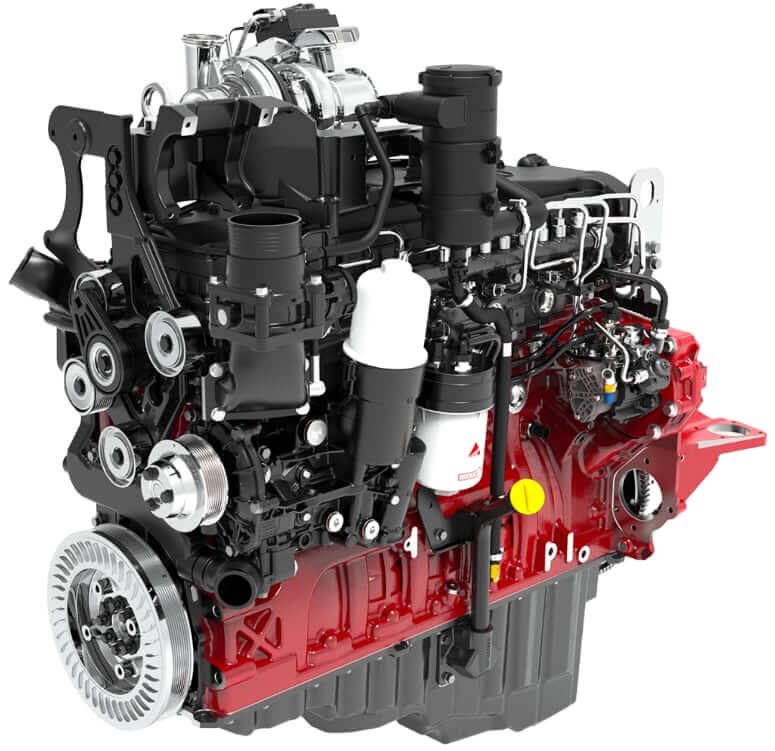

Engine Details
| Number Of Cylinders | 6 |
| Engine Make | AGCO Power |
| Engine Model | AGCO Power CORE75 |
| Displacement | 459.3 cu in (7.53 L) |
| Bore | 4.3 in (110 mm) |
| Stroke | 5.2 in (132 mm) |
| Net Horsepower | 237 hp (174 kw) |
| PTO Power | 201 hp (150 kw) |
| Power Measured @ | 1700 rpm |
| Peak Torque | 900 lb ft (1220 Nm) |
| Torque Measured @ | 1300 rpm |
| Torque Rise | 21% |
| Exhaust Gas Treatment | DOC/DPF/SCR |
| Aspiration | Turbocharged with intercooler |
| Emission Standards | US EPA Tier 4 Final + EU Stage V |
Operational Specs
| Empty Weight | 19400 lb (8800 kg) |
| Max Operating Weight | 33069 lb (15000 kg) |
| Operating Voltage | 12 V |
| Alternator | 240 amps |
| Battery | 12 V, 180 Ah |
| Max Portable Current ISOBUS Socket | 60 A + 25 A |
| Guidance System | NovAtel or Trimble satellite receiver |
Transmission
| Type | Fendt VarioDrive CVT with variable torque distribution between the front and rear axle |
| Max Forward Speed | 31.1 mph (50 km/h) |
| Max Reverse Speed | 20.5 mph (33 km/h) |
| Cruise Control | Multi-function joystick with cruise control, engine speed memory, automatic modes, controls for hydraulics |
| Service Brakes | Pneumatic high-speed dual-circuit braking system 1 pedal |
| Parking Brake | Electro-pneumatic handbrake |
PTO (Power Take-Off)
| Rear PTO | 540 / 540E / 1000 / 1000E |
| Front PTO | 1000 rpm |
| PTO Type | Independent |
| Rear PTO / Engine RPM | 540 @ 1618 |
| Rear PTO / Engine RPM | 540E @ 1283 |
| Rear PTO / Engine RPM | 1000 @ 1649 |
| Rear PTO / Engine RPM | 1000E @ 1308 |
| Front PTO / Engine RPM | 1000 @ 1647 |

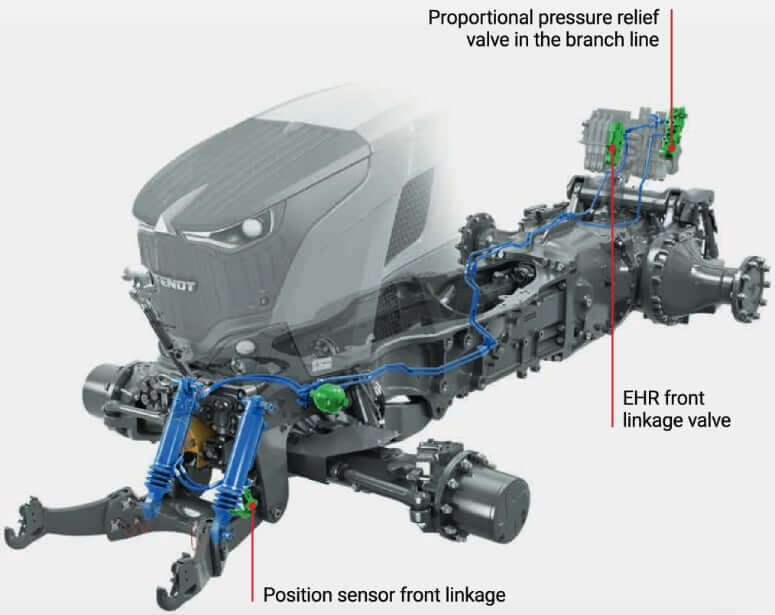

Hydraulic System
| Type | Load sensing hydraulics |
| Pump Type | Variable displacement pump |
| Pump Flow (Standard) | 43.6 gal/min (165 L/min) |
| Pump Flow (Optional) | 58.1 gal/min (220 L/min) |
| Operating / ControlPressure | 2900 psi (19995 kPa) |
| Number of Remote Valves (front/center/rear) | 2 / 3 / 5 |
| Flow Rate Control Valves (1st valve) | 37 gal/min (140 L/min) DUDK |
| Flow Rate Control Valves (2nd valve) | 37 gal/min (140 L/min) DUDK |
| Flow Rate Control Valves (3rd valve) | 37 – 45 gal/min (140 – 170 L/min) DUDK |
| Flow Rate Control Valves (4th valve) | 37 – 45 gal/min (140 – 170 L/min) DUDK |
| Flow Rate Control Valves (5th valve) | 37 gal/min (140 L/min) DUDK |

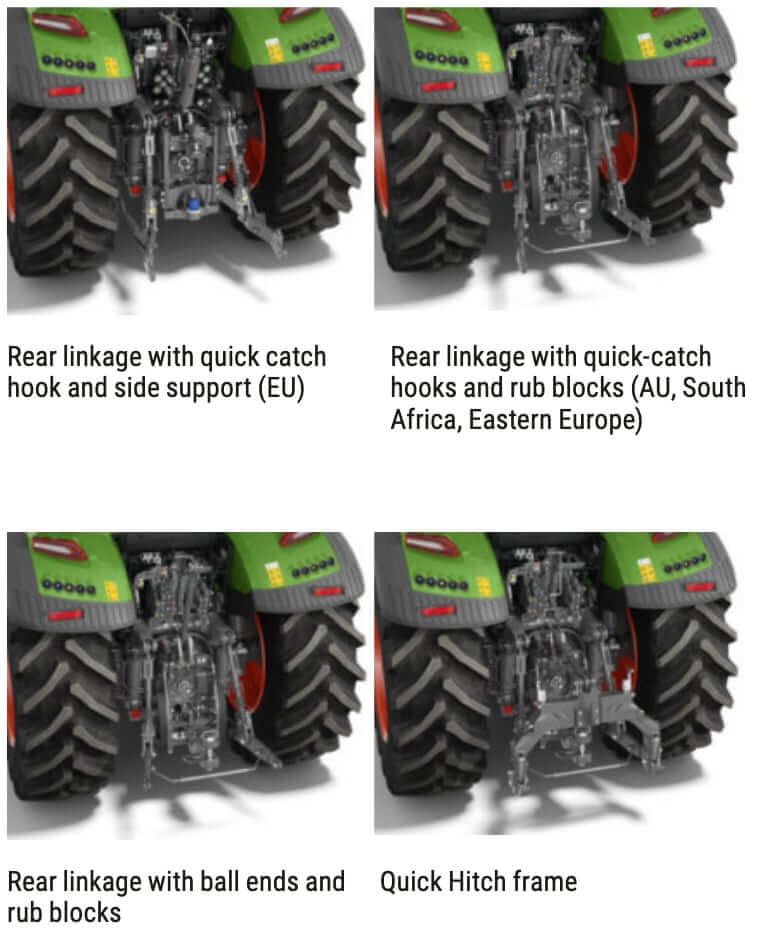

3-Point Hitch
| 3-Point Hitch Type | Category III |
| 3 Point Hitch Lift Capacity @ 24″ | 24729 lb (11216 kg) |
| Front 3-Point Hitch Type | Category II |
| Front 3 Point Hitch Lift Capacity @ 24″ | 11914 lb (5404 kg) |
Service Refill Capacities
| Fuel Tank Capacity | 118.9 gal (450 L) |
| DEF Tank Capacity | 14.5 gal (54.9 L) |
| Engine Oil Capacity | 6.1 gal (23 L) |
| Cooling System Capacity | 9.2 gal (35 L) |
| Hydraulic System Capacity | 25.1 gal (95 L) |
| Removable Hydraulic Fluid Capacity | 21 gal (80 L) |
| Transmission Oil Capacity (dry) | 19.3 gal (73 L) |
| Transmission Oil Capacity (refill) | 14.0 gal (53 L) |
| Frong Axle Fluid Capacity (refill) | 2.1 gal (8 L) |
| Rear Bar Axle Capacity (each) | 5.0 gal (19 L) |
| Front Hub Reductions (each) | 0.5 gal (1.8 L) |
| Rear Hub Reductions (each) | 5.0 gal (19 L) |
| Front PTO Oil Capacity | 1.1 gal (4.2 L) |
| Engine Oil Service Interval | 500 Hours |
Fendt 724 Vario Attachments

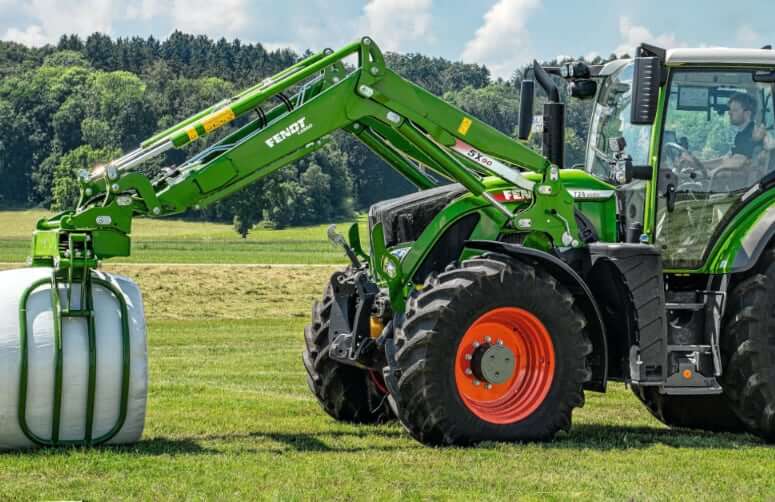

The Fendt Cargo 5X/90 is compatible with the Fendt 700 series tractors and offers a continuous lift capacity of 6630 lb (2950 kg). It can be equipped with the CargoProfi system, which adds features like an integrated weighing system, memo function, and end position damping.
| Model | Fendt Cargo 5X/90 | Fendt Cargo 6.100 |
|---|---|---|
| Continuous Lift Capacity | 6630 lb (2950 kg) | 7716 lb (3500 kg) |
| Maximum Lift Capacity | 7628 lb (3460 kg) | 9149 lb (4150 kg) |
| Lift Height (at pin) | 175.6 in (4460 mm) | 191.1 in (4854 mm) |
| Reach Dumped (at max height) | 42.5 in (1080 mm) | |
| Reach Dumped (at 3.5 m height) | 75.2 in (1910 mm) | |
| Dump Angle | 55° | 55° |
| Rollback Angle | 48° | 48° |
| Max Dig Depth | 9.8 in (250 mm) | |
| Recommended Rear Ballast | 3968 lb (1800 kg) |
The Fendt Cargo 6.100 is designed for the Fendt 700 Gen7 series and provides enhanced capabilities, including a higher continuous lift capacity of 7716 lb (3500 kg) and a maximum lift capacity of 9149 lb (4150 kg). It comes standard with advanced features such as an integrated weighing system, hydraulic implement lock, end position damping, memo function, and a shock absorber system. Additionally, its hydraulic lines are integrated into the cross beam for improved protection and reduced maintenance.
