Dimensions
| Overall Length | 215.7 in (5480 mm) |
| Overall Width | 140.7 in (3575 mm) |
| Wheelbase | 122 in (3100 mm) |
| Height to Top of Cab w/ ROPS | 141 in (3584 mm) |
| Ground Clearance | 18.5 in (470 mm) |
Tire Sizes
| Front Tire Size | 600/70R28 (480/70R34) |
| Rear Tire Size | 650/85R38 (520/85R46) |
| Minimum Turning Radius | 197.3 in (5011 mm) |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | AGCO Sisu Power |
| Engine Model | Sisu Citius 84CTA (E3 SCR) |
| Displacement | 512.6 cu in (8.4 L) |
| Bore | 4.4 in (111 mm) |
| Stroke | 5.8 in (145 mm) |
| Gross Power | 320 hp (236 kw) |
| Net Power | 290 hp (213 kw) |
| PTO Power | 250 hp (184 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 1033 lb ft (1400 Nm) |
| Torque Measured @ | 1500 rpm |
| Torque Rise | 54% |
| Compression Ratio | 16.7:1 |
| Lubrication System | Gear pump at bottom of timing fear |
| Fuel System | Bosch High Pressure Common Rail, electronic injectors with variable injection timing and duration |
| Fuel Consumption | 13.7 – 15.9 gal/h (51.9 – 60.2 L/h) |
| Air Cleaner | Dual paper elements |
| Aspiration | Turbocharged with Air-to-Air Intercooler |
| Emission Standards | US EPA Tier 3 + EU Stage IIIA |
Operational Specs
| Operating Weight | 24250 lb (11023 kg) |
| Max Operating Weight | 38889 lb (17640 kg) |
| Operating Voltage | 12 V |
| Alternator | 240 amps (2x 120 amps) |
| Battery | 12 V, CCA 775 |
| Isobus Connector | 50 Amps |

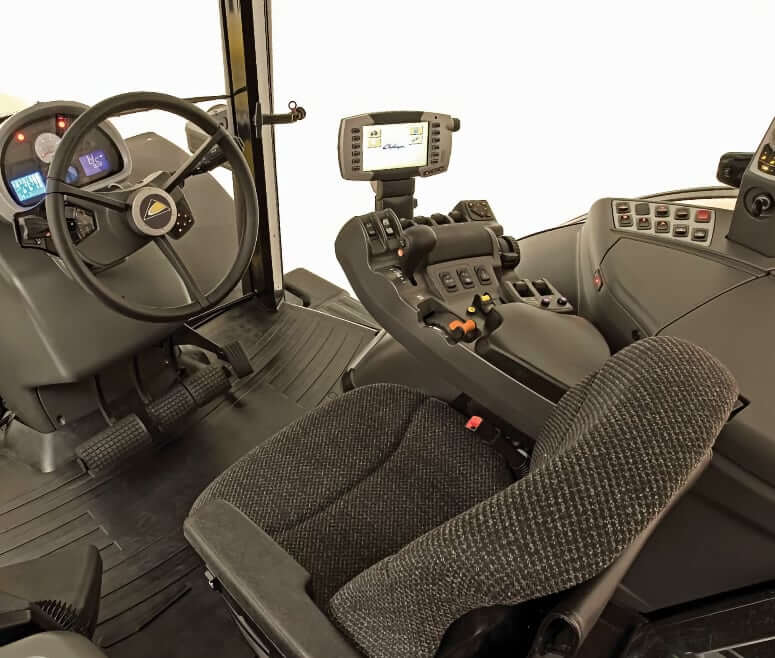

| Cab Type | OptiRide Hydraulic Suspended Cab |
| Operator Seat | Air Suspension Seat |
| Noise Level | 71 dB(A) |
| Steering System | Tru Trak Steering |
| Steering Wheel | Tilt & Telescopic |
Transmission
| Transmission Type | Techstar CVT with Power Management |
| Field Speed Range (Forward) | 0.02 – 17 mph (0.03 – 28 km/h) |
| Field Speed Range (Reverse) | 0.02 – 10 mph (0.03 – 16 km/h) |
| Road Speed Range (Forward) | 0.02 – 30 mph (0.03 – 50 km/h) |
| Road Speed Range (Reverse) | 0.02 – 24 mph (0.03 – 38 km/h) |
| Transmission Control | Right Console / Armrest |
| Forward Control | Left Hand Control |
| Cruise Control Speeds | 2 |
| Final Drives | Inboard Planetary |
| Service Brakes | Wet Disc |
Front Axle
| 4WD Differential Lock | Full-Locking, Electro Hydraulic Standard |
| 4WD Engagement | Electro Hydraulic |
| 4WD Maximum Steering Angle | 55° |
| Opti-Ride Front Axle Suspension | Standard |
| Opti-Ride Differential Lock | Full-Locking, Electro Hydraulic |
Rear Axle
| Standard Rear Axle | Long Axle 4.33 x 118 in (110 x 2999 mm) |
| Optional #1 | 4.33 x 118 in (110 x 2999 mm) Long Axle With Dual Wheel Provision |
| Optional #2 | 4.33 x 118 in (110 x 2999 mm) Long Axle With Dual Wheel Provision & Spacers |
| Optional #3 | 4.33 x 105 in (110 x 2550 mm) Short Axle |
| Optional #4 | 4.33 x 105 in (110 x 2550 mm) Short Axle with Dual Wheel Provision & Spacers |
| Differential Lock | Full-Locking, Electro Hydraulic |
PTO (Power Take-Off)
| Rear PTO Speed | 540E/1000 |
| Rear PTO Speed (Optional) | 1000E/1000 |
| Rear PTO Engagement | Electro Hydraulic |
| Shaft Diameter | 1 3/4 in (45 mm) Shaft, 20 spline |
| PTO / Engine RPM (Standard) | 540e @ 1577 and 1000 @ 1970 |
| PTO / Engine RPM (Optional) | 1000e @ 1605 |
| Front PTO | Optional |
Hydraulic System
| Pump Type | Closed Center Load Sensing (CCLS) |
| Pump Flow Capacity | 46 gal/min (175 L/min) |
| Available Flow Rate Per Spool Valves | 26.4 gal/min (100 L/min) |
| Maximum System Pressure | 2901 psi (20000 kPa) |
| Number of Remote Control Valves | 4-6 |
| Hydraulic Couplers | Decompression Couplers w/ Connect/Disconnect Under Pressure Function |
3-Point Hitch
| 3 Point Hitch Type | Category 3 / Category 4 (only with 20 Spline Shaft) Optional |
| 3 Point Hitch Lift Capacity @ Ends | 26460 lb (12002 kg) |
| 3 Point Hitch Lift Capacity @ 24 Inches | 21336 lb (9678 kg) |
| Control | Electronic lower-link draft sensing |
| Stabilizers | Sway Block |
| Rear 3 Point Hitch Type | Category 3 |
| Rear 3 Point Hitch Lift Capacity @ Ends | 11000 lb (5000 kg) |

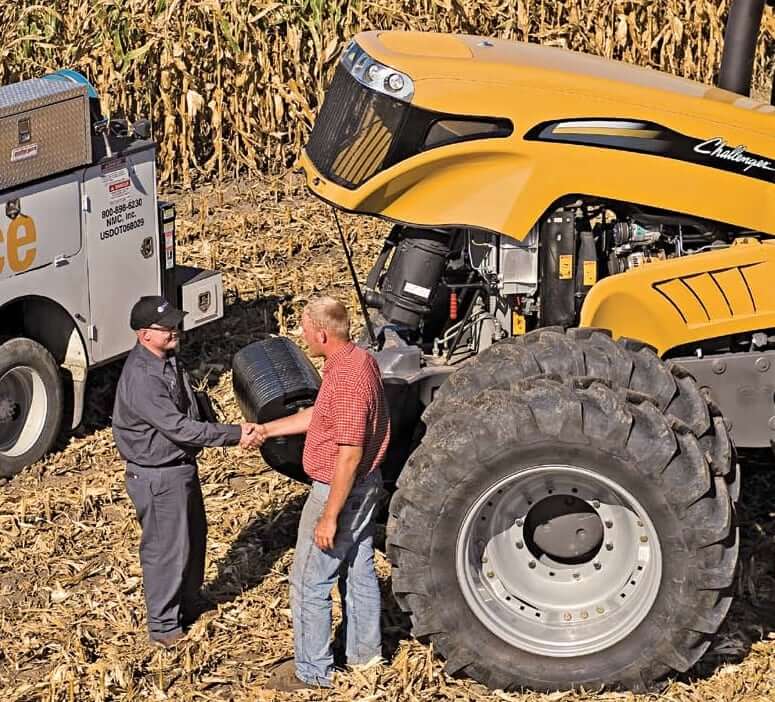

Service Refill Capacities
| Fuel Tank Capacity | 182.3 gal (690 L) |
| Fuel Tank Capacity (with E3 SCR) | 155.9 gal (590 L) |
| DEF Tank Capacity | 7.9 gal (30 L) |
| Engine Oil Capacity | 5.5 gal (21 L) |
| Cooling System Capacity | 8.9 gal (34 L) |
| Hydraulic System Capacity | 29 gal (110 L) |
| Transmission Oil Capacity | 22.5 gal (85 L) |
