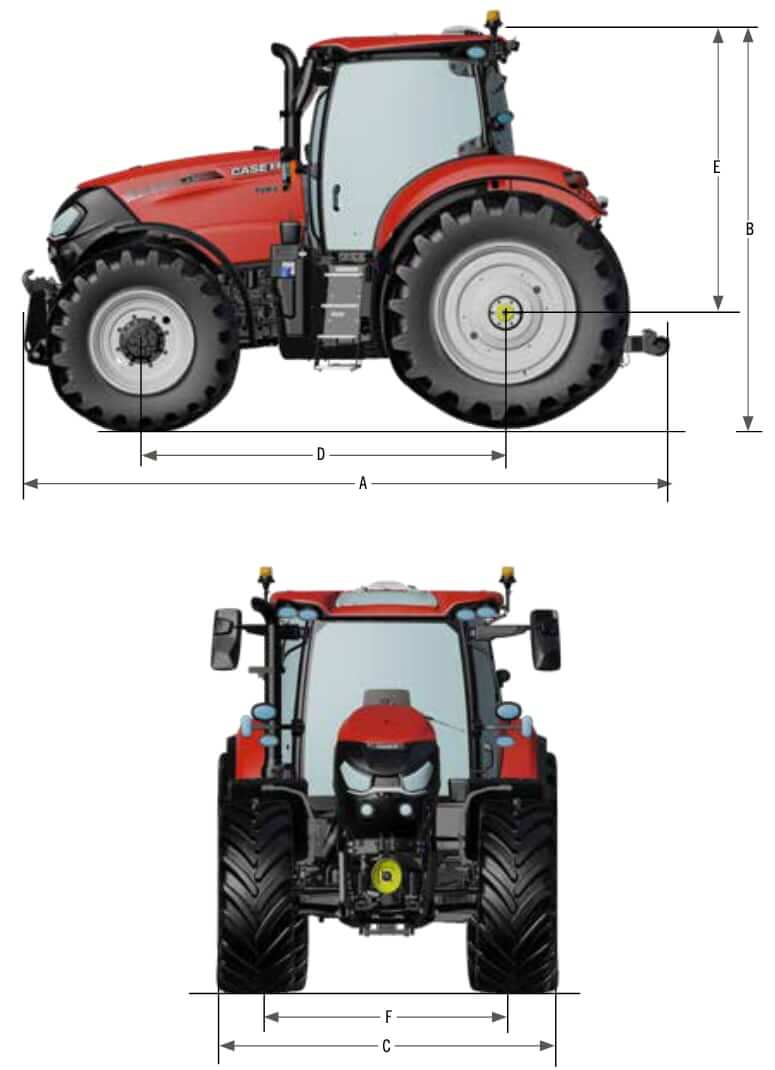

Dimensions
| A. Overall Length | 210.5 in (5347 mm) |
| B. Height to Top of Cab | 119.1 in (3026 mm) |
| C. Width (narrow rear fender) | 81.1 in (2060 mm) |
| C. Width (wide rear fender) | 97.5 in (2476 mm) |
| D. Wheelbase (standard) | 107.6 in (2734 mm) |
| D. Wheelbase (suspended front axle) | 109.8 in (2790 mm) |
| E. Height at Centre of Rear Axle to Top of Cab | 87 in (2210 mm) |
| F. Track Setting (front) | 61.4-82.7 in (1560-2100 mm) |
| F. Track Setting (rear) | 60.2-82.7 in (1528-2100 mm) |
Operational Specs
| Operating Weight | 15432 lb (7000 kg) |
| Max Operating Weight | 25353 lb (11500 kg) |
| Operating Voltage | 12 V |
| Alternator | 150 amps / 200 amps (optional) |
| Battery | 12 V, 176 Ah, CCA 1300 |
| Front Tire Size | 16.9R30 |
| Rear Tire Size | 20.8R42; 18.4R42 |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | FPT Industrial |
| Engine Model | Case IH FPT N67 |
| Displacement | 409 cu in (6.7 L) |
| Max Power | 210 hp (154 kw) |
| Rated Power | 190 hp (140 kw) |
| PTO Power | 140 hp (103 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 645 lb ft (875 Nm) |
| Torque Measured @ | 1500 rpm |
| Emission Standards | Turbocharged and intercooled |
| Aspiration | US EPA Tier 4 + Stage V |
Transmission
| Transmission Type | CVT Drive transmission 40 km/h ECO / 50 km/h ECO |
| Number of Gears | Continuously variable transmission |
| Creeper | Creeper + Powershuttle |
| Max Travel Speed | 30 mph (48.3 km/h) |
| Rear Axle Differential Lock | Multi disc wet plate with management system |
| Service Brake | Hydraulically operated multiple wet disc brake, self adjusting |
PTO (Power Take-Off)
| Type | Shiftable with progressive electro-hydraulic engagement / Auto-PTO (optional) |
| PTO Speeds, Standard (Option) | 540 / 540E / 1000 (540E / 1000 / 1000E) |
| Shaft Type, Standard (Option) | 1 3/8“ 21 splines (1 3/8“ 6 splines or 1 3/4“ 20 splines) |
| Front PTO 1000 @ Engine Speed | 1895 rpm |
Hydraulic System
| Type | Variable displacement, pressure flow compensated pump |
| Pump Flow Capacity | 42.3 gal/min (160 L/min) |
| System Pressure | 3046 psi (21000 kPa) |
| Number of Rear Remote Control Valves | 4 mechanical or 5 electronical |
| Number of Mid Remote Control Valves | 3 electronical (with electronic joystick) |
| 3 Point Hitch Lift Type | Cat II / III |
| 3 Point Hitch Lift Capacity @ 24 Inches | 14586 lb (6616 kg) |
| 3 Point Hitch Max Lift Capacity | 18204 lb (8257 kg) |
| Front Hitch OECD Lift Capacity @ 24 Inches | 7873 lb (3571 kg) |
Service Refill Capacities
| Fuel Tank Capacity | 87.2 gal (330 L) |
| Fuel Tank Capacity (for old models) | 116.2 gal (440 L) / 107 gal (405 L) |
| DEF Tank Capacity (for Tier 4 engine) | 12.7 gal (48 L) |
| Engine Oil Capacity (w/ Filter) | 4.9 gal (17 L) |
| Cooling System Capacity (w/ Radiator) | 9.5 gal (33 L) |
| Hydraulic System Capacity | 26.5 gal (100 L) |
| Hydraulic Tank Capacity | 20.6 gal (78 L) |
