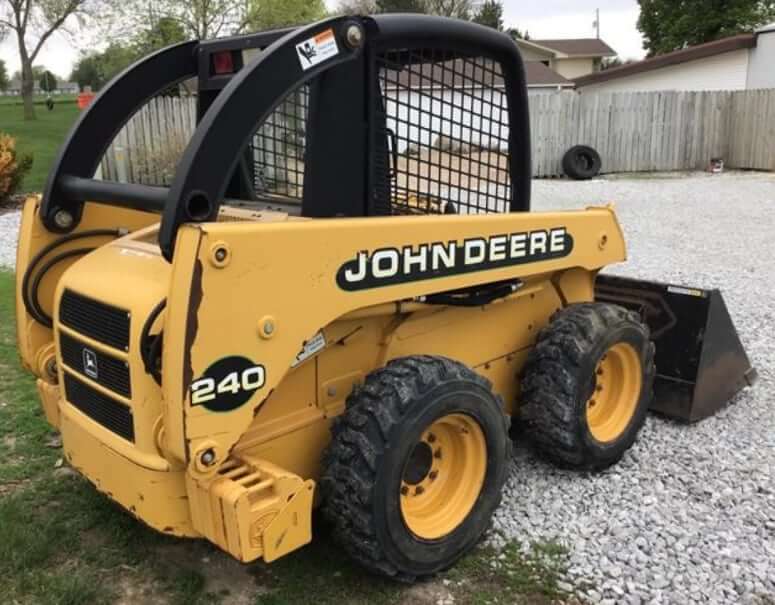

Loader Performance
| Rated Operating Capacity | 1500 lb (681 kg) |
| Rated Operating Capacity w/ counterweight | 2000 lb (907 kg) |
| Tipping Load | 3400 lb (1542 kg) |
| Bucket Breakout Force, SAE | 5500 lbf (24.47 kN) |
| Boom Breakout Force, SAE | 3100 lbf (13.79 kN) |
| Standart Bucket Width | 66 in (1676 mm) |

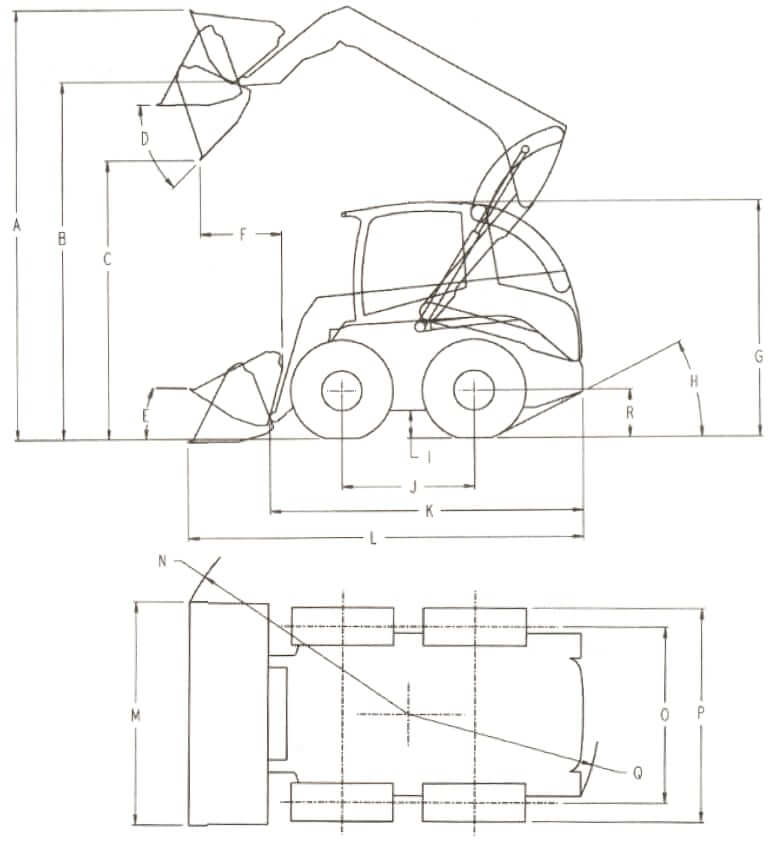

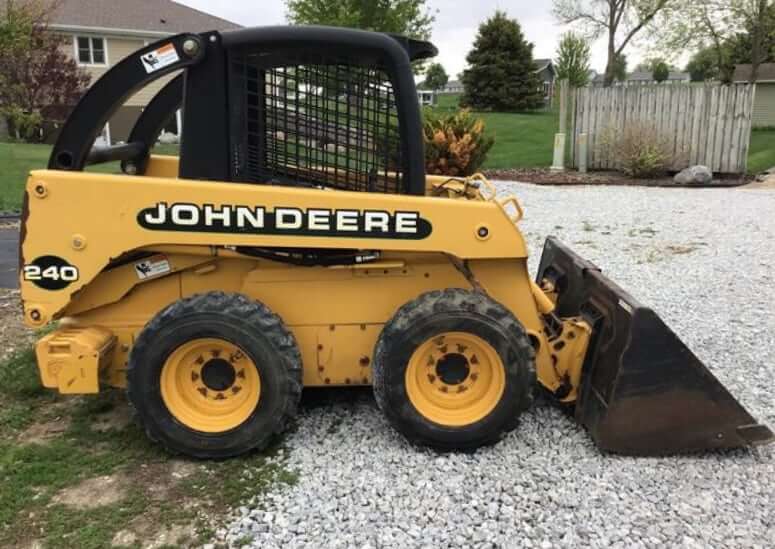

Dimensions
| A. Overall Operating Height | 141.7 in (3599 mm) |
| B. Height to Hinge Pin | 114 in (2895 mm) |
| C. Dump Height | 88.8 in (2255 mm) |
| D. Dump Angle | 45° |
| E. Bucket Rollback | 35° |
| F. Dump Reach | 29.1 in (738 mm) |
| G. Height to ROPS | 75.4 in (1915 mm) |
| H. Angle of Departure | 27° |
| I. Ground Clearance | 8.2 in (209 mm) |
| J. Wheelbase | 42.3 in (1075 mm) |
| K. Overall Length less Bucket | 102 in (2591 mm) |
| L. Overall Length with Bucket | 125.8 in (3196 mm) |
| M. Overall Width with Bucket | 66 in (1676 mm) |
| N. Turning Radius (Front) | 78.9 in (2004 mm) |
| O. Wheel Tread | 53.7 in (1364 mm) |
| P. Overall Width less Bucket | 63.7 in (1618 mm) |
| Q. Turning Radius (Rear) | 61.4 in (1559 mm) |
| R. Height to Axle Center Point | 14.3 in (363 mm) |
Engine Details
| Number Of Cylinders | 3 |
| Engine Make | John Deere |
| Engine Model | John Deere 3029D |
| Displacement | 179 cu in (2.9 L) |
| Bore | 4.17 in (106 mm) |
| Stroke | 4.33 in (110 mm) |
| Gross Power | 53 hp (39.5 kw) |
| Net Power | 51 hp (38.0 kw) |
| Power Measured @ | 2400 rpm |
| Torque Rise | 19% |
| Aspiration | Naturally aspirated |
| Air Cleaner | Dry paper with primary & secondary elements |

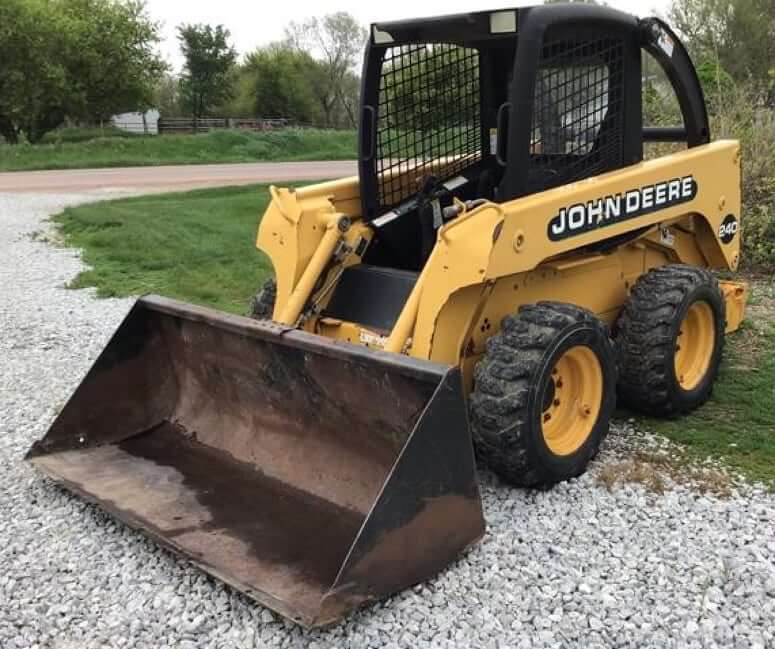

Operational Specs
| Operational Weight | 6165 lb (2796 kg) |
| Rated Operating Capacity (ROC) | 1500 lb (681 kg) |
| ROC with Counterweight | 2000 lb (907 kg) |
| Operating Voltage | 12 V |
| Alternator | 55 amps |
| Battery | 12 V, CCA 750, RC: 180 min |
| Starter | 12 V, 3.4 hp (2.5 kw), Valeo |
Transmission
| Type | Hydrostatic transmission |
| Service Brakes | Wet disks on hydrostatic motor shaft-SAHR (spring-applied, hydraulic-release) |
| Axle Torque | 4448 Ib ft (6031 Nm) |
| Max Travel Speed | 6.7 mph (10.8 km/h) |
| Tire Size (Standard) | 10.00×16.5 SKS Extra-Wall heavy-duty |
Hydraulic System
| Type | Open center |
| Main System Relief Pressure | 3100 psi (21374 kPa) |
| Pump Standard Flow Capacity | 14.6 gal/min (55.3 L/min) |
| Pump High Flow Capacity | 25.4 gal/min (96.1 L/min) |
| Built-in Boom Locks | Yes |
| Self-Leveling | Optional |
Service Refill Capacities
| Fuel Tank Capacity | 15 gal (57 L) |
| Engine Oil Capacity (w/ filter) | 1.96 gal (7.4 L) |
| Cooling System Capacity | 2.8 gal (10.6 L) |
| Hydraulic System Capacity | 6 gal (23 L) |
