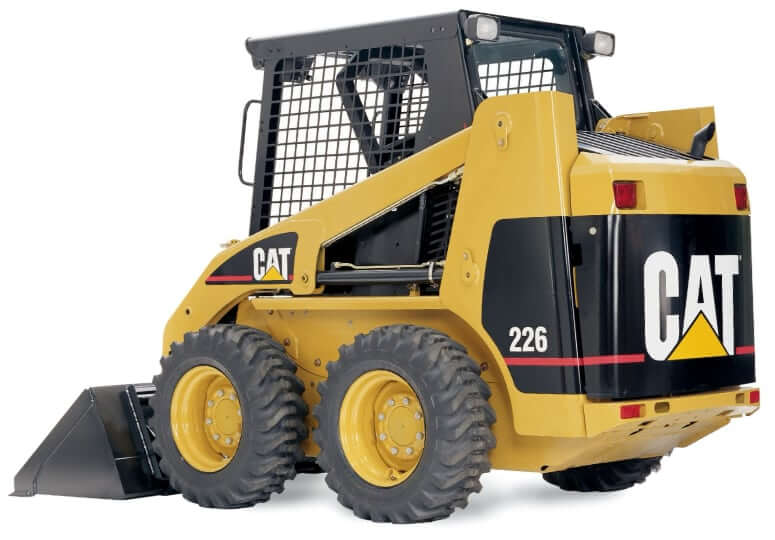

CAT 226 Skid Steer Loader Specs, Weight & Dimensions

Contents

Loader

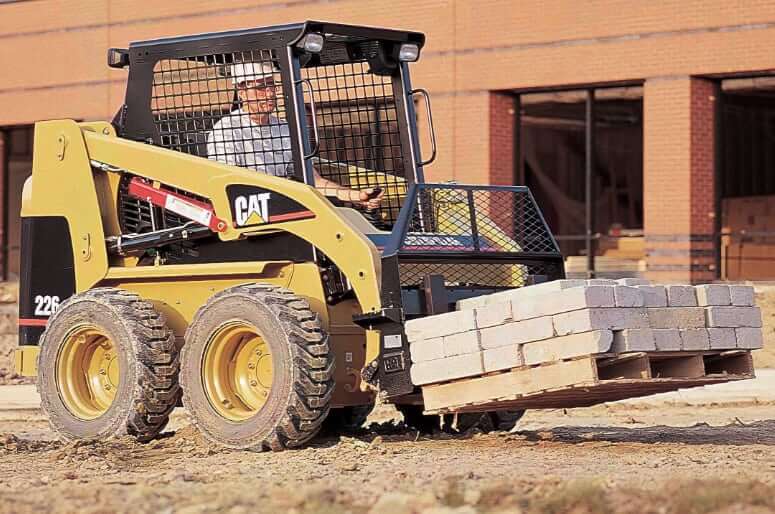

Tipping Load	3000 lb (1360 kg)
Rated Operating Capacity, 50%	1500 lb (680 kg)
Rated Operating Capacity, 35%	1050 lb (476 kg)
ROC w/ Optional Counterweight	1600 lb (726 kg)
Bucket Breakout Force	3903 lbf (17.4 kN)
Boom Breakout Force	3136 lbf (13.9 kN)
Bucket Width	62 in (1576 mm)
Bucket Capacity	0.47 yd3 (0.36 m3)

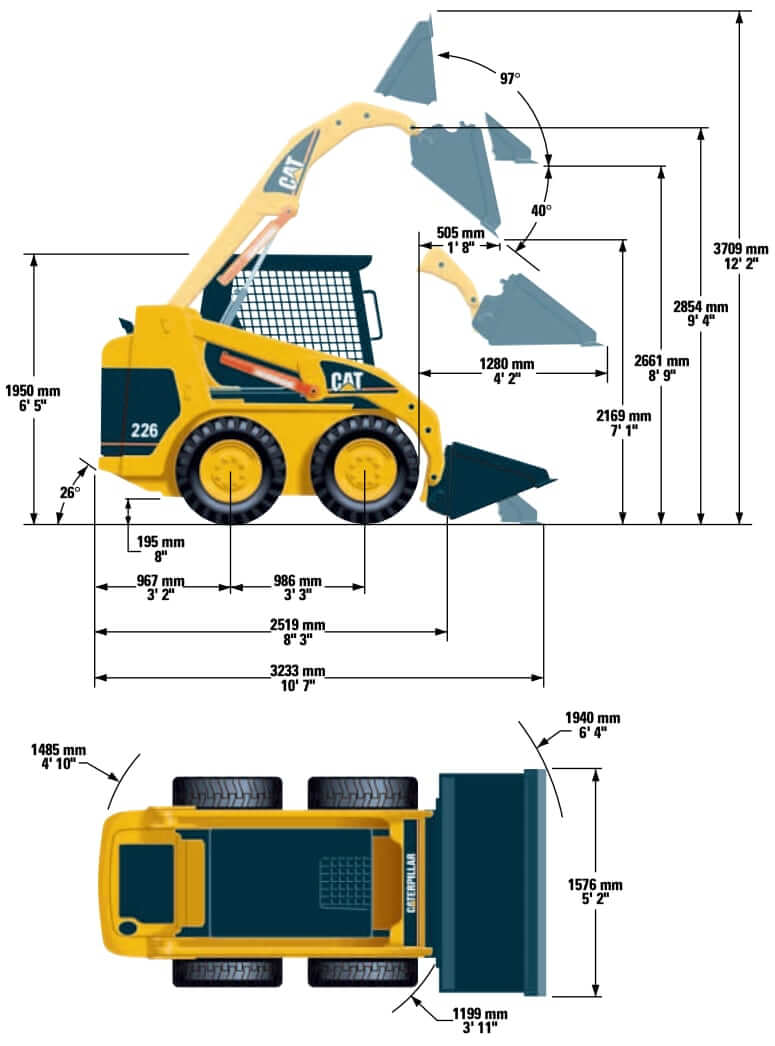

Clearance at Max Lift and Dump	85 in (2169 mm)
Reach at Max Lift and Dump	20 in (505 mm)
Bucket Pin Height – Maximum Lift	112 in (2854 mm)
Bucket Pin Height – Carry Position	9 in (239 mm)
Maximum Working Height	146 in (3709 mm)

Length w/ Bucket	127 in (3233 mm)
Length w/o Bucket	99 in (2519 mm)
Wheelbase	38.8 in (986 mm)

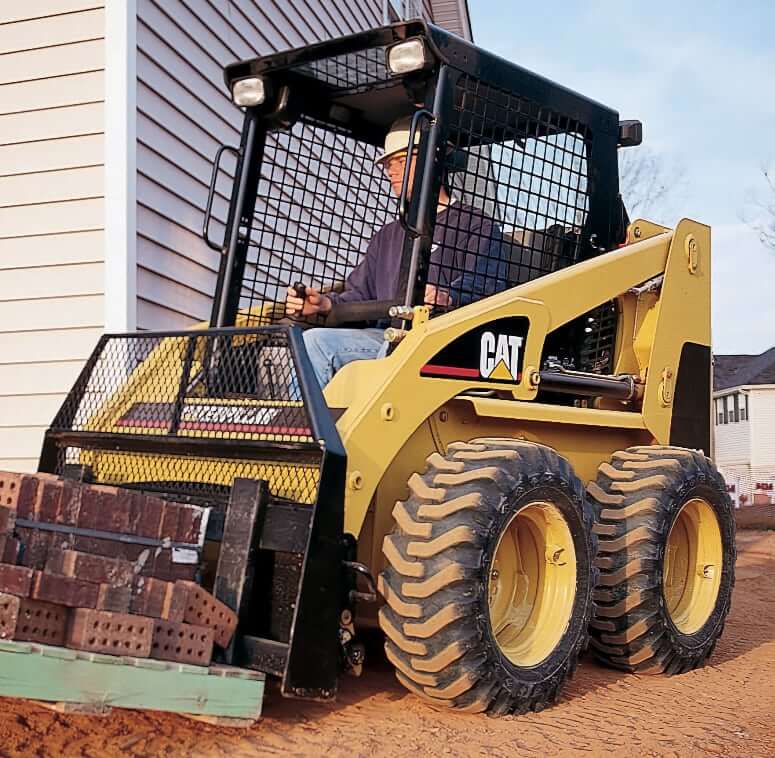

Width over Tires (10×16.5)	60 in (1525 mm)
Height to Top of Cab w/ ROPS	77 in (1950 mm)
Ground Clearance	8 in (195 mm)
Bumper Overhang (Rear axle)	38 in (967 mm)
Turning Radius, Front (w/ bucket)	76.4 in (1940 mm)
Turning Radius, Front (w/o bucket)	47.2 in (1199 mm)
Turning Radius, Rear	58.5 in (1485 mm)

Dimensions shown are based on standard CAT 226 equipped with 10×16.5 tires and 62 in (1576 mm) GP Bucket.

Number of Cylinders	4
Engine Make	Caterpillar
Engine Model	CAT 3034C DIT
Displacement	183 cu in (3 L)
Bore	3.82 in (97 mm)
Stroke	3.94 in (100 mm)
Gross Power	58 hp (43 kw)
Net Power	41 hp (30.6 kw)
Power Measured @	2600 rpm
Fuel System	Direct injection
Air Cleaner	Dry type air filter with two elements
Aspiration	Naturally aspirated
Emission Standards	US EPA Tier 1

Type	Hydrostatic transmission
Max Travel Speed	6.9 mph (11.1 km/h)
Hydrostatic Pumps	Two variable displacement hydrostatic pumps
Parking Brake	Parking brake is spring-applied and hydraulically released

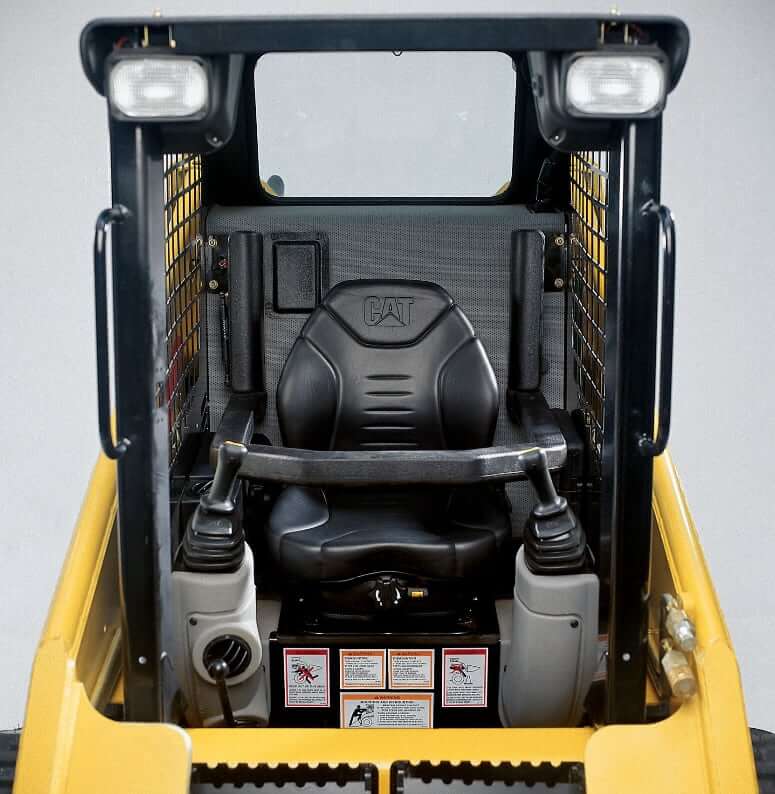

Cab Type	Rear-tilting cab (pneumatically assisted strut) with ROPS + FOPS
Operator Seat	Adjustable fore/aft static seat with a retractable seat belt
Suspension Seat	Optional
Cold Weather Package	Optional (heater, engine coolant heater and deluxe cab features)
Instrument Panel	Two instrument panels with warning LED read-outs and gauges in upper corners of the cab to further enhance visibility
ROPS	SAE J1040 MAY94 and ISO3471:1994
FOPS	SAEJ/ISO 3449 APR98 Level I and ISO3449:1992 Level I
FOPS Level Ii	SAEJ/ISO 3449 APR 98 Level II and ISO 3449:1992 Level II (optional)

Pump Type	Two-section, fixed displacement gear pump
Pump Flow Capacity	15.1 gal/min (57 L/min)
Loader Hydraulic Pressure	3300 psi (23000 kPa)
Hydraulic Oil Filtration	5-micron, spin-on filter with a restriction indicator

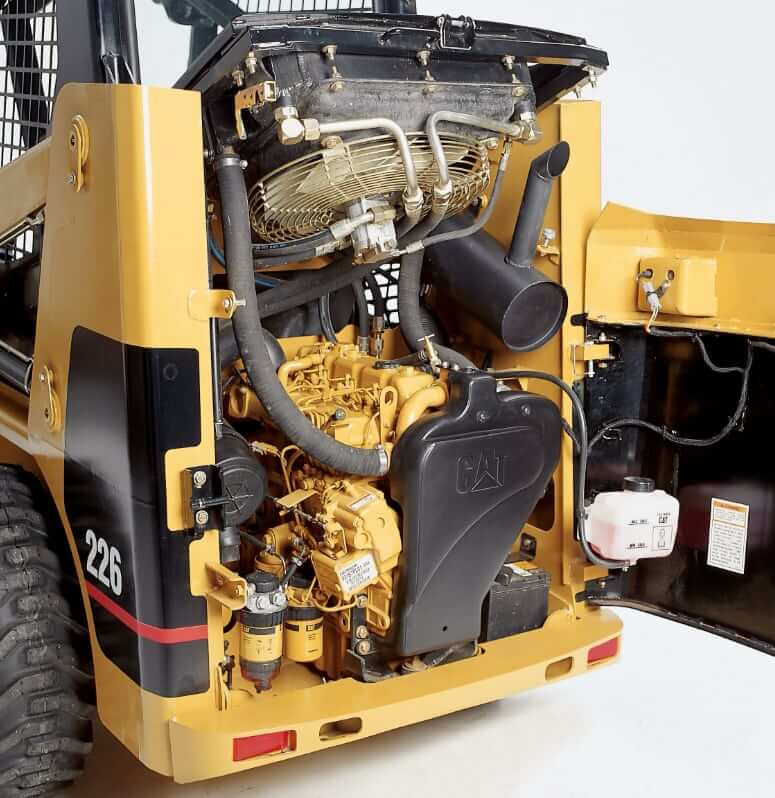

Fuel Tank Capacity	17 gal (65 L)
Engine Oil Capacity (w/ filter)	2.4 gal (9 L)
Cooling System Capacity	2.6 gal (10 L)
Hydraulic System Capacity (w/ tank)	14.5 gal (55 L)
Hydraulic Tank Capacity	9.2 gal (35 L)
Chain Box Fluid Capacity (Each side)	1.6 gal (6 L)

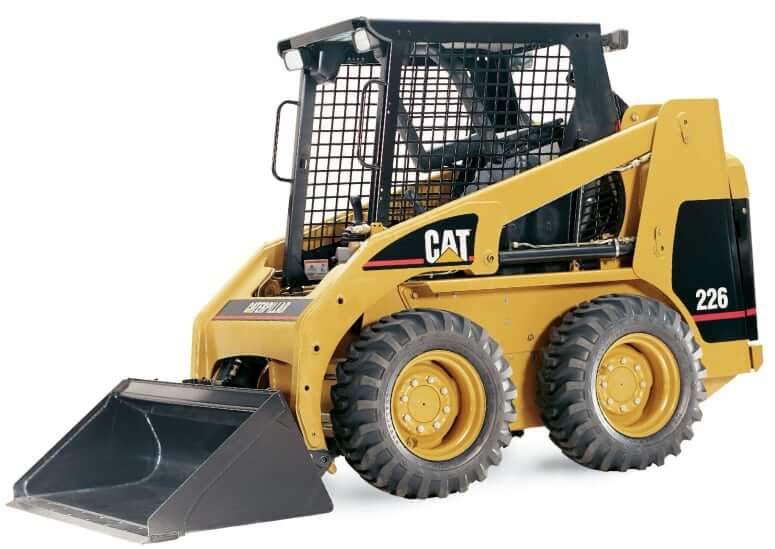

Bucket Type	Width	Capacity
General Purpose (Standard Bucket)	62 in (1576 mm)	0.47 yd3 (0.36 m3)
General Purpose	68 in (1730 mm)	0.52 yd3 (0.40 m3)
General Purpose	74 in (1883 mm)	0.58 yd3 (0.44 m3)
General Purpose	80 in (2036 mm)	0.63 yd3 (0.48 m3)
General Purpose	86 in (2188 mm)	0.82 yd3 (0.63 m3)
Industrial Performance	68 in (1730 mm)	0.68 yd3 (0.52 m3)
Industrial Performance	74 in (1883 mm)	0.75 yd3 (0.57 m3)
Industrial Performance	80 in (2036 mm)	0.81 yd3 (0.62 m3)
Industrial Performance	86 in (2188 mm)	0.88 yd3 (0.67 m3)
Industrial Performance	92 in (2340 mm)	0.94 yd3 (0.72 m3)
Light Material	74 in (1883 mm)	0.90 yd3 (0.69 m3)
Light Material	80 in (2036 mm)	0.98 yd3 (0.75 m3)
Low Profile	56 in (1421 mm)	0.39 yd3 (0.30 m3)
Low Profile	62 in (1586 mm)	0.44 yd3 (0.34 m3)
Low Profile	68 in (1740 mm)	0.48 yd3 (0.37 m3)
Low Profile	74 in (1893 mm)	0.54 yd3 (0.41 m3)
Low Profile	80 in (2045 mm)	0.58 yd3 (0.44 m3)
Utility Bucket	62 in (1576 mm)	0.56 yd3 (0.43 m3)
Utility Bucket	74 in (1883 mm)	0.68 yd3 (0.52 m3)
Utility Bucket	68 in (1730 mm)	0.63 yd3 (0.48 m3)
Industrial Grapple	62 in (1576 mm)
Industrial Grapple	68 in (1730 mm)
Industrial Grapple	74 in (1883 mm)
Industrial Grapple	80 in (2036 mm)

Model	Overall Width	Sweeping Width	Brush Diameter
Cat BU115 Utility Broom	71.3 in (1810 mm)	59.4 in (1510 mm)	26 in (660 mm)
Cat BA118C Hydraulic Angle Broom	103.8 in (2637 mm)	83.4 in (2119 mm)	32.1 in (815 mm)

Model	Intake Width	Overall Width	Weight
Cat SR321 Snowblower	76.5 in (1942 mm)	85.9 in (2181 mm)	1016 lb (518 kg)
Cat SR118 Snowblower	63.5 in (1614 mm)	73.9 in (1877 mm)	955 lb (478 kg)
