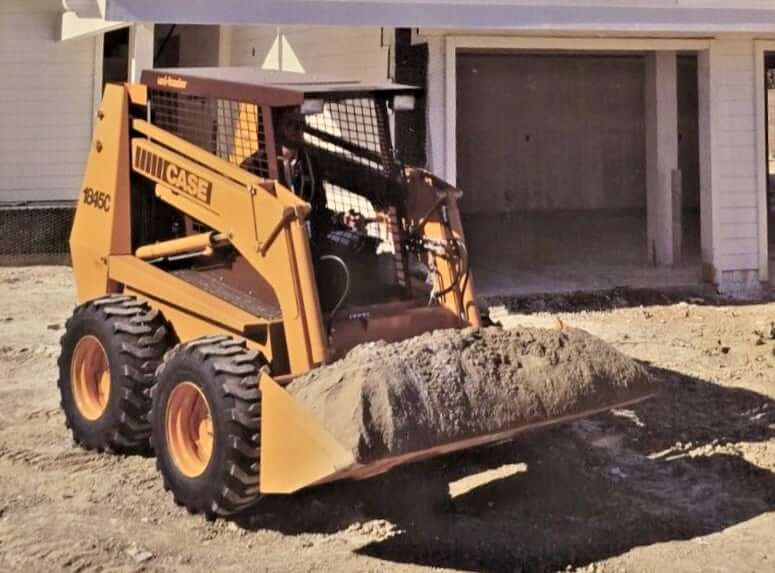

Loader Performance
| Tipping Load | 3545 lb (1608 kg) |
| Rated Operating Capacity (54 in Dirt Bucket) | 1750 lb (794 kg) |

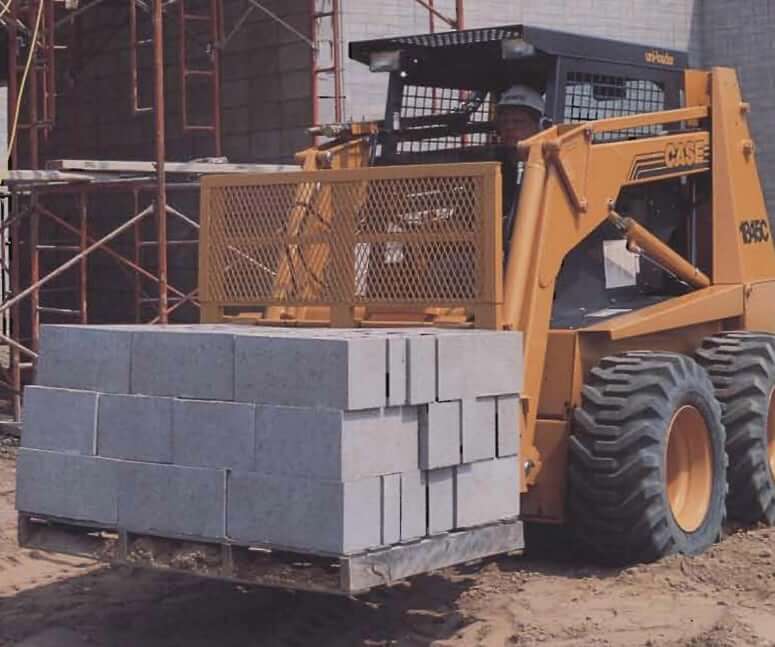

| Rated Operating Capacity (Pallet Fork) | 1050 lb (476 kg) |

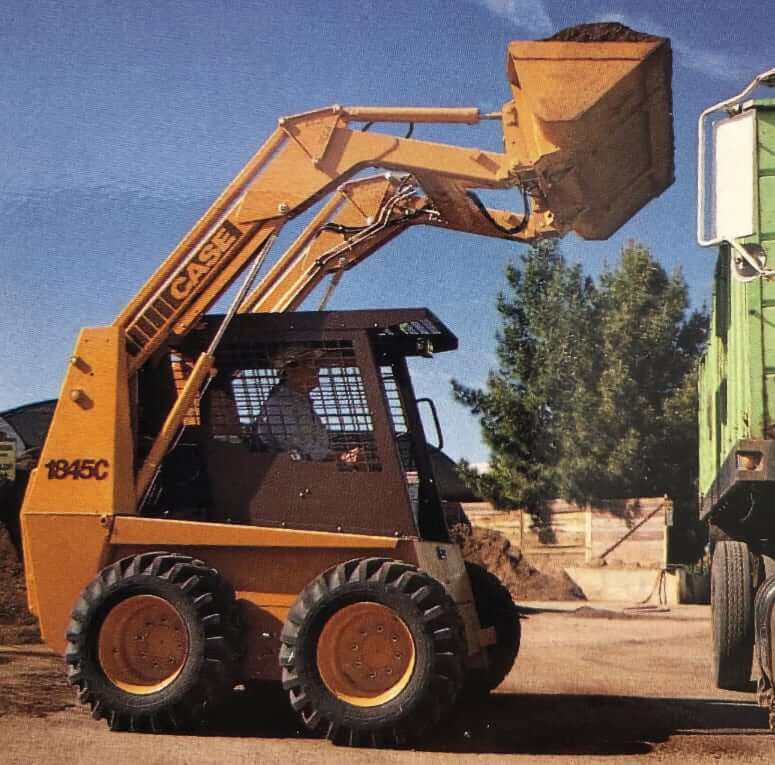

| Lift Capacity to Max Height | 3135 Ib (1422 kg) |
| Breakout Force (Lift) | 3450 lbf (15.35 kN) |
| Breakout Force (Tilt) | 4690 lbf (20.86 kN) |
Dimensions
| A. Overall Operating Height (Dirt Bucket) | 145.5 in (3690 mm) |
| B. Bucket Hinge Pin Height | 116.8 in (2970 mm) |
| C. Height to Top of ROPS | 80.3 in (2040 mm) |
| D. Height to Bottom of Level Bucket, Loader Arm Fully Raised | 111.3 in (2830 mm) |
| E. Overall Length w/o Attachment | 101.3 in (2570 mm) |
| F. Overall Length w/ Bucket on Ground | 132.4 in (3360 mm) |
| G. Dump Angle at Maximum Height (Dirt Bucket) | 41° |
| H. Dump Height at Loader Arm Fully Raised (Dirt Bucket) | 89.5 in (2270 mm) |
| J. Reach at Loader Arm Fully Raised (Dirt Bucket) | 23.0 in (584 mm) |
| K. Maximum Attachment Rollback, Bucket on Ground | 30° |
| L. Maximum Attachment Rollback, Bucket at Full Height | 62° |
| M. Wheelbase | 40.5 in (1030 mm) |
| N. Ground Clearance | 8.0 in (203 mm) |
| O. Angle of Departure | 25° |
| P. Clearance Circle Front, Less Bucket | 48.0 in (1220 mm) |
| Q. Clearance Circle Front, with 63 in Dirt Bucket | 78.0 in (1980 mm) |
| Q. Clearance Circle Front, with 73 in Dirt Bucket | 80.0 in (2030 mm) |
| R. Clearance Circle Rear | 53.8 in (1370 mm) |
Tires
| Type | Tire Size | Width Over Tires |
|---|---|---|
| Pneumatic (tubeless), Goodyear | 12.00 x 16.5, 6PR Traction | 72 in (1830 mm) |
| Pneumatic (tubeless), Galaxy | 12.00 x 16.5, 10PR | 72 in (1830 mm) |
| Pneumatic (tubeless), Galaxy | 12.00 x 16.5, 10PR | 72 in (1830 mm) |
| Pneumatic (tubeless), Galaxy | 15.5 x 16.5, 12PR | 78.9 in (2010 mm) |
| Non-Pneumatic, Mitco | 8.00 x 16 Industrial Lug, Solid | 61.6 in (1570 mm) |
| Non-Pneumatic, Airboss | 8.25 x 15 GP/Industrial | 68.7 in (1750 mm) |
| Non-Pneumatic, Airboss Altrakka II | 12.00 x 16.5 | 70.9 in (1800 mm) |

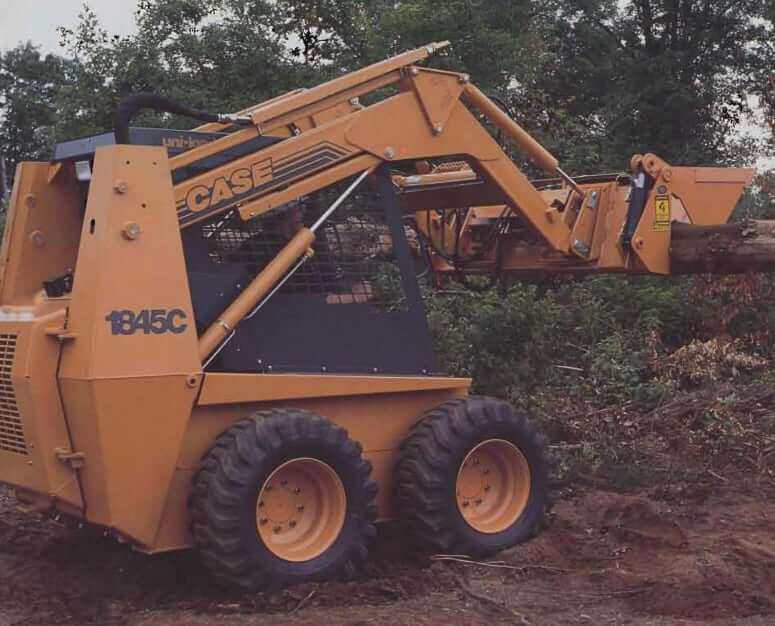

Buckets
| Type | Struck Capacity (SAE) | Heaped Capacity (SAE) | Weight |
|---|---|---|---|
| Dirt Bucket, 63 in (1600 mm) | 9.1 ft3 (0.26 m3) | 11.8 ft3 (0.34 m3) | 374 lb (170 kg) |
| Dirt Bucket, 73 in (1854 mm) | 10.6 ft3 (0.30 m3) | 13.9 ft3 (0.39 m3) | 410 Ib (186 kg) |
| Dirt Bucket, 82 in (2083 mm) | 14.5 ft3 (0.41 m3) | 19.0 ft3 (0.54 m3) | 593 lb (269 kg) |
| Utility Bucket, 63 in (1600 mm) | 15.9 ft3 (0.45 m3) | 19.8 ft3 (0.56 m3) | 462 lb (209 kg) |
| Utility Bucket, 73 in (1854 mm) | 18.5 ft3 (0.52 m3) | 23.1 ft3 (0.65 m3) | 496 Ib (225 kg) |
| Light Material, 80 in (2032 mm) | 25.4 ft3 (0.72 m3) | 31.6 ft3 (0.89 m3) | 588 Ib (267 kg) |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Case / Cummins |
| Engine Model | Case 4-390 (Cummins B3.9) |
| Displacement | 239 cu in (3.92 L) |
| Bore | 4.00 in (102 mm) |
| Stroke | 4.72 in (120 mm) |
| Gross Horsepower | 60 hp (45 kw) |
| Net Horsepower | 57 hp (43 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 179 lb ft (243 Nm) |
| Torque Measured @ | 1300 rpm |
| Fuel System | Direct injection |
| Lubrication System | Integral oil pump and oil cooler with piston oil cooling nozzles |
| Air Cleaner | Dry type, Replaceable paper element air cleaner with restriction indicator |
| Aspiration | Naturally Aspirated |
Operational Specs
| Operating Weight | 6185 lb (2806 kg) |
| Counterweight (Standard) | 100 lb (45 kg) |
| Rated Operating Capacity | 1750 lb (794 kg) |
| Lift Capacity to Maximum Height | 3135 Ib (1422 kg) |
| Operating Voltage | 12 V |
| Alternator | 65 amps |
| Battery | 12 V, CCA 685 (CCA 700) |
| Cab / Canopy | ROPS / FOPS canopy with side screens |

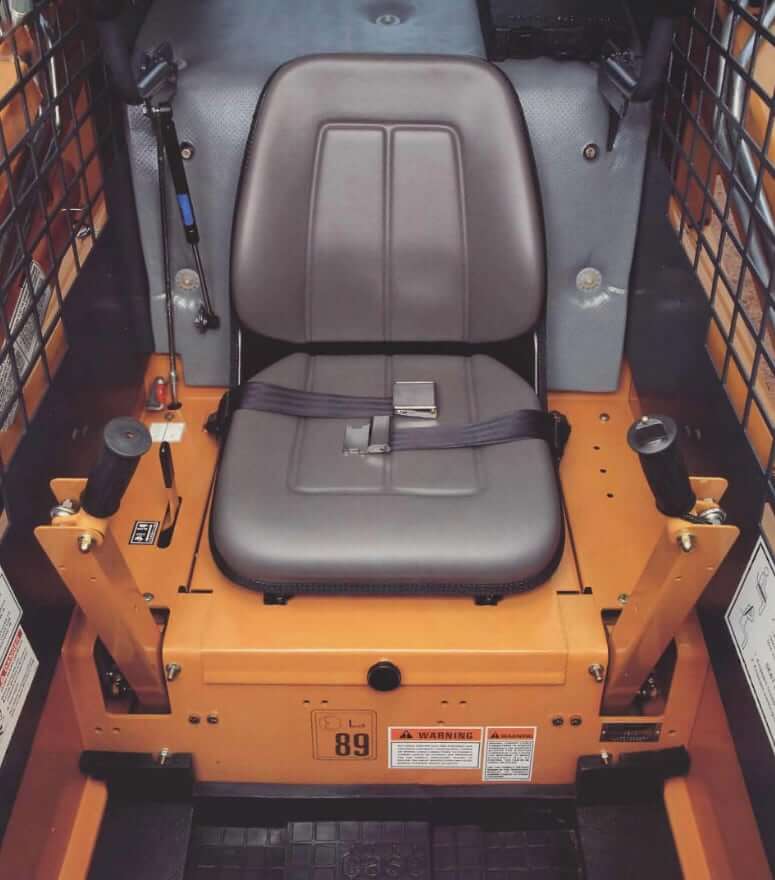

| Operator Seat | Adjusted seat w/ 2-inch seat belt |
| Operator Seat (Optional) | Deluxe suspension seat |
| Noise Level (inside) | 89 dB(A) |

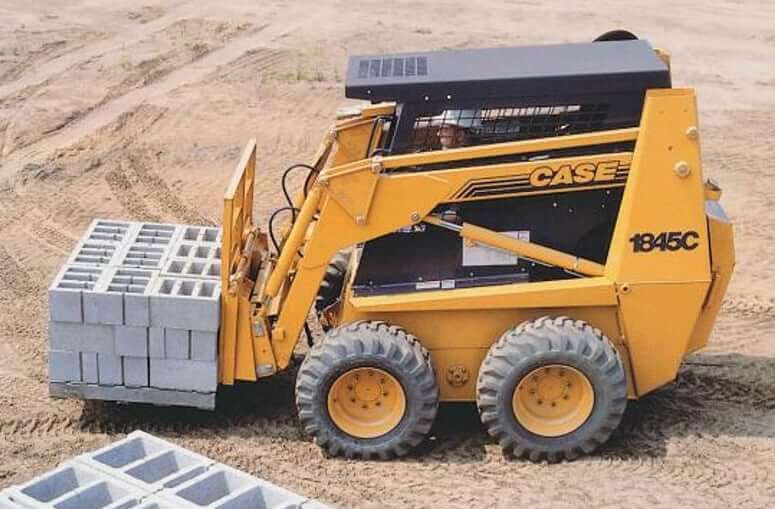

Powertrain
| Type | Hydrostatic transmission |
| Max Travel Speed | 6.0 mph (9.7 km/h) |
| Drive Motors | Fixed displacement high torque / low speed gerotor motors |
| Final Drive | Dual stage reduction chain drive to all wheels |
| Flow | Bi-directional |
| Controls | Low-effort, servo assist |
| Drive Chain Size | No. 80 HT |
| Service Brakes | Dynamic braking – Moving the hand controls to the neutral position brings the unit to an even stop |
| Parking Brake | Mechanical parking latch spring applied, cable release |

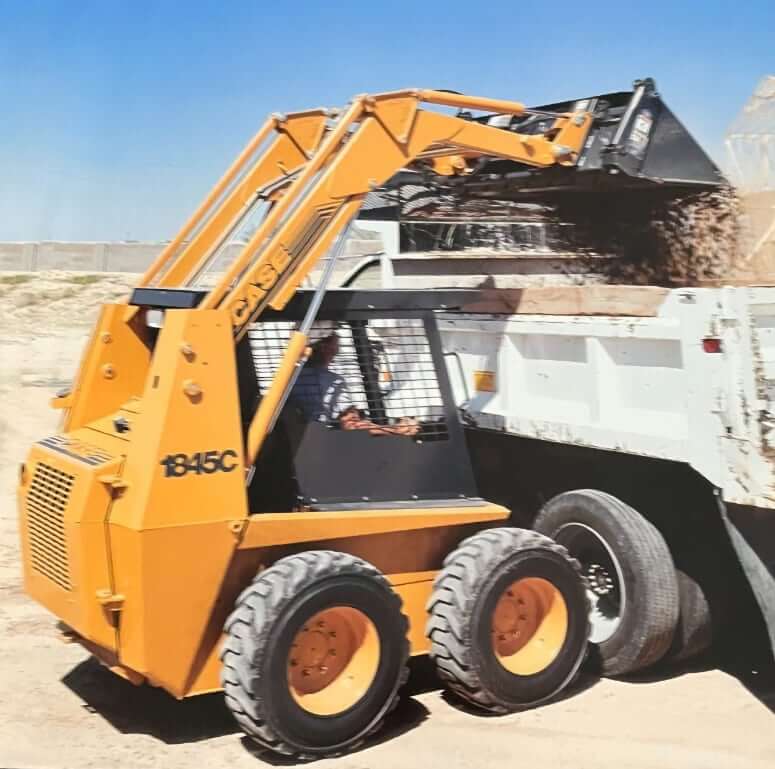

Hydraulic System
| Hydraulic Circuits | 2 circuits: oil for the hydraulic system is kept separate from oil for the chains and sprockets |
| Pump Flow Capacity | 16 gal/min (60.6 L/min) |
| High Flow Capacity (Optional) | 30 gal/min (114 L/min) |
| Relief Valve Pressure | 2300 psi (15900 kPa) |
| Main Pump Type | Gear pump driven directly off engine crankshaft |
| Drive Pump Type | Two variable displacement piston pumps |
| Auxiliary Hydraulics | Located on the loader arms allowing for quick coupling of attachments |
| Hydraulic Oil Filtration | 6-micron spin-on replaceable element w/ warning light |
| Hydraulic Cylinders, Lift | Bore 2.5 in (64 mm); Stroke 29.5 in (749 mm); Rod 1.5 in (38 mm) |
| Hydraulic Cylinders, Tilt | Bore 2.5 in (64 mm); Stroke 21.25 in (540 mm); Rod 1.25 in (32 mm) |
Hydraulic Cycle Times
| Raise Time (with rated loads) | 4.3 sec |
| Lowering time (power down) | 2.9 sec |
| Dump Time | 2.0 sec |
| Rollback Time | 1.4 sec |

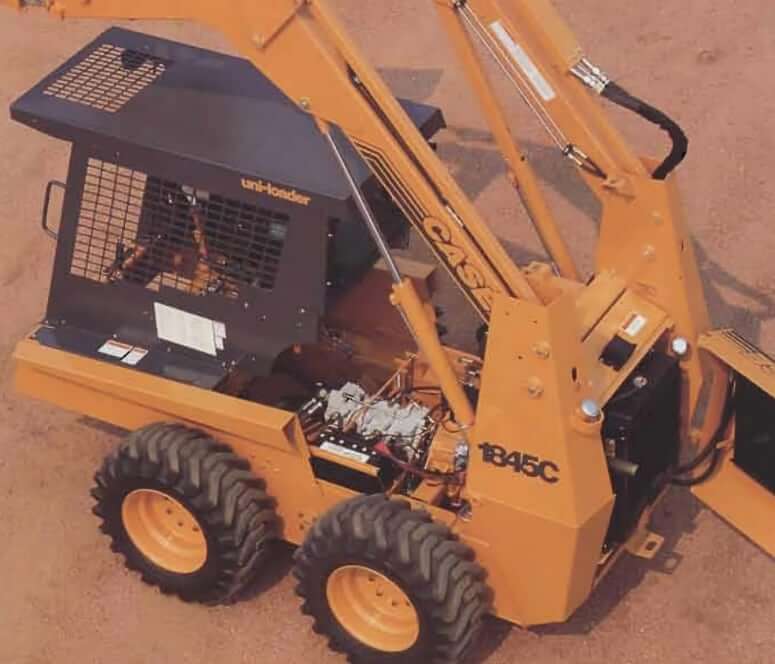

Service Refill Capacities
| Fuel Tank Capacity | 21.5 gal (81.4 L) |
| Engine Oil Capacity (w/ filter) | 1.7 gal (6.3 L) |
| Cooling System Capacity | 4.5 gal (17 L) |
| Hydraulic System Capacity (w/ tank) | 10.5 gal (39.8 L) |
| Hydraulic Tank Capacity | 5.75 gal (21.8 L) |
| Chain Box Capacity (each side) | 1.3 gal (4.7 L) |
The Case 1845C Skid Steer Loader, produced from 1986 to 2000, is one of the most iconic and best-selling skid steers in the industry. Known for its reliability, mechanical simplicity, and robust performance, the 1845C remains a popular choice on jobsites even decades after production ended. Its versatility is significantly enhanced by a range of purpose-built attachments, enabling it to tackle a variety of tasks with precision and efficiency.

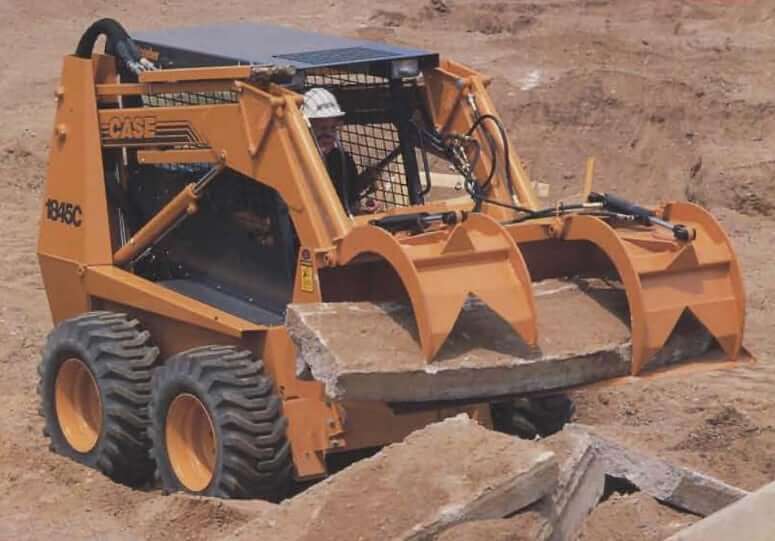

Compatible attachments for the Case 1845C include dirt, utility, and light material buckets – ideal for earthmoving, cleanup, and material transport – as well as pallet forks for handling stacked loads and palletized goods. For deeper excavation tasks, the 1845C can be equipped with backhoe attachments such as the Case D100, D100XR, and D125, transforming the machine into a compact digging solution suitable for trenching and utility work.
With these attachments, the Case 1845C continues to prove its value across construction, landscaping, farming, and municipal operations – delivering classic Case performance in a compact, dependable platform.
