Loader Performance
| Rated Operating Capacity (ROC) | 2082 lb (944 kg) |
| ROC w/ Counterweight, 200 lb (90 kg) optional | 2232 lb (1012 kg) |
| Tipping Load | 4164 lb (1888 kg) |
| Breakout Force (Lift) | 3905 lbf (17.37 kN) |
| Breakout Force (Tilt) | 3754 lbf (16.70 kN) |
| Push Force | 5590 lbf (24.87 kN) |
| Standard Bucket Width | 68 in (1727 mm) |
| Lift Arm Path | Vertical |

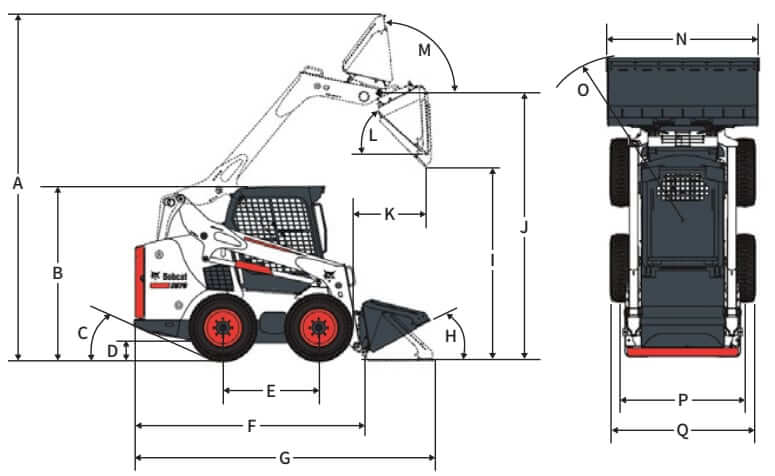

Dimensions
| A. Operating Height | 153.6 in (3901 mm) |
| B. Height to Top of Cab | 77.8 in (1972 mm) |
| C. Angle of Departure | 24.2° |
| D. Ground Clearance | 7.3 in (185 mm) |
| E. Wheelbase | 42.6 in (1082 mm) |
| F. Length without Attachment | 104.6 in (2657 mm) |
| G. Length with Standard Bucket | 133 in (3378 mm) |
| H. Rollback @ Ground | 30.0° |
| I. Dump Height with Standard Bucket | 91.3 in (2319 mm) |
| J. Height to Bucket Hinge Pin | 119 in (3023 mm) |
| K. Dump Reach @ Maximum Height | 32.6 in (828 mm) |
| L. Dump Angle @ Maximum Height | 42° |
| M. Rollback Fully Raised @ Maximum Height | 97° |
| N. Width Over Bucket | 68 in (1727 mm) |
| O. Turning Radius with Standard Bucket | 79.7 in (2024 mm) |
| P. Wheel Tread | 54.1 in (1374 mm) |
| Q. Width Over Tires | 64.7 in (1643 mm) |
Engine Details
| Engine Make | Kubota | Doosan |
|---|---|---|
| Number of Cylinders | 4 | 4 |
| Engine Model | Kubota V2607-DI-T-E3B | Doosan D24 |
| Displacement | 159.6 cu in (2.615 L) | 146.0 cu in (2.392 L) |
| Bore | 3.43 in (87 mm) | 3.54 in (90 mm) |
| Stroke | 4.33 in (110 mm) | 3.70 in (94 mm) |
| Horsepower, Gross | 61 hp (45.5 kw) | 61.9 hp (46.2 kw) |
| Horsepower, Net | 58 hp (43.3 kw) | 58.2 hp (43.4 kw) |
| Power Measured @ | 2700 rpm | 2600 rpm |
| Peak Torque | 148 lb ft (200.7 Nm) | 166 lb ft (225.1 Nm) |
| Torque Measured @ | 1425 rpm | 1800 rpm |
| Fuel System | In-line pump | Common rail pump |
| Combustion System | Direct injection | Direct injection |
| Lubrication System | Gear pump pressure system with filter | Fully forced pressure feed type |
| Aspiration | Turbocharged | Turbocharged and intercooled |
| Emission Standards | US EPA Interim Tier 4 + EU Stage IIIA | US EPA Tier 4 Final + EU Stage IIIB |
Operational Specs
| Operating Weight (w/ Kubota engine) | 6395 lb (2900 kg) |
| Operating Weight (w/ Doosan engine) | 6480 lb (2939 kg) |
| Counterweight Kit #1 | 200 lb (90 kg) |
| Max Lift Capacity | 2232 lb (1012 kg) |
| Operating Voltage | 12 V |
| Alternator | 90 amps |
| Battery (w/ Kubota engine) | 12 V, CCA 600, RC: 115 min |
| Battery (w/ Doosan engine) | 12 V, CCA 650, RC: 115 min |
| Starter | 12 V, gear type, 3.62 hp (2.7 kw) |
Operator Environment
| Cab (Options) | Cab enclosure with heating / Cab enclosure with HVAC |
| ROPS | SAE J1040 and ISO 3471 |
| FOPS | SAE J1043 and ISO 3449, Level I |
| Operator Seat | High-back adjustable suspension seat |
| Operator Seat (Optional) | Air ride seat with 2 point seat belt (3 point seat belt) |
| Working Lights | 2x Front + 2 Rear working lights |
| Whole Body Vibration | 0.70 m/s2 Kubota engine / 1.81 m/s2 Doosan engine |
| Hand-arm Vibration | 1.22 m/s2 Kubota engine / 2.35 m/s2 Doosan engine |
| Noise Level (inside cab) | 83.8 dB(A) Kubota engine / 85 dB(A) Doosan engine |
| Noise Level (outside cab) | 101 dB(A) |
Power Train
| Type | Fully hydrostatic, 4WD transmission |
| Number of Gears | Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors |
| Max Travel Speed (Single Speed) | 7.35 mph (11.8 km/h) |
| Max Travel Speed (2-Speed, optional) | 11.0 mph (17.3 km/h) |
| Final Drive | Prestressed #80 HSOC endless roller chain (no master link) and sprockets in sealed chaincase with oil lubrication (Chains do not require periodic adjustments) Two chains per side with no idler sprocket |
| Axle Size | 1.98 in (50.3 mm), heat treated |
| Service Brakes | Two independent hydrostatic systems controlled by two hand operated steering levers or optional joystick(s) |
| Secondary Brake | One of the hydrostatic transmissions |
| Parking Brake (Single Speed) | Mechanical disc, manually operated switch on left instrument panel |
Tires
| Type | Tire Size |
|---|---|
| Standard Duty (Standard | 10.00 – 16.5, 8 PR |
| Heavy Duty (Option) | 10.00 – 16.5, 10 PR |
| Heavy Duty Offset (Option) | 10.00 – 16.5, 10 PR |
| Heavy Duty Poly Fill (Option) | 10.00 – 16.5, 10 PR |
| Severe Duty (Option) | 10.00 – 16.5, 10 PR |
| Severe Duty Poly Fill (Option) | 10.00 – 16.5, 10 PR |
| Solid Flex Tires (Option) | 31 x 6 x 10 |
| Super Float (Option) | 31 x 12 – 16.5, 10 PR |
Hydraulic System
| Hydraulic Pump Type | Engine driven, gear type |
| Standard Pump Flow Capacity | 17.1 gal/min (64.7 L/min) |
| High Flow Pump Capacity (optional) | 26.7 gal/min (101.1 L/min) |
| Standard Relief Pressure at Quick Couplers | 3450 – 3550 psi (23800 – 24500 kPa) |
| Control Valve (Standard) | 3-Spool, open center, manually operated with spring detent for lift float; electrically controlled auxiliary spool |
| Control Valve (ACS, AHC and SJC) | 3-Spool, open center with electric actuator controlled lift with float and tilt; electrically controlled auxiliary spool |
| Hydraulic Filter | Replaceable beta 10 micron = 200, drop in element |
| Fluid Lines | SAE Standard tubelines, hoses, and fittings |
| Hydraulic Cylinders | Double-acting; lift cylinders have cushioning feature on lower, tilt cylinders have cushioning feature on dump and rollback |
Hydraulic Function Time
| Raise Lift Arms Time | 3.8 sec. |
| Lower Lift Arms Time | 2.5 sec. |
| Bucket Dump Time | 2.3 sec. |
| Bucket Rollback Time | 1.7 sec. |
Service Refill Capacities
| Engine Model | Kubota V2607 | Doosan D24 |
|---|---|---|
| Fuel Tank Capacity | 24.8 gal (93.7 L) | 24.8 gal (93.7 L) |
| Engine Oil Capacity (w/ filter) | 2.6 gal (9.7 L) | 2.3 gal (8.6 L) |
| Cooling System Capacity (Cab w/o HVAC) | 3.0 gal (11.4 L) | 2.8 gal (10.6 L) |
| Cooling System Capacity (Cab w/ HVAC) | 3.1 gal (11.7 L) | 2.9 gal (10.9 L) |
| Hydraulic System Capacity (w/ tank) | 9.5 gal (36 L) | 9.5 gal (36 L) |
| Hydraulic Tank Capacity | 2.0 gal (7.6 L) | 2.0 gal (7.6 L) |
| Chaincase Reservoir Capacity | 8.5 gal (32.2 L) | 8.5 gal (32.2 L) |
Bobcat S570 Filters
| Filter | Part Number |
|---|---|
| Air Filter (Inner), SN A7U711001-; A7U811001-; AZNB11001-; AZNC11001- | 6666376 |
| Air Filter (Inner), SN ALM411001-; B3GZ11001 | 7221934 |
| Air Filter (Outer), SN A7U711001-; A7U811001-; AZNB11001-; AZNC11001- | 6666375 |
| Air Filter (Outer), SN ALM411001-; B3GZ11001 | 7286322 |
| Engine Oil Filter, SN A7U711001-; A7U811001-; AZNB11001-; AZNC11001- | 6675517 |
| Engine Oil Filter, SN ALM411001-; B3GZ11001 | 7012303 |
| Fuel Filter, SN A7U711001-; A7U811001-; AZNB11001-; AZNC11001- | 6667352 |
| Fuel Filter, SN ALM411001-; B3GZ11001 | 7023589 |
| Hydraulic Filter, SN A7U711001-; A7U811001-; AZNB11001-; AZNC11001-; ALM411001- | 7024037 |
| Hydraulic Filter, SN B3GZ11001 | 7024035 |
| Hydraulic Fill / Breather Cap | 6727475 |
| Charge Filter (Spin-on) | 6686926 |
| Charge Filter (Canister) | 6692337 |
| Heater Filter | 7176099 |
| Recirculating Air Filter | 7193354 |

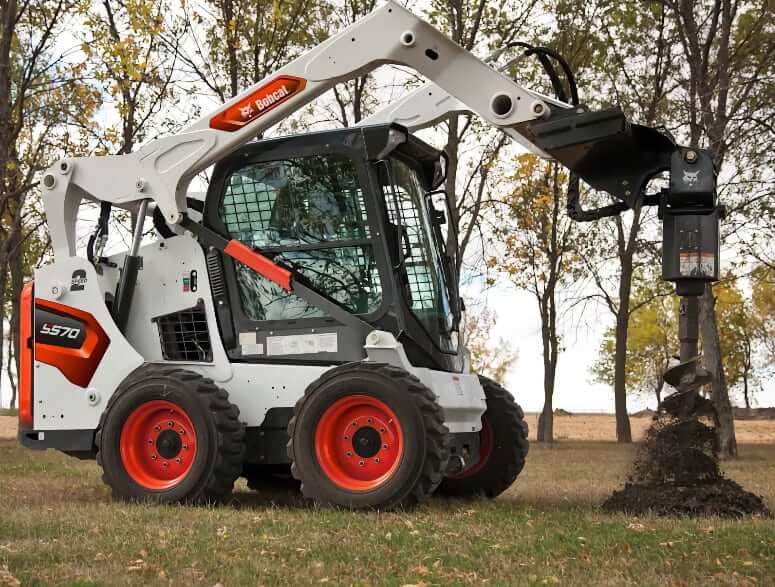

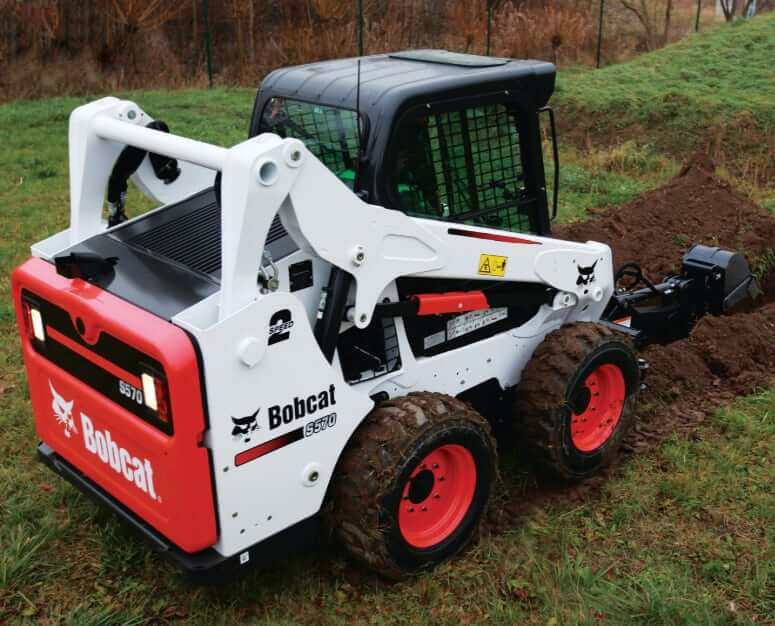

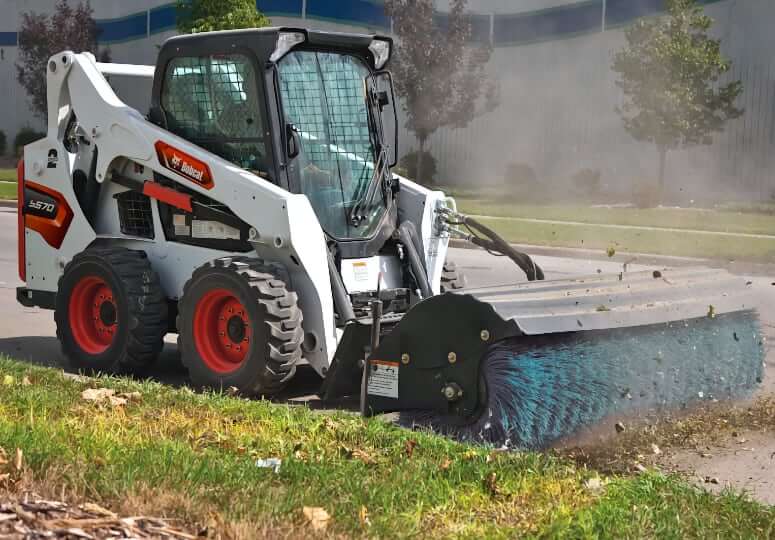

The Bobcat S570 Skid Steer Loader is a compact yet highly capable machine, designed to work seamlessly with an extensive range of attachments that boost versatility and jobsite productivity. Whether you’re digging, lifting, grading, trenching, sweeping, or managing snow, the S570 supports it all with tools like augers, backhoes, breakers, sweepers, and trenchers.

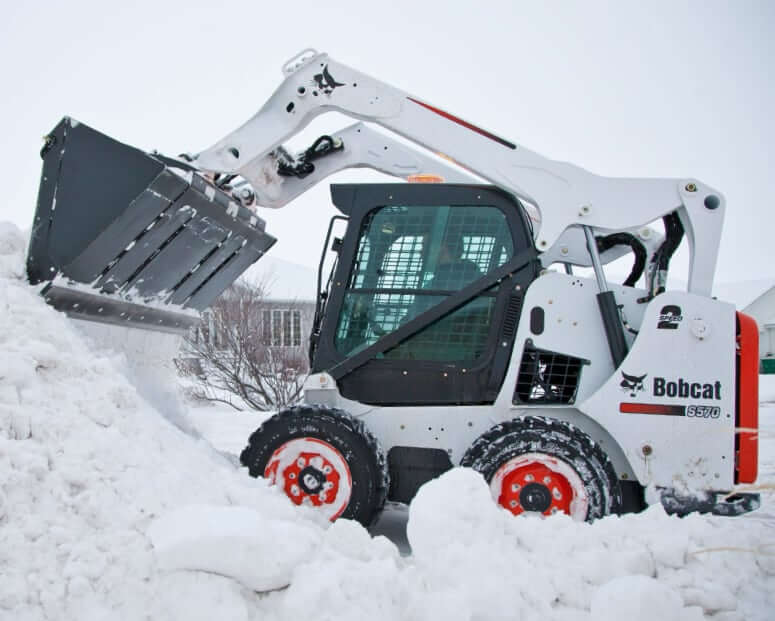

It also accommodates landscaping and groundskeeping implements such as soil conditioners, flail cutters, and landscape rakes, while attachments like pallet forks, planers, and concrete pumps extend its utility in construction and industrial applications. With options for snow removal, material handling, and fine grading – including snowblowers, utility forks, graders, and angle brooms – the Bobcat S570 proves to be a reliable and flexible solution across a wide range of seasonal and terrain-specific tasks.
