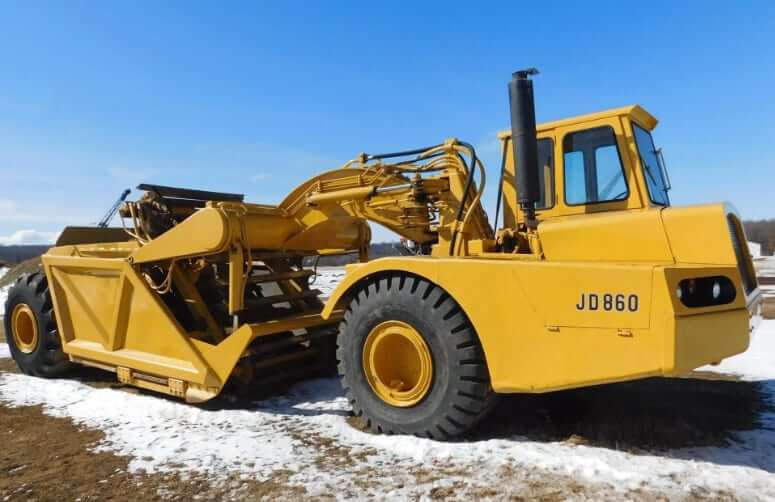

Dimensions
| Overall Length | 35.11 ft in (10700 mm) |
| Overall Width | 9.6 ft in (2926 mm) |
| Wheelbase | 22.9 ft in (6980 mm) |
| Tractor Ground Clearance | 1.34 ft in (406 mm) |
Weight
| Operating Weight Total (Empty) | 42300 lb (19187 kg) |
| Operating Weight Tractor (Empty) | 27720 lb (12574 kg) |
| Operating Weight Scraper (Empty) | 14580 lb (6613 kg) |
| Operating Weight Total (Loaded) | 79800 lb (36197 kg) |
| Operating Weight Tractor (Loaded) | 39640 lb (17981 kg) |
| Operating Weight Scraper (Loaded) | 40160 lb (18216 kg) |

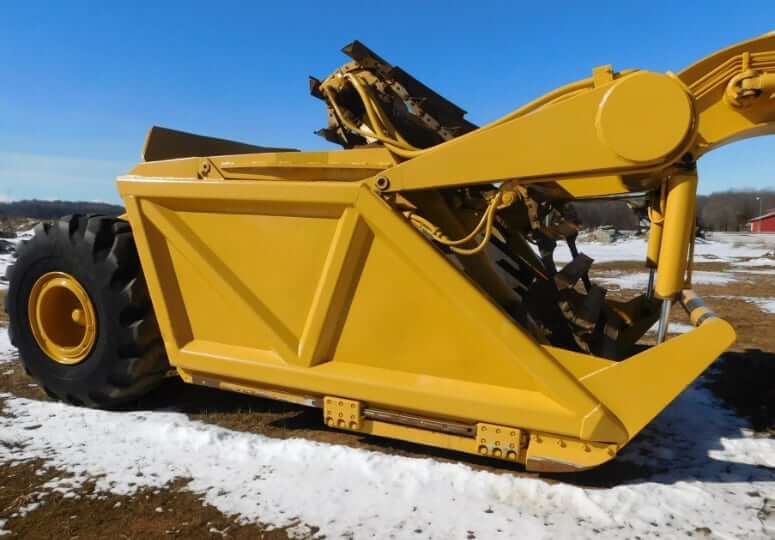

Scraper Bowl
| Scraper Capacity (Heaped) | 15.0 yd3 (11.5 m3) |
| Rated Load | 37500 lb (17010 kg) |
| Bowl Lift Time (To Full Height) | 4.90 seconds |
| Slide Floor Time | 4.82 seconds |
| Ejector Gate Time | 4.66 seconds |
| Total Ejection Time | 9.48 seconds |
| Total Cutting Width with Side Cutting Edges | 9 ft 5 in (2870 mm) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | Detroit Diesel |
| Engine Model | Detroit Diesel 6-71N |
| Displacement | 426 cu in (7 L) |
| Gross Power | 228 hp (170 kw) |
| Net Power | 215 hp (160 kw) |
| Power Measured @ | 2100 rpm |
| Peak Torque | 600 lb ft (813 Nm) |
| Torque Measured @ | 1600 rpm |
| Aspiration | Naturally aspirated |
Operational Specs
| Operating Voltage | 24 V |
| Battery | 2x 12 V |
| Tire Size | 26.5-25, 20-ply rating |
| Operator Seat | Foam rubber padded, bucket-type, with air-cushion ride. Adjustable fore-and-aft and vertically |
| Controls | One lever for lowering bowl, controlling depth of cut, and bowl lift. One lever for ejection of load. One lever for elevator operation forward and reverse |
| Lighting System | Front lights: 2 sealed-beam headlights + 2 sealed-beam floodlights; rear lights: stop and tail |
Transmission
| Type | Full power shift transmission. Constant-mesh gears with duplex clutches |
| Clutchs | Twin Disc Model TD-51-1109 |
| Transmission Oil Cooler | Transmission oil is cooled by cooler located under engine coolant radiator |
| Number Of Gears | 5F / 1R |
| Max Travel Speed (Forward / Reverse) | 28 mph (45 km/h) / 7.9 mph (12.7 km/h) |
| Differential Lock | Foot-operated, hydraulically actuated |
| Drive Axle | Differential drive; over-all ratio 22.22 to 1; axles with planetary final drives |
Service Refill Capacities
| Fuel Tank Capacity | 90 gal (340.7 L) |
| Engine Oil Capacity | 4.5 gal (17 L) |
| Cooling System Capacity | 11 gal (41.6 L) |
| Elevator Gear Case | 0.9 gal (3.4 L) |
| Transmission Oil Capacity | 12 gal (45.5 L) |
| Differential Oil Capacity | 25 gal (94.7 L) |
| Hydraulic System Capacity | 25 gal (94.7 L) |
