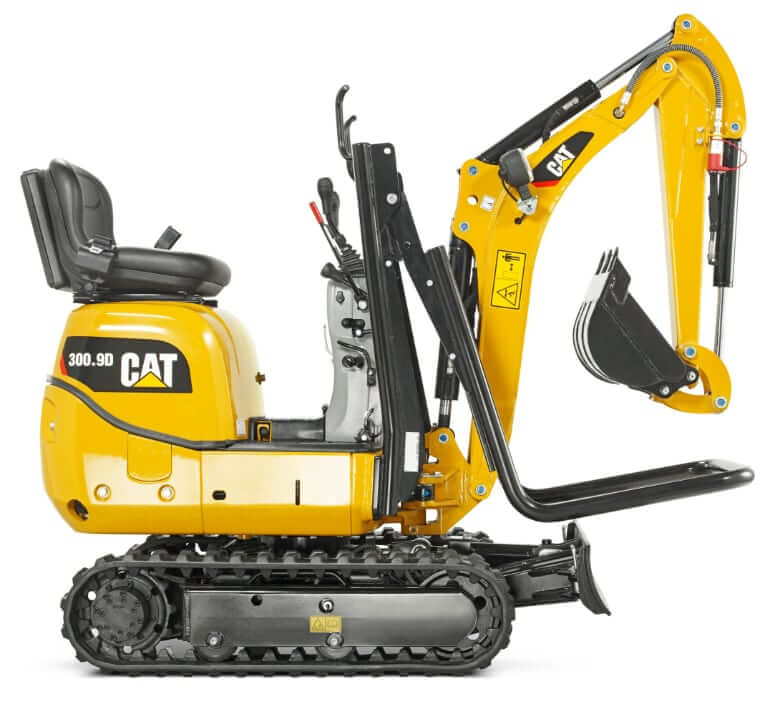

Weights
| Operating Weight without ROPS | 2060 lb (935 kg) |
| Operating Weight with ROPS | 2170 lb (985 kg) |
Dimensions
| Stick Length | 34.8 in (890 mm) |
| Stick Digging Force | 1011 lbf (4.5 kN) |
| Bucket Digging Force | 2000 lbf (8.9 kN) |
| A. Height with folded ROPS | 59.3 in (1507 mm) |
| A*. Height to Top of ROPS | 89.6 in (2276 mm) |
| B. Width | 28.7 in (730 mm) |
| C. Transport Length (arm lowered) | 108.1 in (2746 mm) |
| D. Maximum Digging Depth | 68.1 in (1731 mm) |
| E. Maximum Vertical Dig Depth | 53.1 in (1349 mm) |
| F. Maximum Dig Height | 112.7 in (2863 mm) |
| G. Maximum Dump Height | 80.1 in (2035 mm) |
| H. Maximum Reach | 121 in (3074 mm) |
| Maximum Reach at Ground Level | 119 in (3023 mm) |
| K. Tail Swing Radius | 29 in (736 mm) |
| N. Maximum Dozer lift height | 8 in (197 mm) |
| O. Maximum Dozer Dig Depth | 7 in (174 mm) |
| P. Length of Undercarriage | 48 in (1220 mm) |
| Q. Boom Swing Angle (Right) | 56° |
| R. Boom Swing Angle (Left) | 55° |
| S. Minimum Front Linkage Swing Radius | 45.3 in (1150 mm) |
| T. Track Width | 7 in (180 mm) |
Engine Details
| Number of Cylinders | 3 |
| Engine Make | Yanmar |
| Engine Model | Yanmar 3TNV70 (31NV70) |
| Displacement | 52 cu in (0.854 L) |
| Bore | 2.76 in (70 mm) |
| Stroke | 2.91 in (74 mm) |
| Max Power | 18 hp (13.7 kw) |
| Max Power Measured @ | 2800 rpm |
| Net Power | 13 hp (9.6 kw) |
| Net Power Measured @ | 2100 rpm |
| Peak Torque | 36.9 lb ft (50 Nm) |
| Torque Measured @ | 2600 rpm |
| Combustion | Indirect injection (IDI) |
| Specific Fuel Consumption @ 2100 rpm | 250 g/kWh (3.53 L/h) |
| Aspiration | Naturally aspirated |
| Emission Standards | U.S. EPA Tier 4 Final / EU Stage V |

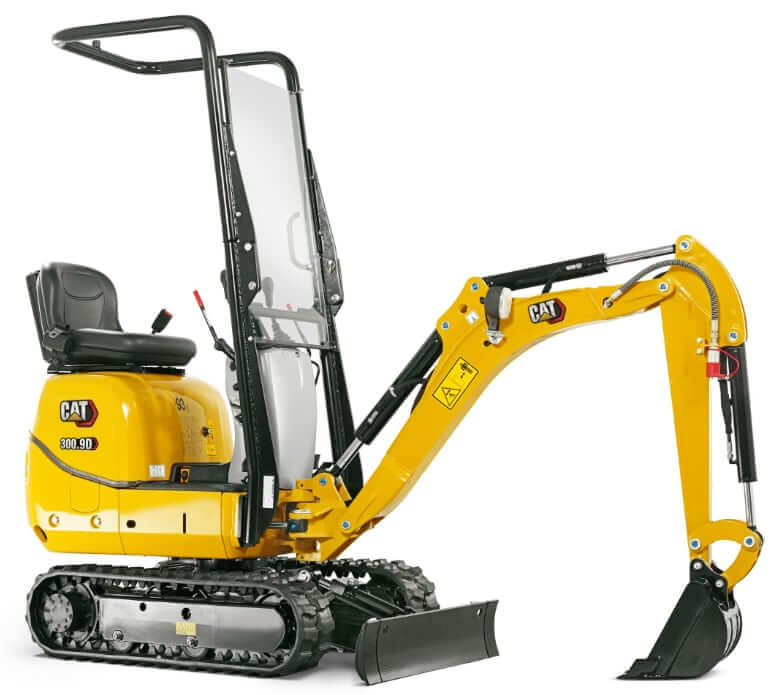

Operating Specs
| Max Digging Depth | 68.1 in (1731 mm) |
| Operating Weight | 2170 lb (985 kg) |
| Operating Voltage | 12 V |
| Alternator | 20 amps |
| Battery | 12 V, CCA 270, 30 Ah, DIN C11 |
| ROPS | Foldable Safety Frame |
| Sound Power Level | 93 dB(A) LWA to 2000/14/EG |
| Controls | Smooth, precise operation is possible from easy to use controls allowing all skill levels to be productive with little practice |
Swing System
| Machine Swing Speed | 8 rpm |
| Boom Swing Angle (Right) | 50° |
| Boom Swing Angle (Left) | 55° |
| Tail Swing Radius | 29 in (736 mm) |

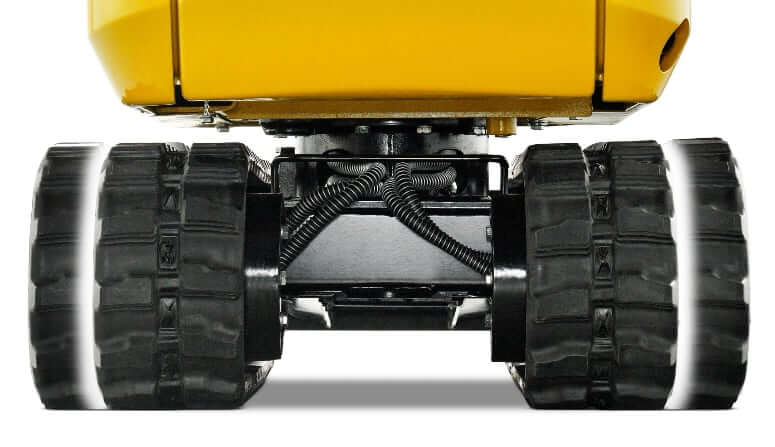

Undercarriage
| Number of Track Rollers | 2 |
| Track Shoe Width | 7 in (180 mm) |
| Ground Pressure | 3.5 psi (24.1 kPa) |
| Undercarriage Width (Retracted) | 28 in (711 mm) |
| Undercarriage Width (Extended) | 34 in (864 mm) |
Dozer Blade
| Blade Width | 27.6 in (700 mm) |
| Blade Height | 7.87 in (200 mm) |
| Blade Lift Height | 7.76 in (197 mm) |
| Blade Dig Depth | 6.85 in (174 mm) |

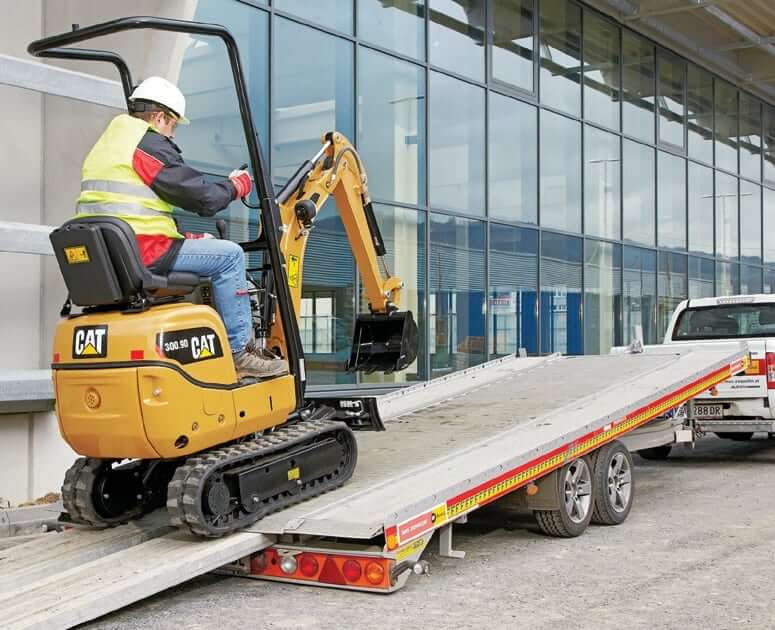

Travel System
| Type | Hydrostatic |
| Max Travel Speed | 1.12 mph (1.8 km/h) |
| Machine Overhang | 12.5 in (318 mm) |
| Gradeability (maximum) | 30° (58%) |
Hydraulic System
| Pump Type | 2 gear pumps |
| Auxiliary Hydraulics | Auxiliary hydraulic circuit, with one-way (hammer) lines to stick |
| Pump Flow | 3 + 3 gal/min (11.4 + 11.4 L/min) |
| Operating Pressure – Equipment | 2466 psi (17000 kPa) |
| Operating Pressure – Travel | 2466 psi (17000 kPa) |
| Operating Pressure – Swing | 1015 psi (7000 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 2.64 gal (10 L) |
| Engine Oil Capacity | 0.74 gal (2.8 L) |
| Cooling System Capacity | 0.77 gal (2.9 L) |
| Hydraulic System Capacity | 3.7 gal (14 L) |

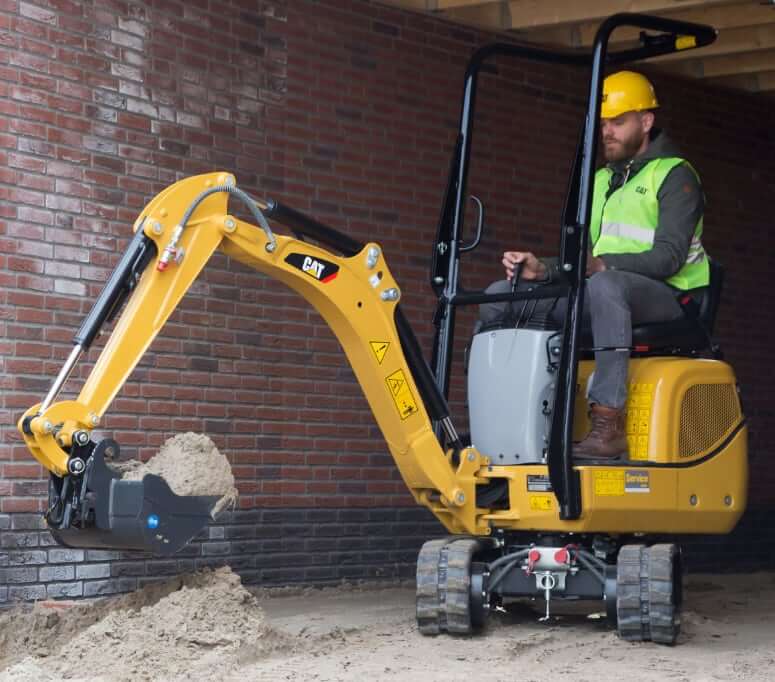

CAT 300.9D Lift Capacities
CAT 300.9D lift capacities at ground level with maximum configuration.
| Distance from Machine Center of Rotation | ||||
|---|---|---|---|---|
| Blade Down | 79 in (2.0 m) | 98 in (2.5 m) | 79 in (2.0 m) | 98 in (2.5 m) |
| Load Stop Height from Ground Level | lengthways | crossways | ||
| 1.0 m (39 in) | 478 lb (217 kg) | 407 lb (185 kg) | 366 lb (166 kg) | 255 lb (116 kg) |
| 0.5 m (20 in) | 544 lb (247 kg) | 407 lb (184 kg) | 347 lb (158 kg) | 248 lb (113 kg) |
The data is without the excavation tools and is ISO 10567 compliant. Lengthways data with dozer blade support. Neither 75% of the static tipping load, nor 87% of the hydraulic lift forces, are extended.
CAT 300.9D Attachments
- Bucket 250 mm (10 in);
- Bucket 350 mm (15 in);
- Ditch Cleaning Bucket 700 mm (28 in);
- Hydraulic Hammer, B1 Pin On (573-4711 PO | 1A).
A range of work tools is available to take advantage of the machines versatility. All tools are matched to the compact excavator to optimize performance and deliver excellent value through high productivity and long life.
