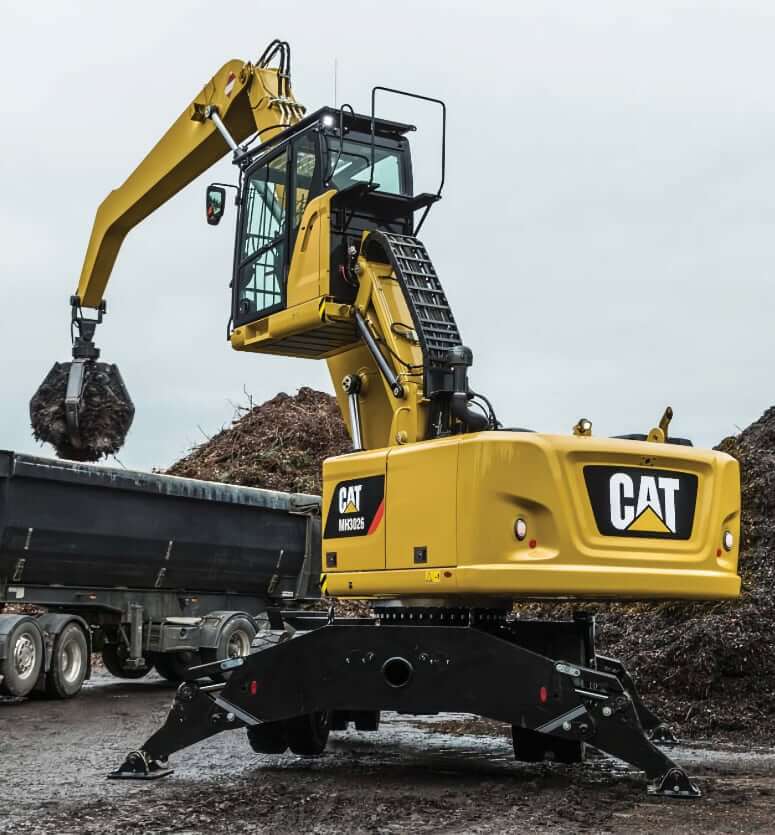

Dimensions
| Shipping Height with FOG |
132.9 in (3375 mm) |
| Shipping Length (Variable Adjustable Boom, Straight Stick) |
376.2 in (9555 mm) |
| Wheelbase |
108.3 in (2750 mm) |
| Overall Machine Width (with Outriggers on Ground) |
154.7 in (3930 mm) |
| Overall Machine Width (over Tires with Outriggers Up) |
108.3 in (2750 mm) |
| Overall Machine Width (with Blade) |
108.3 in (2750 mm) |
| Counterweight Clearance |
51.6 in (1310 mm) |
| Ground Clearance |
12.8 in (325 mm) |

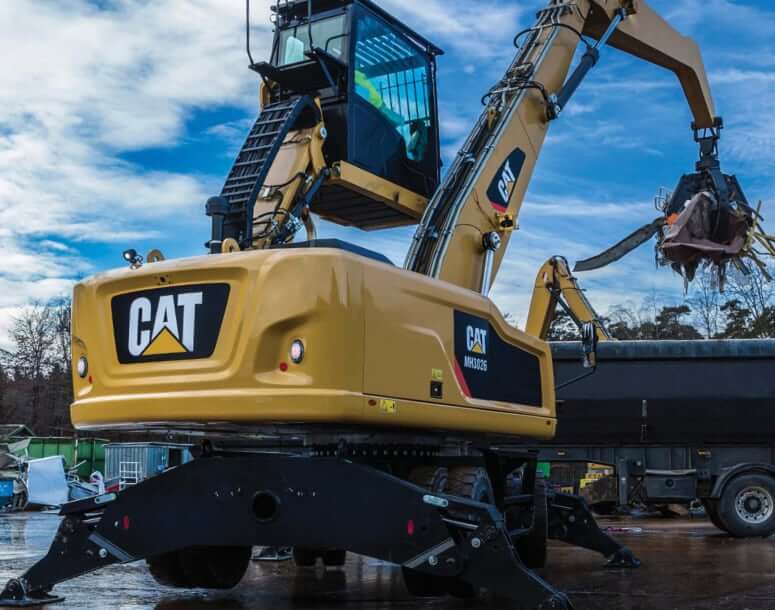

Working Ranges
| Stick Length |
15’9″ (4.8 m) |
16’1″ (4.9 m) |
18’1″ (5.5 m) |
19’4″ (5.9 m) |
| Maximum Height |
40.8 ft in (12.5 m) |
41 ft in (12.5 m) |
41.4 ft in (12.6 m) |
43.7 ft in (13.4 m) |
| Maximum Reach |
37.5 ft in (11.5 m) |
37.9 ft in (11.6 m) |
39.1 ft in (12 m) |
41 ft in (12.5 m) |
| Maximum Depth |
6 ft in (1.9 m) |
6.3 ft in (2 m) |
8.3 ft in (2.6 m) |
9.6 ft in (3 m) |
MH Boom 22’4″ (6800 mm) without Work Tool
Swing Mechanism
| Swing Speed |
9 rpm |
| Maximum Swing Torque |
43516 lb ft (59000 Nm) |
| Tail Swing Radius |
111.2 in (2825 mm) |
Engine Details
| Number of Cylinders |
6 |
| Engine Make |
Caterpillar |
| Engine Model |
Cat C7.1 ACERT |
| Displacement |
427.8 cu in (7.01 L) |
| Bore |
4.1 in (105 mm) |
| Stroke |
5.3 in (135 mm) |
| Gross Power |
176 hp (129.4 kw) |
| Net Power |
169 hp (126 kw) |
| Power Measured @ |
1700 rpm |
| Peak Torque |
612 lb ft (830 Nm) |
| Torque Measured @ |
1400 rpm |
| Emission Standards |
US EPA Tier 4 Final + EU Stage IV |
Operating Specs
| Operating Voltage |
24 V |
| Alternator |
115 amps |
| Battery |
2x 12 V, 145 Ah, CCA 1125, 4D BCI |
| Working Lights |
Boom and stick LED working ligh + 1 LED light on the counterweight for the rear camera, and one on the right for the sideview camera + Cab LED interior dome light + Roading lights 2 front, halogen + Roading lights 2 rear, LED + Working LED lights, cab mounted (2 front and 1 rear), compatible with Falling Objects Guards) |
| Push Blade Type |
Radial |
| Push Blade Height |
36.2 in (920 mm) |
| Push Blade Width |
108.3 in (2750 mm) / 117.7 in (2990 mm) |
| Operator Sound Level (ISO 6396:2008) |
71 dB(A) |
| Spectator Sound Level (ISO 6395:2008) |
99 dB(A) |

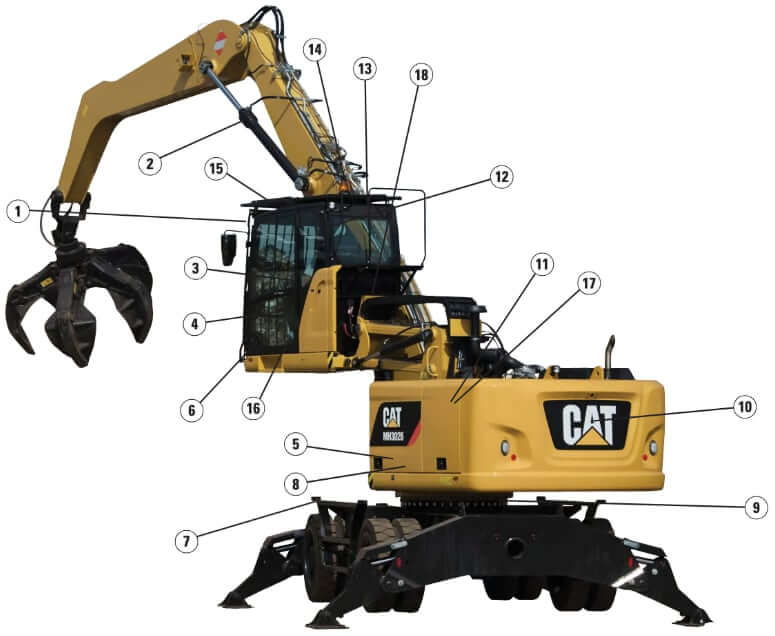

CAT MH3026 Material Handler Safety Options: 1. Laminated windshield and skylight window; 2. Lowering check valves; 3. Safety seat belt indicator; 4. Safety lever; 5. Emergency shut-off switch; 6. Automatic brake and axle lock; 7. Punched, anti-slippery walking surfaces; 8. Battery disconnect switch; 9. Swing and implement electronic lock; 10. Adjustable travel alarm; 11. All doors equipped with gas strut cylinders; 12. Emergency hammer and exit; 13. Sound proofi ng; 14. Beacon available; 15. TOPS cab and top/front guards compatibility; 16. Safety lever to lower the cab, either from the ground or directly from the cab. 17. Foldable service platform; 18. Advanced Cab Filtration System (optional).
Transmission
| Type |
Two-speed hydrostatic transmission |
| Maximum Travel Speed, 1st Gear |
5 mph (8 km/h) |
| Maximum Travel Speed, 2nd Gear |
15.5 mph (25 km/h) |
| Creeper Travel Speed, 1st Gear |
1.9 mph (3 km/h) |
| Creeper Travel Speed, 1st Gear |
5 mph (8 km/h) |
| Maximum Gradeability at 55120 lb (25000 kg) |
60% |
| Drawbar Pull |
28101 lbf (125 kN) |
| Axle Oscillation Angle |
±5° |
| Maximum Steering Angle |
35° |
| Service Brakes |
Automatic disc brake and axle lock |
| Tire Size |
11.00-20 (dual pneumatic) or 10.00-20 (dual solid rubber) |
Weights
| Min Operating Weight |
55601 lb (25220 kg) |
| Max Operating Weight |
57651 lb (26150 kg) |
| Drop Nose (5900 mm/19’4″) |
2459 lb (1115 kg) |
| CAT MH3026 with MH Boom 22’4″ (6800 mm) – MH 9’8″ (2990 mm) Undercarriage + Straight Stick |
57651 lb (26150 kg) |
| With MH Boom 22’4″ (6800 mm) – MH 9’8″ (2990 mm) Undercarriage + 19’4″ (5900 mm) Drop Nose Stick |
56813 lb (25770 kg) |
| With MH Boom 22’4″ (6800 mm) – MH 9’0″ (2750 mm) Undercarriage + Straight Stick |
55601 lb (25220 kg) |
| Key Components – MH Blade |
1643 lb (745 kg) |
| Key Components – Straight 15’9″ (4800 mm) |
3131 lb (1420 kg) |
| Key Components – Drop Nose 16’1″ (4900 mm) |
2106 lb (955 kg) |
| Key Components – Drop Nose 18’1″ (5500 mm) |
2370 lb (1075 kg) |
Operating weight is with solid tires, 11465 lb (5200 kg) counterweight, MH undercarriage, fuel tank, operator and work tool, 3086 lb (1400 kg). Weight varies depending on configuration.
Hydraulic System
| Type |
The advanced electro-hydraulic system |
| Implement Circuit Pressure, Normal Mode |
5076 psi (35000 kPa) |
| Implement Circuit Pressure, Heavy Lift Mode |
5366 psi (37000 kPa) |
| Travel Circuit Pressure |
5076 psi (35000 kPa) |
| Auxiliary (High Pressure) Circuit Pressure |
5076 psi (35000 kPa) |
| Auxiliary (Medium Pressure) Circuit Pressure |
3046 psi (21000 kPa) |
| Swing Mechanism Pressure |
4931 psi (34000 kPa) |
| Implement/Travel Circuit Pump Flow |
89.8 gal/min (340 L/min) |
| Auxiliary Circuit (High Pressure) Pump Flow |
66 gal/min (250 L/min) |
| Auxiliary Circuit (Medium Pressure) Pump Flow |
12.9 gal/min (49 L/min) |
| Swing Mechanism Pump Flow |
31.2 gal/min (118 L/min) |

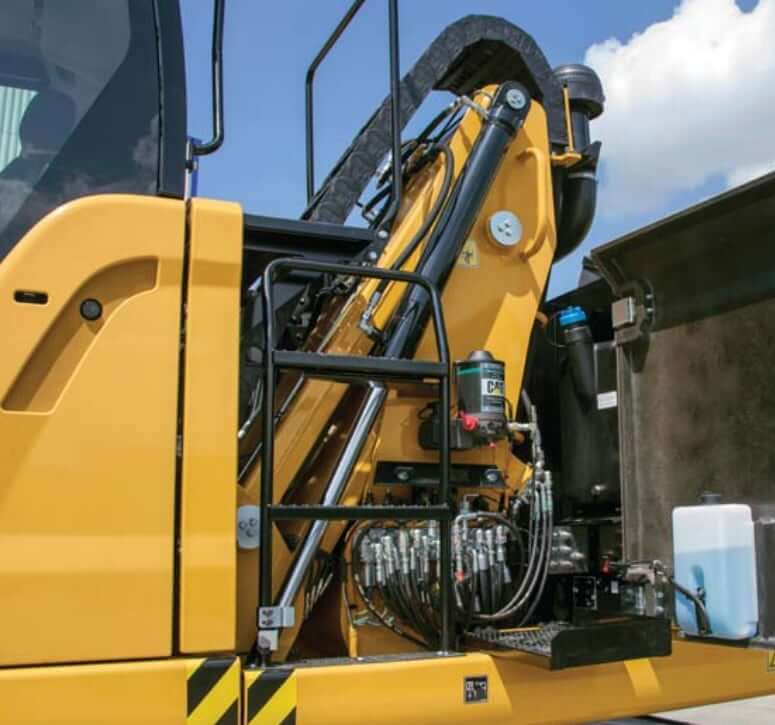

Service Refill Capabilities
| Fuel Tank Capacity |
111 gal (420 L) |
| DEF Tank Capacity |
9.1 gal (34.5 L) |
| Engine Oil Capacity |
4.9 gal (18.5 L) |
| Cooling System Capacity |
12.3 gal (46.9 L) |
| Hydraulic Tank Capacity |
52.8 gal (200 L) |
| Hydraulic System Capacity |
96.4 gal (365 L) |
| Powershift Transmission Capacity |
0.7 gal (2.5 L) |
| Final Drive Oil Capacity |
0.7 gal (2.5 L) |
| Rear Axle Housing (differential) |
3.7 gal (14 L) |
| Front Steering Axle (differential) |
2.8 gal (10.5 L) |
