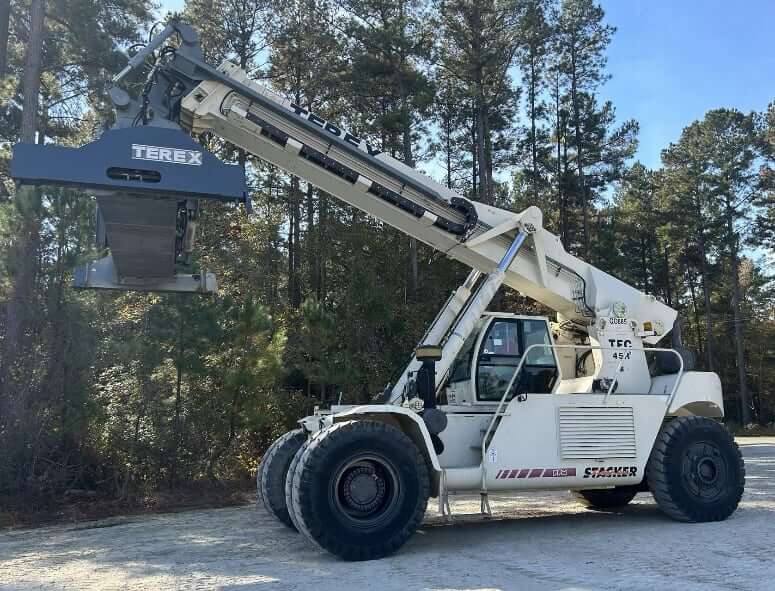

Telescopic Boom
| Time / Speed | H version | HC version |
|---|---|---|
| Telescoping-out – No load | 23 sec – 12.2 in/sec (0,31 m/s) |
18 sec – 15.7 in/sec (0,40 m/s) |
| Telescoping-out – 30t Load | 23 sec – 12.2 in/sec (0,31 m/s) |
18 sec – 15.7 in/sec (0,40 m/s) |
| Telescoping-in – No Load | 16 sec – 17.7 in/sec (0,45 m/s) |
16 sec – 17.7 in/sec (0,45 m/s) |
| Telescoping-in – 30t Load | 17 sec – 16.5 in/sec (0,42 m/s) |
17 sec – 16.5 in/sec (0,42 m/s) |
Time to Stack a Container
| Time / Speed | H version | HC version |
|---|---|---|
| Hoisting up 0° to 60° – No load | 23 sec | 16 sec |
| Hoisting up 0° to 60° – 30t Load | 23 sec | 18 sec |
| Time to stack a container from 1st to 5th height – No load |
45 sec – 18.4 in/sec (0,34 m/s) |
35 sec – 15.7 in/sec (0,40 m/s) |
| Time to stack a container from 1st to 5th height – 30t Load |
60 sec – 9.8 in/sec (0,25 m/s) |
45 sec – 10.2 in/sec (0,26 m/s) |
| Time to unstack a container from 5th to 1st height – No load |
28 sec – 21.6 in/sec (0,55 m/s) |
28 sec – 21.6 in/sec (0,55 m/s) |
| Time to unstack a container from 5th to 1st height – 30t Load |
27 sec – 19.7 in/sec (0,50 m/s) |
27 sec – 19.7 in/sec (0,50 m/s) |
Operating Specs
| Engine Model | Cummins QSM11 | Scania DC9 |
|---|---|---|
| Towing Ability | 63714 lb (28900 kg) | 67461 lb (30600 kg) |
| Speed FWD/REW (w/o load) | 15.5 mph (25 km/h) | 15.5 mph (25 km/h) |
| Speed FWD/REW (w/ 45t load) | 15.5 mph (25 km/h) | 15.5 mph (25 km/h) |
| Max Gradeability (w/o load) | 40.0% | 42.7% |
| Max Gradeability (w/ 45 metric ton load) | 24.5% | 26.2% |

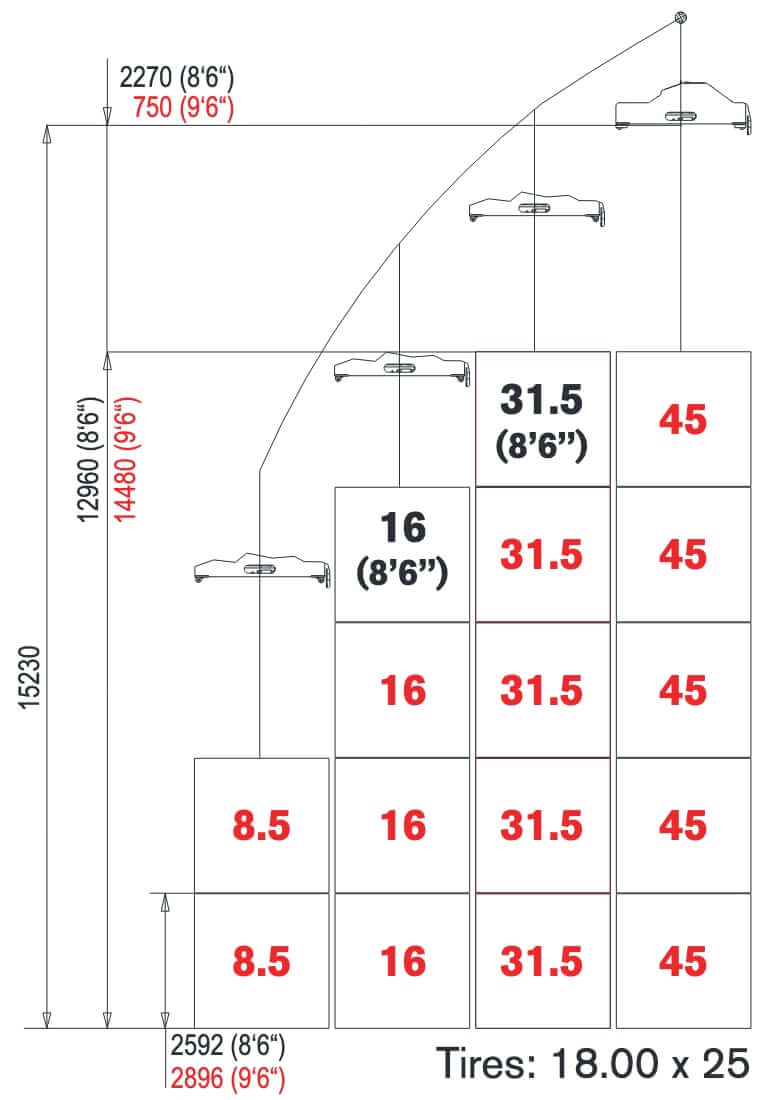

Weight w/ Top-Pick Spreader
| TFC45R | No load (boom:25°) | 30t (boom:45°) | 45t (boom:45°) |
|---|---|---|---|
| Front Axle | 78925 lb (35800 kg) | 150796 lb (68400 kg) | 190700 lb (86500 kg) |
| Rear Axle | 78925 lb (35800 kg) | 73193 lb (33200 kg) | 66359 lb (30100 kg) |
| Total | 157851 lb (71600 kg) | 223989 lb (101600 kg) | 257059 lb (116600 kg) |

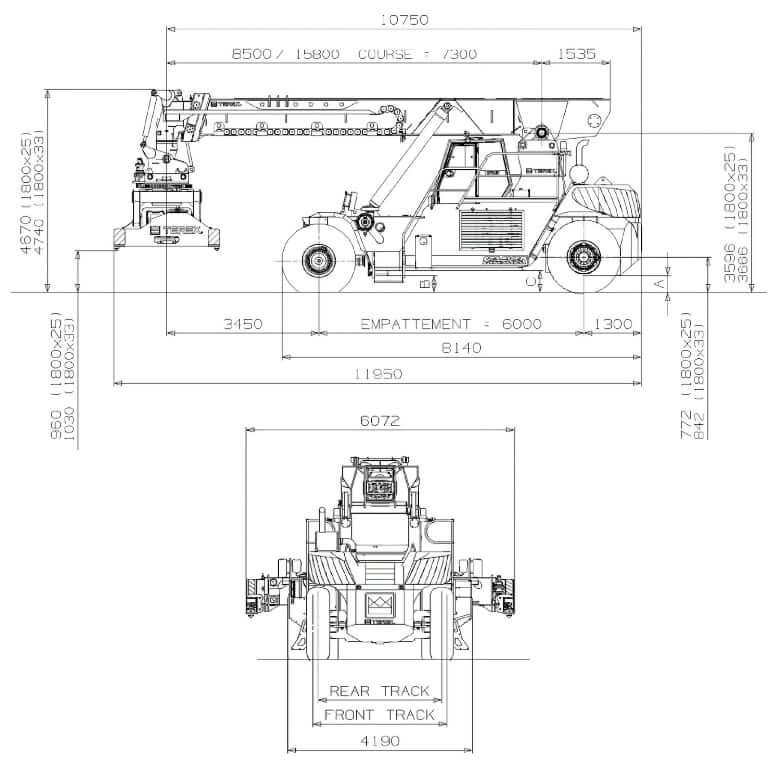

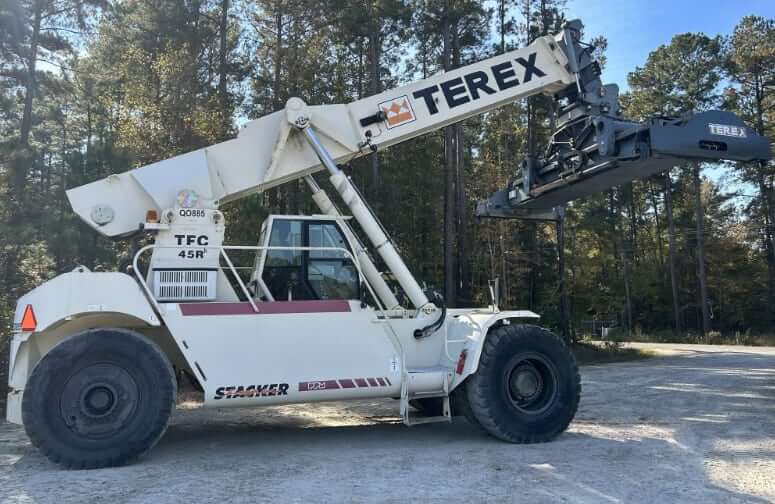

Dimensions
| Overall Length | 470.5 in (11950 mm) |
| Length w/o Spreader | 423.2 in (10750 mm) |
| Boom Length (Retracted w/o Spreader) | 395.1 in (10035 mm) |
| Boom Length (Telescoped w/o Spreader) | 682.5 in (17335 mm) |
| Chassis Length | 320.5 in (8140 mm) |
| Wheelbase | 236.2 in (6000 mm) |
| Rear Overhang | 51.2 in (1300 mm) |
| Overall Width (w Spreader) | 239 in (6072 mm) |
| Overall Width (w/o Spreader) 18.00×33 18.00×25 |
164.9 in (4190 mm) 164.9 in (4190 mm) |
| Front Track Gauge 18.00×33 18.00×25 |
119.4 in (3033 mm) 119.4 in (3033 mm) |
| Rear Track Gauge 18.00×33 18.00×25 |
109 in (2770 mm) 109 in (2770 mm) |
| Overall Height 18.00×33 18.00×25 |
186.6 in (4740 mm) 183.9 in (4670 mm) |
Ground Clearance
| Tire Size | 18.00 x 25 | 18.00 x 33 | 21.00 x 25 |
|---|---|---|---|
| Front Axle | 16.5 in (420 mm) | 19.3 in (490 mm) | 16.5 in (420 mm) |
| Rear Axle | 12.6 in (320 mm) | 15.4 in (390 mm) | 12.6 in (320 mm) |
| Base / Cab | 19.7 in (500 mm) | 22.4 in (570 mm) | 19.7 in (500 mm) |

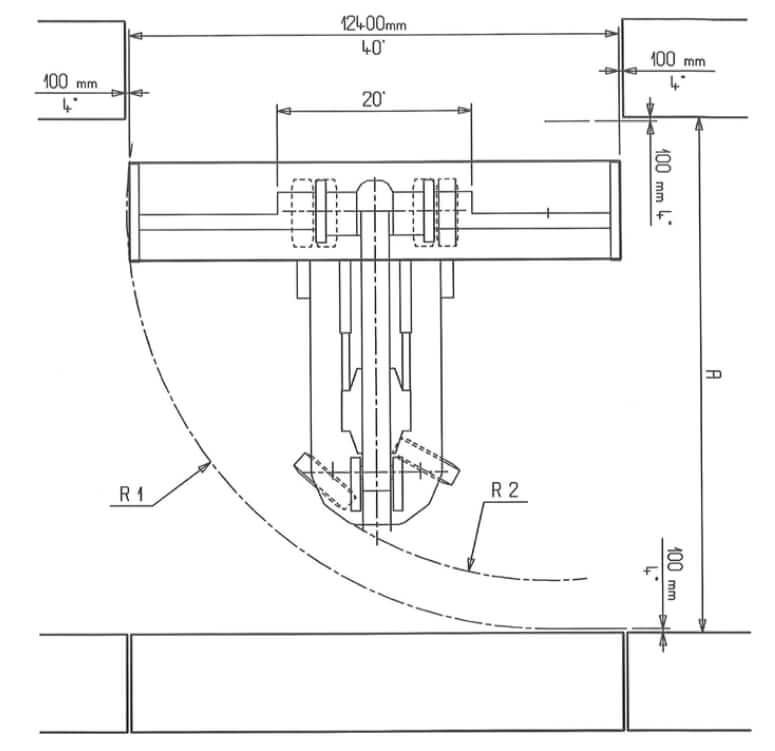

Working Radius
| TFC45R Radius | 40′ container | 20′ container |
|---|---|---|
| A | 505.1 in (12830 mm) | 402 in (10210 mm) |
| R1 | 410.2 in (10420 mm) | 291.3 in (7400 mm) |
| R2 | 342.5 in (8700 mm) | 342.5 in (8700 mm) |
Engine Details
| Engine Model | Cummins QSM11 | Scania DC9 |
|---|---|---|
| Number of Cylinders | 6 | 5 |
| Displ. | 661 cu in (10.8 L) | 567 cu in (9.3 L) |
| Bore | 4.9 in (125 mm) | 5.1 in (130 mm) |
| Stroke | 5.8 in (147 mm) | 5.5 in (140 mm) |
| Engine Power | 320 hp (239 kw) | 350 hp (257 kw) |
| Power Measured @ | 1800 rpm | 1500-2100 rpm |
| Peak Torque | 1090 lb ft (1478 Nm) | 1320 lb ft (1790 Nm) |
| Torque Measured @ | 1400 rpm | 1200 rpm |
| Aspiration | Turbocharged and aftercooled | Turbocharged and aftercooled |
| Emission Standards | EPA Tier 3, EU Stage IIIA | EPA Tier 4i, EU Stage IIIB |
Electrical System
| Operating Voltage | 24 V |
| Alternator | 70 amps |
| Starter | 24 V, 6 kW |
| Battery | 2x 12 V, 200 Ah |
Axles & Brakes
| Front Axle | Double reduction drive axle |
| Front Axle Reduction | 25,40 or 22,6 |
| Rear Axle | Heavy duty oscillationg axle |
| Service Brakes | Wet disc brakes on front axle by independant hydraulic circuit |
| Brake Control | Hydraulic |
| Parking Brake | Spring release disc on the front axle |
| Steering | Hydrostatic rear steering with double acting cylinder |
| Tire Sizes | Tubeless 18.00 x 25 or 18.00 x 33 or 21.00 x 25 |
| Tire Pressure | 10 bars (10 kg/cm2) / 7,5 bars (75 kg/cm2) for 21.00 x 25 |
Transmission
| Transmission Type | Powershift transmission Dana (Clark) TE 27 418 Control / APC 200 |
| Clutch Type | Torque converter (R = 2.292) |
| Number of Gears | 4F x 4R |
| Gears Ration (FWD and REV) | 5.07 / 2.42/ 1.38 / 0.78 |
| Max Speed FWD/REW | 15.5 mph (25 km/h) |
Hydraulic System
| Type | Power regulated Load Sensing hydraulic system |
| Main Pump | 2 section variable displacement – piston pump 8.85 cu in 145 (cc) + 4.58 cu in (75 cc) |
| Pump Flow | 121.5 gpm (460 L/min) |
| Maximum Pressure | 5076 psi (35000 kPa) |
| Controls | One hydraulic joystick. Boom hoist and telescoping. Spreader rotation – Side shift |
| Auxiliary: Engine / Transmission Coolel | Variable displacement pump 1.7 cu in (28 cc) – 15.3 gpm (58 L/min) |
| Auxiliary: Hydraulic cooler and filtration | Gear pump 2.4 cu in (40 cc) – 21.7 gpm (82 L/min) |
| Auxiliary: Braking axle oil cooler | Gear pump 0.73 cu in (12 cc) – 6.6 gpm (25 L/min) |
| Auxiliary: Joystick control | Gear pump 0.48 cu in (8 cc) – 4.2 gpm (16 L/min) |
Operator Environment
| Cab Type | Wide cab in standard |
| Cab Wide (inside dimensions) | 68.1 in (1730 mm) |
| Cab Deep (inside dimensions) | 53.9 in (1370 mm) |
| Cab Hight (inside dimensions) | 58.5 in (1485 mm) |
| Sound Level (inside cab, closed doors) | 70 dB(A) |
| Anti Tipping Device | Automatic cut-off system in case of overload |
| Load Moment Indicator | In option with “h” version, in standrad with “hc” version |
| Auto Diagnosis | Engine, Transmission, (+ Hydraulics on “hc” version) |
| HVAC | Air conditionning |
Service Refill Capacities
| Fuel Tank Capacity | 184.9 gal (700 L) |
| DEF / AdBlue Tank (Scania DC9) | 10 gal (38 L) |
| Engine Oil Capacity | 9.2 gal (35 L) |
| Cooling System Capacity | 18.5 gal (70 L) |
| Hydraulic System Capacity | 198.1 gal (750 L) |
| Transmission Oil Capacity | 18.5 gal (70 L) |
| Drive Axle Capacity | 24.8 gal (94 L) |
