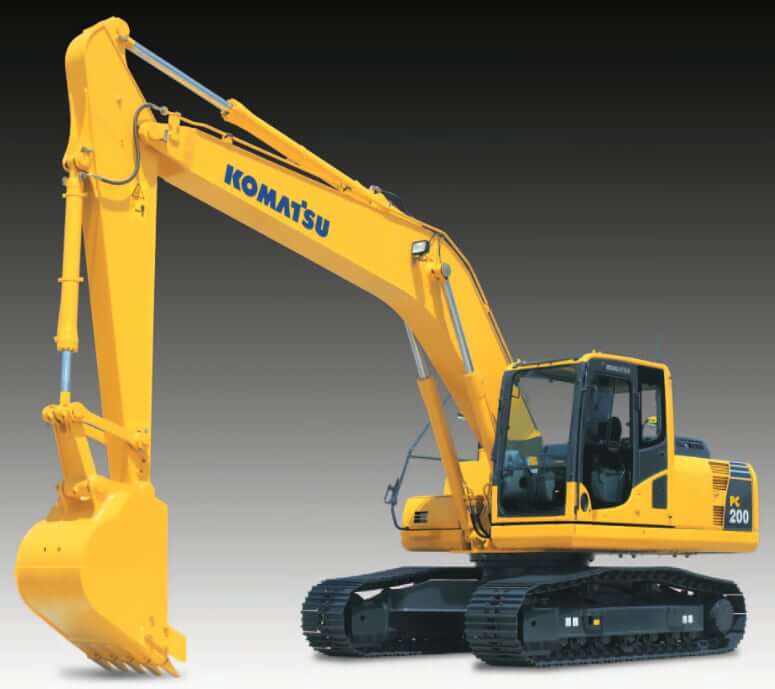

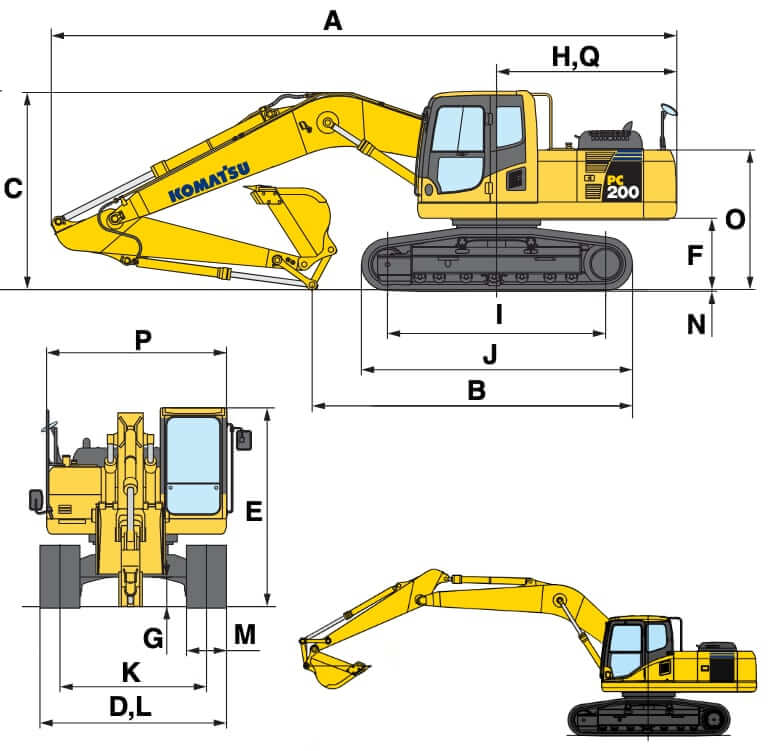

Dimensions
| PC200-8 Arm | 7’11” (2.4 m) | 9’7″ (2.9 m) |
|---|---|---|
| A. Overall length | 31’2″ (9495 mm) | 30’11” (9425 mm) |
| B. Length on ground (transport) | 18’8″ (5700 mm) | 15’10” (4815 mm) |
| C. Overall height (to top of boom) | 10’6″ (3190 mm) | 9’9″ (2970 mm) |
| D. Overall width | 9’10” (3000 mm) | 9’10” (3000 mm) |
| E. Overall height (to top of cab) | 10’0″ (3040 mm) | 10’0″ (3040 mm) |
| F. Ground clearance, counterweight | 3’7″ (1085 mm) | 3’7″ (1085 mm) |
| G. Ground clearance (minimum) | 1’5″ (440 mm) | 1’5″ (440 mm) |
| H. Tail swing radius | 9’0″ (2750 mm) | 9’0″ (2750 mm) |
| I. Track length on ground | 10’9″ (3275 mm) | 10’9″ (3275 mm) |
| J. Track length | 13’4″ (4070 mm) | 13’4″ (4070 mm) |
| K. Track gauge | 7’3″ (2200 mm) | 7’3″ (2200 mm) |
| L. Width of crawler | 9’10” (3000 mm) | 9’10” (3000 mm) |
| M. Shoe width | 31.5″ (800 mm) | 31.5″ (800 mm) |
| N. Grouser height | 1.0″ (25 mm) | 1.0″ (25 mm) |
| O. Machine cab height | 6’10” (2095 mm) | 6’10” (2095 mm) |
| P. Machine cab width | 8’11” (2710 mm) | 8’11” (2710 mm) |
| Q. Distance, swing center to rear end | 8’11” (2710 mm) | 8’11” (2710 mm) |
Weights
| Shoe Size | Operating Weight | Ground Pressure |
|---|---|---|
| 500 mm, Triple Grouser Shoes | 43652 lb (19800 kg) | 7.96 psi (54.9 kPa) |
| 600 mm, Triple Grouser Shoes | 43872 lb (19900 kg) | 6.69 psi (46.1 kPa) |
| 700 mm, Triple Grouser Shoes | 44533 lb (20200 kg) | 5.83 psi (40.2 kPa) |
| 800 mm, Triple Grouser Shoes | 45195 lb (20500 kg) | 5.12 psi (35.3 kPa) |

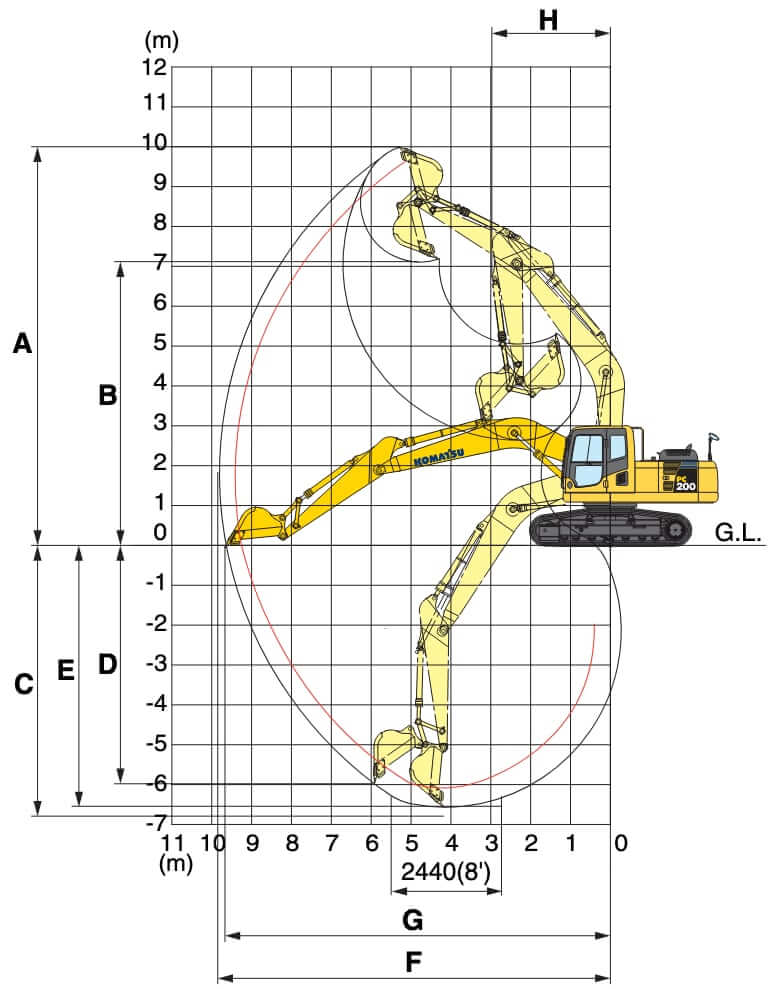

Working Range
| Arm Length | 7’11” (2.4 m) | 9’7″ (2.9 m) |
|---|---|---|
| A. Max Digging Height | 32’2″ (9800 mm) | 32’10” (10000 mm) |
| B. Max Dumping Height | 22’7″ (6890 mm) | 23’4″ (7110 mm) |
| C. Max Digging Depth | 20’0″ (6095 mm) | 21’9″ (6620 mm) |
| D. Max Vertical Wall Digging Depth | 17’10” (5430 mm) | 19’7″ (5980 mm) |
| E. Max Digging Depth of Cut for 8′ Level | 19’0″ (5780 mm) | 20’11” (6370 mm) |
| F. Max Digging Reach | 30’9″ (9380 mm) | 32’5″ (9875 mm) |
| G. Max Digging Reach at Ground Level | 30’2″ (9190 mm) | 31’10” (9700 mm) |
| H. Min Swing Radius | 10’2″ (3090 mm) | 10’0″ (3040 mm) |
Buckets for PC200-8
| Bucket Capacity | Width | Weight |
|---|---|---|
| 0.66 yd3 (0.5 m3) | 24″ (610 mm) | 1187 lb (538 kg) |
| 0.88 yd3 (0.67 m3) | 30″ (762 mm) | 1457 lb (661 kg) |
| 1.11 yd3 (0.85 m3) | 36″ (914 mm) | 1659 lb (753 kg) |
| 1.34 yd3 (1.02 m3) | 42″ (1067 mm) | 1812 lb (822 kg) |
| 1.57 yd3 (1.20 m3) | 48″ (1219 mm) | 2030 lb (921 kg) |
Swing Mechanism
| Drive Method | Hydrostatic |
| Swing Reduction | Planetary gear |
| Swing Circle Lubrication | Grease-bathed |
| Swing Service Brake | Hydraulic lock |
| Holding Brake/Swing Lock | Mechanical disc brake |
| Swing Torque | 49907 lb ft (67665 Nm) |
| Swing Speed | 12.4 rpm |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | Komatsu |
| Engine Model | Komatsu SAA6D107E-1 |
| Gross Power | 155 hp (116 kw) |
| Net Power | 148 hp (110 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 408 cu in (6.69 L) |
| Bore | 4.21 in (107 mm) |
| Stroke | 4.88 in (124 mm) |
| Air Filter | Double element type with monitor panel dust indicator |
| Engine Cooling | Suction type cooling fan |
| Aspiration | Turbocharged and aftercooled |
| Emission Standards | US EPA Tier 3 / EU Stage IIIA |
Drive
| Steering Control | Two levers with pedals |
| Drive Method | Hydrostatic (Auto-Shift) |
| Maximum Drawbar Pull | 40120 lbf (178 kN) |
| Gradeability | 70%, 35° |
| Max Travel Speed (High) | 3.4 mph (5.5 km/h) |
| Max Travel Speed (Mid) | 2.5 mph (4.1 km/h) |
| Max Travel Speed (Low) | 1.9 mph (3.0 km/h) |
| Service Brake | Hydraulic lock |
| Parking Brake | Mechanical disc brake |

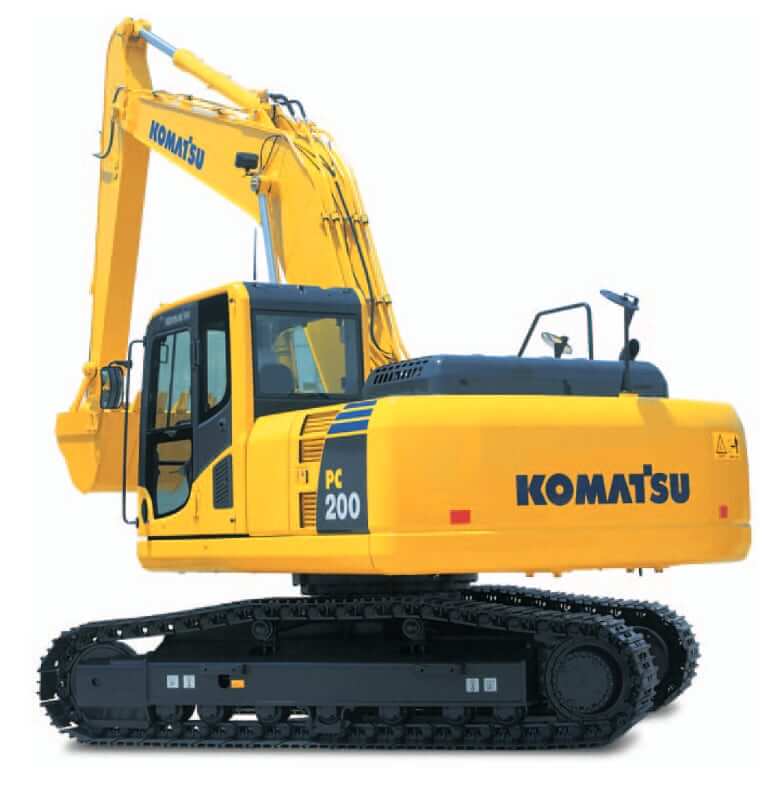

Undercarriage
| Center frame | X-frame |
| Track frame | Box-section |
| Seal of track | Sealed track |
| Track adjuster | Hydraulic |
| Number of Shoes per Side | 45 |
| Number of Carrier Rollers per Side | 2 |
| Number of Track Rollers per Side | 7 |
| Shoe Size (Standard) | 28 in (600 mm) |
| Shoe Size (Optional) | 20 in (500 mm) / 28 in (700 mm) / 31.5 in (800 mm) |
| Track Gauge | 86.6 in (2200 mm) |
Operational Specs
| Operating Weight | 43872 lb (19900 kg) |
| Max Operating Weight | 45195 lb (20500 kg) |
| Max Travel Speed | 3.4 mph (5.5 km/h) |
| Operating Voltage | 24 V |
| Alternator | 60 amps |
| Battery | 2x 12 V, 110 Ah |
| Working Lights | Boom working light + RH working light. Optional: 2 on cab + 1 on counterweight |
Hydraulics
| Type | Komatsu HydrauMind closed-center hydraulic system with load sensing valves and pressure compensated valves |
| Main Pump | Variable displacement piston type |
| Main Pump Flow | 116 gal/min (439 L/min) |
| Hydraulic System Relief Valve Pressure | 5400 psi (37300 kPa) |
| Travel Hydraulic Motors | 2x axial piston motor with parking brake |
| Swing Hydraulic Motors | 1x axial piston motor with swing holding brake |

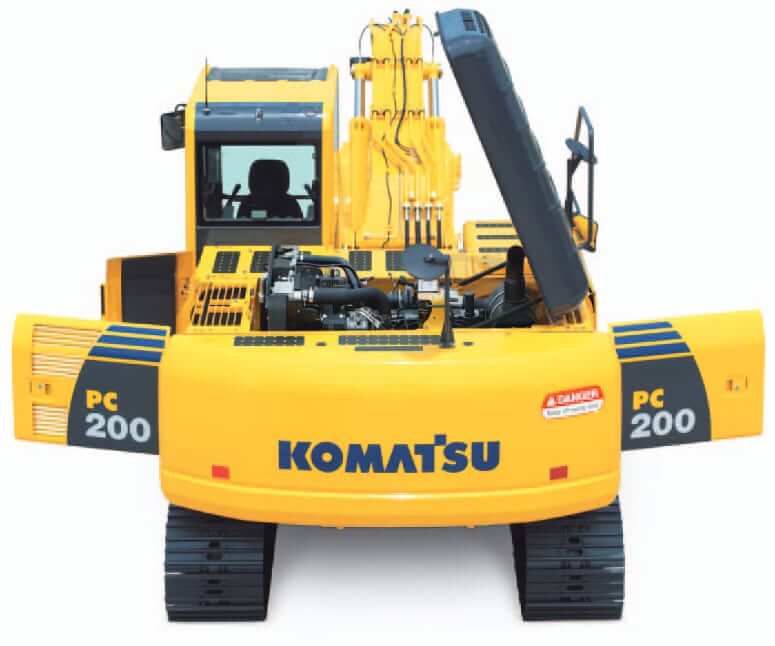

Service Refill Capacities
| Fuel Tank Capacity | 105.7 gal (400 L) |
| Cooling System Fluid Capacity | 5.4 gal (20.4 L) |
| Engine Oil Capacity | 6.1 gal (23.1 L) |
| Hydraulic Tank Capacity | 35.7 gal (135 L) |
| Swing Drive Fluid Capacity | 1.7 gal (6.5 L) |
| Final Drive Oil Capacity (each side) | 0.95 gal (3.6 L) |
Operator Environment
| Noise Level in Cab | 72 dB(A) |
| Noise Level outside Cab | 103 dB(A) |
| ROPS | ISO 12117-2 |
| OPG | ISO OPG top guard level 1 |
| HVAC | Automatic Air Conditioner (optional) |
| Display | Large multi-lingual high resolution LCD monitor |

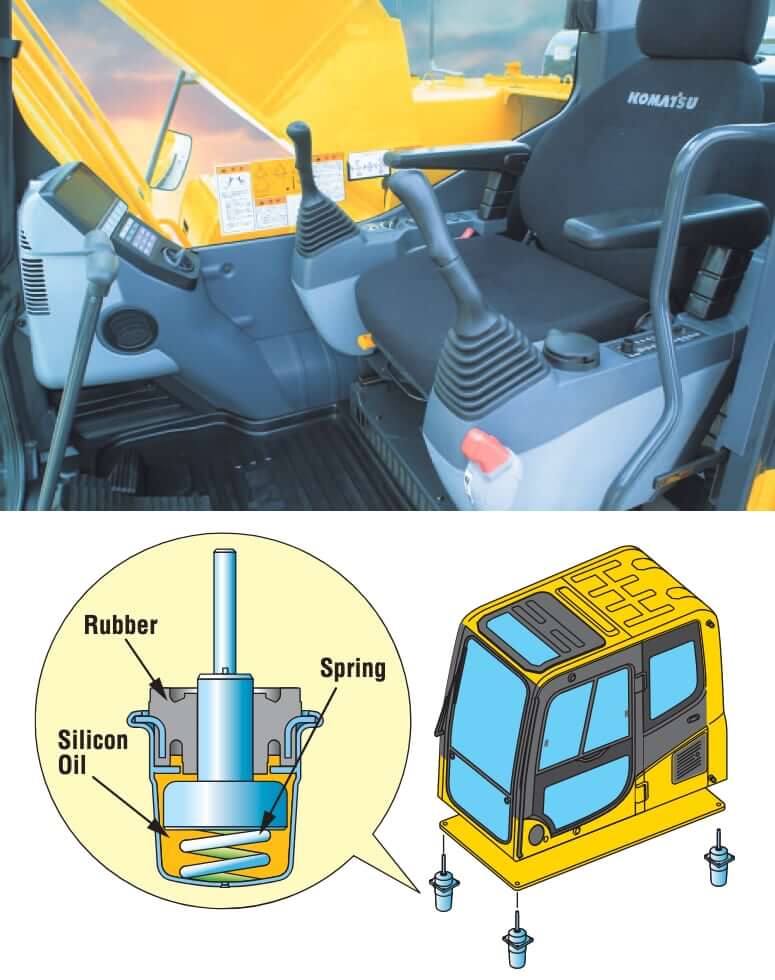

| Cab Damper | The new cab damper mounting combined with high rigidity deck aids vibration reduction at operator seat |
