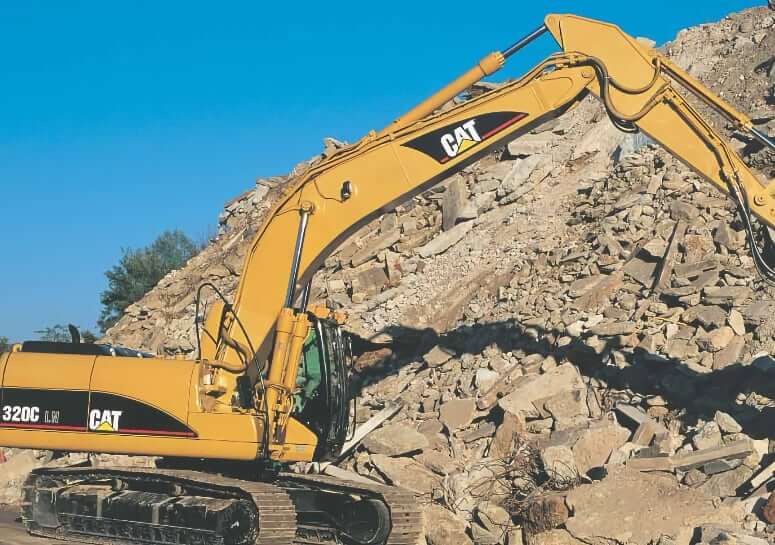

Working Range
| Boom/Arm Length |
Boom w/ stick R1.9C 1900 mm |
| Shipping Length Of Unit |
32.95 ft in (10042 mm) |
| Shipping Height Of Unit |
9.88 ft in (3011 mm) |
| Max Cutting Height |
35.6 ft in (10850 mm) |
| Max Loading Height |
25.23 ft in (7690 mm) |
| Max Reach Along Ground |
30.68 ft in (9350 mm) |
| Max Vertical Wall Digging Depth |
10.77 ft in (3280 mm) |
| Max Digging Depth |
13.65 ft in (4160 mm) |
Working Range (Boom/Arm Option 2)
| Boom/Arm Length |
Boom w/ stick R2.5B 2500 mm |
| Shipping Length Of Unit |
31.86 ft in (9710 mm) |
| Max Cutting Height |
36.91 ft in (11250 mm) |
| Shipping Height Of Unit |
9.88 ft in (3011 mm) |
| Max Loading Height |
27.83 ft in (8480 mm) |
| Max Reach Along Ground |
32.22 ft in (9820 mm) |
| Max Vertical Wall Digging Depth |
12.34 ft in (3760 mm) |
| Max Digging Depth |
15.1 ft in (4600 mm) |
Working Range (Boom/Arm Option 3)
| Boom/Arm Length |
Boom w/ stick R2.9B 2900 mm |
| Shipping Length Of Unit |
31.8 ft in (9692 mm) |
| Max Cutting Height |
38.13 ft in (11620 mm) |
| Max Loading Height |
29.2 ft in (8900 mm) |
| Shipping Height Of Unit |
9.88 ft in (3011 mm) |
| Max Reach Along Ground |
33.6 ft in (10240 mm) |
| Max Vertical Wall Digging Depth |
13.65 ft in (4160 mm) |
| Max Digging Depth |
16.47 ft in (5020 mm) |
Working Range (Boom/Arm Option 4)
| Boom/Arm Length |
Boom w/ stick R3.9B 3900 mm |
| Shipping Length Of Unit |
30.75 ft in (9371 mm) |
| Shipping Height Of Unit |
13.32 ft in (4057 mm) |
| Max Cutting Height |
40.65 ft in (12390 mm) |
| Max Loading Height |
31.63 ft in (9640 mm) |
| Max Reach Along Ground |
36.55 ft in (11140 mm) |
| Max Digging Depth |
19.56 ft in (5960 mm) |
| Max Vertical Wall Dig Depth |
16.61 ft in (5060 mm) |

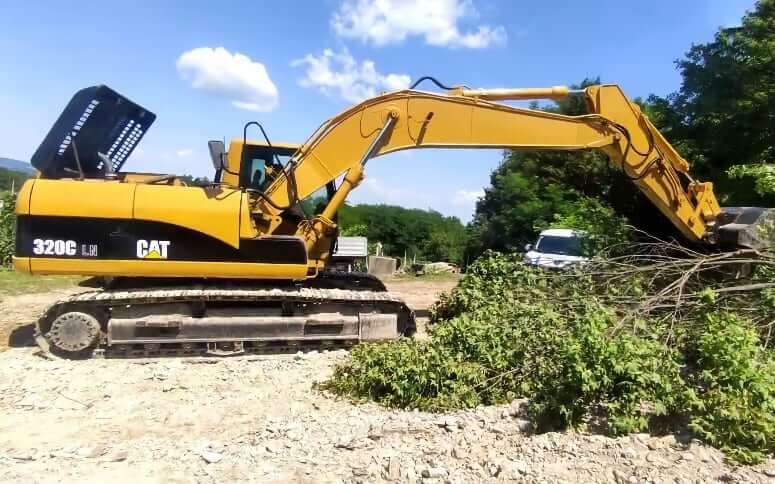

Dimensions
| Shipping Width (500 mm shoes) |
98 in (2490 mm) |
| Shipping Width (600 mm shoes) |
102 in (2590 mm) |
| Length Of Track On Ground |
143.7 in (3650 mm) |
| Tail Swing Radius |
109 in (2770 mm) |
| Height to Top of Cab |
116.1 in (2950 mm) |
| Height to Top of Cab w/ FOG |
120.1 in (3050 mm) |
| Ground Clearance |
18.1 in (460 mm) |

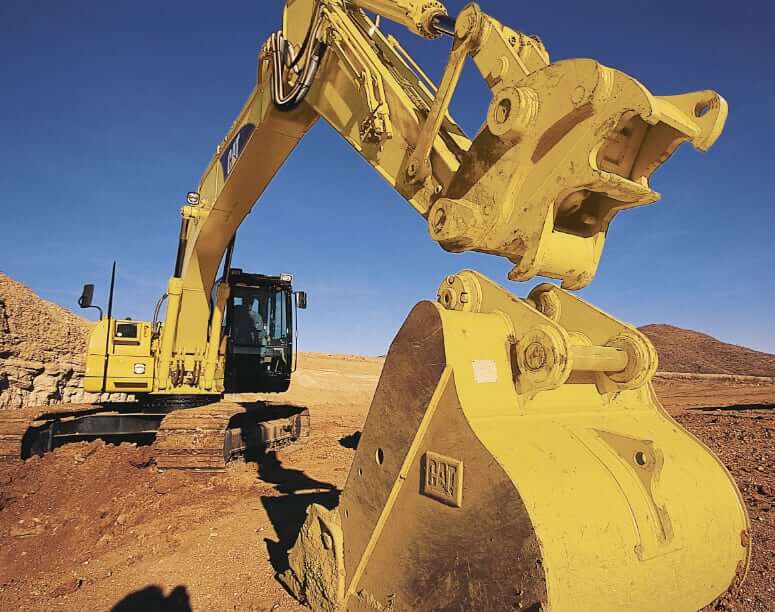

Buckets
| Linkage / Width |
Weight |
Capacity |
| B 43.3 in (1100 mm) |
1854.1 lb (841 kg) |
1.4 yd3 (1.1 m3) |
| B 49.2 in (1250 mm) |
1602.5 lb (727 kg) |
1.37 yd3 (1.05 m3) |
| B 51.2 in (1300 mm) |
1695.8 lb (769 kg) |
1.44 yd3 (1.1 m3) |
| B 55.1 in (1400 mm) |
1681.4 lb (763 kg) |
1.57 yd3 (1.2 m3) |
| B 59.1 in (1500 mm) |
1722.2 lb (781 kg) |
1.77 yd3 (1.35 m3) |
| C 51.2 in (1300 mm) |
2221.1 lb (1008 kg) |
1.77 yd3 (1.35 m3) |
| C 55.1 in (1400 mm) |
2314.1 lb (1050 kg) |
1.83 yd3 (1.4 m3) |
| C 59.1 in (1500 mm) |
2460.8 lb (1116 kg) |
2.03 yd3 (1.55 m3) |
| C 63.0 in (1600 mm) |
2409.1 lb (1093 kg) |
2.22 yd3 (1.7 m3) |
| Extreme B 23.6 in (600 mm) |
1281.6 lb (581 kg) |
0.54 yd3 (0.41 m3) |
| Extreme B 29.5 in (750 mm) |
1399.9 lb (635 kg) |
0.72 yd3 (0.55 m3) |
| Extreme B 39.4 in (1000 mm) |
1613.6 lb (732 kg) |
1.05 yd3 (0.8 m3) |
| Extreme B 49.2 in (1250 mm) |
1792.0 lb (813 kg) |
1.37 yd3 (1.05 m3) |
| Extreme B 55.1 in (1400 mm) |
1893.1 lb (859 kg) |
1.57 yd3 (1.2 m3) |
| Extreme C 29.5 in (750 mm) |
1683.6 lb (764 kg) |
0.82 yd3 (0.63 m3) |
| Extreme C 39.4 in (1000 mm) |
1994.6 lb (905 kg) |
1.24 yd3 (0.95 m3) |
| Extreme C 57.1 in (1450 mm) |
2528.9 lb (1147 kg) |
1.96 yd3 (1.5 m3) |
| Extreme C 63.0 in (1600 mm) |
2679.4 lb (1216 kg) |
2.22 yd3 (1.7 m3) |
Engine Details
| Number of Cylinders |
6 |
| Engine Make |
Caterpillar |
| Engine Model |
CAT 3066 T |
| Displacement |
389 cu in (6.37 L) |
| Bore |
4.02 in (102 mm) |
| Stroke |
5.12 in (130 mm) |
| Gross Power |
143 hp (107 kw) |
| Net Power |
138 hp (103 kw) |
| Power Measured @ |
1800 rpm |
| Peak Torque |
405.7 lb ft (550 Nm) |
| Torque Measured @ |
1400 rpm |
| Aspiration |
Turbocharged |
Operational Specs
| Min Operating Weight * |
47146 lb (21385 kg) |
| Max Operating Weight ** |
49395 lb (22405 kg) |
| Counterweight |
9744 lb (4420 kg) |
| Operating Voltage |
24 V |
| Alternator |
50 amps |
| Battery |
2x 12 V Heavy Duty maintenance free batteries |
| Cab |
FOGS meets ISO 10262. |
| Working Lights |
2x Cab mounted;1x Frame mounted; Boom, both sides |
* CAT 320C LN Operating Weight with 5.7 m Reach boom + 2.9 m stick + BX1000 bucket.
** CAT 320C LN Operating Weight with 5.5 m VA boom + 2.4 m stick + CX1000 bucket.
Swing
| Swing Speed |
11.5 rpm |
| Swing Torque |
45581 lb ft (61.8 kNm) |
| Tail Swing Radius |
109 in (2770 mm) |
Undercarriage
| Shoe Size (Standard) |
20 in (500 mm) |
| Shoe Size (Optional) |
24 in (600 mm) |
| Track Gauge |
78.3 in (1990 mm) |
| Number Of Carrier Rollers Per Side |
2 |
| Number Of Track Rollers Per Side |
8 |
| Number Of Shoes Per Side |
44 |
Drive
| Type |
Two-speed auto shift travel |
| Max Travel Speed |
3.4 mph (5.5 km/h) |
| Drawbar Pull |
44040 lb (196 kN) |
Hydraulic System
| Type |
Hydraulic Pumps Cross Sensing System |
| Auxiliary Hydraulic Circuits |
Electronically controlled |
| Main Implement System Pump Flow (2x) |
54.2 gal/min (205 L/min) |
| Maximum Pressure, Implements |
4975 psi (34300 kPa) |
| Maximum Pressure, Travel |
4975 psi (34300 kPa) |
| Maximum Pressure, Swing |
3626 psi (25000 kPa) |
| Pilot System Pump Flow |
10.8 gal/min (41 L/min) |
| Maximum Pressure, Pilot System |
598 psi (4120 kPa) |

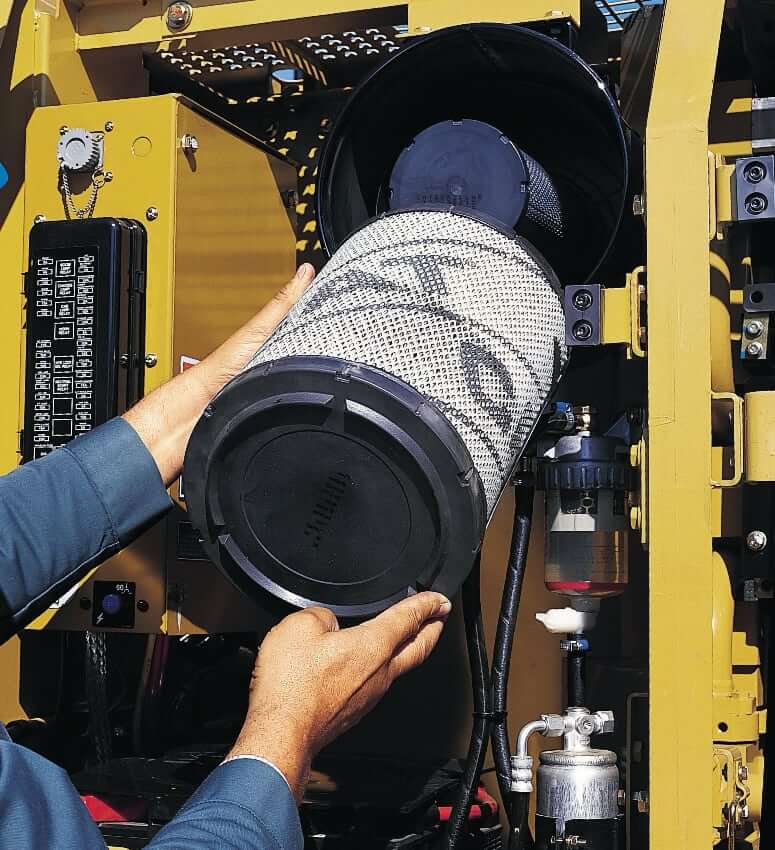

Service Refill Capacities
| Fuel Tank Capacity |
84.5 gal (320 L) |
| Engine Oil Capacity |
7.9 gal (30 L) |
| Cooling System Capacity |
7.9 gal (30 L) |
| Hydraulic System Capacity (including tank) |
52.8 gal (200 L) |
| Hydraulic Tank Capacity |
31.7 gal (120 L) |
| Swing Drive Capacity |
2.1 gal (8 L) |
| Final Drive Capacity (each) |
2.6 gal (10 L) |
