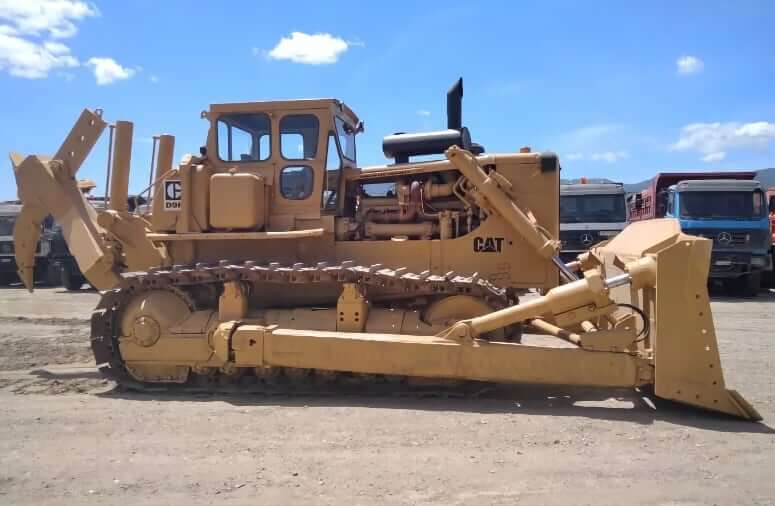

Dimensions
| Length w/ Blade | 285 in (7240 mm) |
| Length w/o Blade | 221 in (5610 mm) |
| Width Over Tracks | 119 in (3020 mm) |
| Track Gauge | 90.2 in (2290 mm) |
| Length of Track On Ground | 132 in (3350 mm) |
| Height to Top of ROPS Canopy | 140.2 in (3560 mm) |
| Height to Top of ROPS Cab | 142.9 in (3630 mm) |
| Height to Exhaust | 148 in (3760 mm) |
| Height to Engine Hood | 106 in (2690 mm) |
| Drawbar Height | 24.4 in (620 mm) |
| Ground Clearance | 18.1 in (460 mm) |

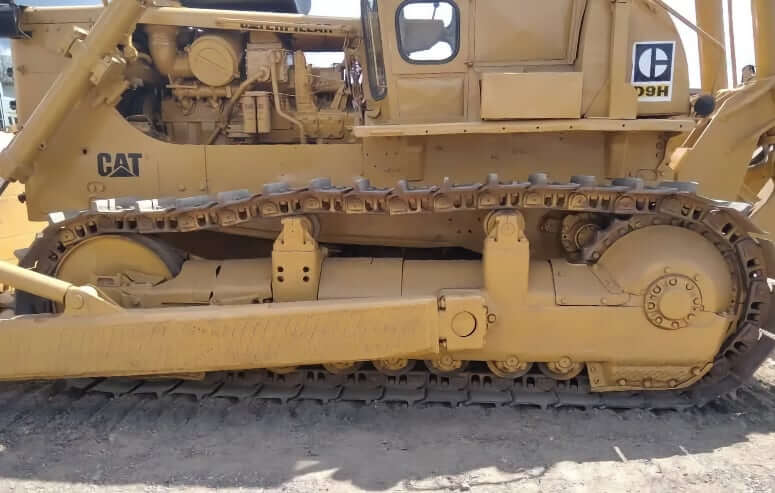

Undercarriage
| Standard Shoe Size | 24 in (610 mm) |
| Length of Track On Ground | 132 in (3350 mm) |
| Track Gauge | 90.2 in (2290 mm) |
| Ground Contact Area | 6338 in2 (4.09 m2) |
| Ground Pressure | 14.7 psi (101.36 kPa) |
| Grouser Height (from ground face of shoe) | 3.4 in (87 mm) |
| Number of Track Rollers Per Side | 7 |
| Number of Shoes Per Side | 39 |
| Lubrication | Lifetime-Lubricated rollers and idlers with Duo-Cone floating ring seals |
| Equalizer Bar | Pinned equalizer bar and diagonal braces hold track roller frames in lateral alignment |
| Idler Type | Adjustable, two-position idler |
| Oscillation at Front Idler | 17.7 in (449 mm) |

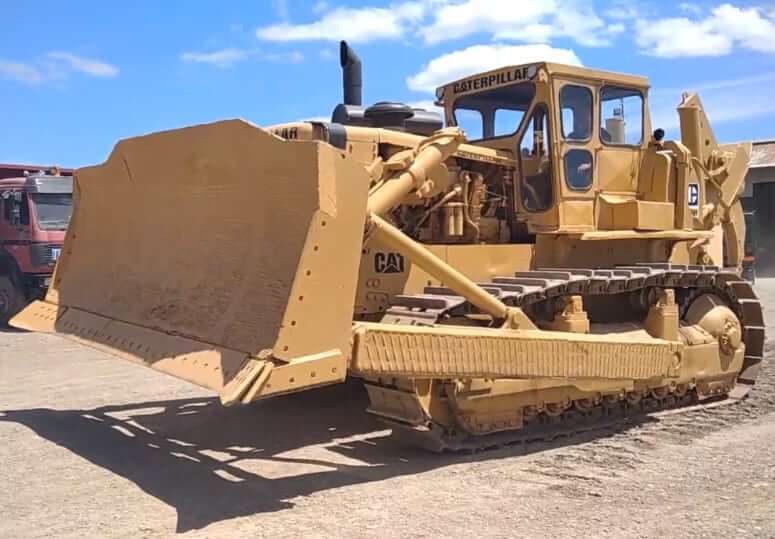

Dozer Blade
| CAT D9H | 9S Blade | 9U Blade | 9A Blade | 9C Blade |
|---|---|---|---|---|
| Width | 172.8 in (4390 mm) | 189 in (4800 mm) | 192.1 in (4880 mm) | 120.9 in (3070 mm) |
| Height | 71.5 in (1820 mm) | 71.5 in (1820 mm) | 51 in (1300 mm) | 60 in (1520 mm) |
| Dig Depth | 23 in (580 mm) | 23 in (580 mm) | 24.75 in (630 mm) | 44.64 in (1130 mm) |
| Lift Height | 63.56 in (1610 mm) | 63.56 in (1610 mm) | 60 in (1520 mm) | 39.5 in (1000 mm) |
| Max Tilt | 37.25 in (950 mm) | 40.5 in (1030 mm) | 14 in (356 mm) | – |
| Weight | 16880 lb (7660 kg) | 18730 lb (8500 kg) | 15620 lb (7090 kg) | 13990 lb (6350 kg) |

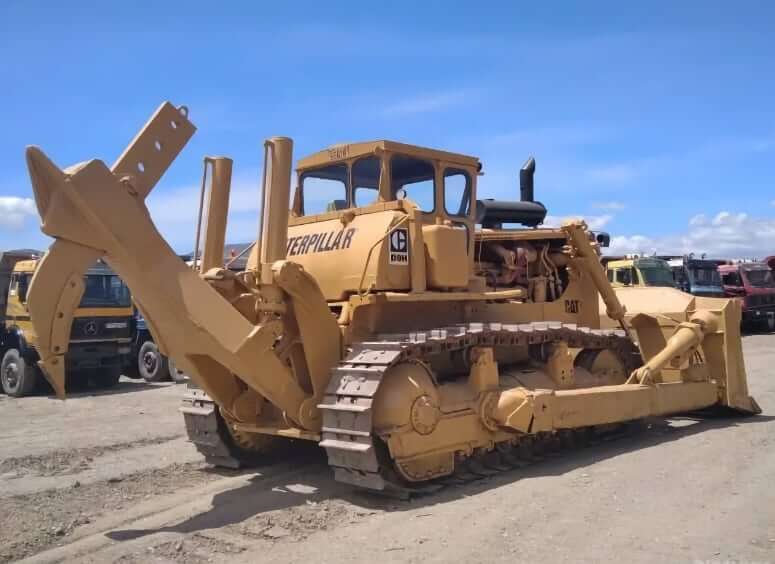

Ripper
| CAT D9H | Single Shank (Standard) | Single Deep Ripping | Multishank Ripper |
|---|---|---|---|
| Beam Width | 53.9 in (1370 mm) | 53.9 in (1370 mm) | 118.1 in (3000 mm) |
| Cross Section | 17×19 in (432×483 mm) | 17×19 in (432×483 mm) | 17×19 in (432×483 mm) |
| Max Penetration | 53.5 in (1360 mm) | 77.5 in (1970 mm) | 38.5 in (980 mm) |
| Max Clearance (Raised) | 44.5 in (1130 mm) | 44.5 in (1130 mm) | 34.5 in (880 mm) |
| Shank Positions | 4 | 6 | 2 |
| Weight (w/o hydraulic controls) | 13630 lb (6180 kg) | 14050 lb (6390 kg) | 14150 lb (6420 kg) |

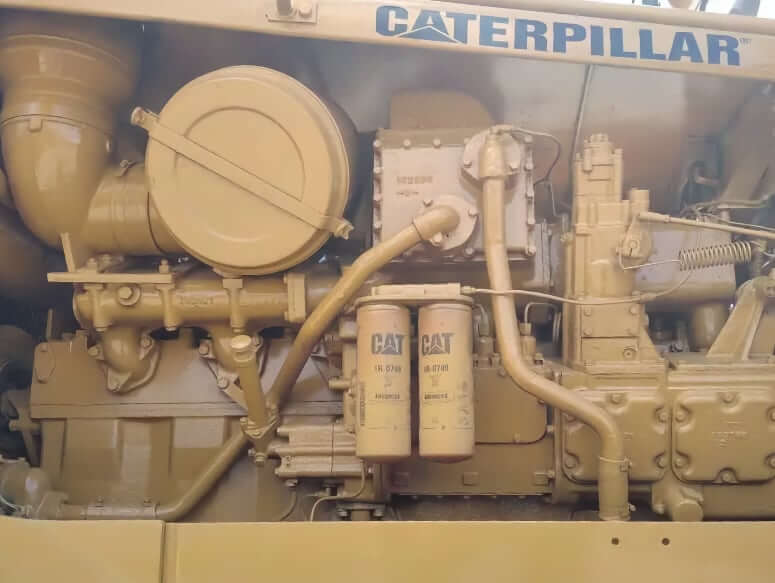

Engine Details
| Number of Cylinders | 6 |
| Engine Make | Caterpillar |
| Engine Model | Cat D353 |
| Displacement | 1473 cu in (24.157 L) |
| Bore | 6.25 in (159 mm) |
| Stroke | 8.00 in (203 mm) |
| Horsepower | 410 hp (306 kw) |
| Power Measured @ | 1300 rpm |
| Peak Torque | 2286 lb ft (3100 Nm) |
| Torque Measured @ | 900 rpm |
| Low Idle Speed | 475 rpm |
| Compression Ratio | 15.5:1 |
| Fuel System | Individual adjustment-free fuel injection pumps and precombustion chambers |
| Air Cleaner | Dry-type air cleaner with automatic dust ejector |
| Aspiration | Turbocharged and aftercooled |
Operational Specs
| Shipping Weight | 72400 lb (32840 kg) |
| Operating Weight | 94314 lb (42780 kg) |
| Counterweight | 5000 lb (2270 kg) |
| Push Block Weight | 2870 lb (1300 kg) |
| Push Plate Weight | 540 lb (245 kg) |
| Winch Weight (Model 59 Cat) | 2550 lb (1160 kg) |
| Working Lights | 2x front lights + 2 rear light |
| Operating Voltage | 24 V |
| Alternator | 19 amps (50 amps) |
| Battery | 2x 12 V, 200 Ah |
| Canopy (Optional) | ROPS Canopy |
| Cab (Optional) | ROPS Cab with available air-conditioning. |
Transmission
| Transmission Type | Planetary-type power shift with 21 in (530 mm) diameter, high-torque-capacity oil clutches |
| Torque Converter | Single-stage torque converter with output torque divider. Connected to transmission by double universal joint for unit construction |
| Number of Gears | 3F / 3R |
| Max Forward Speed | 6.7 mph (10.8 km/h) |
| Max Reverse Speed | 8.2 mph (13.2 km/h) |
| Final Drives | Planetary-type gearing. Filtered, full-pressure lubrication and Duo-Cone® floating ring seals |
Steering and Brakes
| Seering Clutches | Hydraulically actuated, multiple-dise oil clutches require no adjustment |
| Control | Hand levers combine steering clutch disengagement and braking in one control |
| Service Brakes | Oil-cooled, hydraulically boosted contracting band brakes. Clutch and brake assemblies can be serviced as a unit |
| Emergency Brake | Brake pedals are retained for operators who prefer them and for cross steering and emergency stops |
| Parking Brake | Mechanical parking brake |
Service Refill Capacities
| Fuel Tank Capacity | 230 gal (870 L) |
| Engine Oil Capacity | 11.25 gal (42.6 L) |
| Cooling System Capacity | 41 gal (155 L) |
| Transmission Oil Capacity | 34 gal (129 L) |
| Final Drives Capacity (each side) | 11.25 gal (42.6 L) |
