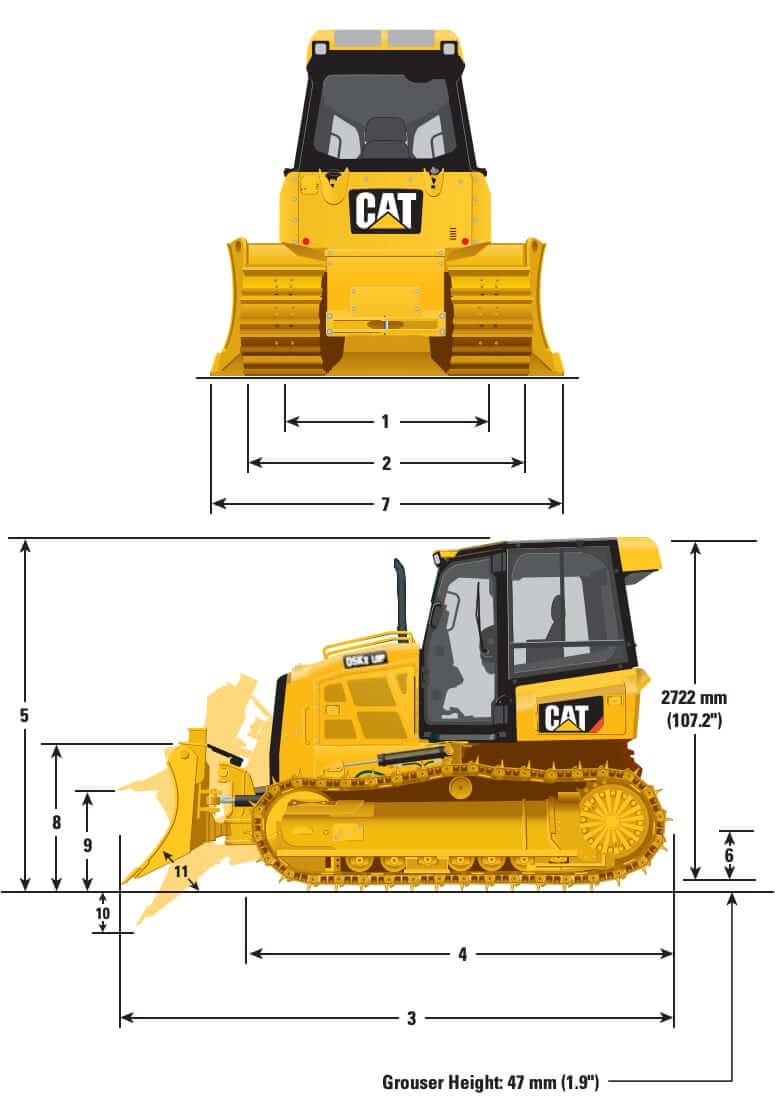

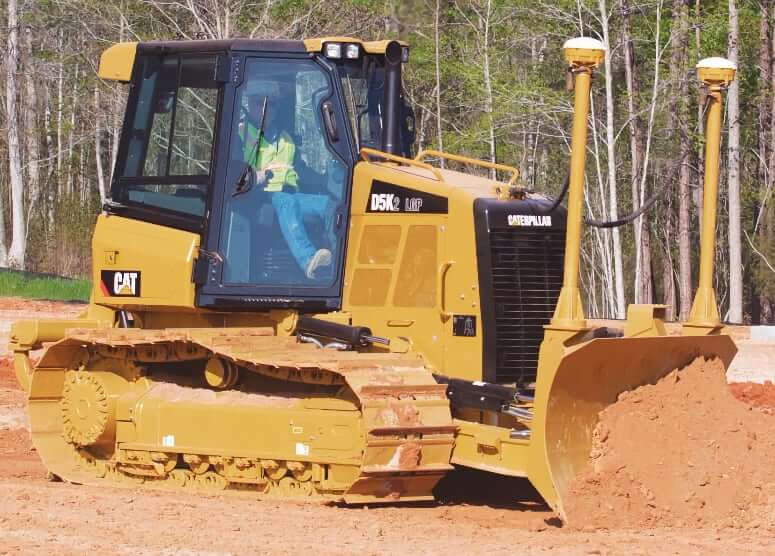

Dimensions
| CAT D5K2 Shoes | XL, 20 in (510 mm) | LGP, 26 in (660 mm) | LGP, 30 in (762 mm) |
|---|---|---|---|
| 1. Track Gauge | 63 in (1600 mm) | 68.9 in (1750 mm) | 73.2 in (1860 mm) |
| 2. Width of Tractor (standard shoes, no blade) | 83.1 in (2110 mm) | 94.9 in (2410 mm) | 103.5 in (2630 mm) |
| 3. Overall Length (with blade) | 170.1 in (4309 mm) | 169.1 in (4309 mm) | 169.1 in (4309 mm) |
| 4. Length of Basic Tractor (without blade) | 128.5 in (3265 mm) | 128.5 in (3265 mm) | 128.5 in (3265 mm) |
| 5. Tractor Height | 109 in (2769 mm) | 109 in (2769 mm) | 109 in (2769 mm) |
| 6. Ground Clearance | 13 in (332 mm) | 13 in (332 mm) | 13 in (332 mm) |

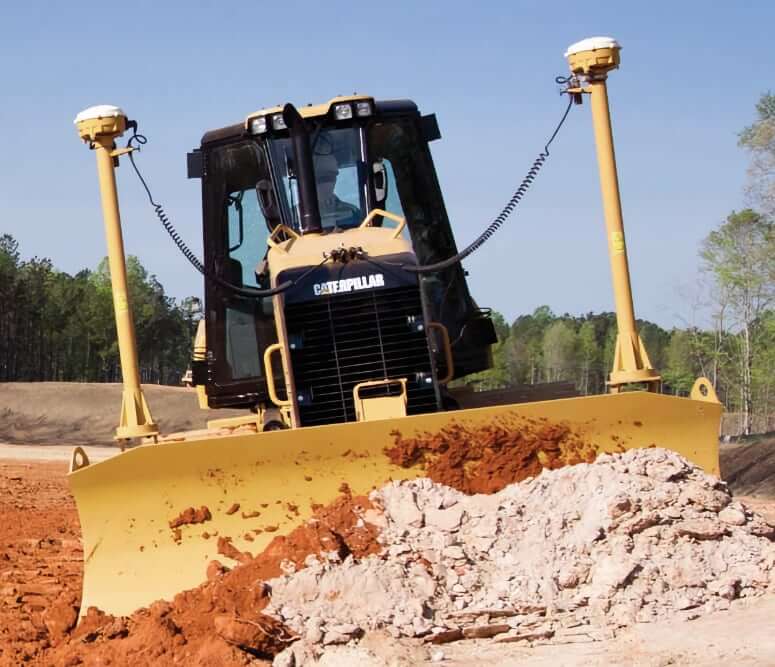

Dozer Blade
| CAT D5K2 | XL Blade | INTMD Blade | LGP Blade |
|---|---|---|---|
| 7. Blade Width | 109.5 in (2782 mm) | 115 in (2921 mm) | 126.7 in (3220 mm) |
| 8. Blade Height | 42.2 in (1073 mm) | 39.8 in (1010 mm) | 39.8 in (1010 mm) |
| 9. Blade Lift Height | 30.2 in (767 mm) | 30.2 in (767 mm) | 30.2 in (767 mm) |
| 10. Digging Depth | 23.1 in (586 mm) | 22.5 in (572 mm) | 22.5 in (572 mm) |
| 11. Blade Cutting Edge Angle, Adjustable | 52° to 58° | 52° to 58° | 52° to 58° |
| Maximum Tilt | 15.8 in (402 mm) | 17.6 in (448 mm) | 17.6 in (448 mm) |
| Maximum Angle (either side) | 25° | 25° | 25° |
| Blade Width at Maximum Angle | 103.8 in (2636 mm) | 105.1 in (2669 mm) | 115.8 in (2940 mm) |
| Blade Capacity (SAE) | 2.86 yd3 (2.19 m3) | 2.73 yd3 (2.09 m3) | 3.06 yd3 (2.34 m3) |
Ripper
| Ripper Type | Parallelogram |
| Number of Shanks | 3 |
| Max Digging Depth | 13.3 in (337.5 mm) |
| Max Reach at Ground Line | 21.9 in (555 mm) |
| Max Ground Clearance Under Tip | 17.6 in (448 mm) |
| Ripper Width | 67.3 in (1710 mm) |
| Ripper Height | 6.5 in (165 mm) |
| Ripper Weight | 1222 lb (554 kg) |
Winch
| Winch Weight | 1345 lb (610 kg) |
| Winch Drive | Hydrostatic |
| Control | Hydraulic |
| Speed | Variable |
| Winch Length | 27.8 in (705 mm) |
| Overall Width | 29.2 in (741 mm) |
| Drum Diameter | 10 in (254 mm) |
| Drum Width | 10.8 in (274 mm) |
| Throat Clearance | 6.75 in (171.5 mm) |
| Rope Diameter – Recommended | 0.63 in (16 mm) |
| Rope Diameter – Optional | 0.75 in (19 mm) |
| Drum Capacity – Recommended Cable | 371 ft (113 m) |
| Drum Capacity – Optional Cable | 256 ft (78 m) |
| Maximum Line Pull – Bare Drum | 40000 lb (18144 kg) |
| Maximum Line Pull – Full Drum | 25000 lb (11340 kg) |
| Maximum Line Speed – Bare Drum | 131 ft/min (40 m/min) |
| Maximum Line Speed – Full Drum | 207 ft/min (63 m/min) |

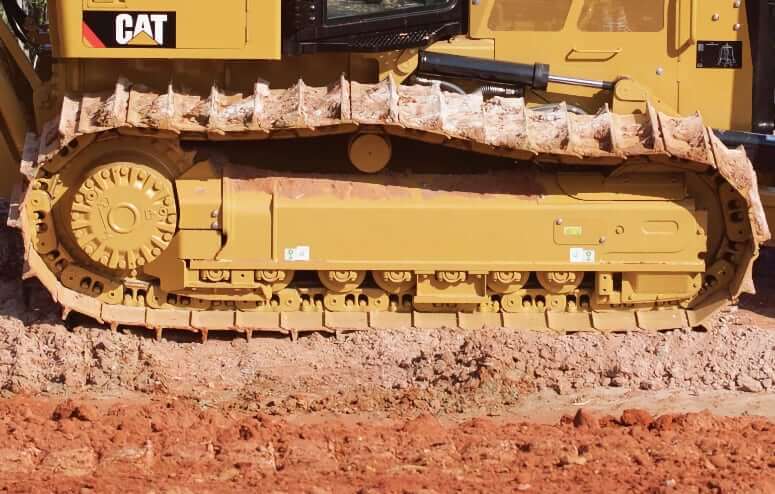

Undercarriage
| CAT D5K2 | XL, 20 in (510 mm) | LGP, 26 in (660 mm) | LGP, 30 in (762 mm) |
|---|---|---|---|
| Length of Track on Ground | 91 in (2310 mm) | 91 in (2310 mm) | 91 in (2310 mm) |
| Track Gauge | 63 in (1600 mm) | 69 in (1750 mm) | 73.2 in (1860 mm) |
| Ground Contact Area | 3652 in2 (23562 cm2) | 4726 in2 (30492 cm2) | 5514 in2 (35574 cm2) |
| Ground Pressure | 5.6 psi (38.6 kPa) | 4.5 psi (31.1 kPa) | 3.93 psi (27.1 kPa) |
| Grouser Height | 1.9 in (47 mm) | 1.9 in (47 mm) | 1.9 in (47 mm) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Caterpillar |
| Engine Model | Cat C4.4 ACERT |
| Displacement | 269 cu in (4.4 L) |
| Bore | 4.13 in (105 mm) |
| Stroke | 5.00 in (127 mm) |
| Net Power | 104 hp (77.6 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 332 lb ft (450 Nm) |
| Torque Measured @ | 1400 rpm |
| Fuel System | Direct injection |
| Compression Ratio | 16.5:1 |
| Air Cleaner | Air cleaner with precleaner, automatic dust ejection and under-hood intake |
| Aftertreatment | DOC+DPF+SCR |
| Aspiration | Turbocharged Aftercooler, Air-to-Air (ATAAC) |
| Emission Standards | US EPA Tier 4 Final + EU Stage IV |
Operational Specs
| Operating Weight, XL | 20313 lb (9214 kg) |
| Operating Weight, LGP | 20992 lb (9522 kg) |
| Operating Weight, LGP 30 in (762 mm) | 21442 lb (9726 kg) |
| Operating Voltage | 12 V |
| Alternator | 120 amps |
| Battery | 2x 12 V, 90 Ah, CCA 1000 |
| Starter | 12 V, 5.4 hp (4 kw) |

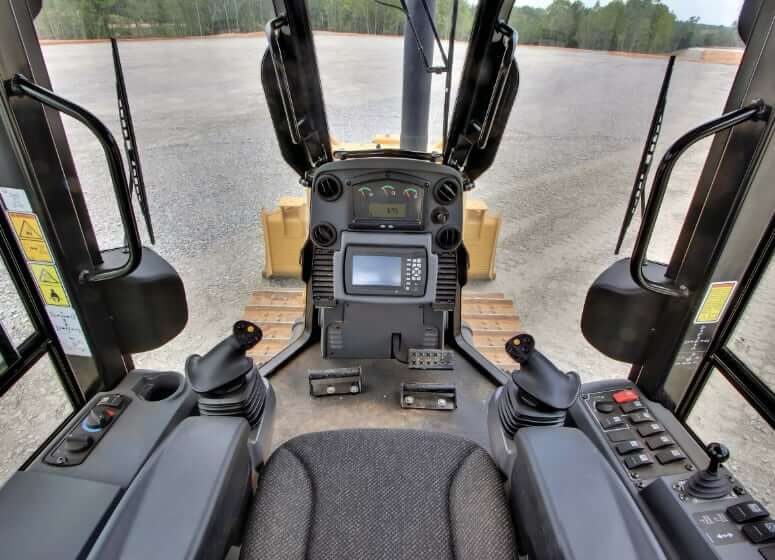

Operator Environment
| Canopy (Standard) | ROPS / FOPS canopy |
| Cab (Optional) | Cab with air-conditioning |
| Operator Seat | Adjustable air suspended seat, cloth or vinyl |
| Operator Seat (Optional) | Cloth, heated and ventilated seat with heated controls |
| Seat Belt | Retractable seat belt 3 in (76 mm) |
| Working Lights | Lights, halogen, 2 front and 2 rear |
| Sound Level (ISO 6396:2008) | 77 dB(A) |
| Sound Level (SAE J1166 FEB2008) | 78 dB(A) |
| ROPS | SAE J397-OCT95, SAE J1040-May94, ISO 3471-94, ISO 3164 2008 |
| FOPS | SAE J231-JAN81, ISO 3449 2005 Level III |
| Display (Optional) | CB450 Laser Display, 4.3 in (109 mm) color display / CB460 GNSS Display, 7 in (178 mm) color display with USB data port and 3.7 Gb internal disk space |
Transmission
| Type | Dual path, closed loop, hydrostatic transmission |
| Number of Gears | Infinite forward and reverse |
| Max Forward Speed | 5.6 mph (9.0 km/h) |
| Max Reverse Speed | 6.2 mph (10.0 km/h) |
| Track Motors | Two variable-displacement, link-type piston motors |
| Final Drives | Double-reduction planetary gear set. Mounted independently of track frames to isolate them from machine weight and ground-induced shock loads |
| Steering | Single lever steering, speed and direction control |
| Service Brakes | Hydrostatic (dynamic) braking through machine drive system using transmission control lever, center brake pedal or decel pedal |
Hydraulic System
| Type | Load sensing hydraulics with 3 valves |
| Hydraulic System w/ 4 Valves (Optional) | Four valve for use with ripper |
| Hydraulic System w/ 4 Valves (Optional) | Four valve for use with winch |
| Control Type | Single lever, three function control |
| Main Pump Flow | 17.7 gal/min (68 L/min) |
| Relief Valve Setting (Main Pump) | 2988 psi (20600 kPa) |
| Relief Valve Setting (Drive Pump) | 7033 psi (48500 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 51.5 gal (195 L) |
| DEF Tank Capacity | 4.9 gal (19 L) |
| Engine Oil Capacity | 2.9 gal (11 L) |
| Cooling System Capacity | 5.9 gal (22.4 L) |
| Hydraulic Tank Capacity | 15.7 gal (59.5 L) |
| Transmission / Hydraulic System Capacity (w/ tank) | 22.2 gal (84 L) |
| Final Drives Capacity (each side), XL | 2.6 gal (10 L) |
| Final Drives Capacity (each side), LGP | 2.6 gal (10 L) |
| Winch Housing Capacity | 1.2 gal (4.7 L) |
