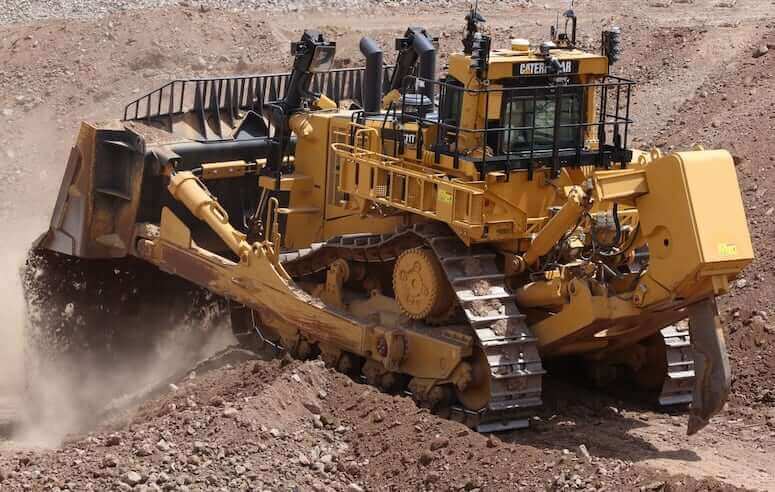

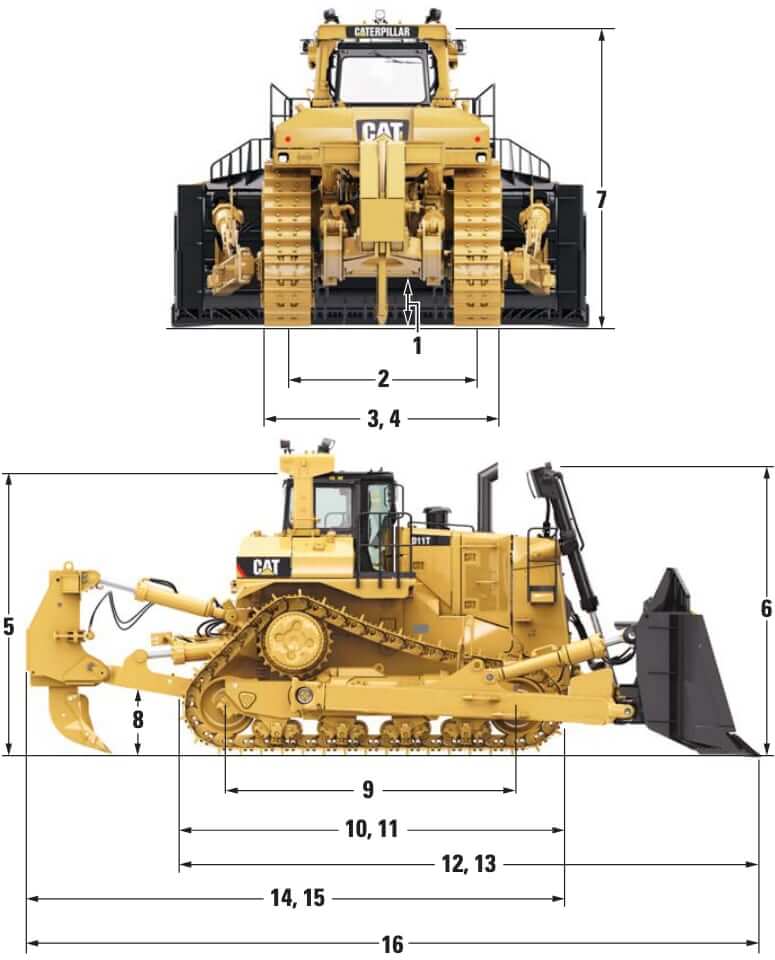

Dimensions
| 1. Ground Clearance | 31.4 in (798 mm) |
| 2. Track Gauge | 114.0 in (2896 mm) |
| 3. Width W/o Trunnions (Standard Shoe) | 148.9 in (3782 mm) |
| 4. Width over Trunnions | 172.4 in (4379 mm) |
| 5. Height (FOPS Cab) | 173.4 in (4405 mm) |
| 6. Height (Top of Stack) | 179.1 in (4549 mm) |
| 7. Height (ROPS/Canopy) | 185.9 in (4723 mm) |
| 8. Drawbar Height (Center of Clevis) | 37.1 in (942 mm) |
| 9. Length of Track on Ground | 175.0 in (4444 mm) |
| 10. Overall Length Basic Tractor | 242.5 in (6160 mm) |
| 11. Length Basic Tractor w/ Drawbar | 242.5 in (6160 mm) |
| 12. Length with SU-Blade | 337.8 in (8579 mm) |
| 13. Length with U-Blade | 340.2 in (8641 mm) |
| 14. Length with Single-Shank Ripper | 319.2 in (8107 mm) |
| 15. Length with Multi-Shank Ripper | 331.8 in (8427 mm) |
| 16. Overall Length SU-Blade and Single-Shank Ripper | 414.4 in (10525 mm) |

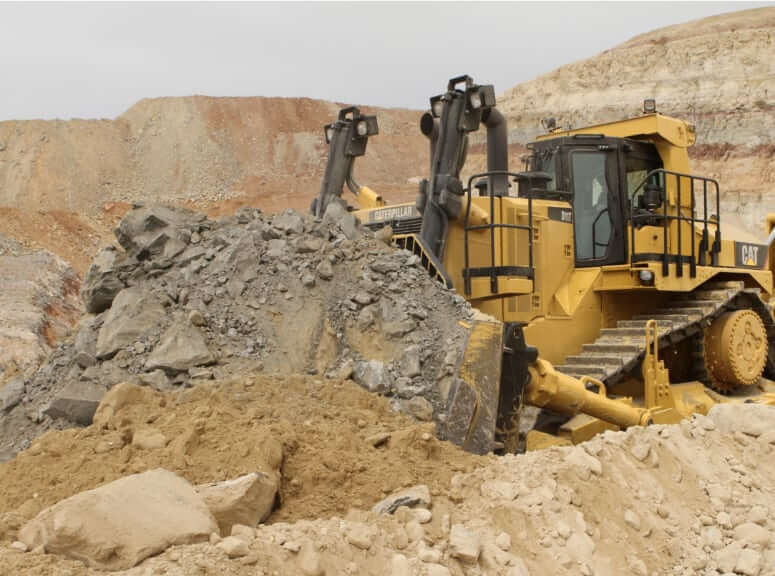

Dozer Blades
| CAT D11T Blade | 11SU ABR | 11U ABR |
|---|---|---|
| Blade Capacity (SAE J1265) | 35.6 yd3 (27.2 m3) | 45.0 yd3 (34.4 m3) |
| Width w/ Blade (over end bits) | 219.7 in (5580 mm) | 249.4 in (6335 mm) |
| Blade Height | 108.4 in (2753 mm) | 111.3 in (2828 mm) |
| Digging Depth (Nominal) | 30.2 in (766 mm) | 30.2 in (766 mm) |
| Blade Ground Clearance | 60.4 in (1533 mm) | 60.4 in (1533 mm) |
| Maximum Tilt | 46.6 in (1184 mm) | 52.9 in (1344 mm) |
| Blade Weight | 35698 lb (16192 kg) | 41498 lb (18823 kg) |

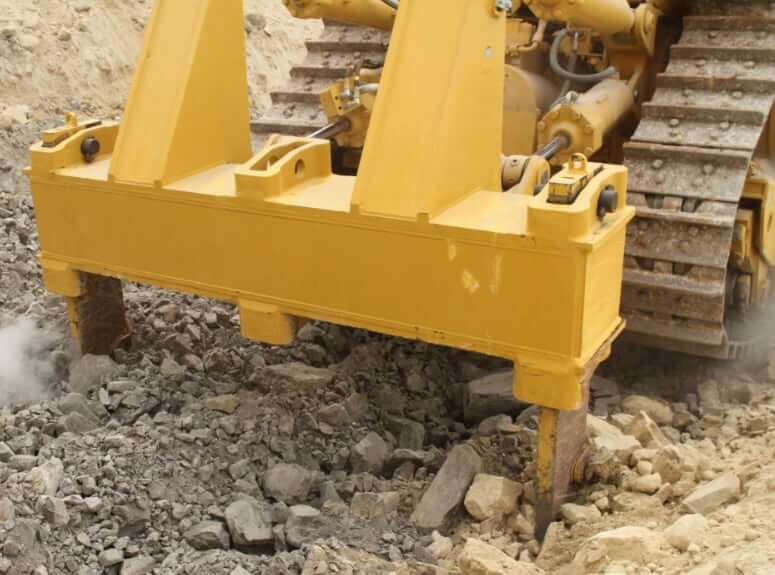

Ripper
| CAT D11T Ripper | Single-Shank | Single-Shank w/ DRA* | + Multi-Shank Arrangement |
|---|---|---|---|
| Max Penetration Force (shank vertical) | 78683 lbf (350 kN) | 85877 lbf (382 kN) | 75311 lbf (335 kN) |
| Max Penetration (standard tip) | 63.5 in (1612 mm) | 85.5 in (2172 mm) | 43.3 in (1100 mm) |
| Pryout Force (multi-shank ripper with one tooth) | 143428 lbf (638 kN) | 142754 lbf (635 kN) | 142079 lbf (632 kN) |
| Max Clearance Raised (under tip, pinned in bottom hole) | 43.7 in (1111 mm) | 34.4 in (873 mm) | 42.9 in (1090 mm) |
| Overall Beam Width | 131.3 in (3330 mm) | ||
| Number of Shank Holes | 4 | 3 | 2 |
| Weight (with one shank) | 19438 lb (8817 kg) | 19936 lb (9043 kg) | 19123 lb (8674 kg) |
*DRA – Deep Ripping Arrangement

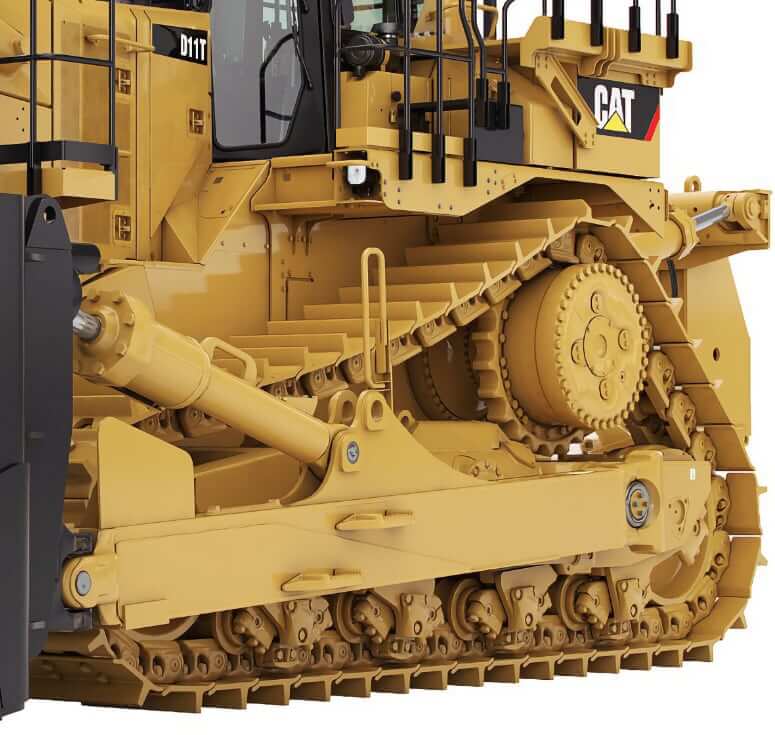

Undercarriage
| Shoe Size (Standard) | 28 in (710 mm) |
| Shoe Type | Extreme Service |
| Track Gauge | 114 in (2896 mm) |
| Track Pitch | 12.5 in (318 mm) |
| Grouser Height | 4 in (102 mm) |
| Length of Track on Ground | 175 in (4444 mm) |
| Ground Contact Area | 9781 in2 (6.3 m2) |
| Ground Pressure | 20.03 psi (138.1 kPa) |
| Number of Carrier Rollers per Side | 1 |
| Number of Track Rollers per Side | 8 |
| Number of Shoes per Side | 41 |
| Track Roller Frame Oscillation | 13.8 in (351 mm) |
Transmission
| Type | Planetary powershift transmission |
| Clutch Diameter | 21 in (533 mm) |
| Number of Gears | 3F / 3R |
| Max Forward Speed | 7.3 mph (11.8 km/h) |
| Max Reverse Speed | 8.7 mph (14.0 km/h) |
| Torque Converter | A single-stage torque converter with output torque divider sends 75% of engine torque through the converter and 25% through a direct drive shaft for greater driveline efficiency, higher torque multiplication, and ease of operation |
| Final Drives | Four planet, double-reduction planetary final drives |
| Service Brakes | Spring applied multiple-disc brakes |
| Parking Brake | Electronic park brake |
Engine Details
| Emission Standards | US EPA Tier 2 | EPA Tier 4 Final |
|---|---|---|
| Number of Cylinders | 12 | 12 |
| Engine Make | Caterpillar | Caterpillar |
| Engine Model | Cat C32 ACERT | Cat C32 ACERT |
| Displacement | 1959 cu in (32.1 L) | 1959 cu in (32.1 L) |
| Bore | 5.7 in (145 mm) | 5.7 in (145 mm) |
| Stroke | 6.4 in (162 mm) | 6.4 in (162 mm) |
| Gross Power | 932 hp (695 kw) | 913 hp (681 kw) |
| Net Power | 850 hp (634 kw) | 850 hp (634 kw) |
| Power Measured @ | 1800 rpm | 1800 rpm |
| Peak Torque | 3793 lb ft (5143 Nm) | 4323 lb ft (5861 Nm) |
| Torque Measured @ | 1400 rpm | 1200 rpm |
| Compression Ratio | 16.5:1 | 16.0:1 |
| Fuel System | MEUI injection | MEUI injection |
| Aspiration | Turbocharged Aftercooled (TA) | Twin Turbocharged Aftercooled (TTA) |
Operational Specs
| Operating Weight | 229800 lb (104236 kg) |
| Shipping Weight | 82640 lb (37485 kg) |
| Operating Voltage | 24 V |
| Alternator | 150 amps |
| Battery | 4x 12 V, 200 Ah |
| Working Lights | 5x HID / 7x Halogen |

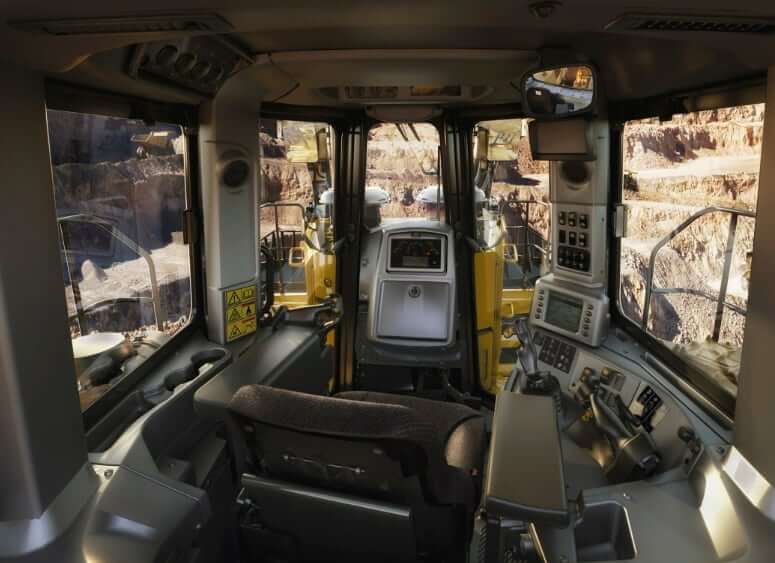

| Operator Station | ROPS / FOPS Cab |
| Sound Level (interior) | 79 dB(A) |
| Sound Level (exterior) | 87 dB(A) |
Hydraulic System
| Pump Type | Gear-type pump |
| Implement Pump Flow | 164 gal/min (620 L/min) |
| Tilt Pump Flow Capacity | 41 gal/min (155 L/min) |
| Dozer Relief Valve Pressure | 3300 psi (22750 kPa) |
| Tilt Cylinder Relief Valve Pressure | 3525 psi (24300 kPa) |
| Ripper (Lift) Relief Valve Pressure | 3300 psi (22750 kPa) |
| Ripper (Pitch) Relief Valve Setting | 3300 psi (22750 kPa) |
| Control | Electronically controlled for bulldozer and ripper control |

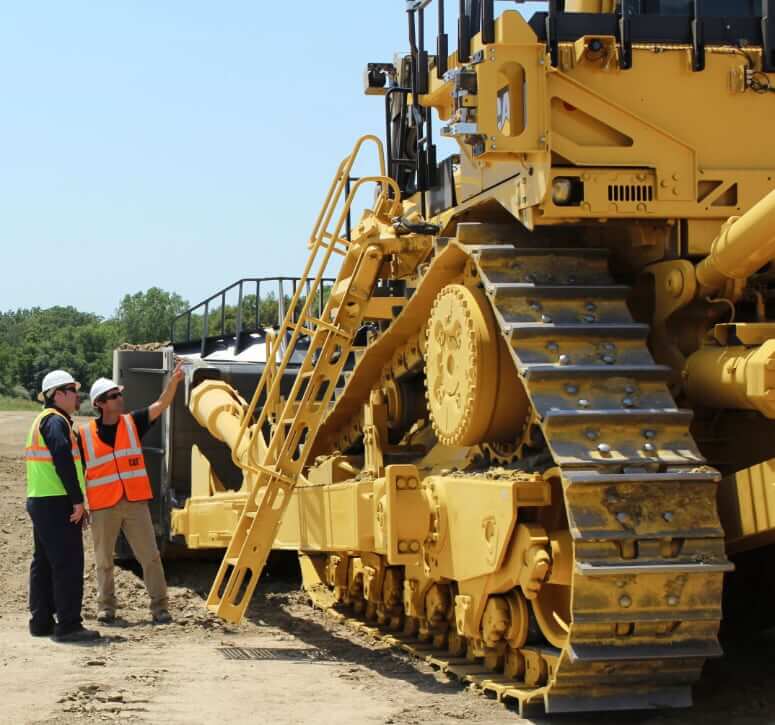

Service Refill Capacities
| Fuel Tank Capacity | 425 gal (1609 L) |
| Fuel Tank Capacity (Platform Ready) | 470 gal (1778 L) |
| Fuel Tank Capacity (High Capacity) | 505 gal (1911 L) |
| Engine Oil Capacity (w/ filter) | 27.2 gal (103 L) |
| Cooling System Capacity | 71.1 gal (269 L) |
| Hydraulic Tank Capacity | 58.9 gal (223 L) |
| Transmission Oil Capacity | 90.9 gal (344 L) |
| Final Drives Fluid Capacity (each) | 12.4 gal (47 L) |
| Roller Frames (each) | 24.8 gal (94 L) |
| Pivot Shaft Compartment | 18.8 gal (71 L) |
