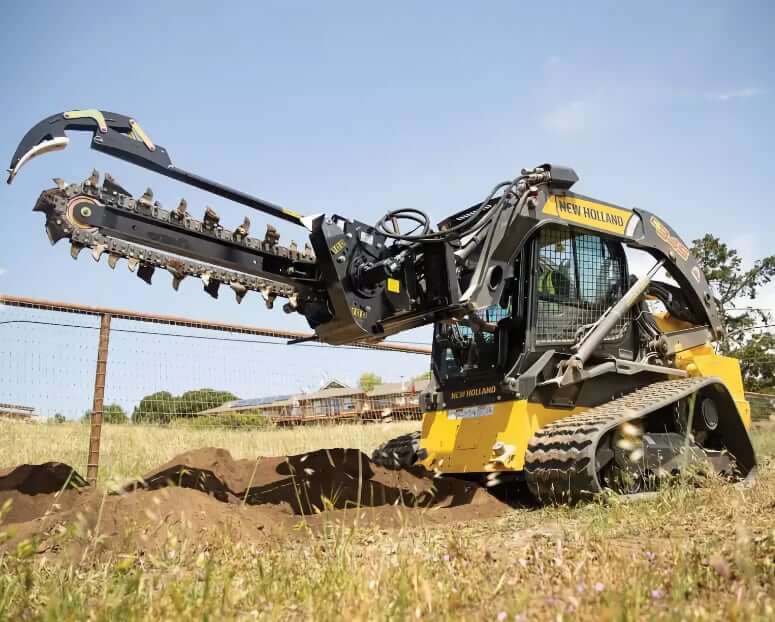

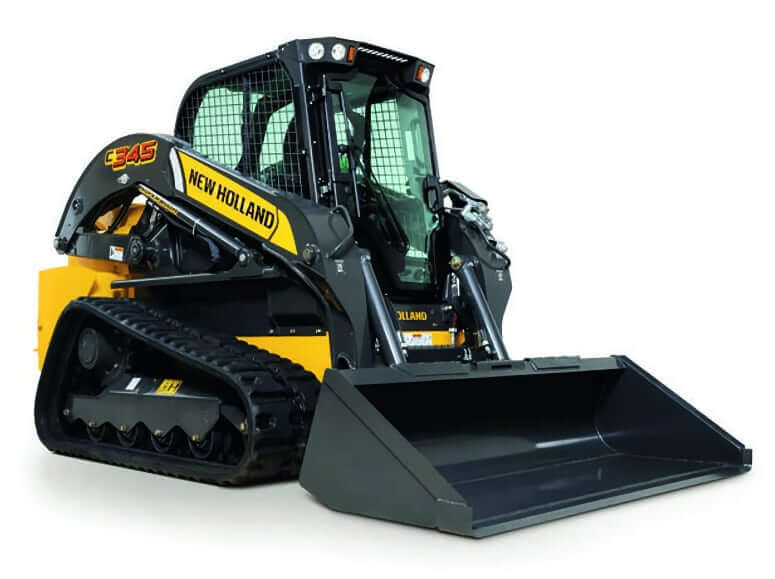

Loader Performance
| Tipping Load | 9000 lb (4091 kg) |
| Rated Operating Capacity, 50% | 4500 lb (2045 kg) |
| Rated Operating Capacity, 35% | 3150 lb (1432 kg) |
| Bucket Breakout Force | 9188 lbf (41.8 kN) |
| Boom Breakout Force | 7562 lbf (33.6 kN) |
| Standard Bucket Width | 78 in (1981 mm) |
| Lift Arm Path | Vertical |

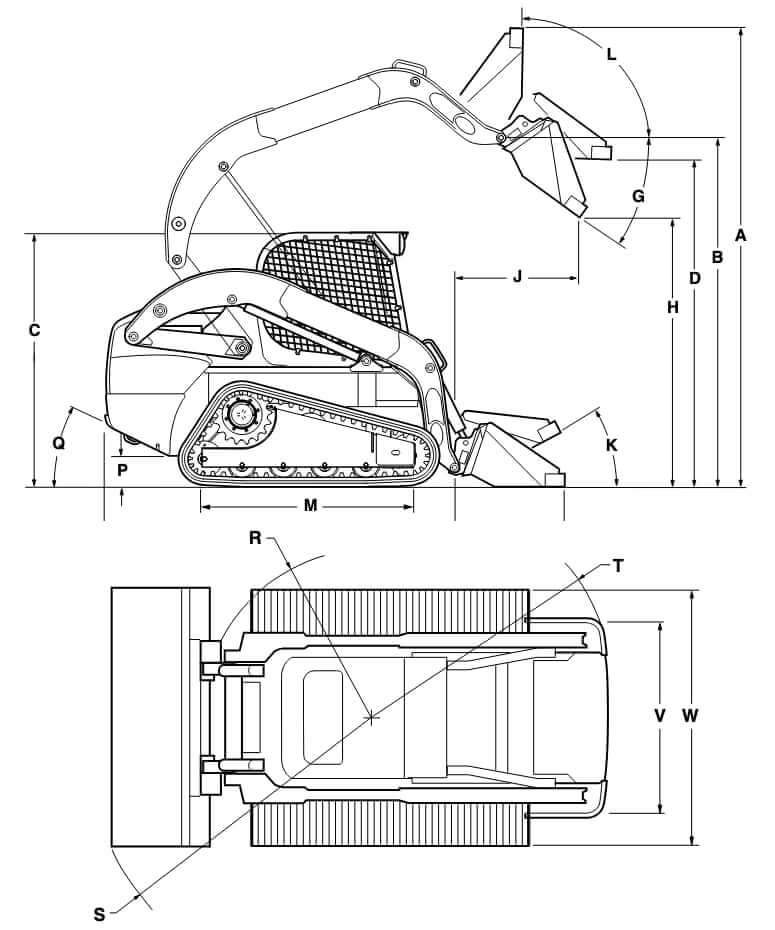

Dimensions
| A. Overall Operating Height w/ Foundry Bucket Short Lip | 161.4 in (4100 mm) |
| A. Overall Operating Height w/ Low Profile/Standard Lip Bucket | 165.6 in (4207 mm) |
| A. Overall Operating Height w/ Low Profile Extended/Long Lip Bucket | 170.4 in (4329 mm) |
| B. Bucket Hinge Pin Height | 131.6 in (3342 mm) |
| C. Height to Top of Cab w/ ROPS | 80.4 in (2043 mm) |
| D. Bottom of Level Bucket, Fully Raised | 123.2 in (3129 mm) |
| E. Overall Length w/o Attachment (w/ Coupler) | 120.2 in (3054 mm) |
| F. Overall Length w/ Foundry Excavation Bucket on Ground | 144.6 in (3673 mm) |
| F. Overall Length w/ Low Profile Bucket | 148.8 in (3781 mm) |
| F. Overall Length w/ Low Profile Extended Bucket | 153.7 in (3904 mm) |
| G. Dump Angle | 45.3° |
| H. Dump Height w/ Foundry/Excavating Bucket Short Lip @ 45° | 104.1 in (2645 mm) |
| H. Dump Height w/ Low Profile/Standard Lip Bucket @ 45° | 101.1 in (2568 mm) |
| J. Dump Reach (Max Height) @ 45° | 31.6 in (802 mm) |
| K. Rollback at Ground | 32° |
| L. Bucket at Full Height | 83.1° |
| M. Track on Ground | 64.5 in (1639 mm) |
| P. Ground Clearance (Bottom of Belly Pan) | 9.6 in (244 mm) |
| Q. Angle of Departure | 32° |
| R. Clearance Circle w/o Bucket | 57.7 in (1465 mm) |
| S. Clearance Circle w/ 78 in Foundry Bucket in Carry Position | 88 in (2234 mm) |
| S. Clearance Circle w/ 78 in Low Profile Bucket on Ground | 91.8 in (2331 mm) |
| S. Clearance Circle w/ 78 in Extended Low Profile on Ground | 96.2 in (2444 mm) |
| T. Clearance Circle Rear | 67.9 in (1725 mm) |
| V. Track Gauge | 58.6 in (1488 mm) |
| W. Overall Width | 76.5 in (1943 mm) |

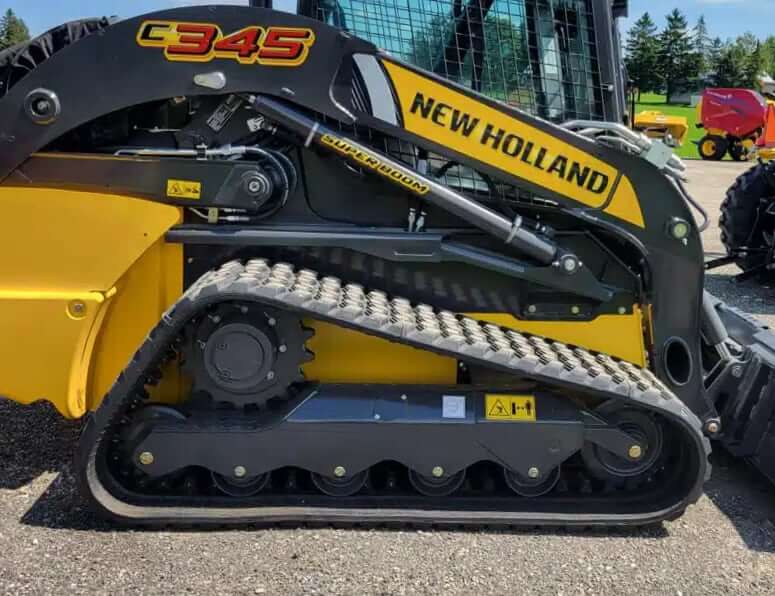

Undercarriage
| System | Zig Zag Pattern |
| Shoe Size (track belt) | 17.7 in (450 mm) |
| Number of Track Rollers (per side) | 4 |
| Number of Track Idlers (per side) | 2 |
| Ground Pressure | 4.4 psi (30.3 kPa) |
| Track Guage | 58.6 in (1488 mm) |
| Length of Track on Ground | 64.5 in (1639 mm) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | FPT Industrial |
| Engine Model | FPT F5B FL413E*B002* |
| Displacement | 207 cu in (3.38 L) |
| Bore | 3.9 in (99 mm) |
| Stroke | 4.3 in (110 mm) |
| Gross Power | 90 hp (67 kw) |
| Net Power | 84 hp (63 kw) |
| Power Measured @ | 2500 rpm |
| Peak Torque | 282 lb ft (383 Nm) |
| Torque Measured @ | 1400 rpm |
| Low Idle | 1150 rpm |
| High Idle | 2500 rpm |
| Fuel System | Direct Injection (HPCR) |
| Fuel Filter | Pre-filter 99.8% @ 30 microns. Main filter 95% @ 4 microns |
| Lubrication System | Forced by gear pump, pressure relief valve, oil filter |
| Aspiration | Turbocharged Aftercooled with external EGR and SCR |
| Emission Standards | US EPA Tier 4 Final + EU Stage IIIB |
Operational Specs

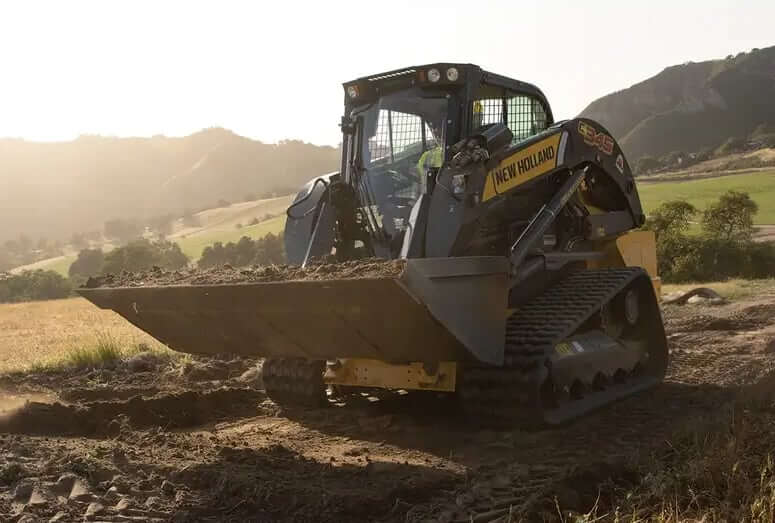

| Operating Weight | 10610 lb (4823 kg) |
| Shipping Weight (w/ bucket) | 10267 lb (4657 kg) |
| Operating Voltage | 12 V |
| Alternator | 100 amps |
| Battery | 12 V, CCA 1000 |
| Bucket Types | Heavy duty; foundry/excavating bucket short lip; low profile/standard lip bucket; low profile extended; manur and slurry bucket |
Power Train
| Type | Hydrostatic transmission |
| Max Travel Speed, Low | 5.5 mph (8.9 km/h) |
| Max Travel Speed, High | 8.0 mph (12.9 km/h) |
| Parking Brake | SAHR disc. Depress on/off brake button on instrument panel, disconnect lapbelt, get off seat, or stop engine |
| Final Drive | Planetary gearbox with 2-speed motor |
| Drive Pump Flow | 29.4 gal/min (111 L/min) |
| Drive System Relief | 5220 psi (36000 kPa) |
| Control | Mechanical or Electro hydraulic |

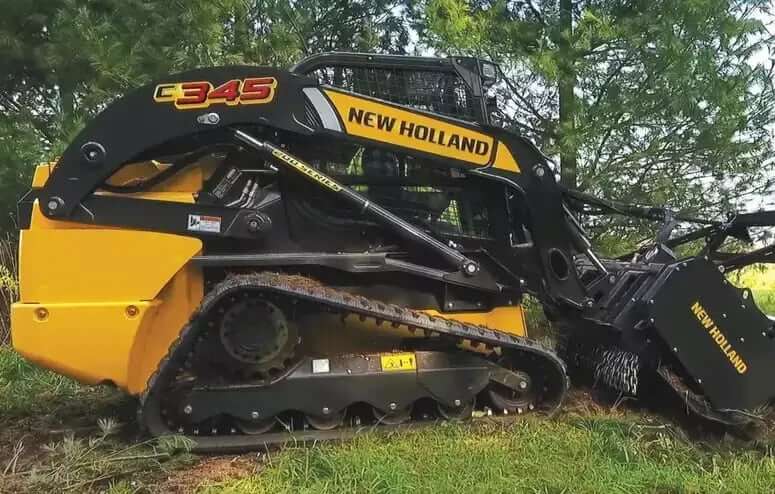

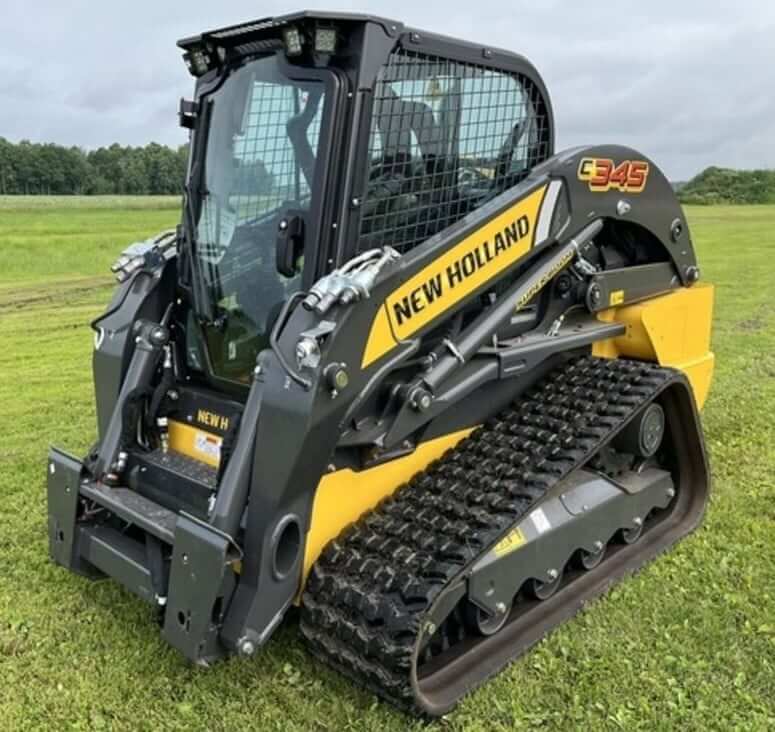

Hydraulic System
| Main Pump Type | Gear pump |
| Pump Flow Capacity | 24.2 gal/min (91.7 L/min) |
| Pump Flow Capacity (High Flow) | 39.9 gal/min (150.8 L/min) |
| Relief Valve Pressure | 3450 psi (23700 kPa) |
| Pump Flow Capacity (Enhanced High Flow) | 35 gal/min (132.5 L/min) |
| Relief Valve Pressure (Enhanced High Flow) | 4000 psi (27600 kPa) |
| Loader Control Valve Type | 3 spool / open center / series |
| Hydrauli Oil Filter | 6 microns / spin on |
Hydraulic Circle Time
| Raise Time | 5.1 sec |
| Lower Time | 3.5 sec |
| Dump Time | 2.7 sec |
| Roll Back Time | 2.0 sec |
Service Refill Capacities
| Fuel Tank Capacity | 25.5 gal (96.5 L) |
| DEF Tank Capacity | 2.8 gal (10.7 L) |
| Engine Oil Capacity (w/ filter) | 2.2 gal (8.5 L) |
| Cooling System Capacity | 3.4 gal (13 L) |
| Hydraulic System Capacity (w/ tank) | 12.7 gal (48 L) |
