Loader
| Rated Operating Capacity (35% Tipping Load) |
2490 lb (1129 kg) |
| Rated Operating Capacity (50% Tipping Load) |
3557 lb (1613 kg) |
| Tipping Load |
7112 lb (3226 kg) |
| Breakout Force (Bucket) |
6191 lbf (27.5 kN) |
| Breakout Force (Lift arm) |
4723 lbf (21.0 kN) |
| Bucket Width |
68 in (1727 mm) |
| Lift Arm Path |
Vertical |

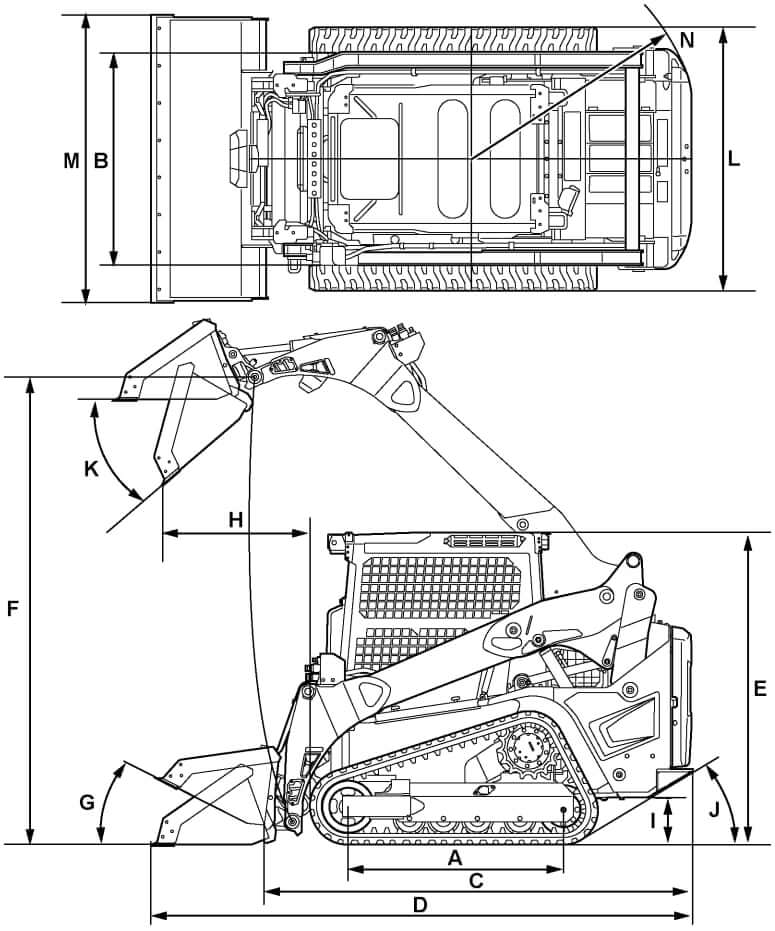

Dimensions
| A. Length of Track on Ground |
56.5 in (1436 mm) |
| B. Track Gauge |
53.3 in (1355 mm) |
| C. Length without Bucket |
112 in (2844 mm) |
| D. Length with Bucket on Ground |
142.1 in (3609 mm) |
| E. Height to Top of Cab |
81.8 in (2078 mm) |
| F. Bucket Hinge Pin Height at Max. Lift |
122.7 in (3117 mm) |
| G. Rollback Angle at Carry Position |
27° |
| H. Reach at Max. Lift and Dump |
39.6 in (1007 mm) |
| I. Ground Clearance |
11.7 in (296 mm) |
| J. Departure Angle |
31.1° |
| K. Max. Dump Angle |
38.5° |
| L. Vehicle Width (Standard Track) |
65.9 in (1675 mm) |
| L. Vehicle Width (Wide Track) |
69.1 in (1755 mm) |
| M. Width with Bucket |
68 in (1727 mm) |
| N. Turning Radius from Center – Machine Rear |
57.8 in (1468 mm) |
Engine Details
| Number of Cylinders |
4 |
| Engine Make |
Kubota |
| Engine Model |
Kubota V3307-TE5A |
| Displacement |
203.3 cu in (3.331 L) |
| Bore |
3.7 in (94 mm) |
| Stroke |
4.7 in (120 mm) |
| Gross Horsepower |
74.3 hp (55.4 kw) |
| Net Horsepower |
73.2 hp (54.6 kw) |
| Power Measured @ |
2400 rpm |
| Low Idling Speed |
1150 rpm |
| Peak Torque |
195.5 lb ft (265 Nm) |
| Torque Measured @ |
1500 rpm |
| Combustion System |
Direct injection |
| Fuel System |
Common rail system |
| Aspiration |
Turbocharged |
| Aftertreatment |
DOC + DPF |
| Emission Standards |
US EPA/CARB Tier 4 + EU Stage V |
Powertrain
| Type |
Hydrostatic transmission with auto-shift system |
| Number of Gears |
Two-speed travel, Electronic Travel Torque Management |
| Max Travel Speed (Low) |
5.6 mph (9.0 km/h) |
| Max Travel Speed (High) |
8.6 mph (13.7 km/h) |
| Traction Force |
9678 lbf (43.1 kN) |

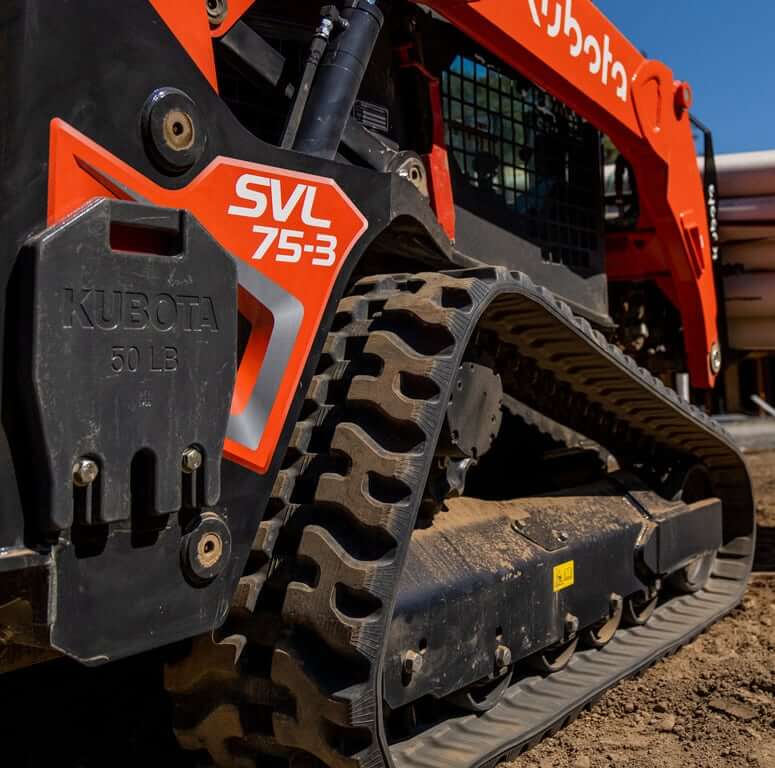

Undercarriage
| Length of Track on Ground |
56.5 in (1436 mm) |
| Track Width (Standard) |
12.6 in (320 mm) |
| Track Width (Wide) |
15.8 in (400 mm) |
| Ground Pressure, 320 mm tracks (Open Cab / Closed Cab) |
5.8 psi (40.0 kPa)
5.9 psi (40.7 kPa) |
| Ground Pressure, 400 mm tracks (Open Cab / Closed Cab) |
4.7 psi (32.4 kPa)
4.8 psi (33.1 kPa) |
| Track Frame |
The undercarriage forms an integral part of the main frame |
| Track Roller Type |
Triple Flange Lower Track Rollers |
| Number of Track Rollers (per side) |
4 |
| Departure Angle |
31.1° |
Operational Specs
| Operating Weight (Open Cab) |
9190 lb (4169 kg) |
| Operating Weight (Closed Cab) |
9420 lb (4273 kg） |
| ROC (50% Tipping Load) |
3557 lb (1613 kg) |
| Additional Counterweight (2x) |
50 lb (22.7 kg) |
| Operating Voltage |
12 V |
| Alternator |
80 amps |
| Battery |
12 V, 80 Ah, RC: 160 min, CCA 900, Group Size: 31 |
Cab
| Open Cab (Standard) |
ISO 3471, ISO 3449, and OSHA |
| Closed Cab (Optional) |
One-Piece Sealed and Pressurized Cab (w/ air conditioning) |
| Multi-function Levers |
The multi-function levers provide fingertip control of all major vehicle and attachment operations. Standard on High-flow models, these levers can also be installed as a kit on Standard flow models. |
| Operator Seat |
The standard suspension seat. (Air Suspension seat is optional) |
| Seat Belt |
2 in (50.8 mm) Retractable seat belt |
| Working Lights |
2x LED Front + 2 LED Rear working lights |
| Display |
LCD touch panel with jog dial |
| Rear View Camera |
Standard |

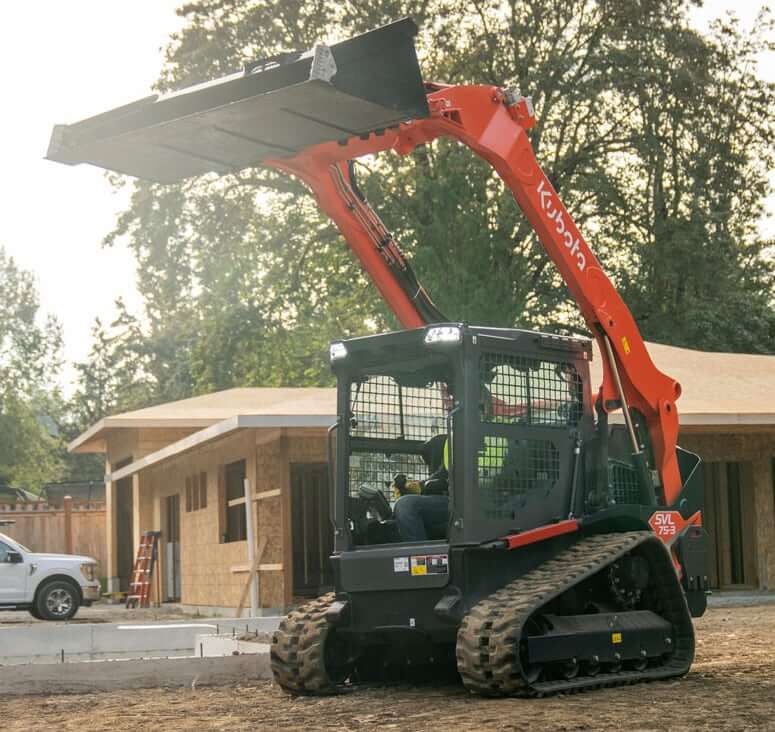

Hydraulic System
| Type |
Standard hydraulics / High Flow hydraulics (optional) |
| Standard Pump Flow |
19.2 gal/min (72.7 L/min) |
| High Flow Pump Flow |
29.8 gal/min (112.8 L/min) |
| Standard Relief Valve Pressure |
3185 psi (21960 kPa) |
| Coupler Manifold |
1/2″ and 3/4″ couplers |

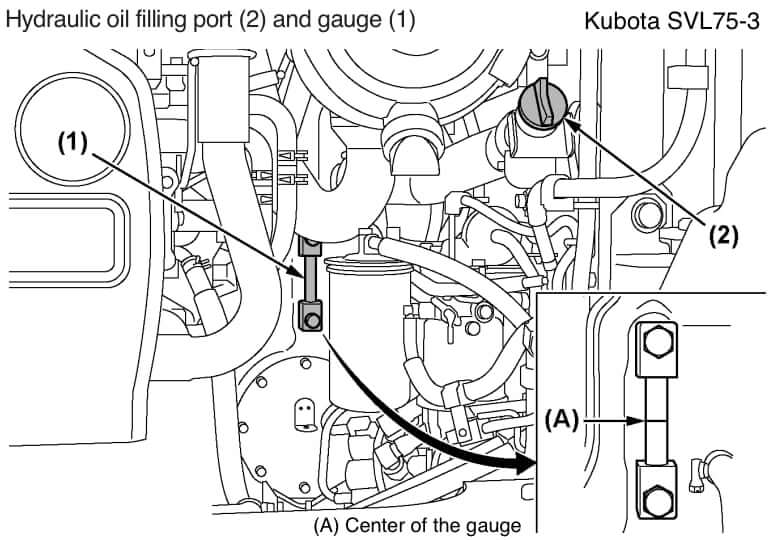

| Hydraulic Oil Fill Location |
The Kubota SVL75-3 hydraulic oil filling port is located inside the engine compartment (you need to open the rear door, unlike the previous SVL75-2 model) on the right side under the air filter. |
| Kubota SVL75-3 Sight Glass (Gauge) |
The Kubota SVL75-3 hydraulic oil sight glass is located inside the engine compartment under the air filter (you have to bend down and look under the air cleaner) |

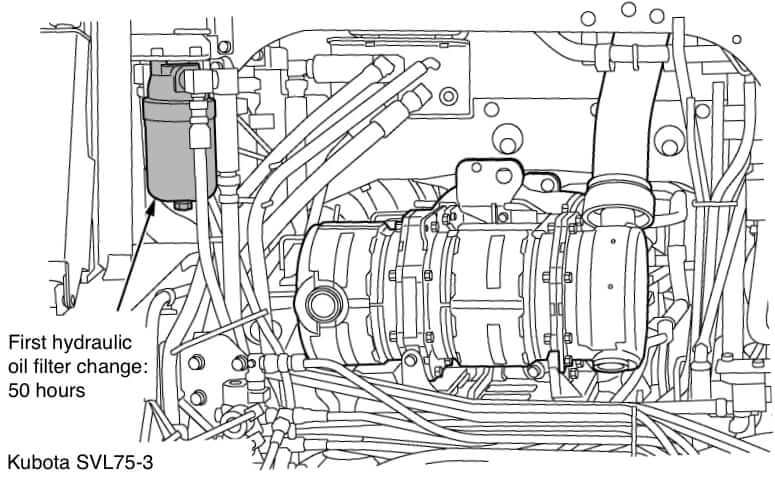

Hydraulic Oil Filter Location
Replacing the hydraulic oil filter (First change of the hydraulic oil filter is 50 service hours). Raise the cab. Remove the hydraulic oil filter with the wrench and replace with the new one. Oil the O-ring of the new hydraulic filter cartridge lightly. Then tighten the hydraulic filter cartridge.

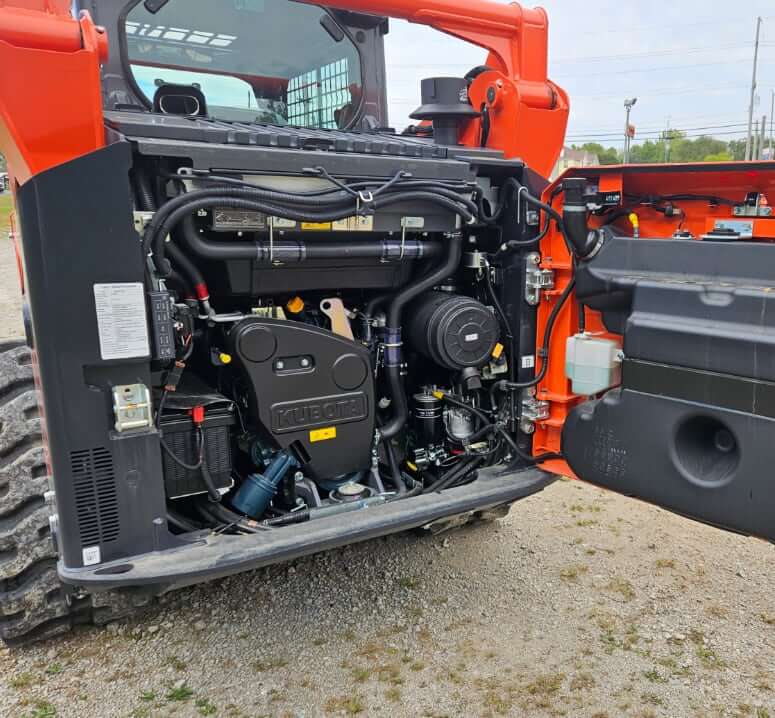

Service Refill Capacities
| Fuel Tank Capacity |
25.1 gal (95 L) |
| Engine Oil Capacity (w/ filter) |
2.4 gal (9 L) |
| Cooling System Capacity (Open Cab) |
2.4 gal (9 L) |
| Cooling System Capacity (Closed Cab) |
2.6 gal (10 L) |
| Coolant Recovery Tank |
0.3 gal (1 L) |
| Hydraulic System Fluid Capacity |
12.2 gal (46 L) |
| Hydraulic Tank Capacity |
4.3 gal (16.1 L) |
| Travel Motor Gear Oil Capacity (each) |
0.3 gal (1 L) |

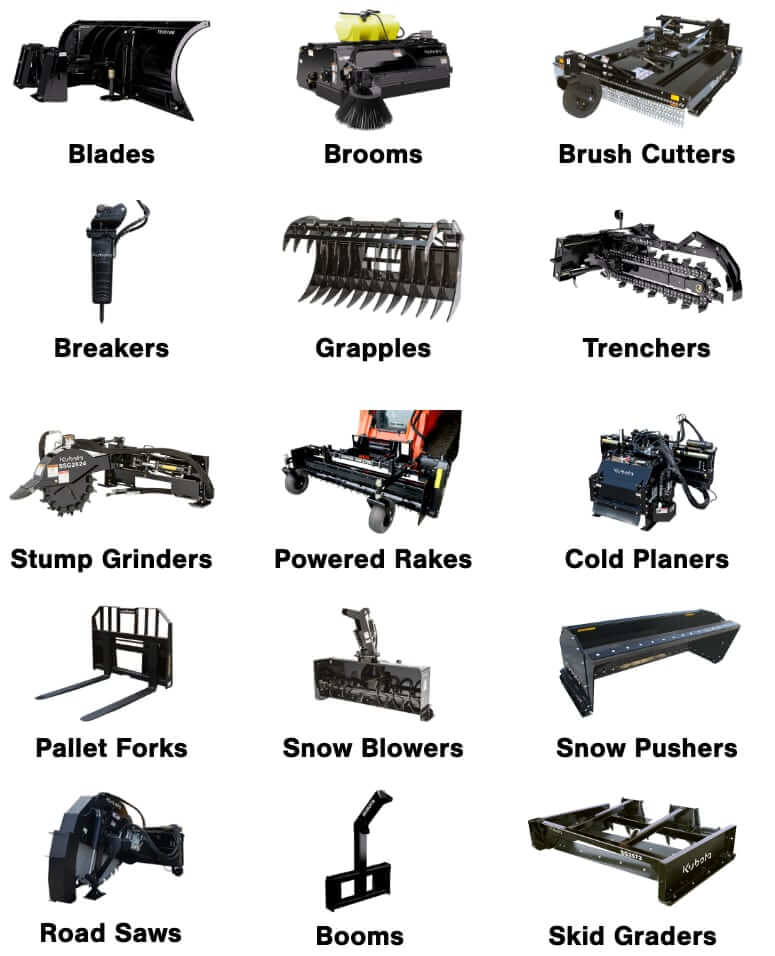

Kubota SVL75-3 Attachments
With enhanced hydraulic power and precise control, the SVL75-3 can be equipped with a full lineup of high-performance attachments including cold planers, blades, brooms, brush cutters, booms, and hydraulic breakers to tackle demanding demolition and material handling jobs.
It’s equally suited for specialized work with grapples, trenchers, skid graders, stump grinders, and powered rakes, while its compatibility with road saws, pallet forks, snow blowers, and snow pushers ensures year-round utility.
SC25 Series Cutters
| Specification |
SC2560 |
SC2572 |
| Cutter Weight (w/o skid shoes, gauge wheel, & protective door) |
871 lb (395 kg) |
1098 lb (498 kg) |
| Gauge Wheel Weight (Optional) |
129 lb (59 kg) |
| Cutting Width |
60 in (1520 mm) |
72 in (1830 mm) |
| Overall Width |
65.5 in (1660 mm) |
78 in (1980 mm) |
| Overall Length |
73 in (1850 mm) |
91 in (2310 mm) |
| Cutting Capacity |
2 in (51 mm) Diameter |
| Low Volume Drive Flow |
11 – 20 gal/min (41.6 – 75.7 L/min) |
| Medium Volume Drive Flow |
21 – 25 gal/min (79.5 – 94.6 L/min) |
| High Volume Drive Flow |
26 – 30 gal/min (98.4 – 113.6 L/min) |
| Deck Thickness |
10 gauge (3.4 mm) |
| Side Skirt Construction |
1/4 in (6 mm) |
| Skid Shoes Construction (Optional) |
Standard-duty: 1/2 x 2 in (60 x 51 mm) steel
Heavy-duty: 3/8 x 3 in (10 x 76 mm) steel |
| Blade Carrier |
Heavy-duty round pan stump jumper |
| Blade Size |
1/2 x 4 in (13 x 102 mm) updraft |
| Blade Tip Speed (11–20 gal/min @ 20 gal/min) |
14100 fpm (71.6 mps) |
14000 fpm (71.1 mps) |
| Blade Tip Speed (21–25 gal/min @ 25 gal/min) |
14000 fpm (71.1 mps) |
13800 fpm (70.1 mps) |
| Blade Tip Speed (26–30 gal/min @ 30 gal/min) |
13000 fpm (66.0 mps) |
13000 fpm (66.0 mps) |
| Deck Lift Height Protection |
Safe chain limiter |
SC40 Series Cutters
| Specification |
SC4060 |
SC4072 |
| Cutter Weight (with skid shoes, without front roller wheels) |
1324 lb (600.6 kg) |
1634 lb (741.2 kg) |
| Cutting Width |
61.5 in (1560 mm) |
73.5 in (1870 mm) |
| Overall Width |
72 in (1830 mm) |
84.5 in (2150 mm) |
| Overall Length |
78 in (1980 mm) |
89 in (2260 mm) |
| Cutting Capacity |
4 in (102 mm) Diameter |
| Drive Motor – Standard Flow |
15 – 26 gal/min (56.8 – 94.6 L/min) |
| Drive Motor – High Volume |
27 – 43 gal/min (98.4 – 162.8 L/min) |
| Deck Thickness |
1/4 in (6 mm) |
| Side Skirt Construction |
1/4 in (6 mm) |
| Blade Carrier |
Heavy-duty round 5/8 in (16 mm) plate |
| Deck Wear Protection |
Four corner-mounted skid shoes and two mid skid shoes |
| Blade Size |
1/2 x 5 in (13 x 127 mm), bi-directional |
| Skid Shoes Construction |
3/8 in (10 mm) Plate |
| Blade Tip Speed (15–26 gal/min @ 26 gal/min) |
14455 fpm (73.4 mps) |
17345 fpm (88 mps) |
| Blade Tip Speed (27–43 gal/min @ 43 gal/min) |
15440 fpm (78.4 mps) |
18527 fpm (94.1 mps) |
| Deck Lift Height Protection |
Height adjustment safety chain |
SC60 Series Cutter
| Specification |
SC6072 |
| Cutter Weight (with skid shoes) |
1980 lb (900 kg) |
| Cutting Width |
72 in (1800 mm) |
| Overall Width |
84 in (2100 mm) |
| Overall Length |
92 in (2300 mm) |
| Cutting Capacity |
6 in (150 mm) Diameter |
| Drive Motor Flow |
18 – 31 gal/min (68 – 117 L/min) |
| Deck Thickness |
1/4 in (6 mm) |
| Side Skirt Construction |
1/4 in (6 mm) |
| Blade Carrier |
Round 3/4 in (19 mm) Plate |
| Blade Size |
1/2 in (12.7 mm) |
| Blade Tip Speed |
12900 fpm (66 mps) @ 31 gal/min (117 L/min) |
| Skid Shoes Construction |
1/4 in (6 mm) Plate |
| Deck Wear Protection |
Four corner-mounted skid shoes |
| Deck Lift Height Protection |
Height limiting safety chain |
Augers (SA20, SA35)
| Specs |
SA20 |
SA35 |
| Required Hydraulic Flow |
10 – 20 gal/min @ 1500 – 3500 psi (37.9 – 75.7 L/min @ 10.3 – 24.1 MPa) |
10 – 30 gal/min @ 1500 – 3500 psi (37.9 – 113.6 L/min @ 10.3 – 24.1 MPa) |
| Required Hydraulic High Flow |
15 – 30 gal/min @ 1500 – 3500 psi (56.8 – 113.6 L/min @ 10.3 – 24.1 MPa) |
15 – 30 gal/min @ 1500 – 3500 psi (56.8 – 113.6 L/min @ 10.3 – 24.1 MPa) |
| Base Weight w/o Options |
284 lb (128.8 kg) |
372 lb (168.7 kg) |
| Auger Flighting Thickness |
5/16 in (8 mm) |
5/16 in (8 mm) |
| Auger Teeth |
Forged, individually replaceable – 40° angle on flat side, 50° angle on angled side |
Trenchers (TR48 and TR60)
| Specification |
TR48 |
TR60 |
| Weight w/ 2 Pitch Cup Chain & Hydraulic Side Shift |
1236 lb (560.6 kg) |
1300 lb (589.7 kg) |
| Overall Length |
90.5 in (2300 mm) |
102.5 in (2600 mm) |
| Standard Boom Length |
65.5 in (1660 mm) |
77.5 in (1970 mm) |
| Digging Depth at 60° |
48 in (1220 mm) |
60 in (1520 mm) |
| Overall Width |
64 in (1630 mm) |
| Auger Diameter |
15.5 in (394 mm) |
| Side Shift Options |
22 in (559 mm) to right of center |
| Side Shift Travel |
22 in (559 mm) |
| Trenching Widths Available |
6″, 8″, 10″ (152, 203, 254 mm) |
| Hydraulic Motor Flow (Low) |
12 – 24 gal/min (45.4 – 90.8 L/min) |
| Hydraulic Motor Flow (High) |
24 – 40 gal/min (90.8 – 151.4 L/min) |
| Chain Speed (Low Flow) |
227 – 366 fpm (69 – 112 m/min) |
221 – 373 fpm (67 – 114 m/min) |
| Motor Case Drain |
Standard |
| Motor Reversible |
Yes |
| Chain Tightener |
Grease cylinder |
| Crumber Shoe |
Floating |
| Patented Depth Indicator |
Standard (Viewable from operator seat) |
| Roller Guide Bearings at Boom Head |
Ball bearings with triple-lip seals & metal shroud |
| Drive Bearings Between Motor & Drive Sprocket |
Heavy-duty sealed single & double row bearings |
| Chain Options |
Cup teeth (2 or 4 pitch), scorpion or alligator w/ cup teeth |
| Frame Construction |
5/16 in (8 mm) thick w/ 3/4 in (19 mm) reinforced bar |
| Trencher Chain |
2.0 in (51 mm) pitch |
| Tensile Strength Anti-flex |
50000 lb (22680 kg) |
SBL25 Series Snow Blowers
| Specification |
SBL2566 |
SBL2574 |
SBL2584 |
| Working Width |
66 in (1680 mm) |
74 in (1880 mm) |
84 in (2130 mm) |
| Overall Width |
71.5 in (1820 mm) |
79.5 in (2020 mm) |
89.5 in (2270 mm) |
| Weight (w/ skid shoes, motor, etc.) |
816 lb (370 kg) |
938 lb (426 kg) |
988 lb (448 kg) |
| Low Volume Motor Flow |
12 – 19 gal/min (45.4 – 71.9 L/min) |
| Medium Volume Motor Flow |
20 – 26 gal/min (75.7 – 98.4 L/min) |
| High Volume Motor Flow |
27 – 33 gal/min (102.2 – 124.9 L/min) |
| Hydraulic Pressure Rating |
2500 – 3500 psi (17.2 – 24.1 MPa) |
| Main Housing Material |
10 gauge (3.4 mm) |
| Side Plate Material |
3/16 in (5 mm) |
| Chute Opening at Base |
10 in (254 mm) |
12 in (305 mm) |
| Impeller Housing Depth |
8 in (203 mm) |
10 in (254 mm) |
| Impeller Diameter |
24 in (610 mm) |
| Number of Impeller Blades |
4 |
| Auger Diameter |
16 in (406 mm) |
| Number of Auger Paddles |
4 |
| Cutting Edge |
Bolt-on, reversible & replaceable full-length cutting edge |
| Skid Shoes |
Bolt-on, adjustable & replaceable |
| Chute Rotation |
220° (Hydraulically driven sprocket) |
| Spout Deflector |
Hydraulic operation |
SBL30 Series Snow Blowers
| Spec |
SBL3074 |
SBL3084 |
| Required Hydraulic Low Flow |
17 – 23 gal/min (64.3 – 87.1 L/min) |
17 – 23 gal/min (64.3 – 87.1 L/min) |
| Required Hydraulic High Flow |
27 – 33 gal/min (102.2 – 124.9 L/min) |
27 – 33 gal/min (102.2 – 124.9 L/min) |
| Max. Operating Pressure |
3500 psi (24130 kPa) |
3500 psi (24130 kPa) |
| Operating Weight |
737 lb (334 kg) |
791 lb (359 kg) |
| Working Width |
74 in (1880 mm) |
84 in (2134 mm) |
| Overall Height (Chute Closed) |
69 in (1753 mm) |
| Overall Length |
38.3 in (972 mm) |
| Impeller Diameter |
26.4 in (670 mm) |
| Impeller Width |
7 in (178 mm) |
| Number of Impeller Blades |
5 |
| Auger Type |
Single |
| Auger Diameter |
16 in (406 mm) |
| Housing Thickness |
10 gauge (3.4 mm) |
| Side Panel Thickness |
1/4 in (6.35 mm) |
| Chute Rotation |
270°, Hydraulically driven sprocket |
| Deflector Adjustment |
Foldable Chute. Hydraulic operation |
| Cutting Edge Material |
Steel or Poly |
K (HB) Series Snow Blowers
| Spec |
K66247HB |
K76249HB |
| Required Hydraulic Flow |
12 – 18 gal/min (45 – 68 L/min) |
18 – 23 gal/min (68 – 87 L/min) |
| Max. Operating Pressure |
3271 psi (22.6 Mpa) |
3000 psi (20.7 MPa) |
| Operating Weight |
767 lb (348 kg) |
767 lb (348 kg) |
| Working Width |
66 in (1676 mm) |
75.9 in (1927 mm) |
| Working Height |
27 in (686 mm) |
27.5 in (699 mm) |
| Overall Height (Chute Closed) |
52 in (1321 mm) |
58.9 in (1496 mm) |
| Overall Length |
39 in (991 mm) |
35.3 in (895 mm) |
| Impeller Diameter |
24 in (610 mm) |
24 in (610 mm) |
| Impeller Width |
7 in (178 mm) |
9 in (229 mm) |
| Number of Impeller Blades |
4 |
| Auger Type |
Single |
| Auger Diameter |
15 in (381 mm) |
| Housing Thickness |
11 Gauge (3 mm) |
| Side Panel Thickness |
3/16 in (4.8 mm) |
| Impeller Housing Thickness |
3/16 in (4.8 mm) High Strength Steel |
| Chute Rotation |
Hydraulic Motor |
| Deflector Adjustment |
3 Piece Chute, Hydraulic |
| Cutting Edge Material |
Carbon Steel |
| Cutting Edge |
3/8 x 2 in (9.5 x 50.8 mm) |
| Skid Shoes (Adjustable) |
Yes, 6 positions |
| Skid Shoe Material |
Carbon Steel |
K (HH) Series Snow Blowers
| Spec |
K76249HH |
K842611HH |
| Required Hydraulic Flow |
27 – 40 gal/min (102 – 151 L/min) |
27 – 40 gal/min (102 – 151 L/min) |
| Max. Operating Pressure |
3600 psi (24.8 MPa) |
3600 psi (24.8 MPa) |
| Operating Weight |
1160 lb (526 kg) |
1644 lb (746 kg) |
| Working Width |
75.9 in (1927 mm) |
84.5 in (2146 mm) |
| Working Height |
27.5 in (699 mm) |
31.8 in (806 mm) |
| Overall Height (Chute Closed) |
58.9 in (1496 mm) |
61.3 in (1556 mm) |
| Overall Length |
35.3 in (895 mm) |
46.9 in (1191 mm) |
| Impeller Diameter |
24 in (610 mm) |
26 in (660 mm) |
| Impeller Width |
9 in (229 mm) |
11 in (279 mm) |
| Number of Impeller Blades |
4 |
| Auger Type |
Single |
| Auger Diameter |
14.8 in (375 mm) |
20 in (508 mm) |
| Housing Thickness |
11 Gauge (3 mm) |
| Side Panel Thickness |
3/16 in (4.8 mm) |
| Impeller Housing Thickness |
3/16 in (4.8 mm) High Strength Steel |
| Chute Rotation |
Hydraulic Motor |
| Deflector Adjustment |
3 Piece Chute, Hydraulic |
| Cutting Edge Material |
Carbon Steel |
| Cutting Edge |
1/2 x 3 in (12.7 x 76.2 mm) |
| Skid Shoes (Adjustable) |
Yes, 7 positions |
| Skid Shoe Material |
Carbon Steel |
Hydraulic Breakers
| Breakers |
BR310 |
BR360 |
BR460 |
| Frequency Range |
1300 – 2500 bpm |
1200 – 2600 bpm |
1000 – 2000 bpm |
| Operating Weight |
165 lb (75 kg) |
247 lb (112 kg) |
350 lb (160 kg) |
| Oil Flow Range |
3.9 – 8.7 gal/min (15 – 33 L/min) |
5.3–12.7 gal/min (20 – 48 L/min) |
7.9–16.6 gal/min (30 – 63 L/min) |
| Operating Pressure |
1450 – 1740 psi (10000 – 12000 kPa) |
1740–2030 psi (12000 – 14000 kPa) |
1740–2030 psi (12000 – 14000 kPa) |
| Pressure Relief Setting Min |
2170 – 2460 psi (15000 – 17000 kPa) |
2460–2760 psi (17000 – 19000 kPa) |
2460–2760 psi (17000 – 19000 kPa) |
| Pressure Relief Setting Max |
— |
3190 psi (22000 kPa) |
3190 psi (22000 kPa) |
| Tool Shank Diameter |
1.42 in (36 mm) |
1.65 in (42 mm) |
1.97 in (50 mm) |
| Breakers |
BR510 |
BR560 |
BR860 |
| Frequency Range |
600 – 1800 bpm |
500 – 1700 bpm |
500 – 1700 bpm |
| Operating Weight |
610 lb (275 kg) |
820 lb (370 kg) |
1110 lb (505 kg) |
| Oil Flow Range |
9.2 – 23.8 gal/min (35 – 90 L/min) |
10.5 – 31.7 gal/min (40 – 120 L/min) |
13.2 – 39.6 gal/min (50 – 150 L/min) |
| Operating Pressure |
1300 – 2030 psi (9000 – 14000 kPa) |
1300 – 2030 psi (9000 – 14000 kPa) |
1450 0 2030 psi (10000 – 14000 kPa) |
| Pressure Relief Setting Min |
2030 – 2900 psi (14000 – 20000 kPa) |
2030 – 2760 psi (14000 – 19000 kPa) |
2180 – 2760 psi (15000 – 19000 kPa) |
| Pressure Relief Setting Max |
3190 psi (22000 kPa) |
| Tool Shank Diameter |
2.83 in (72 mm) |
3.15 in (80 mm) |
3.54 in (90 mm) |
