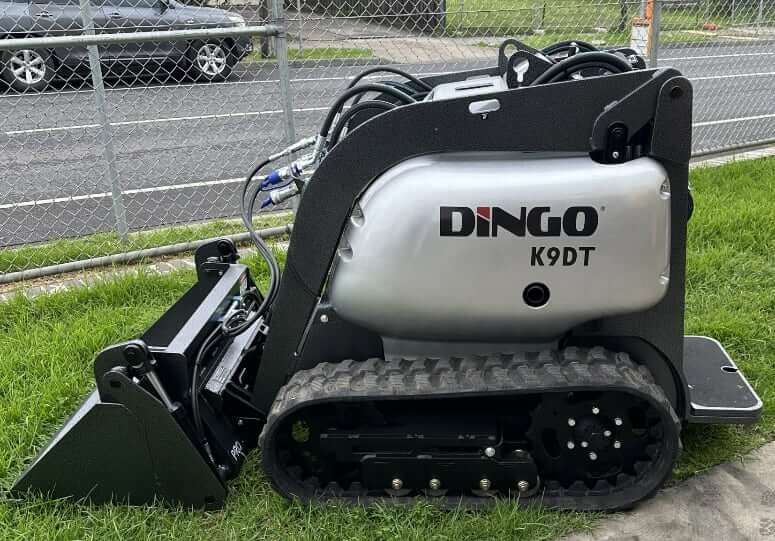

Dimensions
| Overall Length (w/o Attachments) | 63 in (1600 mm) |
| Overall Height (w/o Attachments) | 47 in (1200 mm) |
| Overall Width (w/o Attachments) | 40.2 in (1020 mm) |
| Machine width with 4 in 1 Bucket | 41.3 in / 47.2 in (1050 mm / 1200 mm) |
| Wheelbase | 31 in (800 mm) |
| Ground Clearance | 6.1 in (155 mm) |
| Angle of Departure | 25° |
| Turning Radius with 4 in 1 Bucket | 51 in (1300 mm) |
Loader Working Range
| Safe Lifting Capacity | 716.5 lb (325 kg) |
| Max Lifting Capacity | 1433 lb (650 kg) |
| Bucket Capacity | 0.2 yd3 (0.15 m3) |
| Bucket Width, GP | 41.3 in / 47.2 in (1050 mm / 1200 mm) |
| Bucket Width, 4 in 1 | 41.3 in / 47.2 in (1050 mm / 1200 mm) |
| Maximum Operating Height, 4 in 1 Bucket | in (2680 mm) |
| Reach Fully Raised GP Bucket | 31 in (800 mm) |
| Dump Height with GP Bucket | 57 in (1450 mm) |
| Dump Height with 4 in 1 Bucket | 72 in (1835 mm) |
| Height to Hinge Pin | 76 in (1940 mm) |
Operational Specs
| Operating Weight | 2410 lb (1093 kg) |
| Safe Lifting Capacity | 716.5 lb (325 kg) |
| Max Lifting Capacity | 1433 lb (650 kg) |
| Drive Type | 2 OEM manufactured hydraulic drive motors |
| Max Travel Speed | 4.7 mph (7.5 km/h) |
| Operating Voltage | 12 V |
| Alternator | 40 amps |
| Battery | 12 V, 36 Ah |
| Starter | 1.5 hp (1.1 kw), 12 V |
Engine Details
| Number Of Cylinders | 3 |
| Engine Make | Yanmar |
| Engine Model | Yanmar 3TNV76 CPE |
| Displacement | 68 cu in (1.115 L) |
| Bore | 3 in (76 mm) |
| Stroke | 3.2 in (82 mm) |
| Gross Power | 27.1 hp (20.2 kw) |
| Power Measured @ | 3600 rpm |
| Peak Torque | 47.9 lb ft (65 Nm) |
| Torque Measured @ | 2000 rpm |
| Cooling System | Liquid-cooled |
| Lubrication System | Forcible lubrication by trochoid pump |
| Aspiration | Naturally aspirated |
| Emission Standards | US EPA Tier 4 final + EU Stage V |

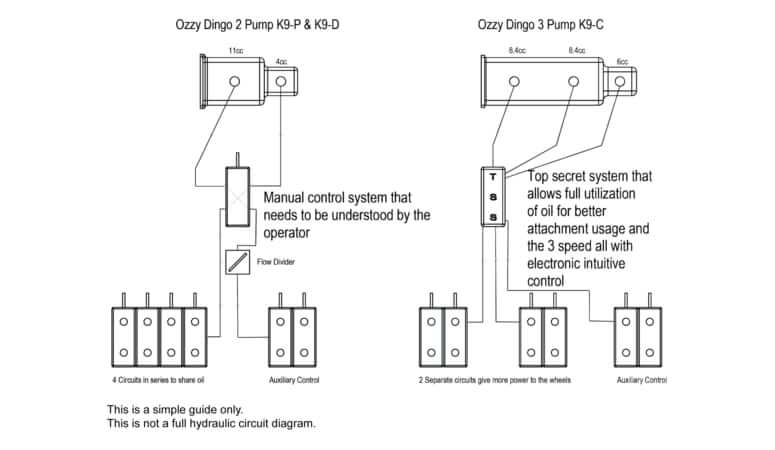

Hydraulic System
| Pump Type | Two gear pumps |
| Pump Sizes | 0.67 cu in + 0.24 cu in (11 cc + 4 cc) |
| Total Pump Flow | 12.6 gal/min (47 L/min) |
| Relief Valve Pressure | 3200 psi (22000 kPa) |
| Auxiliary Hydraulics | High flow auxiliary hydraulics for powering attachments through the toughest conditions |
Service Refill Capacities
| Fuel Tank Capacity | 6.3 gal (24 L) |
| Hydraulic System Capacity | 20 gal (76 L) |
| Engine Oil Capacity w/ Filter | 0.9 gal (3.4 L) |
| Coolant Capacity | 0.2 gal (0.9 L) |
