Loader Performance
| CAT 247 | 66 in (1676 mm) GP Bucket | 78 in (1981 mm) GP Bucket |
|---|---|---|
| Tipping Load | 3865 lb (1753 kg) | 3865 lb (1753 kg) |
| Rated Operating Capacity, 50% Tipping Load | 1933 lb (877 kg) | 1906 lb (865 kg) |
| Rated Operating Capacity, 35% Tipping Load | 1351 lb (613 kg) | 1333 lb (605 kg) |
| Breakout Force – Tilt Cylinder | 3536 lbf (15.73 kN) | 3536 lbf (15.73 kN) |
| Breakout Force – Lift Cylinder | 3011 lbf (13.39 kN) | 3011 lbf (13.39 kN) |
| Bucket Capacity | 0.44 yd3 (0.40 m3) | 0.53 yd3 (0.48 m3) |

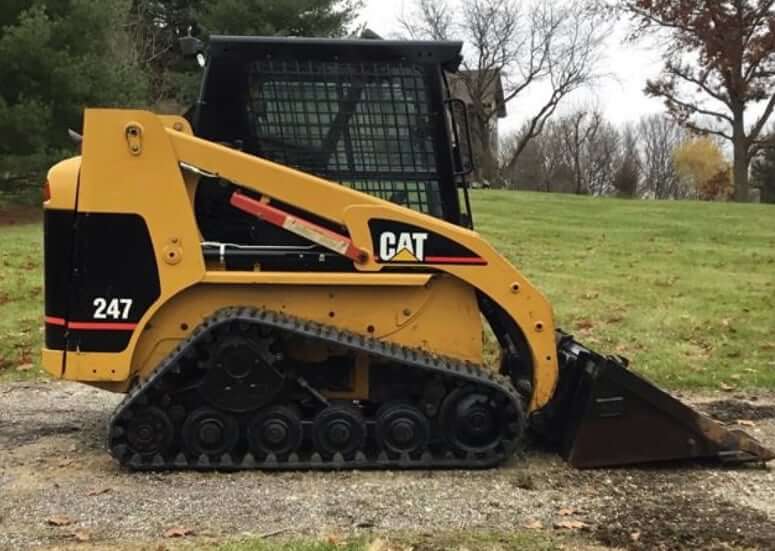

Dimensions
| Length w/ Bucket | 129 in (3285 mm) |
| Length w/o Bucket | 99 in (2518 mm) |
| Width Over Tracks | 66 in (1676 mm) |
| Height to Top of Cab | 78 in (1990 mm) |
| Max Overall Height | 150 in (3799 mm) |
| Hinge Pin Height at Max Lift | 112 in (2862 mm) |
| Ground Clearance | 10.5 in (267 mm) |
| Clearance at Max Lift and Dump | 84 in (2134 mm) |
| Reach at Max Lift and Dump | 25 in (625 mm) |
| Turning Radius from Center (full) | 85 in (2157 mm) |

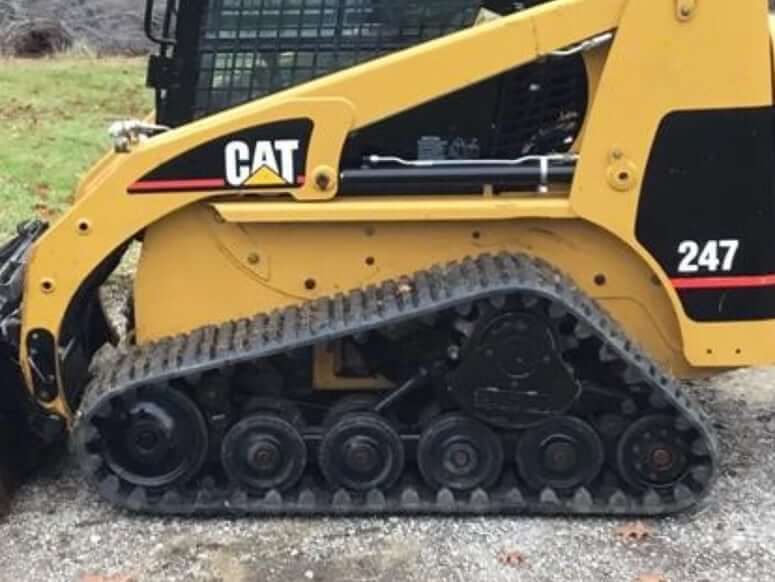

Undercarriage
| Length of Track on Ground | 59 in (1499 mm) |
| Track Width | 15 in (381 mm) |
| Ground Contact Area | 1770 in2 (1.14 m2) |
| Ground Pressure | 3.8 psi (26 kPa) |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Caterpillar |
| Engine Model | CAT 3034 |
| Displacement | 183 cu in (3 L) |
| Bore | 3.82 in (97 mm) |
| Stroke | 3.94 in (100 mm) |
| Gross Power | 58 hp (43 kw) |
| Net Power | 54 hp (40.3 kw) |
| Power Measured @ | 2600 rpm |
| Combustion System | Direct Injection |
| Compression Ratio | 17.5:1 |
| Aspiration | Naturally aspirated |
| Emission Standards | US EPA Tier 1 |
Operational Specs
| Operating Weight | 6665 lb (3023 kg) |
| Operating Voltage | 12 V |
| Alternator | 85 amps |
| Battery | 12 V, CCA 950 |
| Working Lights | 2x Rear Tail Lights + 2x Adjustable Front Halogen Lights |
| Cab | ROPS/FOPS cab |
Powertrain
| Type | Hydrostatic transmission |
| Max Forward Speed | 7.5 mph (12.1 km/h) |
| Max Reverse Speed | 7.5 mph (12.1 km/h) |
| Parking Brake | The parking brake is spring-applied and hydraulically released |
| Torsion Axles | The heavy-duty torsion axles suspend each side of the undercarriage from the machine frame |
Hydraulic System
| Type | Closed-loop |
| Pump Type | Axial piston hydrostatic pumps are driven directly off the engine |
| Pump Flow | 14.4 gal/min (54.3 L/min) |
| Max Pressure | 3335 psi (23000 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 17 gal (65 L) |
| Engine Oil Capacity | 1.8 gal (7 L) |
| Cooling System Capacity | 2.6 gal (10 L) |
| Hydraulic Tank Capacity | 9.2 gal (35 L) |
| Hydraulic System Capacity | 14.5 gal (55 L) |
