Loader
| Tipping Capacity | 1325 lb (601 kg) |
| Operating Capacity (35% of tipping load) | 464 lb (210 kg) |
| Operating Capacity (50% of tipping load) | 663 lb (301 kg) |
| Overall Operating Height (Fully Raised) | 92 in (2337 mm) |
| Hinge Pin Height (Fully Raised) | 70 in (1765 mm) |
| Max Dump Height | 54 in (1372 mm) |
| Reach | 28 in (711 mm) |
| Dump Angle | 34° |

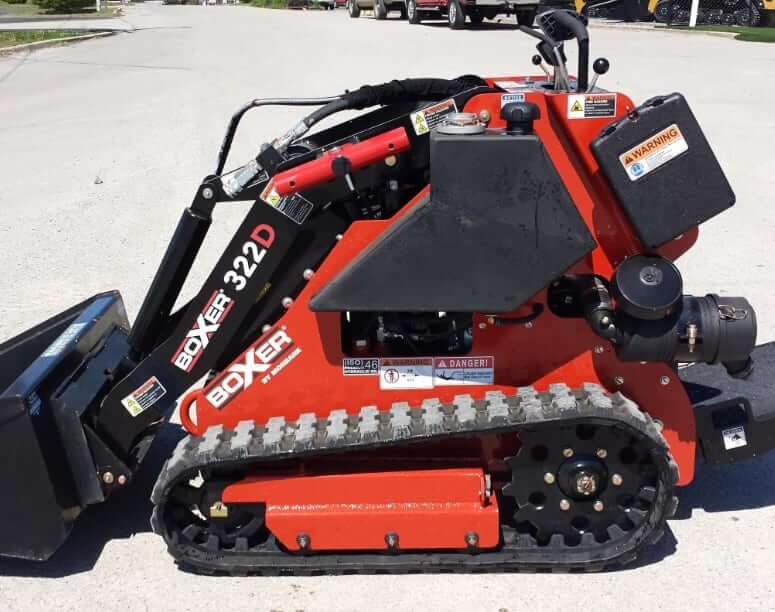

Dimensions
| Overall Length (w/ Bucket 3101400) | 87 in (2210 mm) |
| Overall Length (w/o Bucket) | 68 in (1727 mm) |
| Overall Height | 49 in (1235 mm) |
| Overall Width | 34.5 in (876 mm) |
| Ground Clearance | 5 in (127 mm) |

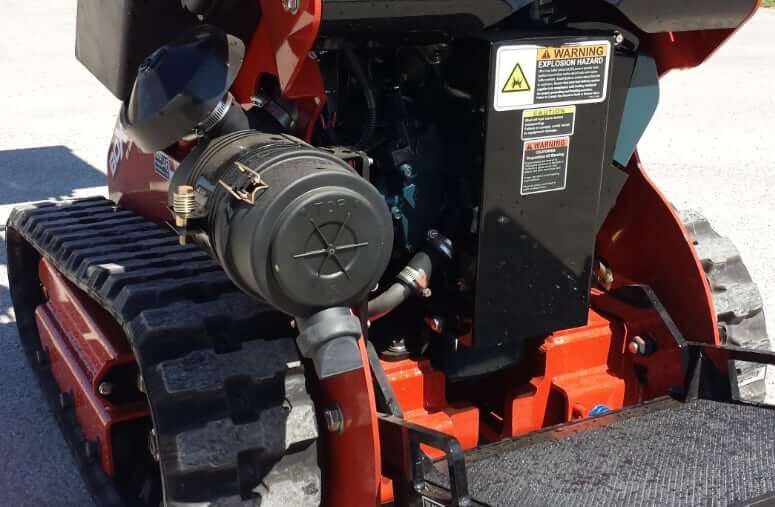

Engine Details
| Number of Cylinders | 3 |
| Engine Make | Kubota |
| Engine Model | Kubota D902-E4B |
| Engine Type | Vertical, water cooled 4-cycle diesel engine |
| Displacement | 54.8 cu in (0.898 L) |
| Bore | 2.83 in (72 mm) |
| Stroke | 2.90 in (73.6 mm) |
| Gross Horsepower | 22 hp (16.4 kw) |
| Power Measured @ | 3600 rpm |
| Peak Torque | 41.4 lb ft (56.1 Nm) |
| Torque Measured @ | 2600 rpm |
| Combustion System | Indirect injection |
| Fuel System | In-line pump |
| Aspiration | Naturally aspirated |
| Emission Standards | US EPA/CARB Tier 4 |
Operational Specs
| Operating Weight | 1900 lb (862 kg) |
| Operating Voltage | 12 V |
| Noise Level for Operator | 89 dB(A) |
| Noise Level (Guaranteed SWL) | 101 dB(A) |
Powertrain
| Type | Hydrostatic transmision |
| Max Travel Speed | 3.4 mph (5.5 km/h) |
| Track Width | 7 in (180 mm) |
| Ground Pressure | 3.3 psi (22.76 kPa) |
Hydraulic System
| Hydraulic Pump Flow (Combined) | 12.4 gal/min (47 L/min) |
| Hydraulic Pump Flow (Auxiliary) | 9.4 gal/min (35.6 L/min) |
| Hydraulic Pump Flow (Drive) | 3.0 gal/min (11.4 L/min) |
| Relief Valve Pressure | 3000 psi (20684 kPa) |
| Hydraulic Oil Filter | 10 Micron |
Service Refill Capacities
| Fuel Tank Capacity | 4.5 gal (17.1 L) |
| Engine Oil Capacity (w/ Filter) | 0.8 gal (3.1 L) |
| Cooling System Capacity | 0.8 gal (3.1 L) |
| Hydraulic System Capacity | 16 gal (60.6 L) |
