The Bobcat T190 Compact Track Loader is a compact, high-performance machine renowned for its versatility, reliability, and durability across a variety of jobsites. Produced between 2001 and 2013, the T190 was manufactured in three distinct engine series, each featuring advancements in powertrain technology and emission compliance.
Loader
| Bobcat T190 | 2001-2004 | 2004-2008 | 2008-2013 |
|---|---|---|---|
| Rated Operating Capacity (35% of tipping load) | 1900 lb (862 kg) | 2401 lb (1089 kg) | 2401 lb (1089 kg) |
| Rated Operating Capacity (50% of tipping load) | 2714 lb (1231 kg) | 3426 lb (1554 kg) | 3426 lb (1554 kg) |
| Tipping Load | 5430 lb (2463 kg) | 6851 lb (3108 kg) | 6851 lb (3108 kg) |
| Breakout Force (Lift, SAE) | 4700 lbs (20.9 kN) | 4700 lbs (20.9 kN) | 4700 lbs (20.9 kN) |
| Breakout Force (Tilt, SAE) | 4450 lbf (19.8 kN) | 4450 lbf (19.8 kN) | 4450 lbf (19.8 kN) |
| Push Force | 4700 lbf (20.9 kN) | 4700 lbf (20.9 kN) | 4700 lbf (20.9 kN) |
| Bucket Width | 68 in (1727 mm) | 68 in (1727 mm) 74 in (1880 mm) |
68 in (1727 mm) 74 in (1880 mm) |
| Lift Arm Path | Vertical | Vertical | Vertical |

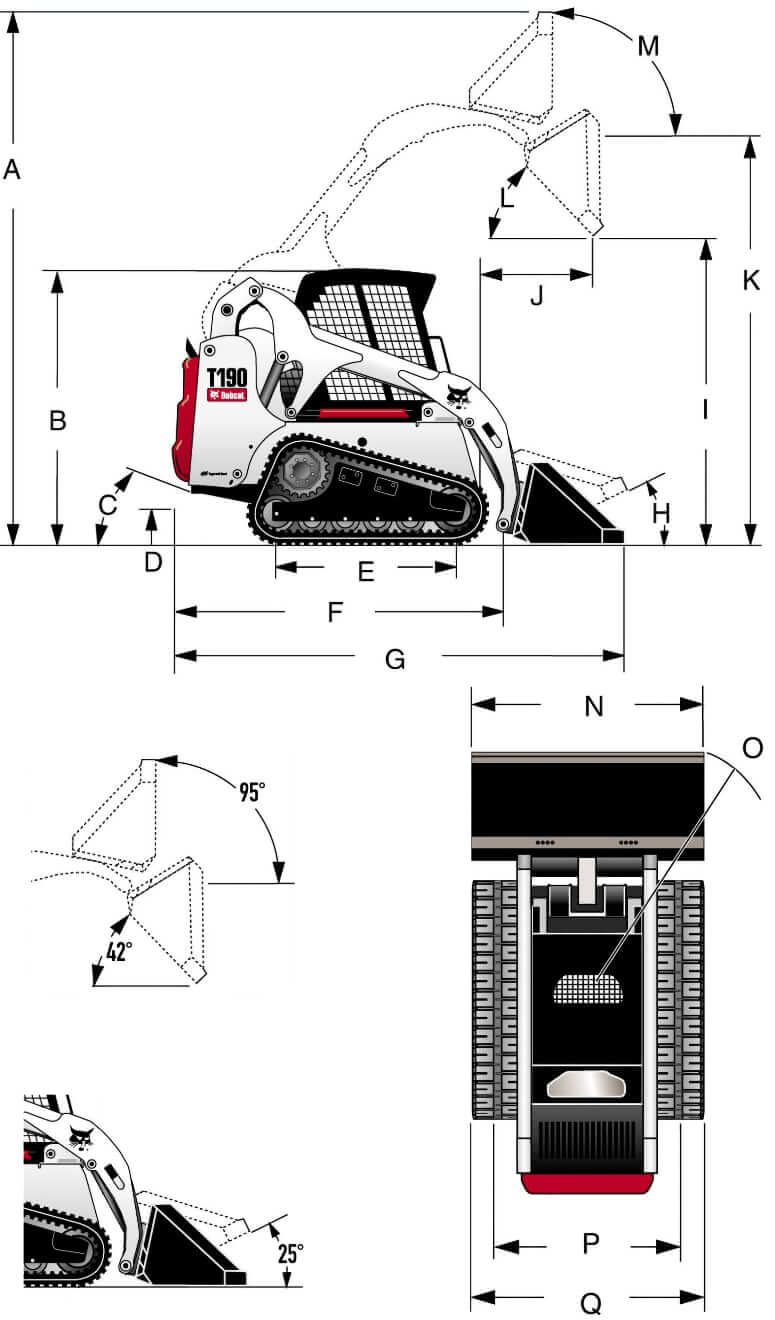

Dimensions
| A. Operating Height | 152.1 in (3862 mm) |
| B. Height with Operator Cab | 76.3 in (1938 mm) |
| C. Angle of Departure | 30° |
| D. Ground Clearance | 8.1 in (205 mm) |
| E. Ground Contact Length | 55.2 in (1401 mm) |
| F. Length without Attachment | 101.8 in (2586 mm) |
| G. Length with Standard Bucket | 130.3 in (3310 mm) |
| H. Rollback @ Ground | 25° |
| I. Dump Height with Standard Bucket | 91.0 in (2310 mm) |
| J. Dump Reach @ Maximum Height (Bobcat T190 -2004) | 29.6 in (752 mm) |
| J. Dump Reach @ Maximum Height (Bobcat T190 2004-) | 30.9 in (785 mm) |
| K. Height to Bucket Hinge Pin | 118.2 in (3002 mm) |
| L. Dump Angle @ Maximum Height | 42° |
| M. Rollback Fully Raised @ Maximum Height | 95° |
| Carry Position | 6.6 in (167 mm) |
| N. Width over Bucket (standard) | 68.0 in (1727 mm) |
| N. Width over Bucket (optional) | 74.0 in (1880 mm) |
| O. Turning Radius with Standard Bucket (68 in) | 78.8 in (2001 mm) |
| O. Turning Radius with Standard Bucket (74 in) | 80.2 in (2037 mm) |
| Turning Radius (Rear Clearance of Machine) | 62.2 in (1579 mm) |
| P. Track Tread, 12.6 in (320 mm) | 53.4 in (1356 mm) |
| Q. Width over Tracks, 12.6 in (320 mm) | 66.0 in (1676 mm) |
| Q. Width over Tracks, 15.8 in (400 mm) | 73.9 in (1877 mm) |
The first series (2001 – 2004) featured the Kubota V2003-T-EB engine – a 4-cylinder, turbocharged diesel engine that delivered dependable power for early-generation T190 loaders. The second series (2004 – 2008) was equipped with the Kubota V2403-M-DI-T-E3B, offering increased displacement and improved performance to meet growing demands and emissions standards. The final series (2008 – 2013) transitioned to the Kubota V2607-DI-T-E3B, a more robust engine delivering greater efficiency and output while meeting stricter Tier 4 emissions requirements.
Engine Details
| Bobcat T190 | 2001-2004 | 2004-2008 | 2008-2013 |
|---|---|---|---|
| Number of Cylinders | 4 | 4 | 4 |
| Engine Model | Kubota V2003-T-EB | Kubota V2403-M-DI-T-E3B | Kubota V2607-DI-T-E3B |
| Displacement | 122 cu in (1.999 L) | 148.5 cu in (2.434 L) | 159.6 cu in (2.615 L) |
| Bore | 3.27 in (83 mm) | 3.43 in (87 mm) | 3.43 in (87 mm) |
| Stroke | 3.64 in (92.4 mm) | 4.03 in (102.4 mm) | 4.33 in (110 mm) |
| Horsepower (Gross) | 56 hp (41.2 kw) | 66 hp (49.2 kw) | 66 hp (49.2 kw) |
| Power Measured @ | 2800 rpm | 2700 rpm | 2700 rpm |
| Peak Torque | 121.8 lb ft (165.1 Nm) | 155.6 lb ft (211 Nm) | 162.5 lb ft (220.3 Nm) |
| Torque Measured @ | 1600 rpm | 1475 rpm | 1600 rpm |
| Fuel System | In-line pump | In-line pump | In-line pump |
| Combustion System | E-TVCS Indirect Injection | Direct injection | Direct injection |
| Lubrication System | Pressure System with Filter | Pressure System with Filter | Pressure System with Filter |
| Aspiration | Turbo | Turbo | Turbo |
| Emission Standards | US EPA/CARB Tier 2 + EU Stage II | US EPA interim Tier 4 level + EU Stage IIIA | US EPA interim Tier 4 + EU Stage IIIA |
Operational Specs
| Bobcat T190 | 2001-2004 | 2004-2013 |
|---|---|---|
| Operating Weight | 7244 lb (3286 kg) | 7244 lb (3453 kg) |
| Tipping Load | 5430 lb (2463 kg) | 6851 lb (3108 kg) |
| Rated Operating Capacity (35% of tipping load) | 1900 lb (862 kg) | 2401 lb (1089 kg) |
| Rated Operating Capacity (50% of tipping load) | 2714 lb (1231 kg) | 3426 lb (1554 kg) |
| Operating Voltage | 12 V | |
| Alternator | 90 amps | |
| Starter | 12 V, 3.6 hp (2.7 kw) | |
| Battery (6674687D) | 12 V, RC: 115 min, CCA 600 | |
Power Train
| Type | Fully hydrostatic transmission |
| Number of Gears | Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors |
| Max Travel Speed | 7.1 mph (11.4 km/h) |
| Vehicle Steering | Direction and speed controlled by two hand levers or optional joysticks |
| Service Brakes | Two independent hydrostatic systems controlled by two hand-operated steering levers |
| Secondary Brake | One of the hydrostatic transmissions |
| Parking Brake | Mechanical disc, hand operated rocker-switch on dash panel |

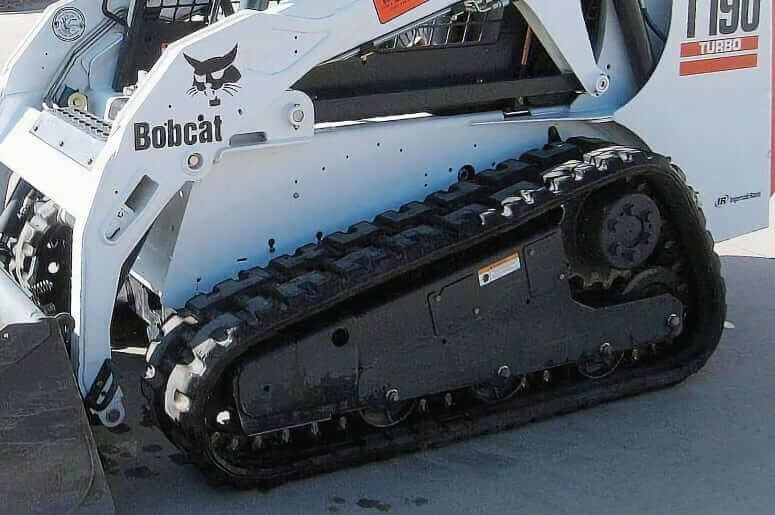

Undercarriage
| Track Width, Rubber (Standard) | 12.6 in (320 mm) |
| Track Width, Rubber (Optional) | 15.8 in (400 mm) |
| Length of Track on Ground | 55.2 in (1401 mm) |
| Ground Pressure, 320 mm Track | 4.9 psi (33.8 kPa) |
| Ground Pressure, 450 mm Track | 4.1 psi (28.3 kPa) |
| Track Type / Lubrication | Tension-grease cylinder and triple-flange spring rollers |
| Departure Angle | 30° |
Operator Environment
| Cab (Standard) | Delux Cab |
| Cab (Options) | Cab enclosure with HVAC |
| ROPS | SAE-J1040 and ISO 3471 |
| FOPS | SAE-J1043 and ISO 3449, Level I |
| Operator Seat | Adjustable Suspension Seat (vinyl cover) |
| Starting | Key-type starter switch and shutdown or optional keyless start. Glow plugs automatically activated by Standard or Deluxe instrument panel |
| Working Lights | 2x Front + 2 Rear working lights |
| Whole Body Vibration (ISO 2631-1) | 0.92 m/s2 |
| Hand-arm Vibration (ISO 5349-1) | 3.46 m/s2 |
| Noise Level Operator LpA | 85 dB(A) |
| Noise level LWA | 103 dB(A) |
Hydraulic System
| Type | Open center hydraulic system |
| Hydraulic Pump Type | Engine driven, gear type |
| Standard Pump Flow | 16.3 gal/min (61.6 L/min) |
| High Flow Pump Flow (optional, Bobcat T190H) | 25.5 gal/min (96.4 L/min) |
| Standard Relief Pressure at Quick Couplers | 3250 – 3350 psi (22400 – 23100 kPa) |
| Hydraulic Filter | Full flow replaceable, Number 3 micron synthetic media element |
| Fluid Lines | SAE standard tubelines, hoses, and fittings |
Service Refill Capacities
| Bobcat T190 | 2001-2004 (Kubota V2003) | 2004-2008 (Kubota V2403) | 2008-2013 (Kubota V2607) |
|---|---|---|---|
| Fuel Tank Capacity | 26.8 gal (101.5 L) | 28 gal (106 L) | 28 gal (106 L) |
| Engine Oil Capacity (w/ filter) | 1.9 gal (7.1 L) | 2.4 gal (9.0 L) | 2.4 gal (9.0 L) |
| Cooling System Capacity (w/o heater) | 2.4 gal (8.7 L) | 2.7 gal (10.4 L) | 2.7 gal (10.4 L) |
| Cooling System Capacity (w/ heater) | 2.5 gal (9.3 L) | 3.0 gal (11.4 L) | 3.0 gal (11.4 L) |
| Hydraulic System Fluid Capacity | 8.5 gal (32.2 L) | 8.5 gal (32.2 L) | 8.5 gal (32.2 L) |
| Hydraulic Tank Capacity | 4.8 gal (18.2 L) | 4.8 gal (18.2 L) | 4.8 gal (18.2 L) |
Bobcat T190 Filters
| Filter | Part Number |
|---|---|
| Air Filter (Inner), SN 519311001-, 519411001-; 527011001-; 527911001-; 527711001-; 527811001-; 531611001-; 531711001- | 6598362 |
| Air Filter (Inner), SN A3LN11001-; A3LP11001- | 6698058 |
| Air Filter (Outer), SN 519311001-, 519411001-; 527011001-; 527911001-; 527711001-; 527811001-; 531611001-; 531711001- | 6598492 |
| Air Filter (Outer), SN A3LN11001-; A3LP11001- | 6698057 |
| Engine Oil Filter | 6675517 |
| Fuel Filter | 6667352 |
| Hydraulic Filter, SN 519311001-, 519411001-; 527011001-; 527911001-; 527711001-; 527811001-; 531611001-; 531711001- | 6661248 (Primary) 6661807 (In-Line) |
| Hydraulic Filter, SN A3LN11001-; A3LP11001- | 6661248 (Primary) 6661022 (In-Line) |
| Case Drain Filter | 6661022 |
| Hydraulic Fill/Breather Cap | 6717827 |
| Charge Filter, SN 519311001-, 519411001-; 527011001-; 527911001-; 527711001-; 527811001-; 531611001-; 531711001- | 6686926 |
| Charge Filter, SN A3LN11001-; A3LP11001- | 6692337 6686926 |
| Heater Filter | 6677983 |
| Recirculating Air Filter | 6678207 |

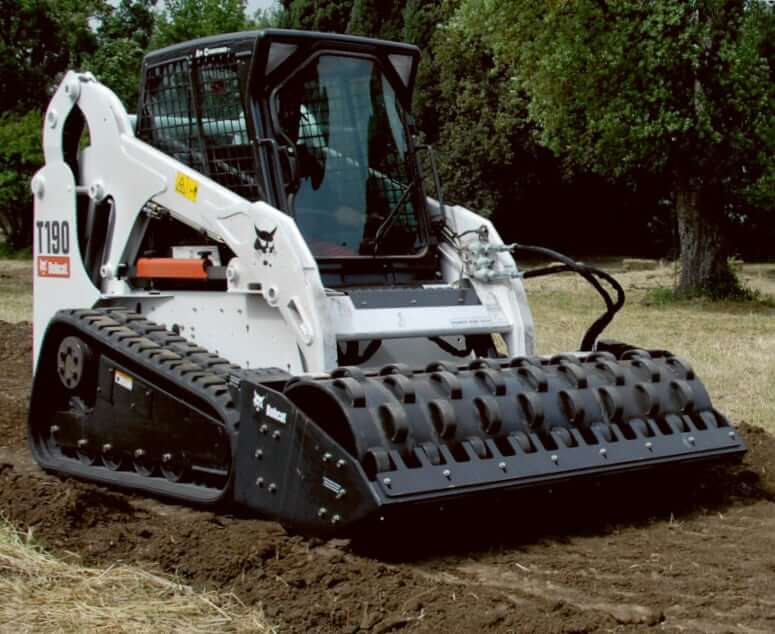

The Bobcat T190 Compact Track Loader is designed to deliver powerful performance in a compact footprint, and its true potential is unlocked through a wide variety of compatible attachments. Built for versatility across construction, landscaping, agriculture, and maintenance tasks, the T190 supports a full line of hydraulic and mechanical tools that enhance its productivity in demanding conditions.
From earthmoving and excavation with augers, backhoes, and trenchers, to site cleanup using angle brooms, sweepers, and industrial grapples, the T190 adapts to nearly any task. It excels in landscaping and turf management with attachments like soil conditioners, tillers, landscape rakes, and tree spades, while winter work is handled effortlessly with snowblowers and dozer blades. Operators can also perform concrete handling, material loading, and demolition using concrete mixers, hydraulic breakers, and cutter crushers. Whether you’re preparing ground, clearing snow, trenching utilities, or transporting pallets, the Bobcat T190’s attachment range makes it a dependable all-season workhorse capable of tackling complex jobs with precision and ease.
