Contents

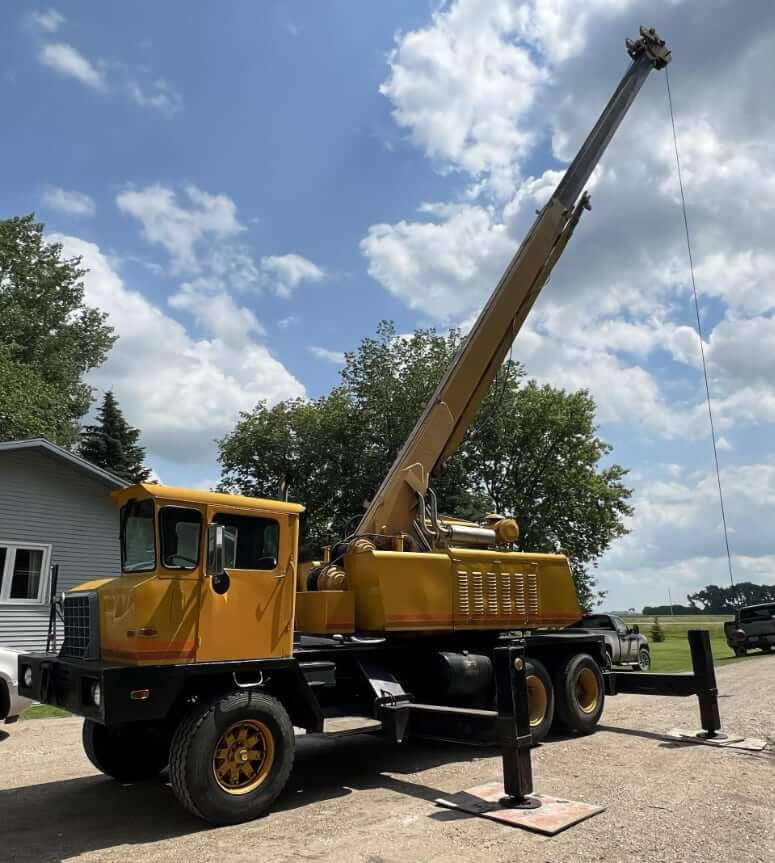

Boom
| Max Lift Capacity | 36000 lb (16329 kg) |
| Max Tip Height | 104 ft (31.7 m) |
| Max Height @ Max Raise Angle – No Jib | 78 ft (23.8 m) |
| Min Height @ Max Raise Angle | 24 ft (7.3 m) |
| Min Working Radius | 10 ft (3.04 m) |
| Max Working Radius | 65 ft (19.81 m) |
| Max Elevating Angle | 75° |
| Swing Speed | 2.6 rpm |
| Number of Sections | 3 |
Dimensions
| Transport Length (w/ 28 – 70 ft boom) | 473 in (12027 mm) |
| Transport Length (w/ 24 – 78 ft boom) | 360 in (9139 mm) |
| Carrier Length | 296 in (7518 mm) |
| Wheelbase | 187 in (4750 mm) |
| Transport Height | 131 in (3328 mm) |
| Ground Clearance | 13.5 in (343 mm) |
| Transport Width | 96 in (2438 mm) |
| Width w/ Outriggers Extended | 193 in (4902 mm) |
| Upper Structure Tail Swing Radius | 107.9 in (2743 mm) |
| Front Track Width | 79 in (2007 mm) |
| Rear Track Width | 70 in (1778 mm) |
Upper Structure Engine
| Engine Model | Ford 300 | GM3-53N |
|---|---|---|
| Engine Make | Ford Motor Company | Detroit Diesel |
| Number of Cylinders | 6 | 3 |
| Fuel Type | Gasoline | Diesel |
| Displacement | 300 cu in (4.9 L) | 318 cu in (5.2 L) |
| Bore | 4.00 in (101.6 mm) | 3.875 in (98.4 mm) |
| Stroke | 3.98 in (101.1 mm) | 4.50 in (114.3 mm) |
| Net Power | 123 hp (90.5 kw) | 83 hp (61 kw) |
| Power Measured @ | 2800 rpm | 2800 rpm |
| Peak Torque | 253 lb ft (343 Nm) | 193 lb ft (261.7 Nm) |
| Torque Measured @ | 1800 rpm | 1900 rpm |
| Air Cleaner | Dry type | Dry type |
| Alternator | 38 amps | 55 amps |
| Battery | 12 V, 62 Ah | 12 V, 204 Ah |
Carrier Engine
| Engine Model | IHC RD501 | GM6V-53N | Cummins V-555 |
|---|---|---|---|
| Engine Make | IHC (Int. Harvester Company) | Detroit Diesel | Cummins |
| Number of Cylinders | 6 | 6 | 8 |
| Fuel Type | Gasoline | Diesel | Diesel |
| Displacement | 501 cu in (8.3 L) | 318 cu in (5.2 L) | 555 cu in (9.1 L) |
| Bore | 4.5 in (114.3 mm) | 3.875 in (98.4 mm) | 4.625 in (117.5 mm) |
| Stroke | 5.25 in (133.4 mm) | 4.59 in (116.6 mm) | 4.125 in (104.8 mm) |
| Net Power | 214.8 hp (160.2 kw) | 178 hp (131 kw) | 203 hp (149.3 kw) |
| Power Measured @ | 3000 rpm | 2600 rpm | 3300 rpm |
| Peak Torque | 451 lb ft (611.5 Nm) | 440 lb ft (596.6 Nm) | 425 lb ft (576.2 Nm) |
| Torque Measured @ | 1600 rpm | 1400 rpm | 1800 rpm |
| Air Cleaner | Oil bath | Dry type | Oil bath |
| Alternator | 37 amps | 60 amps | 58 amps |
| Battery | 12 V, 90 Ah | 12 V, 200 Ah | 12 V, 200 Ah |
Operational Specs
| Operating Weight | 47500 lb (21546 kg) |
| Operating Voltage | 12 V |
| Front Tire Size | 15×22.5 16 ply |
| Rear Tire Size | 10.00×20 12 ply |
| Steering Gear | Ross TE-71 with hydraulic power |
| Turning Radius (6×4) | 420 in (10668 mm) |
| Turning Radius (6×6) | 510 in (12954 mm) |
Transmission
| Drive | 6×4 or 6×6 |
| Model | Fuller 5CW65 |
| Number of Gears | 5F / 1R |
| Clutch | Single plate, dry disc |
| Max Travel Speed | 49.5 mph (79.6 km/h) |
| Number of Axels | 3 |
| Service Brakes | Full air brakes on six wheels with 12 CFM compressor |
| Parking Brake | Maxi-brakes on one rear axle with emergency release kit |
Hydraulic System
| Control Valves | Precision four way double acting with integral load check, main and circuit relief valves |
| Pump Type | 3 section gear type |
| Pump Flow Capacity | 112.5 gal/min (425.8 L/min) |
| Max Operating Pressure | 2500 psi (17327 kPa) |
Service Refill Capacities
| Fuel Tank Capacity (Carrier) | 40 gal (151.5 L) |
| Fuel Tank Capacity (Upper Structure) | 40 gal (151.5 L) |
| Hydraulic System Capacity | 120 gal (454.3 L) |
