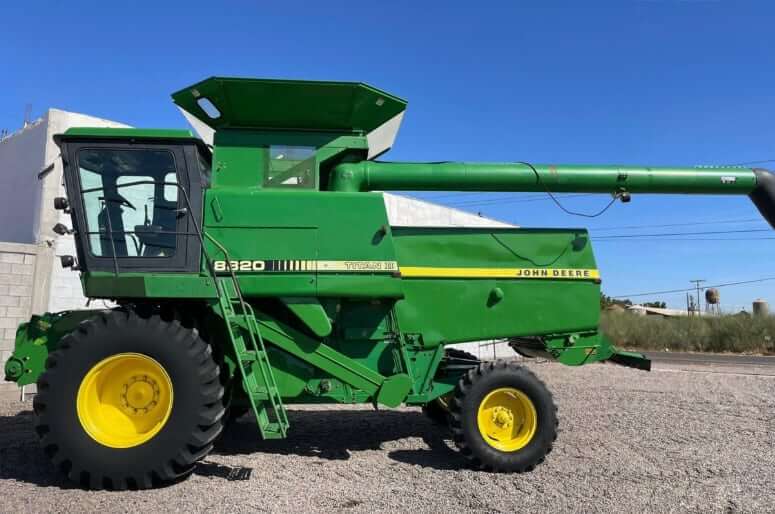

Dimensions
| Length (Transport) | 440.9 in (11200 mm) |
| Length (Field, unloader retracted) | 440.9 in (11200 mm) |
| Width (Transport) | 196.8 in (5000 mm) |
| Width (Field, unloader retracted) | 196.8 in (5000 mm) |
| Height (Transport) | 149.6 in (3800 mm) |
| Height (Field, unloader retracted) | 161.4 in (4100 mm) |
| Wheelbase | 149.6 in (3800 mm) |
| Unloader Discharge Height | 153.5 in (3900 mm) |
| Unloader Reach | 141.7 in (3600 mm) |
| Unloader Clearance | 145.7 in (3700 mm) |

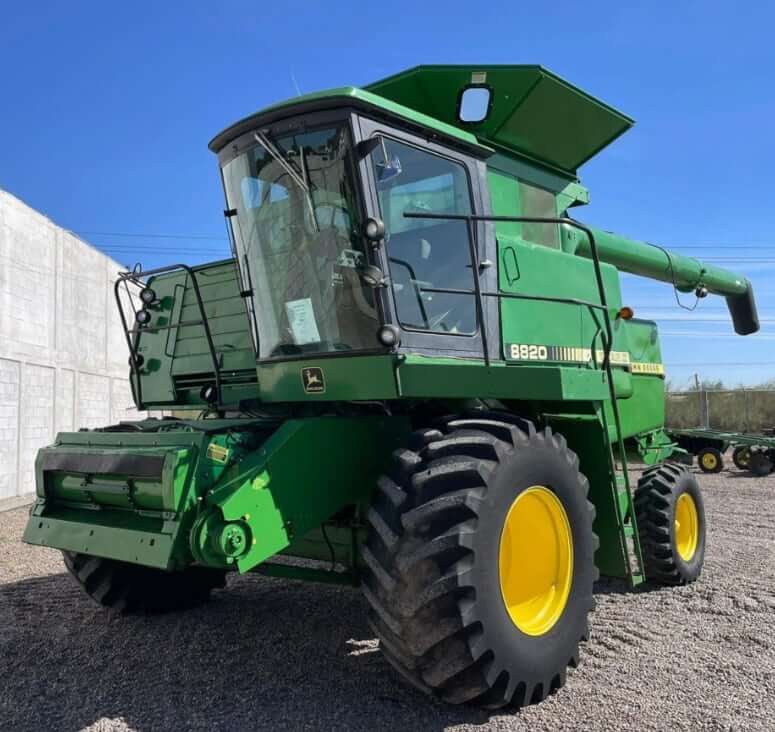

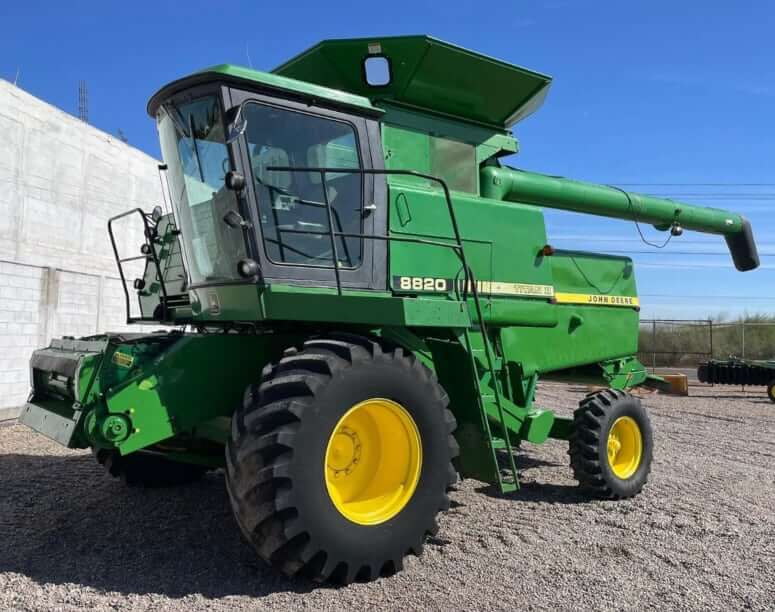

Cylinder / Rotor
| Cylinder Type | Rasp bar, hardened and chromed |
| Number of Bars | 8 |
| Rotor Diameter | 22 in (560 mm) |
| Rotor Width | 72.9 in (1851 mm) |
| Rotor Drive | Dual range, hydraulically controlled variable pitch torque-sensing belt drive |
| Rotor Speed – Low | 300 – 700 rpm |
| Rotor Speed – High | 600 – 1230 rpm |
| Rotor Options | Slow speed drive, mud shields, filler plates, spike tooth |
Beater
| Beater Type | Drum with 6 triangular bats |
| Beater Diameter | 13.5 in (343 mm) |
| Beater Speed | 150% of cylinder speed |
| Beater grate | Adjustable bar |
| Beater options | Adjustable finger bar |
Concave
| Concave Type | Bar and wire |
| Number of Parallel Bars | 13 |
| Concave Configuration | 12 intervals with 0.25 in (6.3 mm) wires and 0.75 in (19 mm) spaces |
| Concave Wrap | 108 degrees |
| Concave Total Area | 1320 in2 (0.85 m2) |
| Concave Open Area | 730 in2 (0.47 m2), 55% |
| Beater Grate Total Area | 490 in2 (0.32 m2) |
| Beater Grate Open Area | 318.5 in2 (0.21 m2) |
| Grain Delivery to Shoe | Augers |
| Options | Cover strips, stone trap cover, spiked tooth concave |
Straw Walkers
| Type | Formed metal, rectangular openings |
| Number | 6 |
| Length | 150 in (3810 mm) |
| Walker Housing Width | 65.75 in (1670 mm) |
| Separating Area | 9860 in2 (6.36 m2) |
| Crank Throw (radius) | 3 in (76 mm) |
| Speed | 157 rpm |
| Grain Delivery to Shoe | augers |
| Straw Curtains | 2, adjustable |
| Options | Lip type, risers |
Shoe
| Type | Opposed action |
| Speed | 328 rpm |
| Chaffer Sieve | 1.1 in regular tooth adjustable lip, 4309 in2 (2.78 m2) including chaffer extension, 3519 in2 (2.27 m2) less chaffer extension |
| Chaffer Sieve Extension | Adjustable lip with nonadjustable emoveable inserts at rear corners 790 in2 (0.51 m2) |
| Clean Grain Sieve | Regular tooth adjustable lip, 3390 in2 (2.19 m2) |
| Shoe Options | Regular tooth 1.6 in (41 mm) space, deep tooth 1.8 in (41 mm) space, deep tooth cleaning sieve |
Cleaning Fan
| Type | 4 blade undershot |
| Cleaning Fan Diameter | 19.9 in (505 mm) |
| Cleaning Fan Width | 64.25 in (1632 mm) |
| Cleaning Fan Drive | Variable speed belt |
| Cleaning Fan Speed Range | 370 – 1100 rpm |
| Options | Fan bottom protection shields |
Elevators
| Type | Roller chain with rubber paddles |
| Clean grain (top drive) | 3.25 x 8 in (83 x 203 mm) |
| Tailings (bottom drive) | 3.25 x 6 in(83 x 152 mm) |
| Options | Perforated parts, steel paddles, bucket elevator |
Grain Tank
| Grain Tank Capacity | 215 Imp bu (7.82 m3) |
| Unloading Time | 115 sec |
| Unloading Rate | 1.87 bu/s (0.068 m3/s) |
| Unloading Auger Diameter | 12 in (305 mm) |
| Unloading Auger Length | 17 ft (5.2 m) |
| Options | 20 ft (6.1 m) auger |
Straw Chopper
| Type | Hammer and adjustable knife |
| Straw Chopper Width | 65 in (1650 mm) |
| Straw Chopper Speed | 2350 rpm |
| Options | spreaders, corn kit |

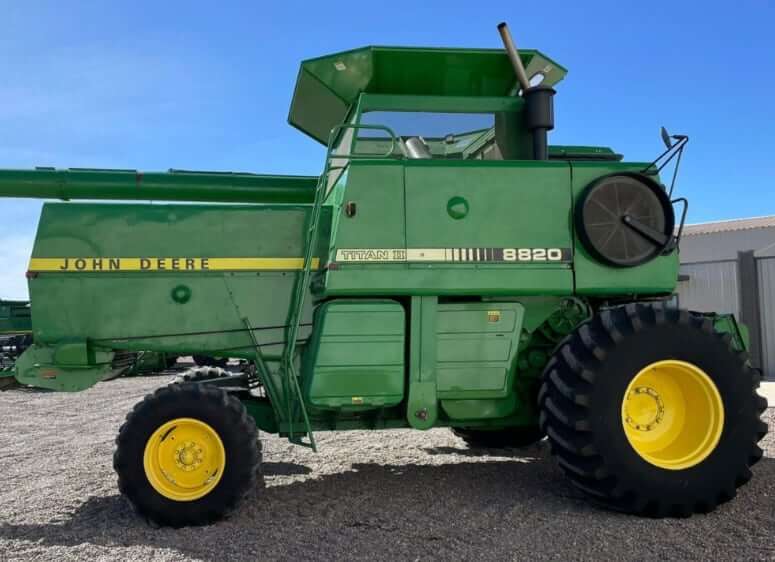

Engine Details
| Number Of Cylinders | 6 |
| Engine Make | John Deere |
| Engine Model | John Deere 6466A (JD 6466AH-02) |
| Displacement | 466 cu in (7.6 L) |
| Bore | 4.56 in (116 mm) |
| Stroke | 4.75 in (121 mm) |
| Power | 224 hp (167 kw) |
| Power Measured @ | 2200 rpm |
| Compression Ratio | 14.9:1 |
| Firing Order | 1-5-3-6-2-4 |
| Working Rage | 1500 – 2100 rpm |
| Aspiration | Turbocharged |
| Starter | 12 V |
| Engine Weight | 1800 lb (816 kg) |
| Fuel Consumption (average for season) | 6.5 gal/h (29.5 L/h) |

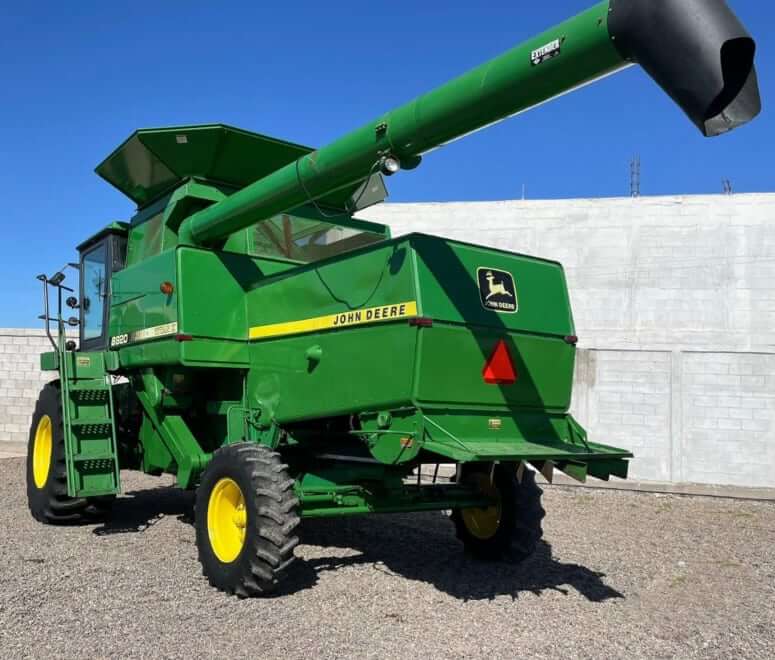

Operational Specs
| Operating Weight (without Attachment) | 25486 lb (11560 kg) |
| PTO Shaft Diameter | 2.5 in (64 mm) |
| Operating Voltage | 12 V |
| Alternator | 61 amps |
| Number of Chain Drives | 9 |
| Number of Belt Drives | 19 |
| Number of Gearboxes | 5 |
Transmission
| Type | Hydrostatic transmission |
| Number of Gears | 4 |
| Max Working Speed | 5 mph (8 km/h) |
| Max Travel Speed | 15.5 mph (24.9 km/h) |
| Service Brakes | Hydraulic shoe |
Tires
| Front Tire Size | 24.5 – 32 R1, 12-ply |
| Rear Tire Size | 11.25 – 24, 8-ply |
| Front Wheel Treat | 149.6 in (3800 mm) |
| Rear Wheel Treat (adjustable) | 133.9 in (3400 mm) |
Service Refill Capacities
| Fuel Tank Capacity | 100 gal (380 L) |
| Engine Oil Capacity (with Filter) | 5.3 gal (20 L) |
| Cooling System Capacity (with Radiator) | 9 gal (34 L) |
| Transmission Oil Capacity | 2.6 gal (10 L) |
| Final Drives | 1.4 gal (5.2 L) |
| Planetary (each) | 1.2 gal (4.7 L) |
| Reverse Drive Gear Case | 0.25 gal (0.95 L) |
| Hydraulic System Capacity | 5.8 gal (22 L) |
| Hydrostatic Drive System Capacity | 7.7 gal (29 L) |
| Hydrostatic Drive System Capacity (4WD) | 12.7 gal (48 L) |
| Dual-Range Cylinder Drive Gear Case | 0.5 gal (1.9 L) |
