Contents

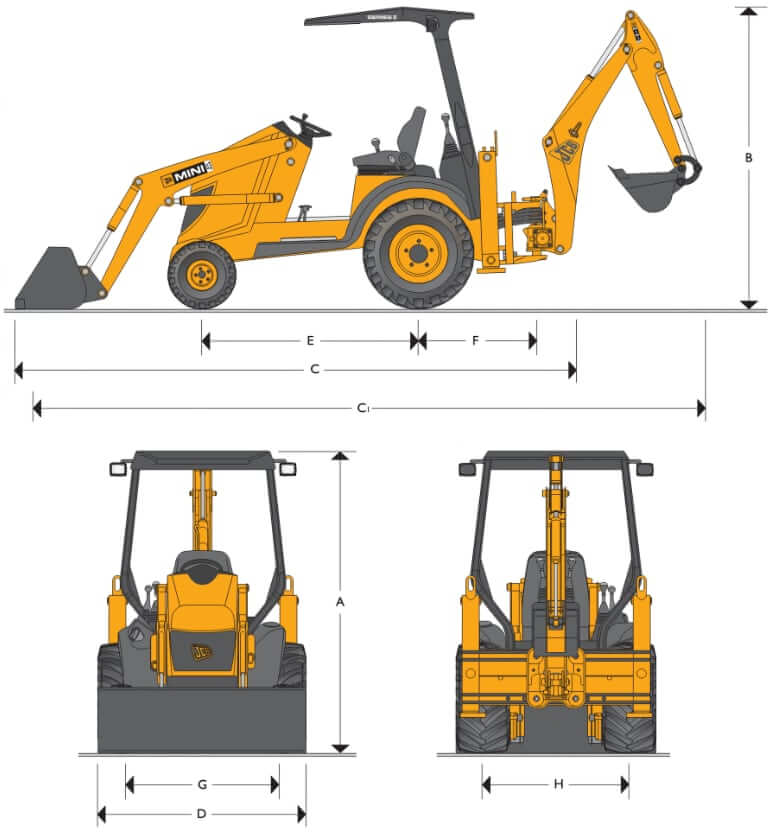

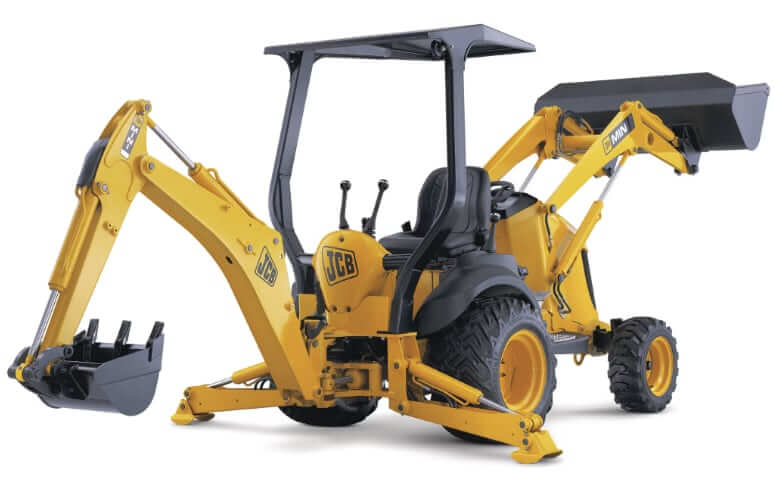

Dimensions
| A. Overall Height to Canopy | 85.4 in (2170 mm) |
| B. Transport Height | 85.4 in (2170 mm) |
| C. Transport Length (Bucket Flat, Excavator Slewed) | 152.8 in (3885 mm) |
| C1. Travel Length – Bucket at Carry, Excavator in Line | 188.2 in (4780 mm) |
| D. Overall Width (Over Tires) | 59.4 in (1510 mm) |
| E. Wheelbase | 61.6 in (1565 mm) |
| F. Slew Centre to Rear Axle Centre Distance | 33.5 in (850 mm) |
| G. Front Wheel Track | 48.7 in (1238 mm) |
| H. Rear Wheel Track | 44.3 in (1125 mm) |
| Departure Angle | 22° |
| Approach Angle | 75.4° |
| Interface Angle/Ramp to Ground Plane | 127° |

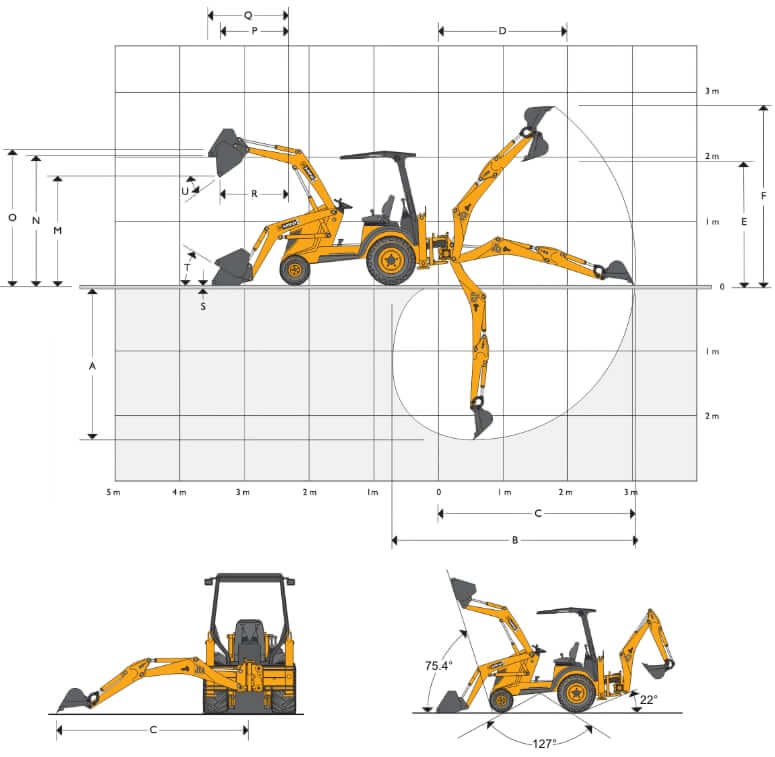

Backhoe Performance
| A. Maximum Dig Depth, SAE | 100 in (2540 mm) |
| A. Maximum Dig Depth 2ft Flat Bottom, SAE | 98.4 in (2499 mm) |
| B. Reach – Ground Level to Rear Wheel Centre, SAE | 147.2 in (3740 mm) |
| C. Reach – Ground Level to Slew Centre, SAE | 122.4 in (3110 mm) |
| D. Reach at Full Height to Slew Centre, SAE | 79.7 in (2025 mm) |
| E. Maximum Load Height, SAE | 75.5 in (1918 mm) |
| F. Maximum Working Height | 113.9 in (2894 mm) |
| Swing Arc | 180° |
| Bucket Tearout Force, SAE | 2884 lbf (12.83 kN) |
| Dipper Tearout Force, SAE | 2171 lbf (9.66 kN) |
| Total Kingpost Travel, SAE | 39 in (990 mm) |
Using standard dipper. Optional long dipper will increase maximum dimensions by up to 7.4 in (188 mm).

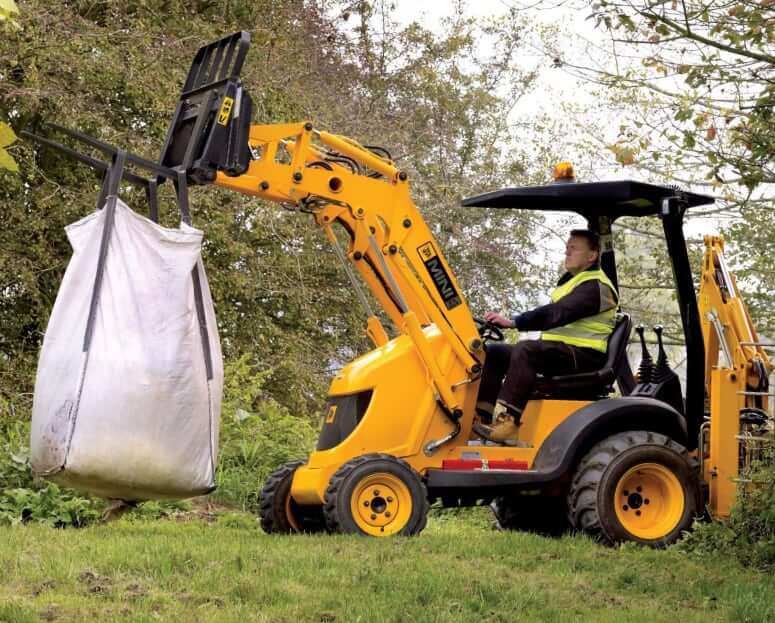

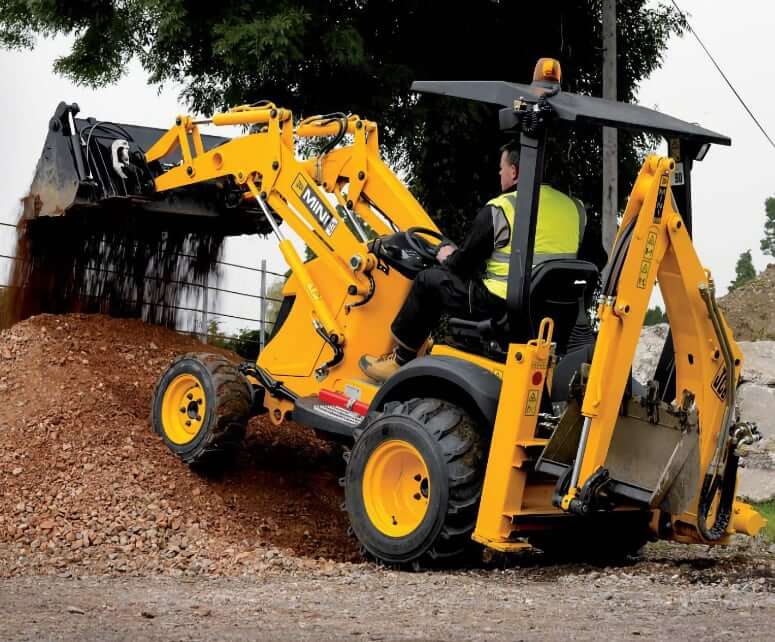

Loader Performance
| M. Dump Height | 68.2 in (1732 mm) |
| N. Load Height | 79.4 in (2017 mm) |
| O. Pin Height | 84.6 in (2150 mm) |
| P. Reach at Ground Level (Toe Plate Horizontal) | 39.8 in (1010 mm) |
| Q. Maximum Reach at Full Height | 41.9 in (1065 mm) |
| R. Reach at Full Height – Fully Dumped | 36.2 in (920 mm) |
| S. Dig Depth (Toe Plate Horizontal) Clearance | 2.6 in (65 mm) |
| T. Rollback at Ground Level | 36.5° |
| U. Dump Angle, SAE | 30° |
| Loader Bucket Breakout Force | 3607 lbf (16.04 kN) |
| Maximum Lift Capacity, SAE | 3444 lb (1562 kg) |
| GP Bucket Capacity | 0.30 yd3 (0.25 m3) |
Applies to both standard and parallel-lift arms.
Engine Details
| Number Of Cylinders | 3 |
| Engine Make | Perkins |
| Engine Model | Perkins 403C-11 |
| Displacement | 69 cu in (1.131 L) |
| Bore | 3.03 in (77 mm) |
| Stroke | 3.19 in (81 mm) |
| Gross Power | 22.5 hp (16.8 kw) |
| Net Power | 22 hp (16.4 kw) |
| Power Measured @ | 2800 rpm |
| Peak Torque | 42.5 lb ft (57.3 Nm) |
| Torque Measured @ | 2800 rpm |
| Compression Ratio | 23:1 |
| Aspiration | Naturally aspirated |
| Emission Standards | US EPA Tier 2 + EU Stage II |

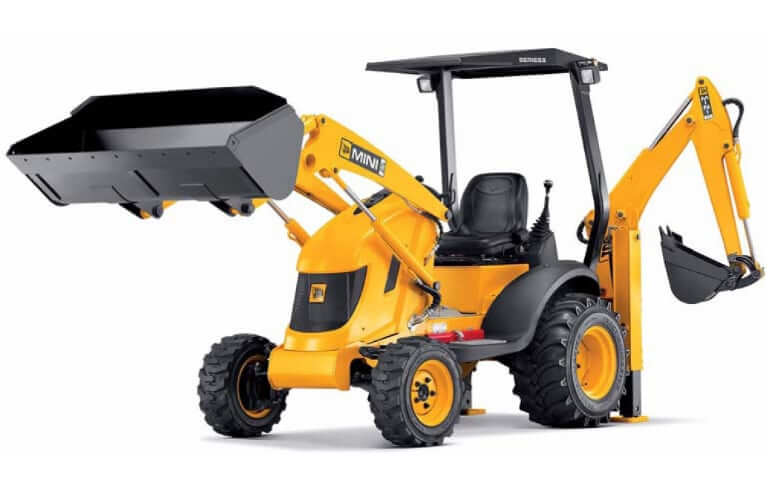

Operational Specs
| Operating Weight | 4486 lb (2035 kg) |
| Shipping Weight | 4321 lb (1960 kg) |
| Loader Operating Capacity | 1378 lb (625 kg) |
| Operating Voltage | 12 V |
| Alternator | 40 amps |
| Battery | 12 V, 60 Ah |
| Cab | ROPS/FOPS canopy |
| Operator Seat | Fully adjustable static seat, 180° turn, with seat belt fitted as standard |
| Front Tire Size | 23 x 8.5 – 12 GP 6 ply |
| Rear Tire Size | 31 x 15.5 – 15 GP 6 ply |
Transmission
| Type | Hydrostatic 4WD Transmission |
| Max Forward Speed | 6.2 mph (10 km/h) |
| Max Reverse Speed | 6.2 mph (10 km/h) |
| Four Wheel Drive | 4WD is provided by a single, variable-delivery, constant-power transmission pump with a hydraulic motor on each wheel |
| Forward/Reverse Lever | Automotive style, single pedal control with column-mounted forward/reverse lever |
Steering
| Steering Axle | Front |
| Steering Turns (lock to lock) | 3.25 |
| Kerb-kerb Turning Circle | 230 in (5842 mm) |
| Kerb-kerb Loader Clearance Circle | 282 in (7163 mm) |
| Service Brakes | The JCB hydrostatic transmission provides the primary braking service, which is operated via foot pedal |
| Parking Brake | The park brake is an electrically operated, fail-safe system featuring oil-immersed, multi-disc brakes for long life and reliability |

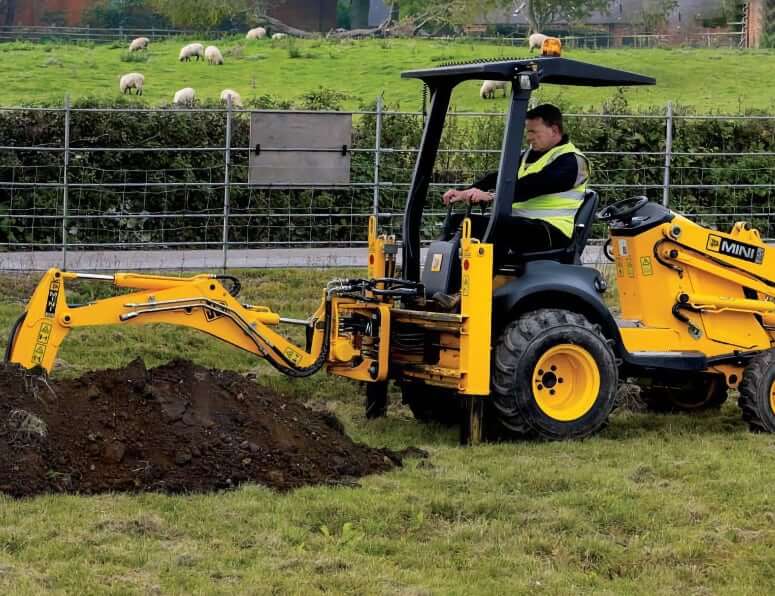

Hydraulic System
| Pump Type | The fixed displacement pump supplies oil to steering, excavator and loader services |
| Pump Flow Capacity | 8.5 gal/min (32 L/min) |
| Relief Valve Pressure | 2901 psi (20000 kPa) |
| Hydraulic Oil Filtration | Full flow oil filter |
Dipper Lift Capacities
| Standard Dipper, 38 in (950 mm) | 686 lb (311 kg) |
| Long Dipper, 45 in (1138 mm) | 635 lb (288 kg) |
| Extra Long Dipper, 49 in (1238 mm) | 608 lb (276 kg) |
Dipper Lift Capacities with backhoe at full reach and including bucket).
Service Refill Capacities
| Fuel Tank Capacity | 6.4 gal (29 L) |
| Engine Oil Capacity | 0.97 gal (4.4 L) |
| Cooling System Capacity | 0.81 gal (3.7 L) |
| Hydraulic System Oil Capacity | 11.7 gal (53 L) |
| Rear Axle Fluid Capacity | 0.31 gal (1.41 L) |
