Backhoe Performance

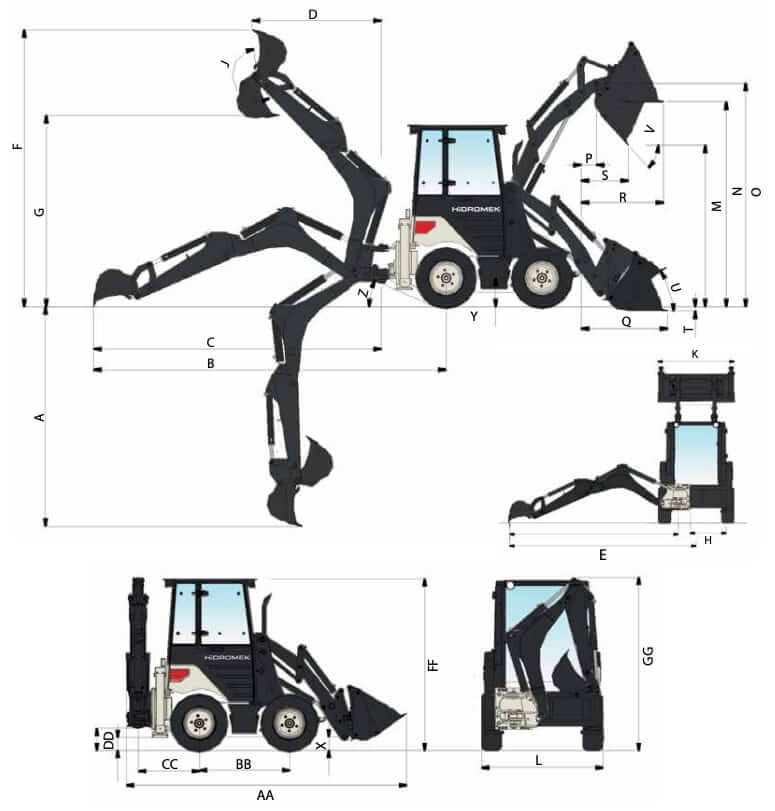

| Hidromek 62SS Backhoe Arm | Standard Arm |
|---|---|
| A. Max Digging Depth | 108.3 in (2751 mm) |
| B. Ground Level to Rear Wheel Centre | 173.9 in (4419 mm) |
| C. Ground Level to Slew Centre | 142.0 in (3608 mm) |
| D. Loading Distance | 63.8 in (1620 mm) |
| E. Distance to Machine Central Line | 156.9 in (3986 mm) |
| F. Operating Height | 136.6 in (3472 mm) |
| G. Max Loader Height | 94.5 in (2400 mm) |
| H. Total Kingpost Travel | 29.8 in (756 mm) |
| J. Bucket Rotation | 204° |
| Bucket Breakout Force | 4376 lbf (19.5 kN) |
| Arm Breakout Force | 3307 lbf (14.7 kN) |
| Lifting Capacity at Max Height | 1076 lb (488 kg) |
| Backhoe Bucket Capacity | 0.08 yd3 (0.06 m3) |
Loader Performance
| Hidromek 66SS Bucket | 6 in 1 Bucket |
|---|---|
| K. Loader Bucket Width | 64.2 in (1630 mm) |
| L. Rear Frame Width | 63.4 in (1610 mm) |
| M. Dump Height | 79.6 in (2022 mm) |
| N. Load Over Height | 101.1 in (2567 mm) |
| O. Pin Height | 110.2 in (2800 mm) |
| P. Front Arm Pin – Bumper Distance | 7.5 in (190 mm) |
| Q. Grab Lug – Bumper Distance | 42.7 in (1085 mm) |
| R. Max Reach at Full Height | 40.7 in (1033 mm) |
| S. Unloading Distance | 23.3 in (591 mm) |
| T. Digging Depth | 2.2 in (55 mm) |
| U. Roll Back at Ground | 36° |
| V. Dump Angle | 47° |
| Bucket Breakout Force | 6356 lbf (28.3 kN) |
| Arm Breakout Force | 5732 lbf (25.5 kN) |
| Lifting Capacity at Max Height | 1951 lb (885 kg) |
| 6 in 1 Bucket Capacity | 0.46 yd3 (0.35 m3) |
Dimensions
| AA. Overall Length | 146.5 in (3720 mm) |
| BB. Wheelbase | 47.8 in (1214 mm) |
| CC. Slew Centre to Rear Axle Centre Distance | 31.6 in (803 mm) |
| DD. Stabilizer Feet Clearance | 9.0 in (228 mm) |
| EE. Kingpost Clearance | 11.6 in (295 mm) |
| FF. Height to Top of Cab with ROPS | 89.6 in (2275 mm) |
| GG. Total Travel Height | 90.5 in (2298 mm) |
| X. Clearance Between Pin Centre and Ground | 7.2 in (182 mm) |
| Y. Ground Clearance | 14.2 in (361 mm) |
| Z. Departure Angle | 24° |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Kubota |
| Engine Model | Kubota V2403-CR-T-EW03 |
| Displacement | 149 cu in (2.434 L) |
| Bore | 3.43 in (87 mm) |
| Stroke | 4.03 in (102.4 mm) |
| Gross Power | 65.2 hp (48.6 kw) |
| Power Measured @ | 2700 rpm |
| Peak Torque | 146.4 lb ft (198.5 Nm) |
| Torque Measured @ | 1600 rpm |
| Air Cleaner | Two-stage air filter with clogged indicator |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Tier 4 Final + EU Stage V |
Operational Specs

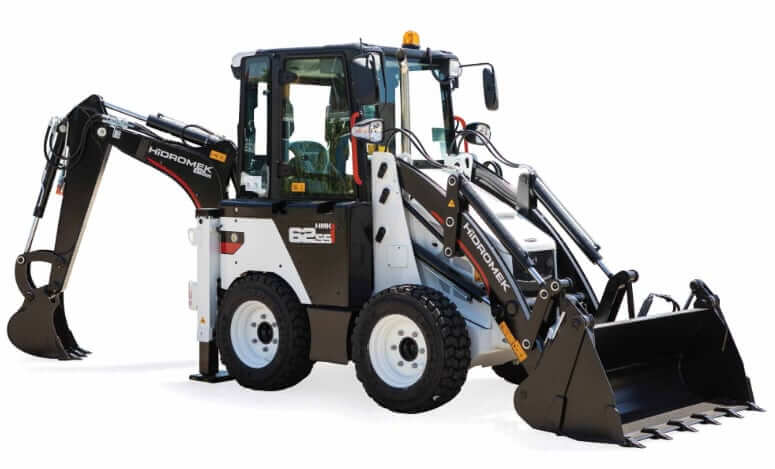

| Operating Weight | 8543 lb (3875 kg) |
| Operating Voltage | 12 V |
| Alternator | 60 amps |
| Battery | 12 V, 100 Ah |
| Quick Coupler | Quick coupler attachment on front loader group |
| Front Tire Size | 10 x 16,5, 10 PR |
| Rear Tire Size | 10 x 16,5, 10 PR |

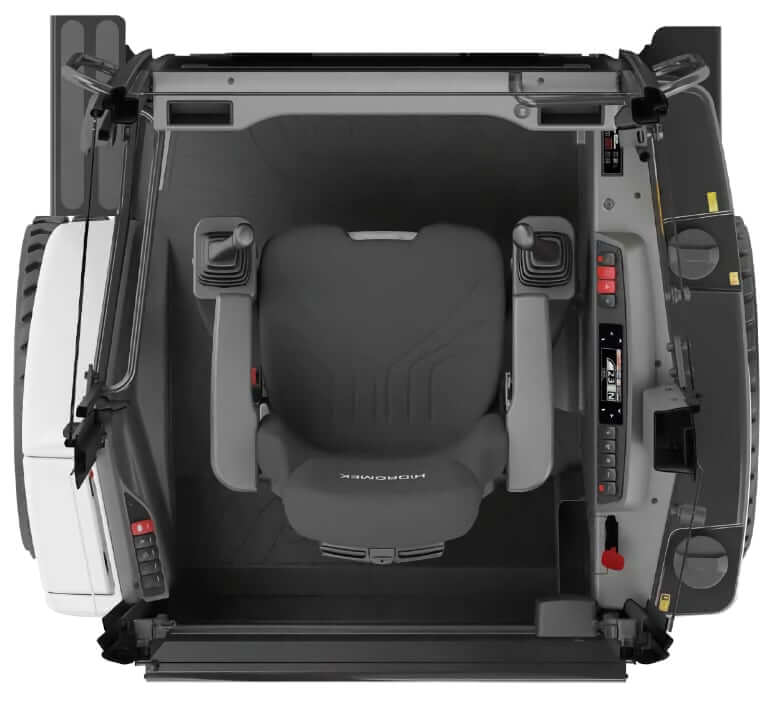

Operator Environment
| Cab | Pressurized and sound isolated cabin with ROPS / FOPS |
| HVAC | Air conditioning system |
| Control | Joysticks integrated into the seat used for loading, digging and travelling |
| Monitor | LCD information display |
| Noise Level (exterior) | 99 dB(A) |
| Noise Level (interior) | 79 dB(A) |

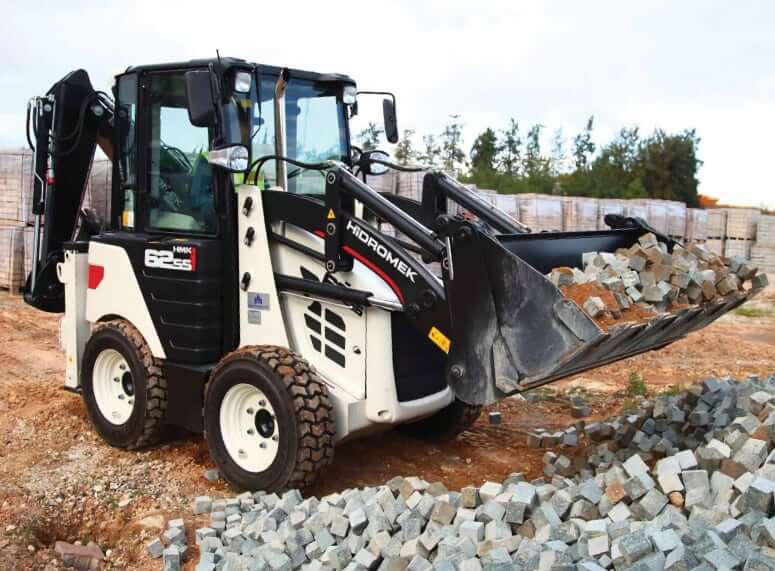

Transmission
| Type | Hydrostatic transmission with variable displacement piston pump |
| Hydraulic Motors | Multi-stroke hydraulic motors enabling forward and reverse motion |
| Max Travel Speed | 7.5 mph (12 km/h) |
| Drive | 4WD |
| Service Brakes | Provided by Hydraulic Driving System |
| Parking Brake | Spring on, hydraulic pressure off park brake system |
Hydraulic System
| Type | Open center |
| Main Pump Type | Tandem gear pump |
| Main Pump Flow | 15.8 gal/min (60 L/min) |
| Relief Valve Pressure | 3626 psi (25000 kPa) |
| Hydraulic Oil Filtration | 10 micron oil filter |
| Hydraulic Oil Cooler | Standard |
| Quick Coupling Line | Standard |
| Breaker Line | Double sided auxiliary hydraulic line for the breaker |
Service Refill Capacities
| Fuel Tank Capacity | 13.2 gal (50 L) |
| Engine Oil Capacity (w/ filter) | 2.5 gal (9.5 L) |
| Cooling System Capacity | 3 gal (11.5 L) |
| Hydraulic System Capacity (w/ tank) | 20.6 gal (78 L) |
| Hydraulic Tank Capacity | 9.5 gal (36 L) |

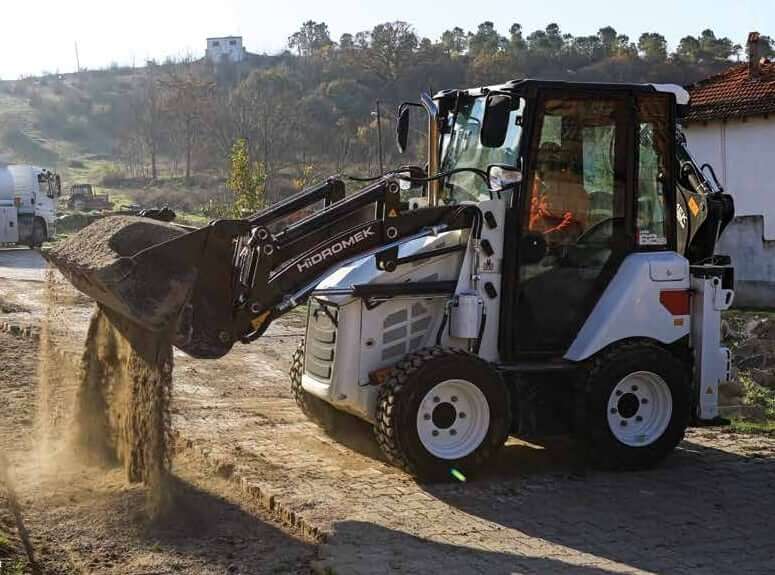

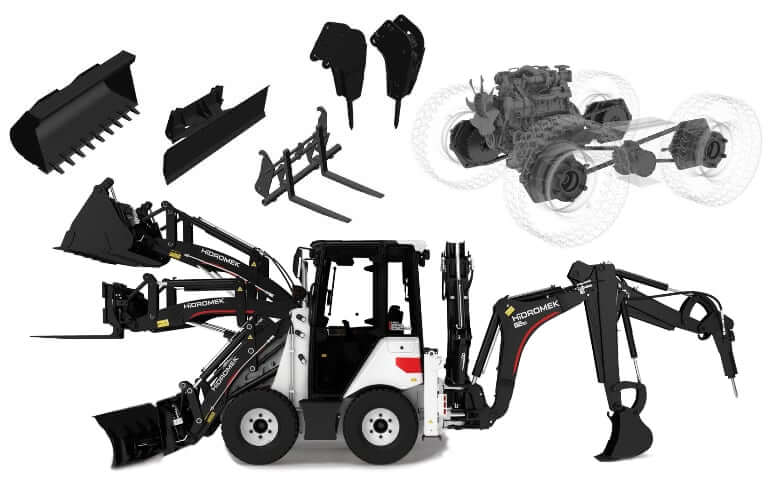

The Hidromek HMK 62SS Mini Backhoe Loader is designed to deliver exceptional versatility, compact power, and multi-function performance in confined spaces. Built with a quick coupler loader system, it allows fast and easy switching between attachments such as standard buckets, dozer blades, and pallet forks making it ideal for a wide variety of loading, grading, and material handling applications.

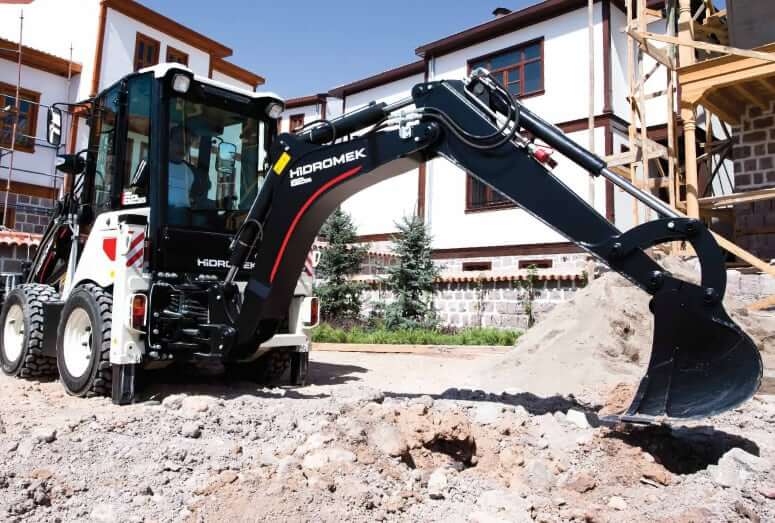

The backhoe attachment is equipped with a secure hydraulic lock system to ensure stability and efficiency during digging operations, while compatibility with a hydraulic breaker expands the machine’s capability to handle demolition and trenching work. With its smart design, strong hydraulics, and rapid tool change system, the Hidromek 62 SS offers a perfect balance of productivity, precision, and adaptability for construction, landscaping, and utility projects.
