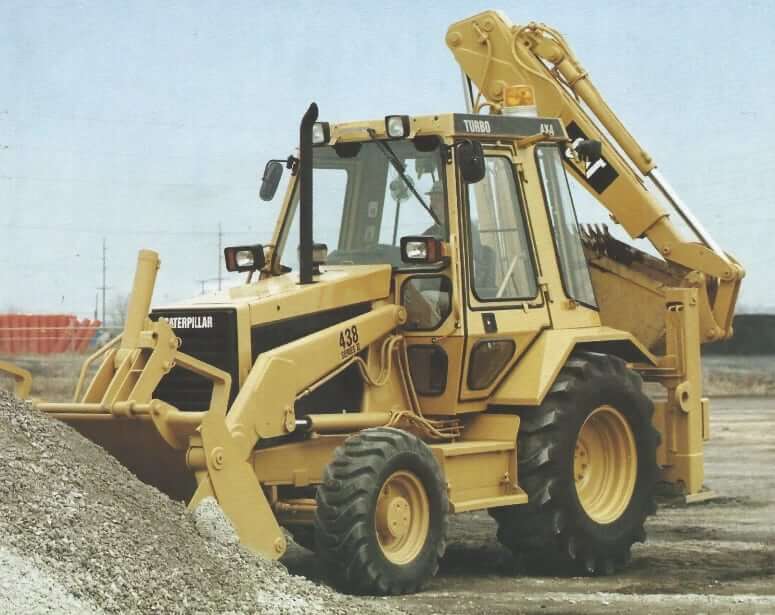

Dimensions
| Transport Length | 224.3 in (5696 mm) |
| Transport Width | 94.7 in (2406 mm) |
| Transport Height | 141.6 in (3597 mm) |
| Height to Top of Cab | 110 in (2795 mm) |
| Wheelbase | 81.4 in (2067 mm) |
| Ground Clearance | 13.2 in (335 mm) |
Backhoe
| CAT 438 Series II | Standard Arm | Extended Arm |
|---|---|---|
| Load Height | 136.1 in (3458 mm) | 164.4 in (4175 mm) |
| Reach From Swivel | 220.7 in (5605 mm) | 269.6 in (6848 mm) |
| Digging Depth | 189.4 in (4812 mm) | 238.7 in (6063 mm) |
| Load At Max Lift | 3704 lb (1680 kg) | 2127 lb (965 kg) |
| Bucket Dig Force | 11970 lbf (53.26 kN) | 11970 lbf (53.26 kN) |
| Arm Dig Force | 7320 lbf (32.56 kN) |

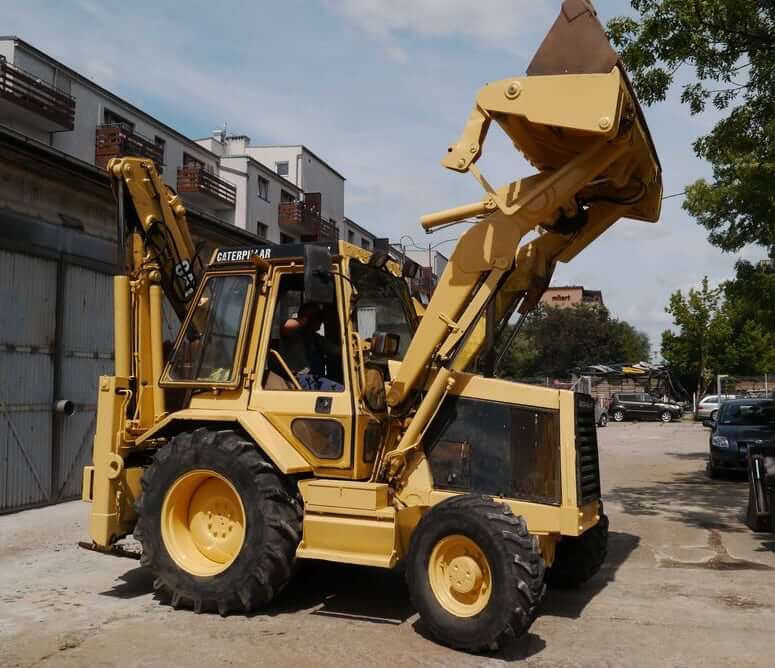

Loader
| Clearance at Max Dump Height | 104.3 in (2648 mm) |
| Reach at Max Dump Height | 33.7 in (855 mm) |
| Digging Depth | 3.75 in (95 mm) |
| Lift Capacity at Full Height | 5212 lb (2364 kg) |
| Bucket Breakout Force | 8368 lbf (37.22 kN) |
| Bucket Width | 94.34 in (2396 mm) |
| Multi Purpose Bucket Capacity | 1.20 yd3 (0.92 m3) |
| General Purpose Bucket Capacity | 1.38 yd3 (1.0 m3) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Perkins |
| Engine Model | Perkins 4.236 |
| Displacement | 235.7 cu in (3.863 L) |
| Bore | 3.87 in (98.4 mm) |
| Stroke | 5.00 in (127 mm) |
| Net Power | 77 hp (57.5 kw) |
| Gross Power | 83 hp (61.9 kw) |
| Power Measured @ | 2000 rpm |
| Fuel System | Direct injection |
| Aspiration | Turbocharged |
Operational Specs
| Operating Weight | 16235 lb (7364 kg) |
| Max Operating Weight | 17420 lb (7900 kg) |
| Operating Voltage | 12 V |
| Alternator | 52 A |
| Battery | 12 V, 100 Ah, CCA 750, BCI 31 |
| Front Tire Size | 12.5/80-18 10PR |
| Rear Tire Size | 18.4/15-26 12PR |
Transmission
| Drive | 4×4 (MFWD) 4WD |
| Number of Gears | 4F / 4R |
| Max Forward Speed | 19.0 mph (30.5 km/h) |
| Max Reverse Speed | 19.1 mph (30.6 km/h) |
Hydraulic System
| Type | Load-Sensing Hydraulics |
| Pump Flow Capacity | 36.5 gal/min (138 L/min) |
| Relief Valve Pressure | 2698 psi (18600 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 28 gal (106 L) |
| Engine Oil Capacity (w/ Filter) | 1.8 gal (7.0 L) |
| Cooling System Capacity | 5.5 gal (21 L) |
| Transmission Oil Capacity | 2.6 gal (10 L) |
| Rear Axle Oil Capacity | 4.9 gal (18.5 L) |
| Front Axle Oil Capacity | 2.0 gal (7.5 L) |
| Hydraulic System Capacity | 21 gal (79 L) |
| Hydraulic Tank Capacity | 10 gal (38 L) |
