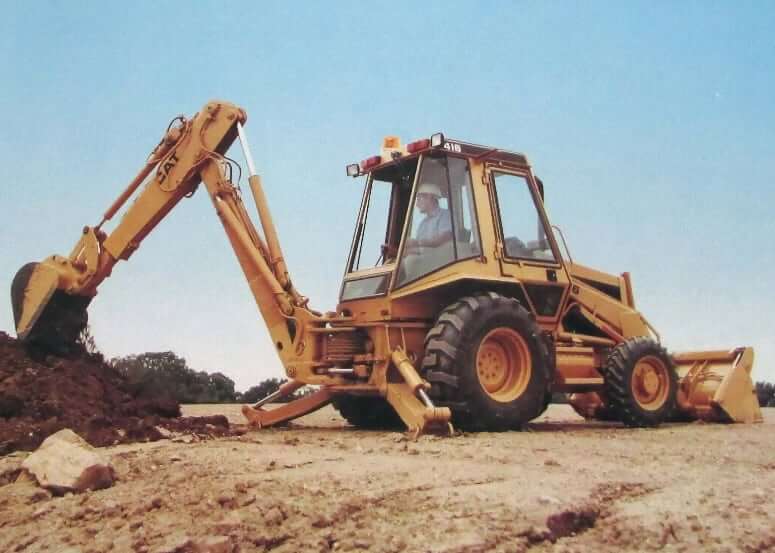

Dimensions
| Transport Length |
268.3 in (6814 mm) |
| Transport Width |
88 in (2235 mm) |
| Transport Height |
134.8 in (3423 mm) |
| Wheelbase |
82.7 in (2100 mm) |
| Front Wheel Tread |
70.1 in (1780 mm) |
| Rear Wheel Tread |
67.3 in (1710 mm) |
| Height to Top of Canopy |
106.8 in (2713 mm) |
| Height to Top of Cab ROPS |
106.8 in (2713 mm) |
| Height to Exhaust Stack |
108.7 in (2760 mm) |
| Height to Steering Wheel |
76.8 in (1951 mm) |
| Ground Clearance |
11.6 in (295 mm) |
Backhoe
| CAT 416 Series I |
Standard Stick |
Extended Stick |
| Max Digging Depth, SAE |
169.9 in (4315 mm) |
221.4 in (5624 mm) |
| Digging Depth, 2 ft (610 mm) Flat Bottom, SAE |
168.9 in (4290 mm) |
220.3 in (5595 mm) |
| Overall Reach From Rear Axle Centerline at Groundline |
255.9 in (6501 mm) |
305.2 in (7753 mm) |
| Overall Reach From Swing Pivot at Groundline |
213.0 in (5411 mm) |
262.3 in (6663 mm) |
| Loading Height |
135.4 in (3440 mm) |
162.8 in (4136 mm) |
| Loading Reach |
75.5 in (1917 mm) |
122.2 in (3103 mm) |
| Swing Arc |
180° |
180° |
| Bucket Rotation (Position for Max Load Retention) |
195° |
187° |
| Bucket Rotation (Position for Max Power) |
150° |
144° |
| Stabilizer Spread (Operating Position) |
111 in (2820 mm) |
111 in (2820 mm) |
| Stabilizer Spread (Transport Position) |
80.8 in (2052 mm) |
80.8 in (2052 mm) |
| Bucket Digging Force (SAE) |
10610 lbf (47.2 kN) |
10440 lbf (46.4 kN) |
| Dipper Digging Force (SAE) |
6345 lbf (28.6 kN) |
4410 lbf (19.6 kN) |
| Leveling Angle (Maximum Slope on Which Backhoe Will Make Vertical Cut) |
14° |
14° |
Backhoe Buckets
| Bucket Width |
Capacity (Heaped / Struck) |
Bucket Weight |
Teeth |
| 12 in (305 mm) |
2.7 ft3 (77 L) / 2.2 ft3 (62 L) |
185 lb (84 kg) |
3 |
| 18 in (457 mm) |
5.3 ft3 (154 L) / 4.2 ft3 (119 L) |
251 lb (114 kg) |
4 |
| 24 in (610 mm) |
7.6 ft3 (214 L) / 5.8 ft3 (165 L) |
287 lb (130 kg) |
4 |
| 30 in (762 mm) |
10.0 ft3 (284 L) / 7.5 ft3 (212 L) |
322 lb (146 kg) |
5 |
| 36 in (914 mm) |
12.3 ft3 (355 L) / 9.1 ft3 (258 L) |
355 lb (161 kg) |
6 |
Caterpillar 416 Series I backhoe bucket teeth options: utility; abrasion; penetration; short and long teeths
Loader
| Bucket Type |
General Purpose |
Multi Purpose |
| Bucket Width |
88 in (2235 mm) |
88 in (2235 mm) |
| Heaped Capacity |
1 yd3 (0.76 m3) |
1 yd3 (0.76 m3) |
| Struck Capacity |
0.82 yd3 (0.63 m3) |
0.82 yd3 (0.63 m3) |
| Lift Capacity at Full Height |
5250 lb (2381 kg) |
5280 lb (2396 kg) |
| Breakout Force |
7500 lbf (33.3 kN) |
8329 lbf (37.0 kN) |
| Hinge Pin Height |
130 in (3300 mm) |
130 in (3300 mm) |
| Dump Angle Full Height |
45° |
45° |
| Dump Height @ 45° |
104 in (2642 mm) |
105.2 in (2673 mm) |
| Reach @ Full Height / 45° |
27.2 in (692 mm) |
24.8 in (629 mm) |
| Maximum Rollback Ground |
40° |
40° |
| Digging Depth |
4 in (101 mm) |
5 in (126 mm) |
| Grading Angle |
113° |
115° |
| Width of Dozer Cutting Edge |
– |
89.1 in (2262 mm) |
| Maximum Clam Opening |
– |
37.8 in (960 mm) |
| Bucket Weight |
830 lb (377 kg) |
1210 lb (549 kg) |
Tires
| CAT 416 Series I |
2WD |
4WD |
| Front Tire Size (Standard) |
11L-16 10PR |
10.5-20 8PR |
| Rear Tire Size (Standard) |
16.9-24 8PR |
19.5L-24 8PR |
| Rear Tire Size (Optional) |
16.9-24 10PR |
19.5L-24 10PR |
| Rear Tire Size (Optional) |
19.5L-24 8PR |
19.5L-24 10PR |
| Rear Tire Size (Optional) |
19.5L-24 10PR |
19.5L-24 10PR |
Engine Details
| Number of Cylinders |
4 |
| Engine Make |
Perkins |
| Engine Model |
Perkins 4.236 |
| Displacement |
235.6 cu in (3.9 L) |
| Bore |
3.87 in (98.4 mm) |
| Stroke |
5.00 in (127 mm) |
| Net Power |
62 hp (46 kw) |
| Power Measured @ |
2400 rpm |
| Aspiration |
Turbocharged |
| Air Cleaner |
Dry-type air filter with primary and safety elements |
| Lubrication System |
Pressure lubrication with full-flow filtered oil |

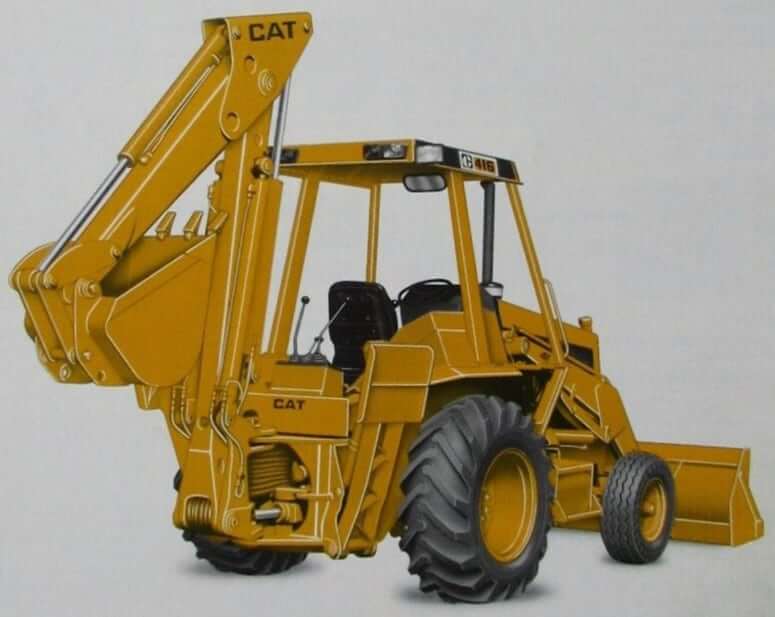

Operational Specs
| Operating Weight (2WD) |
13420 lb (6087 kg) |
| Operating Weight (4WD) |
13928 lb (6317 kg) |
| Max Operating Weight |
15426 lb (6996 kg) |
| Operating Voltage |
12 V |
| Alternator |
52 amps |
| Battery |
12 V, CCA 750, BCI 31 |
| Cab |
ROPS + FOPS |
| ROPS |
SAE J394, SAE J1040c and ISO 3471 1980 |
| FOPS |
SAE J231 and ISO 3449 1984 |
Transmission
| Type |
Fully synchronized power shuttle transmission |
| Number of Gears |
4F / 4R |
| Gear Shifting |
On-the go shifting in all gears |
| Max Travel Speed (Forward) |
20 mph (32.2 km/h) |
| Max Travel Speed (Reverse) |
20 mph (32.2 km/h) |
| Drive |
2WD or 4WD |
| Torque Converter |
Single stage |
Axles, Breaks and Steering
| Front Axle Rating (Static) |
9216 lb (4180 kg) |
| Rear Axle Rating (Static) |
14043 lb (6370 kg) |
| Front Axle (2WD) |
Oscillation 11° each direction from centerline |
| Front Axle (4WD) |
Oscillation 11° each direction from centerline |
| Rear Axle Type |
Heavy duty industrial axle with inboard planetary reduction and differential lock |
| 2WD/4WD Switch |
Switch on instrument panel engages 4-wheel drive, on the move, in any gear, forward or reverse. Drive from differential to front wheels via planetary reduction in each wheel. On the go shifting up or down in all gears is retained in 4-wheel drive |
| Service Brakes |
Two fully enclosed, self-energizing oil disc brakes on final drive input shaft. Foot operated, pedal interlock for roading or independently for working applications |
| Parking Brake |
Parking brake uses service brake system |
| Steering Type |
Front wheel hydrostatic power steering |
| Steering Cylinder |
Double acting, bore 3 in (76 mm), stroke 8.7 in (220 mm), rod 1.87 in (47 mm) |
| Turning Radius (2WD) |
155.5 in (3950 mm) |
Hydraulic System
| Type |
Closed center, load sensing pressure compensating hydraulic system |
| Pump Type |
Variable flow axial piston pump |
| Pump Flow Capacity |
28.5 gal/min (108 L/min) |
| Relief Valve Pressure |
2700 psi (18616 kPa) |
Service Refill Capacities
| Fuel Tank Capacity |
22 gal (83 L) |
| Engine Oil Capacity (w/ filter) |
1.9 gal (7 L) |
| Cooling System Capacity |
5.6 gal (21 L) |
| Transmission Oil Capacity |
2.7 gal (10 L) |
| Front Axle Fluid Capacity (4WD) |
2 gal (7.5 L) |
| Rear Axle Fluid Capacity |
4.9 gal (18.5 L) |
| Hydraulic Tank Capacity |
10 gal (38 L) |
| Hydraulic System Capacity (w/ tank) |
21 gal (79.5 L) |
