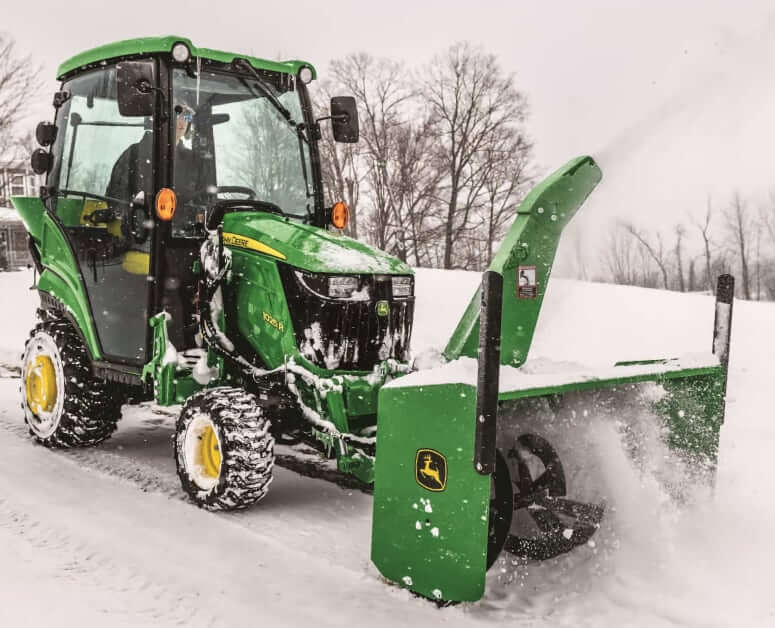

The John Deere 1025R is a small tractor with big capability, and nothing shows that better than its 54-inch snowblower options (Quick-Hitch / 3-Point Hitch). From a mechanic’s perspective, both blowers are well-engineered, reliable, and straightforward to maintain.
The quick-hitch model keeps everything up front and easy to access, while the 3-point blower gives you maximum durability and throwing power. No matter which one you choose, pairing a 1025R with a 54-inch blower is one of the most capable snow-removal combinations you can put on a sub-compact tractor.
Quick-Hitch vs 3-Point Hitch
| Key Features | 54-inch Quick-Hitch Snowblower | 54-inch HD 3-Point Hitch |
|---|---|---|
| Type | Front-mount, Quick-Hitch | Front-mount, 3-point hitch |
| Stage | Two-stage design | Two-stage design |
| Clearing Width | 54 in (1372 mm) | 54 in (1372 mm) |
| Lift Height | 11 in (279 mm) | 12 in (305 mm) |
| Scraper Blade Width | 51.2 in (1300 mm) | 53.3 in (1354 mm) |
| Scraper Blade Type | Reversible and replaceable | Reversible and replaceable |
| Attaching Time | No tools required: 3-4 minutes | No tools required: 4-6 minutes* |
| Removal time | 2 minutes | 3 minutes |
| Lift System | Hydraulically lift and lower blower | Hydraulic cylinder on front 3-point hitch |
*54-inch Heavy-Duty Snowblower estimated initial installation time 35 – 45 min, 2nd installation step (on the tractor) 4 – 6 min
Dimensions
| Snowblower Model | 54-inch Quick-Hitch | 54-inch HD 3-Point Hitch |
|---|---|---|
| Overall Length | 39.4 in (1000 mm) | 35 in (889 mm) |
| Clearing Width | 54 in (1372 mm) | 54 in (1372 mm) |
| Height to Top of Housing | No data | 23 in (584 mm) |
| Height to Top of Spout (Height to Top of Chute Deflector) | 30.7 in (780 mm) | 51.8 in (1315 mm) |
| Snow Blower Weight | 250 lb (113 kg) | 421 lb (191 kg) |
Auger
| Snowblower Model | 54-inch Quick-Hitch | 54-inch HD 3-Point Hitch |
|---|---|---|
| Auger Diameter | 16 in (406 mm) | 16 in (406 mm) |
| Auger Speed | 176 rpm | 189-199 rpm |
| Auger Drive | Splined coupler shaft to gear case | Splined-coupler power take-off (PTO) shaft to helical gearcase |
| Auger Drive Gearbox | Uses precision bearings in the cast-iron gearbox | Cast-iron worm gearcase with 1.25 in (32-mm) output shafts |
| Protection | Shear bolts | Shear bolt for each auger half, four shell-mounted extra shear bolts |
| Drift Blade (Knife) | Optional for both sides of housing | Optional for both sides of housing |
| Bearing | Sealed bearing on each end | Sealed bearing on each end |
Blower
| Snowblower Model | 54-inch Quick-Hitch | 54-inch HD 3-Point Hitch |
|---|---|---|
| Blower Fan Drive | Gear case to roller chain | Heavy-duty cast-iron helical gearcase |
| Blower Fan Material | Welded steel | Welded steel |
| Blower Fan Speed (Impeller Speed) | 950 rpm | 898-943 rpm |
| Blower Fan Diameter (Impeller Diameter) | 15.5 in (394 mm) | 16 in (406 mm) |
Spout
| Snowblower Model | 54-inch Quick-Hitch | 54-inch HD 3-Point Hitch |
|---|---|---|
| Spout Diameter | No data | 7.25 in (184 mm) |
| Spout Rotation Angle | ±100° | ±100° |
| Spout Rotation Control | Hydraulic remote control | Hydraulic remote control |
| Spout Deflector | Optional remote spout cap control kit | The spout deflector can be changed manually to control the height in which snow is blown |

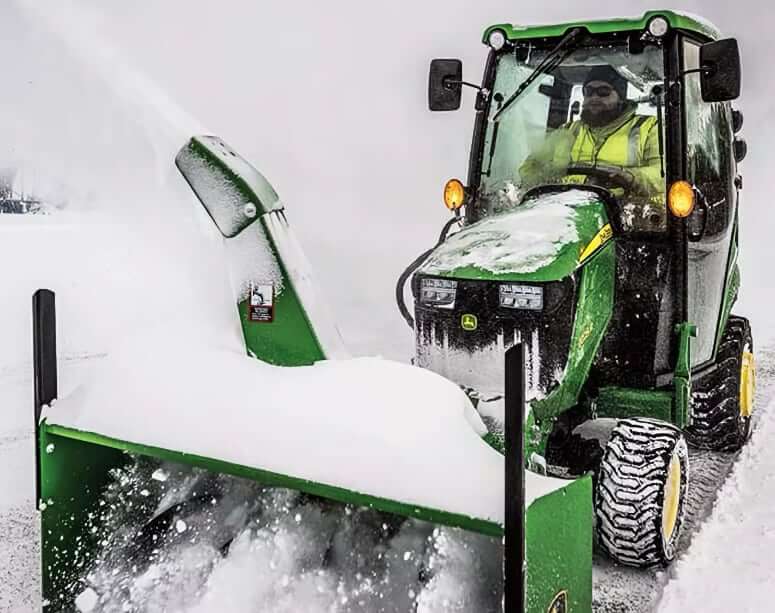

Deere 1025R Snowblower Problems
The following John Deere 54-inch Quick-Hitch snowblower gearbox oil is preferred: GL-5 Gear Lubricant (SAE 80W-90) or GL-5 Gear Lubricant (SAE 85W-140)

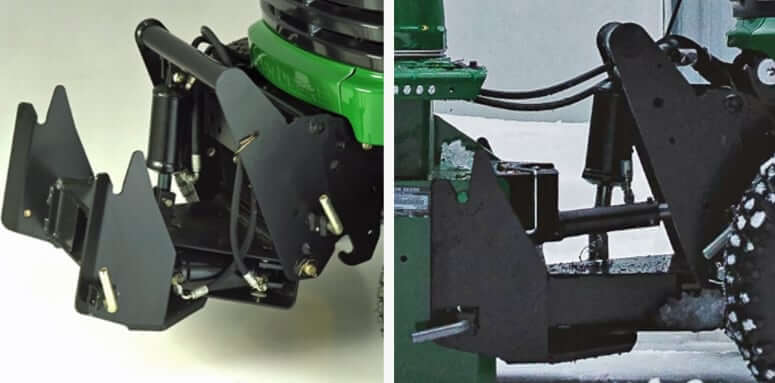

The 54″ Quick-Hitch front snowblower turns the 1025R into a true winter workhorse, giving you a clear view of your path and letting you power through deep or packed snow with ease. It mounts securely to the front quick-hitch system, and once it’s set up, operation is smooth and responsive ideal for clearing driveways, private lanes, sidewalks, and tight areas where maneuverability matters. With the PTO driving the blower and hydraulics handling chute controls, it’s a setup that’s fast to use and easy to service.

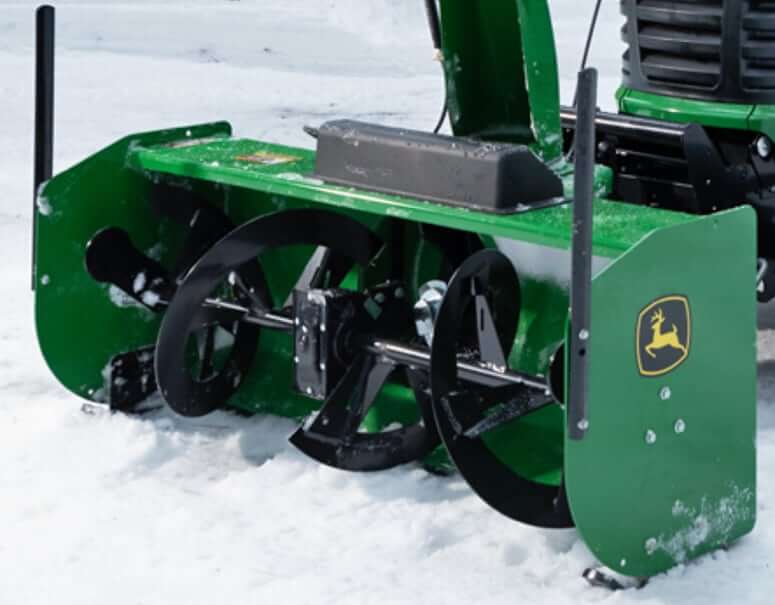

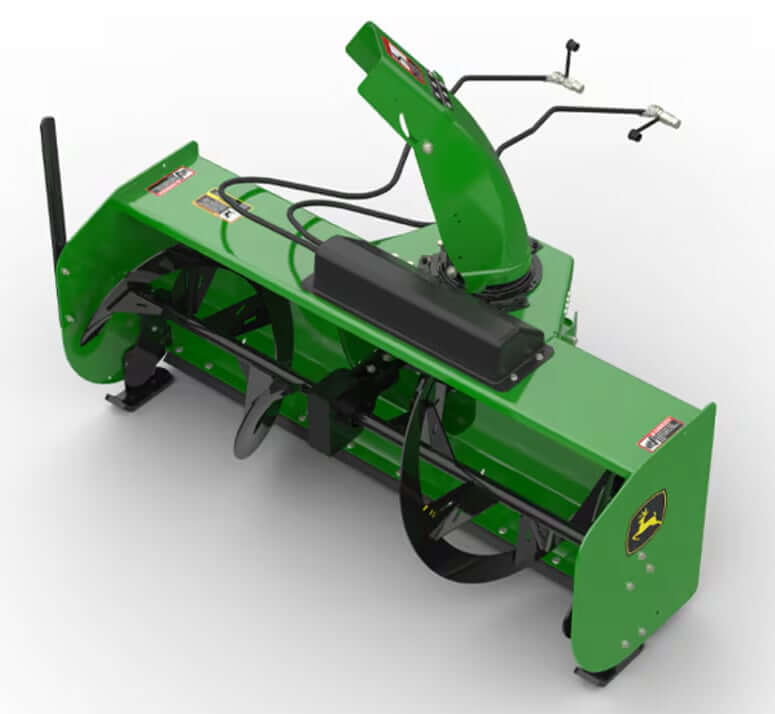

JD 54-inch Quick-Hitch Snowblower
| Problem | Troubleshooting |
|---|---|
| Auger or Impeller Will Not Turn | Replace broken shear bolt |
| Machine Rear Wheel Slip | Install chains or ballast |
| Operation is Erratic | – Tighten drive chain. – Lubricate grease points. – Replace or repair bend scraper blade. – Adjust skid shoes for conditions. |
| Chute Moves in Wrong Direction | Reverse hydraulic hoses |
When you have checked all the possible causes listed and you are still experiencing the problem, see your authorized dealer
The following John Deere 54-inch Heavy Duty 3-Point Hitch snowblower gearbox oil is preferred: SAE 80W90, AGMA 5EP gear oil or equivalent

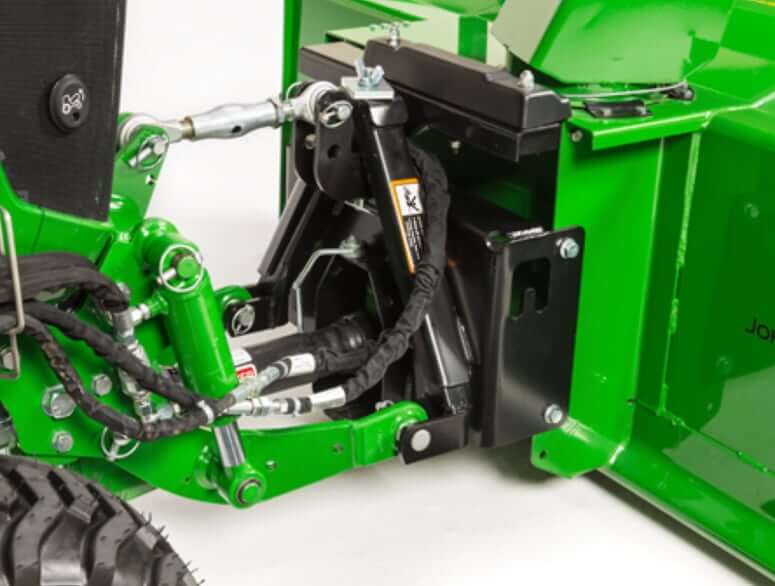

For heavier jobs or larger properties, the 54″ 3-Point Hitch Heavy Duty Snowblower gives the tractor even more muscle. Mounted on the rear, this blower excels in deeper snow and tougher conditions, and it’s built with a stronger housing, thicker steel, and a more aggressive auger. It’s the kind of attachment you choose when you have long driveways, lots of drifting, or frequent storms. The Deere 1025R handles it well thanks to its rear PTO and solid ballast options, and with proper setup, it throws snow far and clean without overloading the tractor.

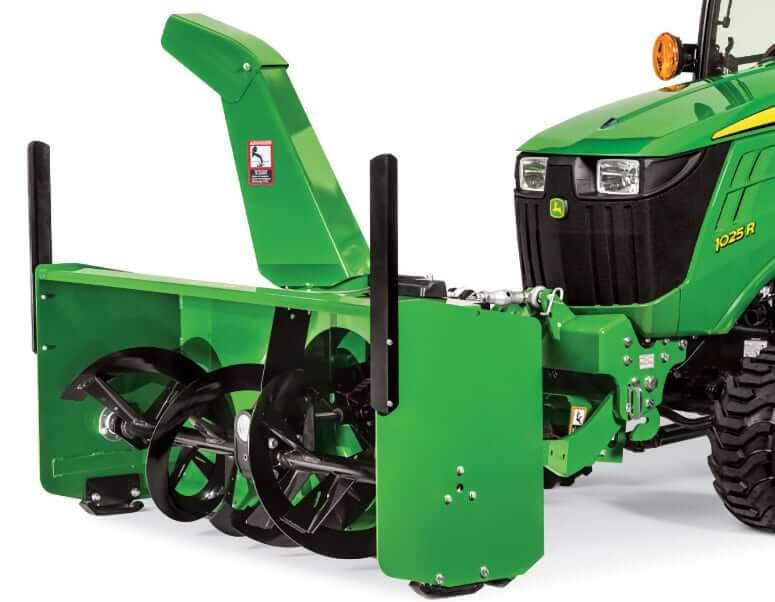

JD 54-inch HD 3-Point Hitch Snowblower
| Problem | Troubleshooting |
|---|---|
| Auger and fan not turning | – Check if an object is blocking the auger or fan – Check that PTO is engaged – Check that the drive system is in the engaged position – Check if chain is broken – Check if shearbolts are broken and replace if necessary – Gearbox lacking oil and is seized. Replace gearbox. |
| Snow is not being ejected from the chute | – Check if the fan is turning, refer to problem # 1 – Check if the snow output is obstructed, unclog with a 36″ stick |
| Snowblower clogs up easily | – Engine is not at full RPM – Check that the chute is not obstructed – Reduce travel speed |
| Snow doesn’t enter the snowblower properly | – Engine is not at full RPM – Check if shearbolts are broken and replace if necessary – Check auger positions. |
| Snow is not thrown very far | – Engine is not at full RPM – Reduce travel speed – Check that the chute is not obstructed |
| Snowblower will not connect to the hitch | – Check that the connection system is not obstructed – Make sure that the pins of the snowblower hitch are removed. – Make sure that the snowblower driveline is on its support. |
