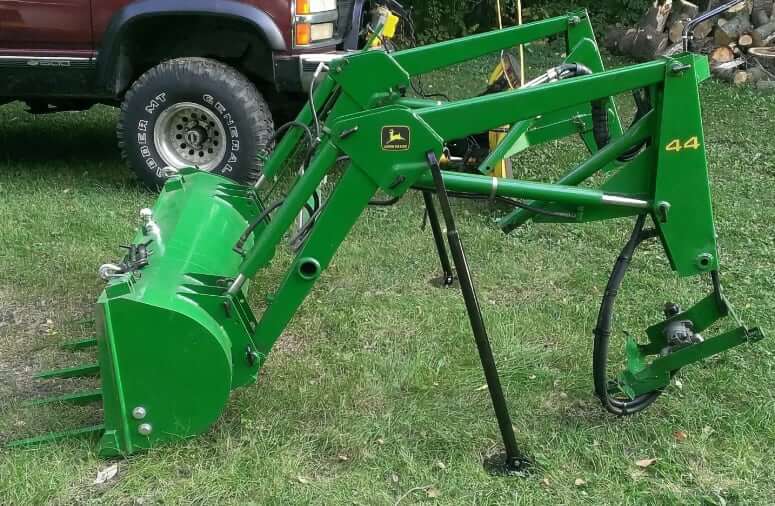

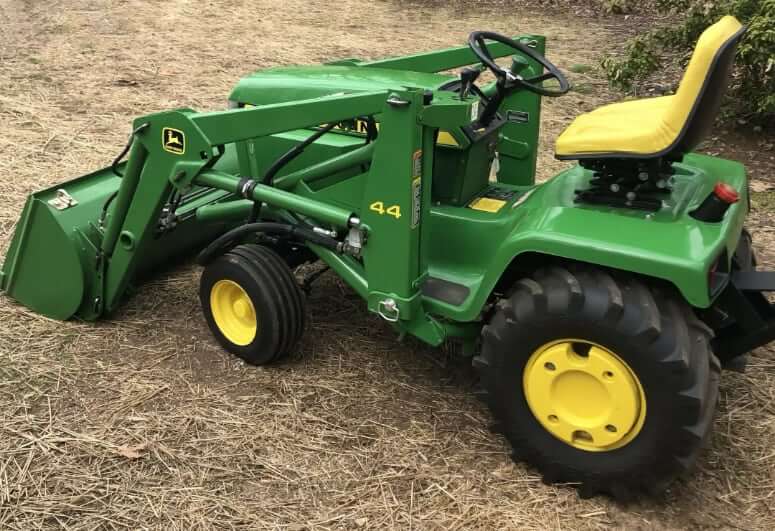

The John Deere 44 Loader is a versatile, front-end loader attachment designed for John Deere garden tractors including the 316, 318, 330, 420, and 430 models. Built for homeowners and small-acreage operators, it transforms these tractors into powerful material-handling machines.
The John Deere 44 front loader is designed to fit the following compact lawn tractor models:
316, 318, 330, 420, 430
The 44 Loader provides smooth hydraulic control for lifting, loading, and transporting materials such as soil, gravel, mulch, or snow. With its durable construction, quick-attach design, and compatibility with multiple John Deere models, it delivers excellent lifting performance and reliability while maintaining the maneuverability and balance of the tractor.
John Deere 44 Dimensions
| Tractor Model | 316, 318 and 330 | 420 | 430 |
|---|---|---|---|
| A. Maximum Lift Height | 71.5 in (1816 mm) | 73 in (1853 mm) | 73 in (1853 mm) |
| B. Reach at Maximum Height (Bucket Dumped) | 21 in (533 mm) | 22 in (558 mm) | 22 in (558 mm) |
| C. Maximum Clearance (Bucket Dumped) | 52 in (1320 mm) | 53.5 in (1358 mm) | 53.5 in (1358 mm) |
| D. Reach with Bucket on Ground | 44 in (1117 mm) | 44.5 in (1130 mm) | 51.25 in (1300 mm) |
| E. Bucket Roll-Back Angle | 20° | 20° | 20° |
| F. Maximum Dump Angle (ASAE) | 50° | 50° | 50° |
| G. Digging Depth Below Ground Level (ASAE) | 4.5 in (114 mm) | 4 in (100 mm) | 4 in (100 mm) |
| H. Mast (Upright) Pivot Height | 40 in (1016 mm) | 42.5 in (1080 mm | 42.5 in (1080 mm |
| I. Front Hub Center Line to Bucket Pivot | 24.5 in (622 mm) | 25 in (635 mm) | 31.75 in (807 mm) |
| J. Mast (Upright) Pivot to Front Hub Center Line | 23.5 in (597 mm) | 23 in (584 mm) | 16.25 in (413 mm) |
| K. Tractor Wheelbase | 46 in (1168 mm) | 52 in (1320 mm) | 52 in (1320 mm) |
John Deere 44 Specs
| Tractor Model | 316, 318 and 330 | 420 | 430 |
|---|---|---|---|
| Lift Capacity to Full Height at Pivot Pin | 400 lb (181 kg) | 500 lb (225 kg) | 500 lb (225 kg) |
| Breakout Force (Bucket cylinders) | 575 lbf (2.56 kN) | 725 Ibf (3.22 kg) | 725 Ibf (3.22 kg) |
| Hydraulic System | Independent | Independent | Independent |
| Rated Pump Flow | 5.25 gal/min (19.9 L/min) | 4.5 gal/min (17 L/min) | 4.5 gal/min (17 L/min) |
| Rated Pressure | 1000 psi (6895 kPa) | 1200 psi (8274 kPa) | 1200 psi (8274 kPa) |
| Relief Valve Pressure Setting | 625 psi (4309 kPa) | 700 psi (4826 kPa) | 700 psi (4826 kPa) |
| Hydraulic Oil Filtration | 275 Micron Screen | 275 Micron Screen | 275 Micron Screen |
| Hydraulic Tank Capacity | 0.5 gal (1.89 L) | 0.5 gal (1.89 L) | 0.5 gal (1.89 L) |
| Hydraulic Cylinders | Double Acting | Double Acting | Double Acting |
| Lift Cylinder, Bore x Stroke | 1.75 x 18.35 in (44 x 466 mm) | 1.75 x 18.35 in (44 x 466 mm) | 1.75 x 18.35 in (44 x 466 mm) |
| Bucket Cylinder, Bore x Stroke | 1.75 x 14.5 in (44 x 368 mm) | 1.75 x 14.5 in (44 x 368 mm) | 1.75 x 14.5 in (44 x 368 mm) |
| Operating Weight | 500 lb (226 kg) | 500 lb (226 kg) | 500 lb (226 kg) |
John Deere 44 Buckets
| Bucket Width | Struk Capacity |
|---|---|
| 48 in (1220 mm), TY20046 | 5.80 ft3 (0.164 m3) |
| 54 in (1370 mm), TY20047 | 6.54 ft3 (0.185 m3) |
Rear Ballast for Stability
To help maintain tractor/loader stability, add rear ballast. Ballast must be added to the tractor rear wheels and 3-point hitch as instructed in the chart. If ballast box (TY20103 or TY20104) is used, there are several common materials that can be used in the box in lieu of the QUIK-TACH weights.
| Tractor Model | Liquid in Rear Tires | Rear Wheel Weights | 3-Point Hitch Ballast* |
|---|---|---|---|
| 316, 318, 330 | Max | 2 (each wheel) | 170 lb (77 kg) |
| 420 | Max | 2 (each wheel) | 170 lb (77 kg) |
| 430 | Max | 2 (each wheel) | 275 lb (125 kg) |
* Ballast in ballast box / 1.36 ft3 (0.038 m3) / is recommended. However, a 3-point hitch implement of comparable weight may be substituted. If the 3-point hitch implement is to be operated while loader is stil attached to tractor, be certain to lower bucket to lowest position affording ground and obstruction clearance.
| Material | Density | Weight** |
|---|---|---|
| Sand (Dry Packed) | 110 lb/ft3 (1762 kg/m3) | 190 lb (86 kg) |
| Gravel (Dry) | 100 lb/ft3 (1602 kg/m3) | 176 lb (80 kg) |
| Earth (Dry Packed) | 95 lb/ft3 (1522 kg/m3) | 170 lb (77 kg) |
** Struck or Full Capacity of Box, includes box weight of 40 lb (18 kg).
