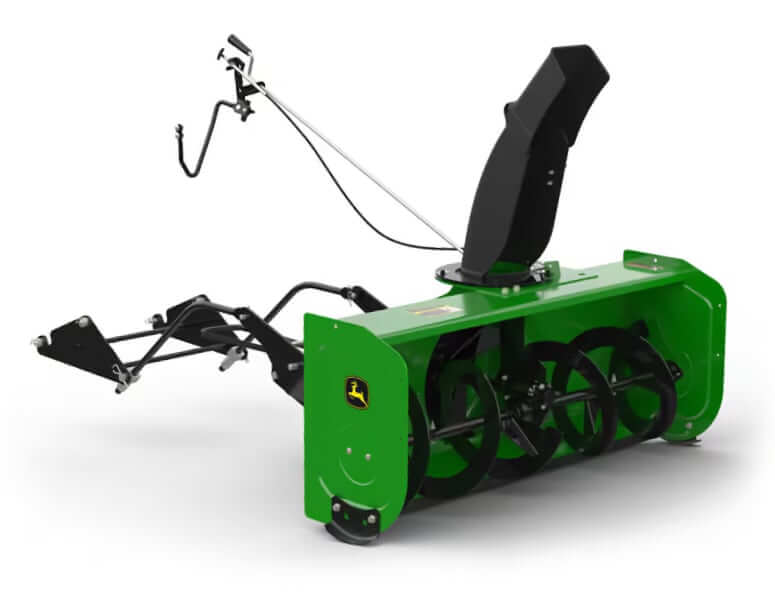

Key Features
| Type | Front-mount |
| Stage | Two-Stage |
| Lift Height | 4 in (102 mm) |
| Lift Height (below ground level) | 2 in (51 mm) |
| Scraper Blade | Replaceable |
| Attaching Time | No tools required: 5 minutes |
| Lift System | Spring-assisted foot lift or hydraulic lift X300 Series Tractors |

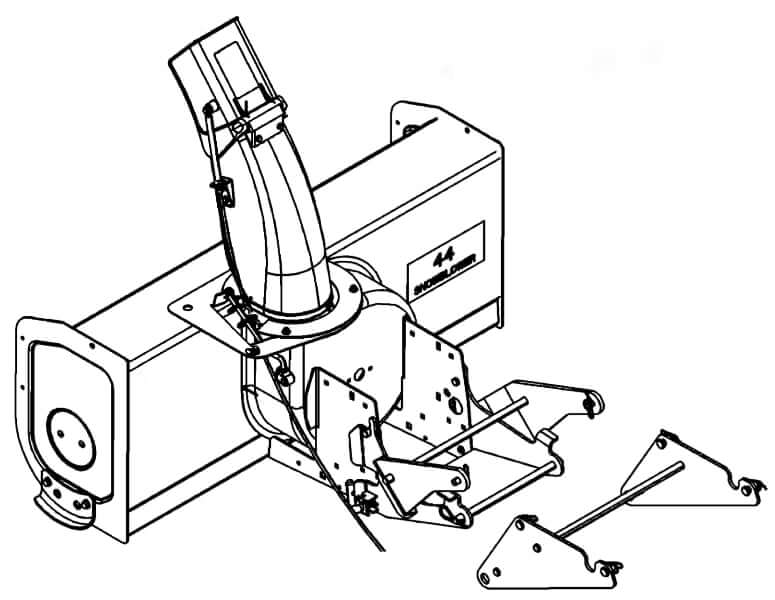

Dimensions
| Overall Length | 30.5 in (775 mm) |
| Clearing Width | 44 in (1118 mm) |
| Height to Top of Housing | 18 in ( mm) |
| Height to Top of Spout | 40 in ( mm) |
| Snow Blower Weight | 180 lb (82 kg) |
Auger
| Auger Diameter | 12 in (305 mm) |
| Auger Speed | 110 rpm |
| Auger Drive | In-line V-belt |
| Auger Drive Gearbox | Cast-iron worm-drive gearbox |
| Protection | Shear bolt for each auger half |
| Drift Knife | Optional for both sides of housing |
| Bearing | Sealed bearing on each end: 0.75 in (19 mm) |
Blower
| Blower Fan Drive | Cast-iron right-angle gearbox |
| Blower Fan Material | Ultra high molecular weight (UHMW) polyethylene |
| Blower Fan Size | 4.75 x 14 in (121 x 356 mm) |
| Impeller Speed | 1060 rpm |
| Impeller Diameter | 14 in (356 mm) |
Spout
| Spout Diameter | 6 in (152 mm) |
| Spout Rotation Angle | ±100° |
| Spout Rotation Control | Manual remote handle |
| Spout Deflector | The deflector can be easily adjusted form the operator’s station to determine distance of throw |
Tractor Compatibility
| John Deere 300 Series | John Deere X330, X350, X350R, X354, X370, X380, X384, X390, X394 |
| John Deere 500 Series | John Deere X570 |

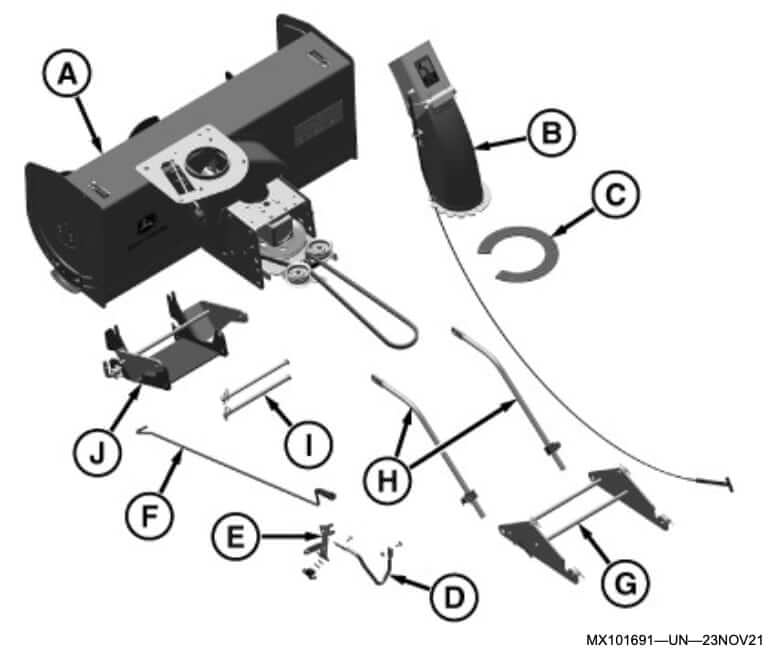

Identify Parts
| Part Description | Quantity |
|---|---|
| A. Snowblower Assembly | 1 |
| B. Chute Assembly (includes spout and cable) | 1 |
| C. Bracket, Chute Retaining | 1 |
| E. Bracket, Chute and Spout | 1 |
| F. Rod, Chute Handle (includes handle) | 1 |
| G. Bracket, Rear Lift | 1 |
| H. Lift Link Assembly | 2 |
| I. Pin, Front Draft | 1 |
| J. Hitch, Front Attachment | 1 |
| Reflective Tape | 2 |
Snowblower Hardware
| Hardware Description | Quantity |
|---|---|
| Carriage Bolt, M8 x 20 | 3 |
| Bolt, M6 x 16 Flange Head | 1 |
| Bolt, M6 x 45 Flange Head | 4 |
| Screw, M8 x 20 Self-T apping | 4 |
| Screw, M5 Pan Head | 1 |
| Nut, M5 | 1 |
| Nut, M6 | 5 |
| Nut, M8 | 2 |
| Washer, M10 x 340D x 3W (used on X350R models) | 1 |
| Lockwasher, 3/8 in | 1 |
| Washer, M8.4 | 1 |
| Washer, M10.5 | 1 |
| Clamp | 1 |
| Spacer, Chute Retaining Bracket | 4 |
| Spring Locking Pin, 2.5 mm | 1 |
| Spring Locking Pin, 3.72 mm | 2 |
| Spring Locking Pin, 4.5 mm | 1 |
| Cotter Pin, Self-Locking | 6 |
| Pin, Clevis | 2 |
| Bearing, Snap-In | 1 |
| Knob | 1 |
| Hitch Pin | 1 |
The following John Deere gearbox oil is preferred: GL-5 GEAR LUBRICANT® (SAE 80W-90) or GL-5 GEAR LUBRICANT® (SAE 85W-140)

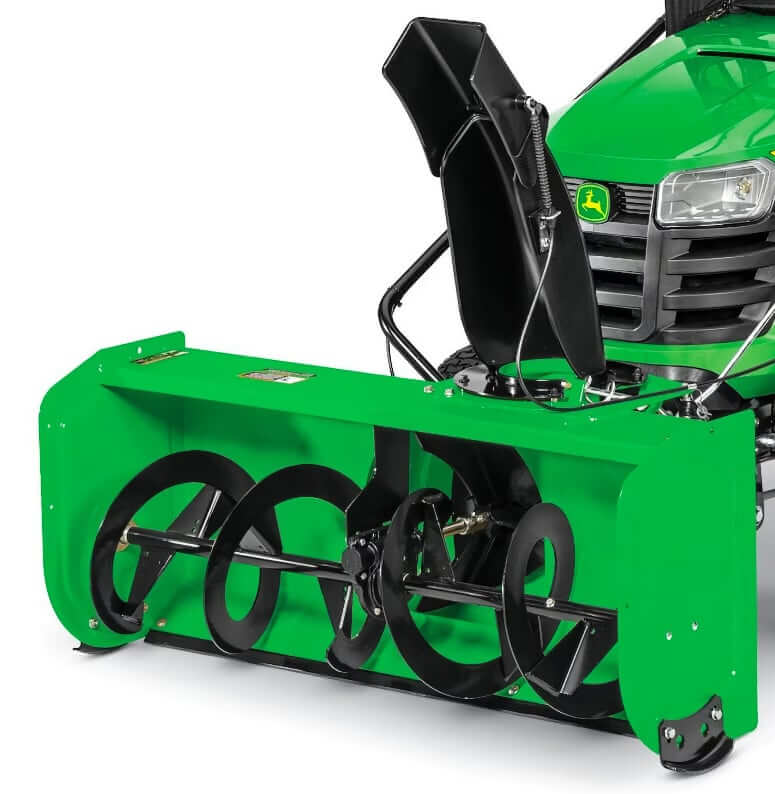

John Deere 44″ Snowblower Problems
| Problem | Troubleshooting |
|---|---|
| Auger or Impeller Will Not Turn | Worn or broken drive belt. Broken shear bolt. |
| Snowblower Operation Is Erratic | Damaged scraper blade. Worn or broken drive belt. |
| Rear Traction Is Poor | Install machine weights. Install chains on rear tires. |
| Snowblower Removes Snow Unevenly | Adjust lift assist spring. Check for uneven skid shoes . |
| Lift Lever Will Not Lock In Raised Position | Adjust yoke on lift system. |
| Belt Wears Too Fast or Breaks | Adjust belt guides. Check idler alignment. |
| Not Enough Lift Height or Not Low Enough | Adjust yokes on lift system. Adjust lift assist spring. |
| Lift Effort Too High | Adjust lift assist spring. If needed, apply John Deere approved lubricant to pivot point at the right-hand end of the tractor brake shaft. |
| Engine misses, stalls, emits black smoke, or loses power. | Check air cleaner to see if snow has plugged the filter and air box. Move machine to warm environment to melt snow. Optional Winter Grill Cover available for cold weather – contact John Deere dealer. |
| Brake pedal does not fully return when attachment is raised | Check attachment linkage for binding. Apply John Deere approved lubricant to where brake shaft is supported by tractor frame. |
