Key Features
| Type | Front-mount |
| Stage | Two-Stage |
| Lift Height | 4 in (102 mm) |
| Lift Height (below ground level) | 2 in (51 mm) |
| Scraper Blade | Replaceable |

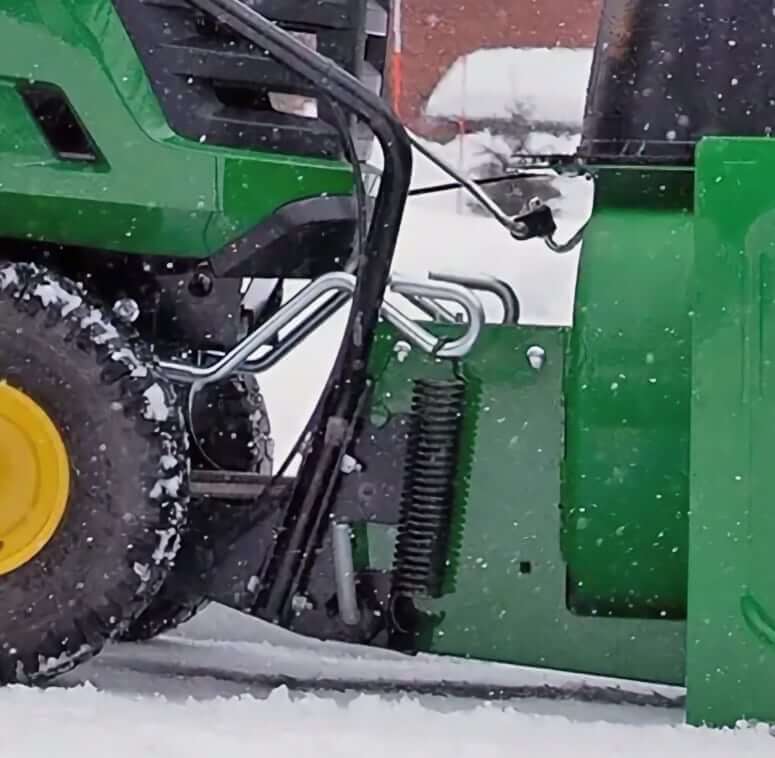

| Lift System | Two lift-assist springs aid in reducing lift effort. The lift system is designed to keep the snow blower housing level as it is lifted. A premium lift handle and control lever are ergonomically designed and located for easy use. |
Dimensions
| Overall Length | 30.5 in (775 mm) |
| Clearing Width | 43.25 in (1100 mm) |
| Height to Top of Housing | 18 in (457 mm) |
| Height to Top of Discharge Spout | 40 in (1016 mm) |
| Snow Blower Weight | 180 lb (82 kg) |
Auger
| Auger Diameter | 12 in (305 mm) |
| Auger Speed | 110 rpm |
| Auger Drive | In-line V-belt |
| Auger Drive Gearbox | Cast-iron worm-drive gearbox |
| Protection | Shear bolt for each auger half |
Blower
| Blower Fan Drive | Cast-iron right-angle gearbox |
| Blower Fan Material | Ultra high molecular weight (UHMW) polyethylene |
| Impeller Diameter | 14 in (356 mm) |
| Impeller Speed | 1060 rpm |
Spout
| Spout Diameter | 6 in (152 mm) |
| Spout Rotation Angle | ±100° |

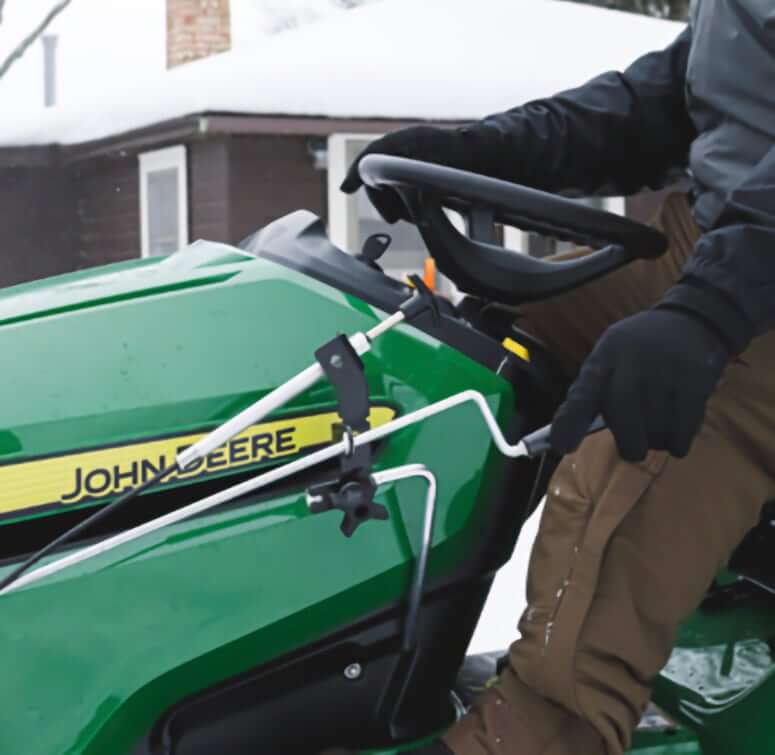

| Spout Rotation Control | Spout direction and deflector angle can both be conveniently controlled form the operator station |
| Spout Deflector Material | The discharge spout and deflector are made from high-density polyethylene material |

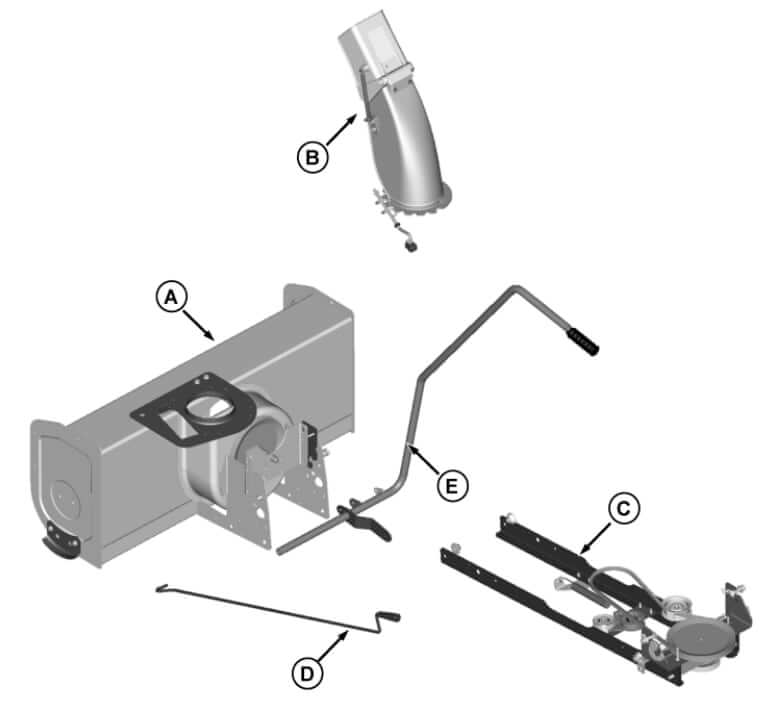

Identify Parts
| Part Description | Quantity |
|---|---|
| A. Housing | 1 |
| B. Chute Assembly (Includes Spout and Cable) | 1 |
| C. Frame | 1 |
| D. Chute Control Handle | 1 |
| E. Lift Lever Assembly | 1 |
The following John Deere gearbox oil is preferred: GL-5 Gear Lubricant (SAE 80W-90) or SAE 85W-140 or API Service Classification GL–5
John Deere 44″ Snowblower Problems
| Problem | Troubleshooting |
|---|---|
| Auger or impeller will not turn | Worn or broken engine drive belt. Worn or broken auger drive belt. Broken shear bolt. |
| Manual PTO machines: auger or impeller continues to rotate | Adjust PTO cable bracket – belt may be over tensioned. |
| Snowblower operation is erratic | Damaged scraper blade. Worn or broken belts. |
| Rear traction is poor | Install machine weights. Install chains on rear tires. |

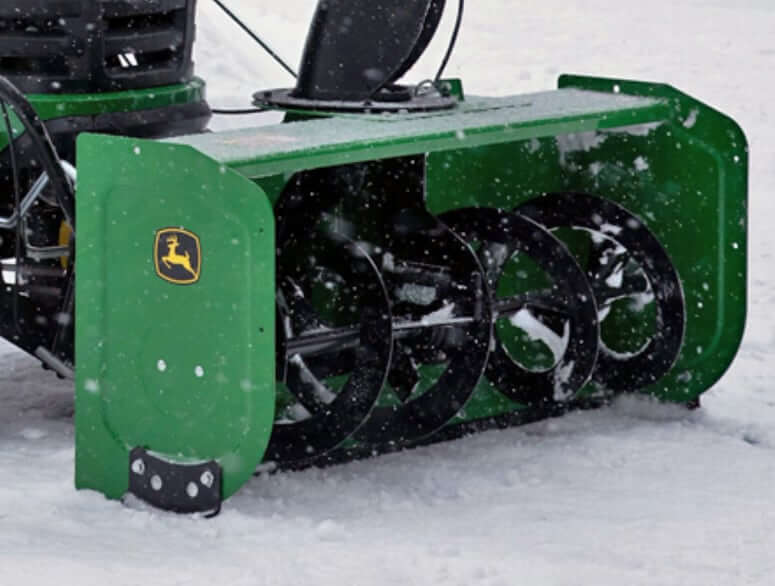

| Snowblower removes snow unevenly | Check for uneven skid shoes. |
| Lift lever will not lock in raised position | Adjust guide plate on snowblower housing. Adjust lift height. |
| Belt wears too fast or breaks | Adjust belt guides. Check idler alignment. |
| Not enough lift height or not low enough | Adjust yokes on lift system. |
