Dimensions
| Overall Length | 402.4 in (10220 mm) |
| Overall Height | 134.9 in (3428 mm) |
| Overall Width | 123.2 in (3130 mm) |
| Width Over Tires | 112.6 in (2859 mm) |
| Tread Width | 88.9 in (2258 mm) |
| Wheelbase | 164.4 in (4175 mm) |
| Dump Height | 258.2 in (6559 mm) |
| Height to Top of Cab | 130.6 in (3318 mm) |
| Dump Ground Clearance | 26.7 in (677 mm) |
| Ground Clearance (front axle) | 18 in (456 mm) |
| Ground Clearance (rear axle) | 20.2 in (512 mm) |
| Front Approach Angle | 23.5° |
Load Capacity
| Rated Payload | 52910 lb (24000 kg) |
| Body Capacity, Struck | 15.3 yd3 (11.7 m3) |
| Body Capacity, Heaped | 19.6 yd3 (15 m3) |
| Body Capacity, Struck (w/ overhung tailgate) | 15.8 yd3 (12.1 m3) |
| Body Capacity, Heaped (w/ overhung tailgate) | 20.4 yd 3 (15.6 m3) |

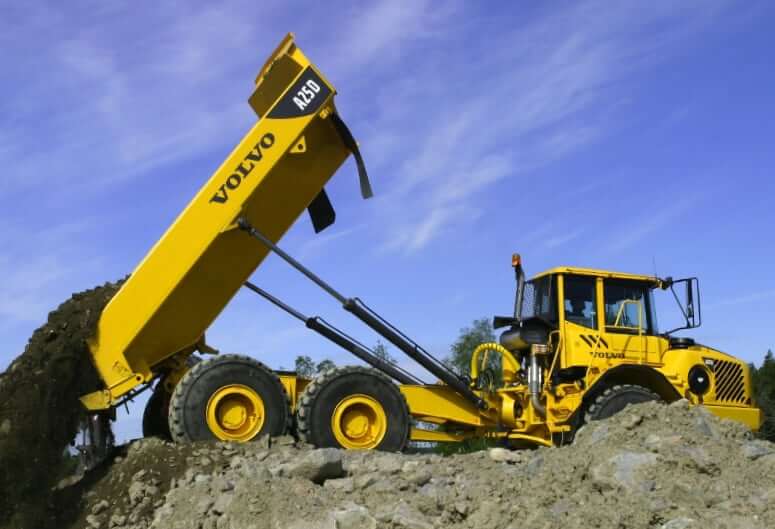

Dump System
| Body | Hardened and tempered steel body, flat plate design fabricated from Hardox 400 |
| Tipping Angle | 74° |
| Tipping Time w/ Load | 12 sec |
| Lowering Time | 9 sec |
| Body Plate Thickness, Front | 0.31 in (8 mm) |
| Body Plate Thickness, Sides | 0.47 in (12 mm) |
| Body Plate Thickness, Bottom | 0.55 in (14 mm) |
| Body Plate Thickness, Chute | 0.55 in (14 mm) |
| Minimum Hardness | 360 HB |
| Yield Strength | 130000 psi (900 N/mm2) |
| Tensile Strength | 181000 psi (1250 N/mm2) |
Weights
| Volvo A25D 6×6 | Empty | Loaded |
|---|---|---|
| Front Axle Load | 26808 lb (12160 kg) | 31173 lb (14140 kg) |
| Rear Axle Load | 20723 lb (9400 kg) | 69268 lb (31420 kg) |
| Total Weight | 47531 lb (21560 kg) | 100441 lb (45560 kg) |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | Volvo |
| Engine Model | Volvo D10B ACE2 |
| Displacement | 586 cu in (9.6 L) |
| Bore | 4.7 in (120 mm) |
| Stroke | 5.5 in (140 mm) |
| Gross Power | 306 hp (228 kw) |
| Net Power | 304 hp (227 kw) |
| Power Measured @ | 2000 rpm |
| Peak Torque | 1014 lb ft (1375 Nm) |
| Torque Measured @ | 1350 rpm |
| Fuel System | Direct injected, electronically-controlled |
| Aspiration | Turbocharged intercooled |
| Emission Standards | US EPA Tier 2 + EU Stage II |
Operational Specs
| Operating Weight | 100441 lb (45560 kg) |
| Rated Payload | 52910 lb (24000 kg) |
| Operating Voltage | 24 V |
| Alternator | 55 amps |
| Battery | 2x 12 V, 170 Ah |
| Starter | 24 V, 8.8 hp (6.6 kw) |
| Cab ROPS | ISO 3471, SAE J1040 |
| Cab FOPS | ISO 3449, SAE J231 |
| Noise Level (inside cab) | 74 dB(A) |
| Steering Angle | ±45° |
| Tire Size | 23.5 R 25 |
| Drivetrain Configuration | 6×4 or 6×6 drive, operator selectable on the move |

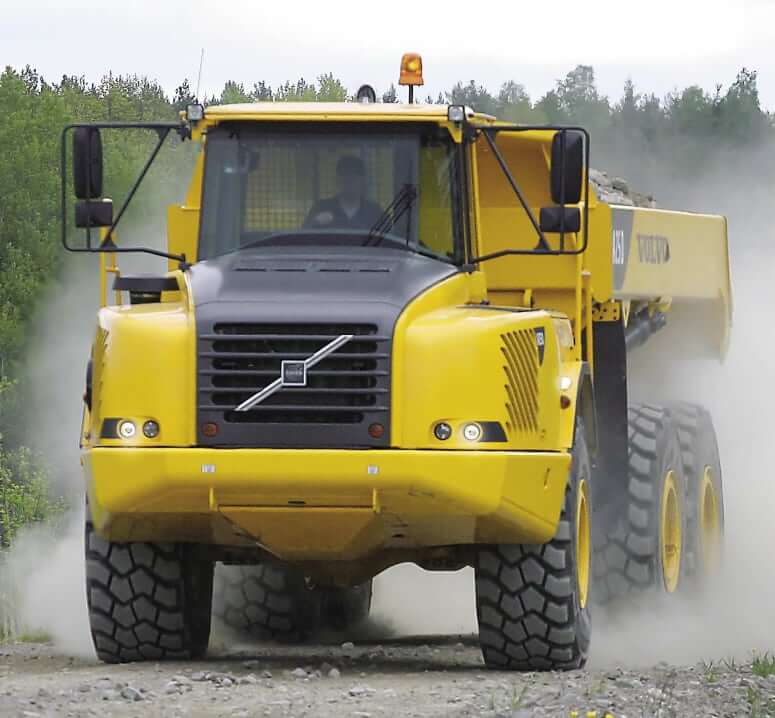

Transmission
| Transmission Type | Fully automatic planetary transmission Volvo PT 1560 |
| Number of Gears | 6F / 2R |
| Torque Converter | Single stage with free wheeling stator and automatic lock up on all gears (2.37:1) |
| Max Forward Speed | 33 mph (53 km/h) |
| Max Reverse Speed | 8.1 mph (13 km/h) |
| Dropbox | Power take-off and differential with 100% lock-up function Volvo IL 1 |
| Axles | Volvo AH 56 transversal differential locks with 100% lock-up and fully floating axle shafts with planetary type hub reductions |
| Service Brakes | Dry discs on all wheels |
| Parking Brake | Spring-applied disc brake on the propeller shaft, designed to hold a loaded machine on a grade up to 18% |
| Retarder | Hydraulic transmission retarder, infinitely variable |
Hydraulic System
| Type | Load-sensing variable displacement piston pumps that consume power only when needed |
| Pumps | 5x engine driven pumps mounted on flywheel power take-off. One ground-dependent piston pump for supplementary steering mounted on the dropbox |
| Engine Dependent Pump Capacity | 27.7 gal/min (105 L/min) |
| Ground Dependent Pump Capacity | 37.5 gal/min (142 L/min) |
| Working Pressure | 3628.4 psi (25000 kPa) |
| Steering Cylinders | Two double-acting steering cylinders |
| Body Cylinders | Two single stage double acting cylinders |
Service Refill Capacities
| Fuel Tank Capacity | 105.7 gal (400 L) |
| Engine Oil Capacity (w/ filter) | 10 gal (38 L) |
| Cooling System Capacity | 21.1 gal (80 L) |
| Transmission Oil Capacity | 12.7 gal (48 L) |
| Dropbox Capacity | 2.1 gal (8.5 L) |
| Hub (each) | 0.8 gal (3 L) |
| Front Axle Capacity | 8.5 gal (32 L) |
| First Bogie Axle Capacity | 9.5 gal (36 L) |
| Second Bogie Axle Capacity | 8.5 gal (32 L) |
| Hydraulic Brake Capacity | 0.53 gal (2 L) |
| Hydraulic System Capacity (w/ tank) | 68.7 gal (260 L) |
| Hydraulic Tank Capacity | 47.6 gal (180 L) |
