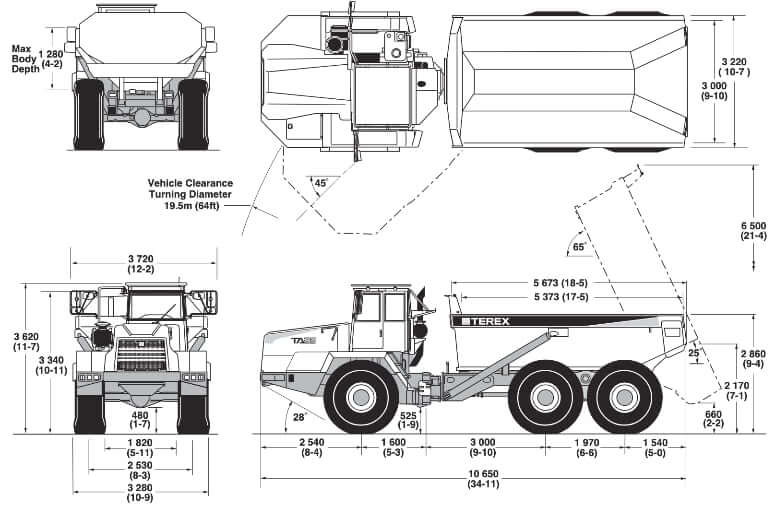

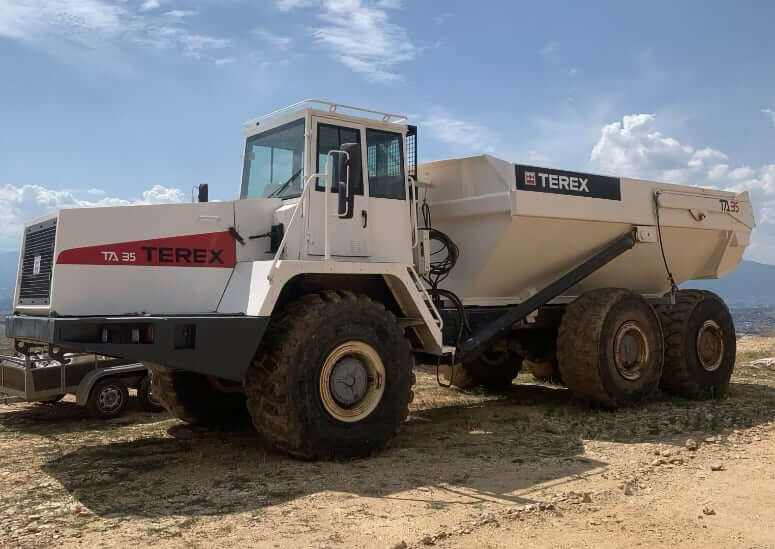

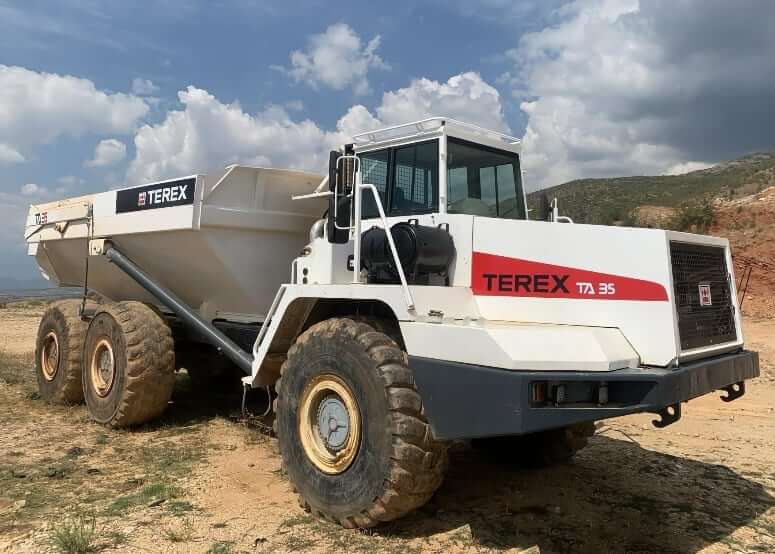

Dimensions
| Overall Length | 429.1 in (10900 mm) |
| Overall Width | 130 in (3300 mm) |
| Overall Height | 153.5 in (3900 mm) |
| Wheelbase | 169.3 in (4300 mm) |
| Ground Clearance | 20.9 in (530 mm) |
| Dump Ground Clearance | 33.5 in (850 mm) |
| Max Dump Height | 271.7 in (6900 mm) |

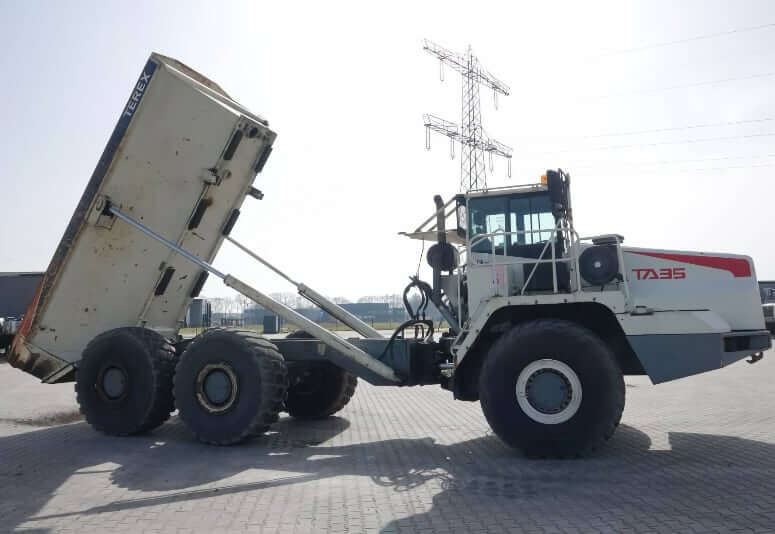

Dump System
| Rated Payload | 74956 lb (34000 kg) |
| Capacity, Heaped 2:1 (SAE) | 27.5 yd3 (21.0 m3) |
| Capacity, Struck (SAE) | 20.3 yd3 (15.5 m3) |
| Dump Angle | 66° |
| Body Raise Time (loaded) | 16 sec |
| Body Lower Time (power down) | 12 sec |
Weights
| Terex TA35 | Empty | Loaded |
|---|---|---|
| Front Axle Load | 33258 lb (15086 kg) | 38094 lb (17279 kg) |
| Center Axle Load- Empty | 15707 lb (7125 kg) | 50705 lb (23000 kg) |
| Rear Axle Load – Empty | 15582 lb (7068 kg) | 50705 lb (23000 kg) |
| Total Weight | 64547 lb (29279 kg) | 139506 lb (63279 kg) |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | Detroit Diesel |
| Engine Model | Detroit Diesel Series 60 |
| Displacement | 855 cu in (14 L) |
| Bore | 5.24 in (133 mm) |
| Stroke | 6.61 in (168 mm) |
| Gross Power | 400 hp (298 kw) |
| Net Power | 375 hp (280 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 1445 lb ft (1959 Nm) |
| Torque Measured @ | 1200 rpm |
| Air Cleaner | Dry-type air filter with safety element, automatic dust ejector and restriction indicator |
| Aspiration | Turbocharged and aftercooled |
| Emission Standards | US EPA Tier 3 |
Operational Specs
| Net Operating Weight | 64547 lb (29279 kg) |
| Gross Operating Weight | 139506 lb (63279 kg) |
| Operating Voltage | 24 V |
| Alternator | 100 amps |
| Battery | 2x 12 V, 175 Ah |
| Noise Level, Operator Ear (ISO 6394) | 80 db(A) |
| Exterior Sound Rating (ISO 6395) | 112 db(A) |
| Steering Angle | 45° |
| Drive | 6×6 |
Transmission
| Transmission Type | Allison HD4560 fully automatic transmission with planetary gearing, electronic control |
| Number of Gears | 6F / 1R |
| Max Forward Speed | 33.5 mph (53.9 km/h) |
| Max Reverse Speed | 4.3 mph (7.0 km/h) |
| Tire Size | 26.5 R 25 two star radial |
| Service Brakes | Wet disc on each wheel and single heavy-duty caliper per disc. Independent circuits for front and rear brake systems |
| Parking Brake | Spring-applied, hydraulic-released disc on rear driveline |
| Secondary Brake | Secondary brake control actuates the service brakes |
| Retardation | Engine brake and transmission retarder are standard. Only engine brake operates automatically should engine approach over-speed condition |
Hydraulic System
| Type | Open center |
| Pump Type | Variable displacement / load sensing piston pump driven from power take-off on transmission |
| Main Pump Flow | 85.6 gal/min (324 L/min) |
| Hoist System Pressure | 3480 psi (24000 kPa) |
| Steering System Pressure | 3480 psi (24000 kPa) |
| Hoist Cylinders | Two single-stage, double-acting hoist cylinders, cushioned at both ends of stroke |
| Control | Full electro-hydraulic hoist control, with electronic detent in power down |
Service Refill Capacities
| Fuel Tank Capacity | 119 gal (450 L) |
| Engine Oil Capacity (w/ filter) | 8.4 gal (32 L) |
| Cooling System Capacity | 17.7 gal (67 L) |
| Transmission Oil Capacity | 16.1 gal (61 L) |
| Hydraulic System Capacity | 87.2 gal (330 L) |
| Dropbox Fluid Capacity | 2.6 gal (10 L) |
| Front Differential Oil Capacity | 8.7 gal (33 L) |
| Center Differential Oil Capacity | 8.9 gal (34 L) |
| Rear Differential Oil Capacity | 8.7 gal (33 L) |
| Planetaries (each) | 2.4 gal (9 L) |
