Dimensions
| Overall Length | 34.75 ft in (10590 mm) |
| Overall Height | 12.64 ft in (3850 mm) |
| Dump Ground Clearance | 2.51 ft in (763 mm) |
| Ground Clearance At Front Axle | 2.21 ft in (680 mm) |
| Ground Clearance Of Rear End | 2.4 ft in (732 mm) |
| Height To Top Of Cab | 12.8 in (325 mm) |
| Turning Radius – Outside | 27.8 ft in (8473 mm) |
| Articulation Joint Front Axle | 4.2 ft in (1280 mm) |
| Articulation Joint Rear Axle | 10.5 ft in (3200 mm) |
| Tread Width | 136.82 in (3475 mm) |
| Turning Radius – Inside | 13.6 ft in (4145 mm) |
| Overhang Front | 9.1 ft in (2774 mm) |
| Overhang Rear | 4.8 ft in (1463 mm) |

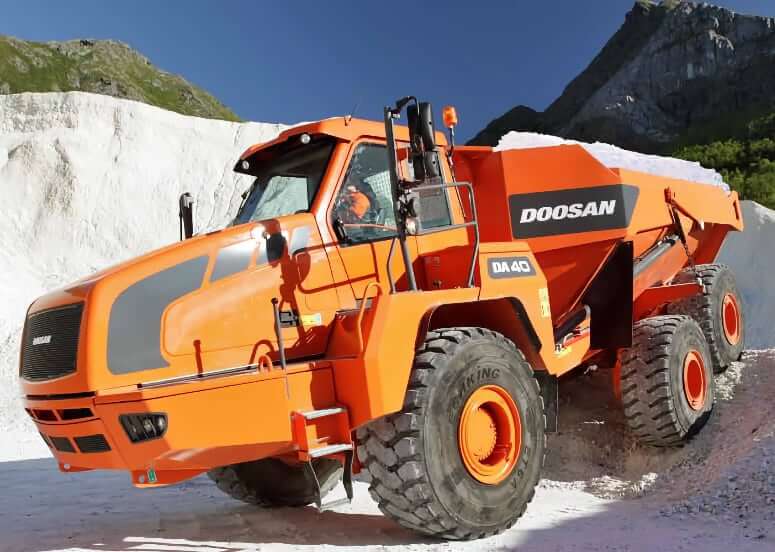

Weights
| Payload Capacity | 88185 lb (40000 kg) |
| Net Weight | 66800 lb (30300 kg) |
| Max Operating Weight | 154985 lb (70300 kg) |
| Front Axle Load (Empty) | 32064 lb (14544 kg) |
| Rear Axle Load (Empty) | 34736 lb (15756 kg) |
| Front Axel Load (Loaded) | 48045 lb (21793 kg) |
| Rear Axle Load (Loaded) | 106940 lb (48507 kg) |

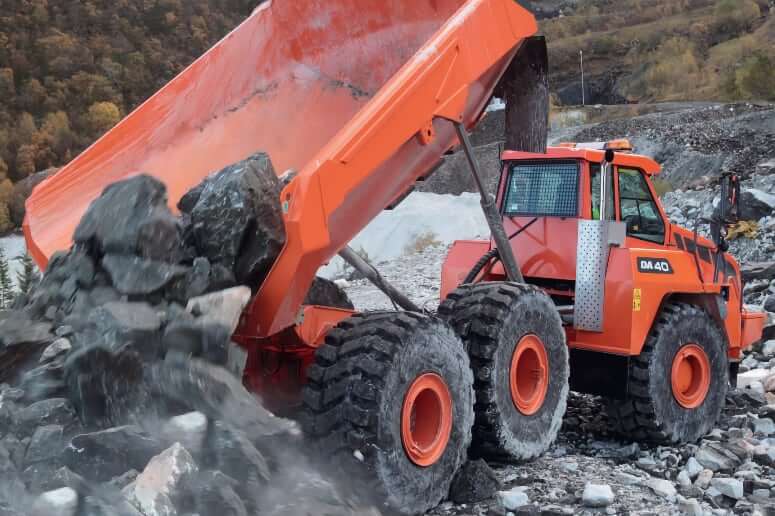

Dump System
| Level Capacity With Tailgate | 26.7 yd3 (20.4 m3) |
| Level Capacity Without Tailgate | 25.7 yd3 (19.6 m3) |
| Heaped Capacity With Tailgate (2:1) | 34.1 yd3 (26 m3) |
| Heaped Capacity Without Tailgate (2:1) | 32 yd3 (24.4 m3) |
| Tipping Time Up | 10 sec |
| Tipping Time Down | 10 sec |
| Dump Angle | 70° |
| Rated Payload | 88185 lb (40000 kg) |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | Scania |
| Engine Model | Scania DC13 |
| Displacement | 775.1 cu in (12.7 L) |
| Bore | 5.1 in (130 mm) |
| Stroke | 6.3 in (160 mm) |
| Gross Power | 500 hp (368 kw) |
| Net Power | 490 hp (360 kw) |
| Power Measured @ | 2100 rpm |
| Peak Torque | 1750 lb ft (2373 Nm) |
| Torque Measured @ | 1300 rpm |
| Air Cleaner | Dry type air filter |
| Aspiration | Turbocharged with air to air intercooler |
| Emission Standards | US EPA Tier 2 (Tier 4) |
Operational Specs
| Net Weight | 66800 lb (30300 kg) |
| Max Operating Weight | 154985 lb (70300 kg) |
| Operating Voltage | 24 V |
| Alternator | 100 amps |
| Battery | 2x 12 V, 225 Ah |
| Starter | 24 V, 7.5 hp (5.5 kw) |
| Tire Size | 29.5 R2255 two star radial |
Transmission
| Type | ZF 8 EP420 electronically-controlled automatic transmission with retarderwith retarder |
| Torque Converter | The torque converter has automatic lock-up in all gears |
| Number of Gears | 8F / 4R |
| Max Forward Speed | 34.2 mph (55 km/h) |
| Max Reverse Speed | 9.9 mph (16 km/h) |
| Service Brakes | Wet disc brake on all 6 wheels |
| Parking Brake | Spring actuated hydraulic released parking brake, mounted on driveline shaft |
| Retarder | Automatic transmission retarder as standard |
Hydraulic System
| Pump Type | Variable displacement piston pump for steering & tipping, for cooling fan, brakes & auxiliaries |
| Main Pump Flow Capacity | 84.5 gal/min (320 L/min) |
| Dump System Pressure | 4061 psi (28000 kPa) |
| Steering System Pressure | 3046 psi (21000 kPa) |
| Hydraulic Oil Filtration | One return flow filter |

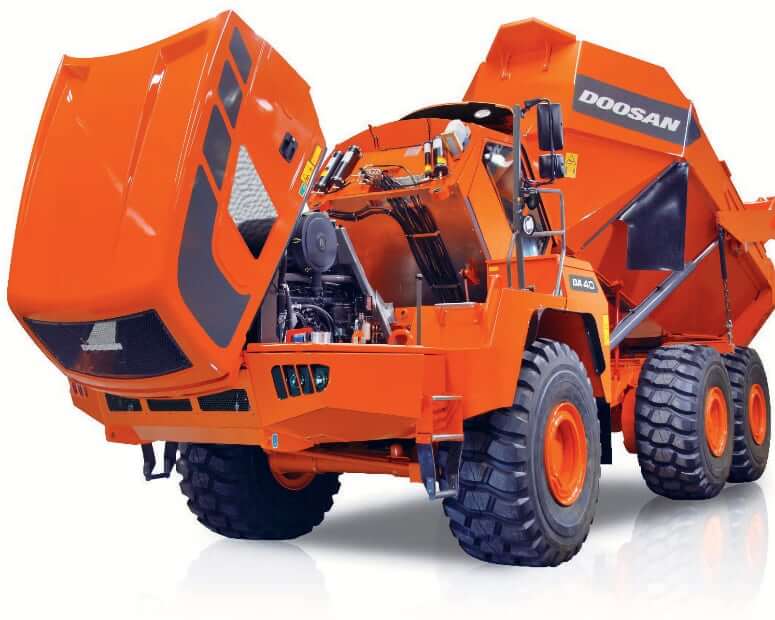

Service Refill Capacities
| Fuel Tank Capacity | 140.1 gal (530 L) |
| DEF Tank Capacity (for Tier 4 only) | 10.1 gal (38 L) |
| Engine Oil Capacity (w/ filter) | 11.7 gal (44 L) |
| Cooling System Capacity | 13.3 gal (50 L) |
| Hydraulic System Capacity | 55.2 gal (209 L) |
| Transmission Oil Capacity | 19.9 gal (75 L) |
| Front Reduction Gear Capacity (each) | 2 gal (7.5 L) |
| Rear Differential Fluid Capacity | 12.2 gal (46 L) |
| Tandem Housing Capacity (each) | 37 gal (140 L) |
