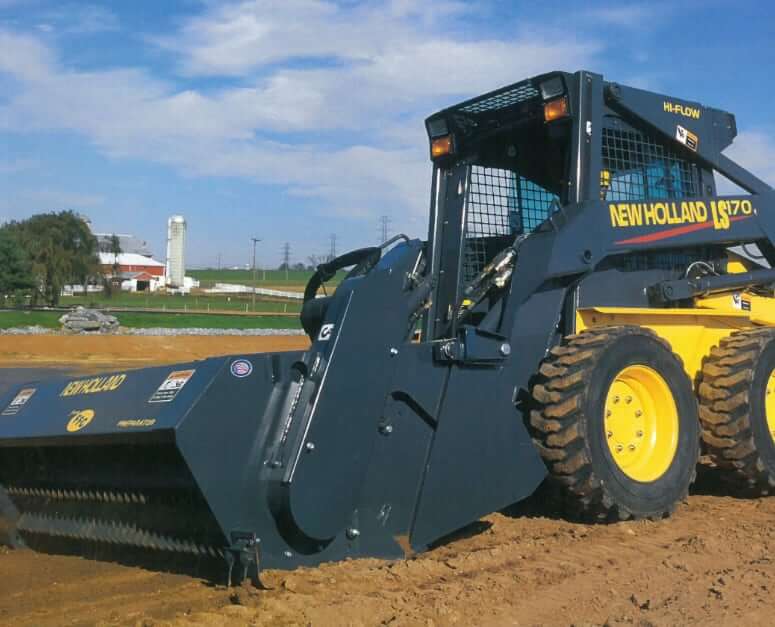

Loader Performance
| Tipping Load | 3530 lb (1601 kg) |
| Rated Operating Capacity (50% Tipping) | 1765 lb (801 kg) |
| Rated Operating Capacity (35% Tipping) | 1235 lb (560 kg) |
| Bucket Breakout Force | 3712 lbf (16.5 kN) |
| Boom Breakout Force | 2828 lbf (12.6 kN) |
| Standard Bucket Width | 66 in (1676 mm) |
| Lift Arm Path | Vertical |

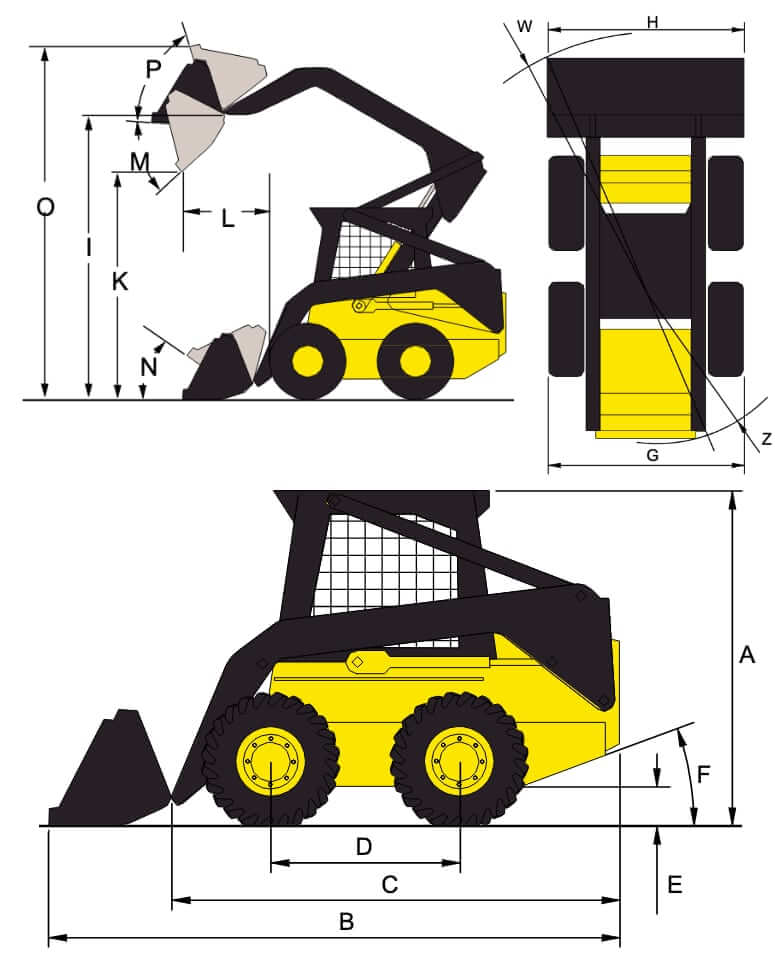

Dimensions
| A. Height to Top of Cab w/ ROPS | 74.75 in (1899 mm) |
| B. Overall Length w/ Bucket | 126.75 in (3220 mm) |
| C. Overall Length w/o Attachment | 101.5 in (2578 mm) |
| D. Wheelbase | 42.5 in (1080 mm) |
| E. Ground Clearance (Bottom of Belly Pan) | 9.0 in (229 mm) |
| E. Ground Clearance (Bottom of Chain Case) | 7.7 in (196 mm) |
| F. Angle of Departure | 23° |
| G. Wheel Tread (10.00 x 16.5) | 56 in (1385 mm) |
| G. Width Over Tires (10.00 x 16.5) | 65.6 in (1667 mm) |
| H. Standard Bucket Width | 66 in (1676 mm) |
| I. Bucket Hinge Pin Height | 115.5 in (2934 mm) |
| K. Dump Height w/ Bucket @ 45° | 90.4 in (2296 mm) |
| L. Dump Reach (Max Height) @ 45° | 27.75 in (705 mm) |
| M. Max Dump Angle | 46° |
| N. Rollback Angle at Ground | 36° |
| O. Max Operating Height | 140 in (3557 mm) |
| P. Rollback Angle at Full Height | 83° |
| W. Turning Radius, Front (w/ Bucket) | 74 in (1892 mm) |
| Z. Turning Radius, Rear | 60 in (1524 mm) |

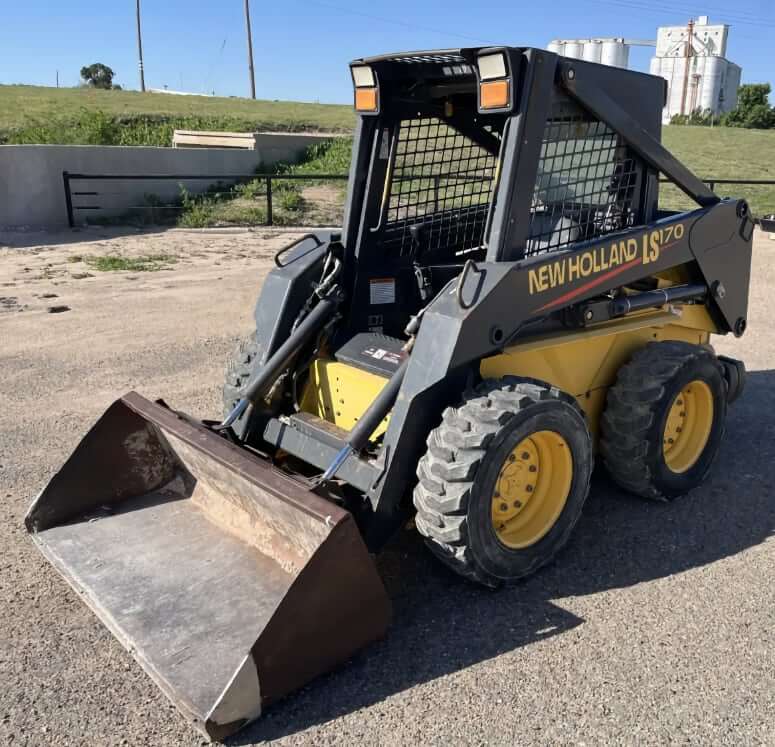

Buckets for New Holland LS170
| New Holland LS170 | Bucket Width | Heaped Capacity |
|---|---|---|
| Dirt / Foundry Bucket | 60 in (1524 mm) | 11.5 ft3 (0.31 m3) |
| Dirt / Foundry Bucket (Standard) | 66 in (1676 mm) | 15.2 ft3 (0.41 m3) |
| Dirt / Foundry Bucket | 72 in (1829 mm) | 16.7 ft3 (0.45 m3) |
| Low Profile Bucket | 60 in (1524 mm) | 11.5 ft3 (0.33 m3) |
| Low Profile Extended Bucket | 60 in (1524 mm) | 14.3 ft3 (0.40 m3) |
| Low Profile Extended Bucket | 66 in (1676 mm) | 15.5 ft3 (0.44 m3) |
| Low Profile Extended Bucket | 72 in (1829 mm) | 17.1 ft3 (0.48 m3) |
| Utility / Light Material Bucket | 60 in (1524 mm) | 19.7 ft3 (0.56 m3) |
| Utility / Light Material Bucket | 72 in (1829 mm) | 23.7 ft3 (0.65 m3) |
| Utility / Light Material Bucket | 84 in (2134 mm) | 27.9 ft3 (0.79 m3) |
| Manure / Fertilizer Bucket | 60 in (1524 mm) | 16.7 ft3 (0.47 m3) |
| Manure / Fertilizer Bucket | 72 in (1829 mm) | 19.1 ft3 (0.54 m3) |
Tires
| Tire Size | Type and Pressure |
|---|---|
| 7.00 x 15 | Chevron tread; 60 psi (414 kPa) |
| 7.00 x 15 | HST Hollow segmented |
| 10.00 x 16.5 (Standard) | R4 Cleat tread; 50 psi (345 kPa) |
| 10.00 x 16.5 | PHD Premium heavy-duty; 50 psi (345 kPa) |
| 10.00 x 16.5 | HST Hollow Segmented |
| 31.0 x 15.5-15 | G1 Flotation; 40 psi (276 kPa) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | New Holland |
| Engine Model | CNH N844T |
| Displacement | 121.7 cu in (1.995 L) |
| Bore | 3.31 in (84 mm) |
| Stroke | 3.54 in (90 mm) |
| Gross Power | 52 hp (38.2 kw) |
| Net Power | 50 hp (36.8 kw) |
| Power Measured @ | 2900 rpm |
| Peak Torque | 113 lb ft (153 Nm) |
| Torque Measured @ | 1700 rpm |
| Low Idle | 900 – 1000 rpm |
| High Idle | 3130 – 3180 rpm |
| Fuel System | Indirect Injection |
| Fuel Consumption | 3.2 gal/h (12.1 L/h) |
| Compression Ratio | 22:1 |
| Air Cleaner | Dry type filter with dual element |
| Aspiration | Turbocharged |
| Engine Oil | API SH/CG4 SAE 10W-30 |

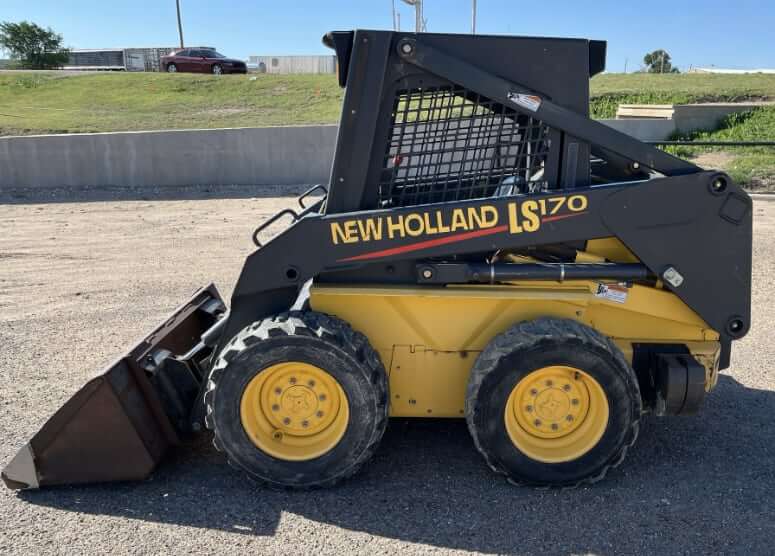

Operational Specs
| Operating Weight | 5540 lb (2513 kg) |
| Shipping Weight (w/o bucket) | 4905 lb (2225 kg) |
| SAE Load Capacity | 1765 lb (801 kg) |
| Operating Voltage | 12 V |
| Alternator | 40 amps |
| Battery | 12 V, CCA 650, BCI PC31 |
| Starter | 12 V, 2.7 hp (2 kw), magnetic shift |
| Optional Pilot Control | Low-effort joysticks |
| Cab Safety | ROPS + FOPS |
| Noise Level (exterior) | 104 dB(A) |
Transmission
| Type | Hydrostatic transmission |
| Max Forward Speed | 7.3 mph (11.75 km/h) |
| Max Reverse Speed | 7.3 mph (11.75 km/h) |
| Chain Size | 80 HD |
| Front Chain Length | 68 in (1727.2 mm) |
| Rear Chain Length | 66 in (1676.4 mm) |
| Drive Pump Type | Variable displacement axial piston |
| Drive Motor Type | Fixed displacement piston type |
| Charge Pressure | 160 psi (1100 kPa) |
| Transmission Relief Pressure | 3500 psi (23800 kPa) |
| Transmission Oil Type | SAE 10W-30 API SH/CG4 |
| Service Brakes | Hydrostatic braking system |
| Parking Brake | Mechanically activated, double disc brake system |
Hydraulic System
| Main Pump Type | Gear Pump |
| Pump Flow Capacity | 17.7 gal/min (67 L/min) |
| Pump Flow Capacity (High Flow) | 26.2 gal/min (99.2 L/min) |
| Main System Relief | 2500 – 2600 psi (17000 – 17600 kPa) |
| Boom Circuit Relief | 3500 psi (23800 kPa) |
| Control Valve Type | 3 Spool Open Center |
| Hydraulic Fluid | SAE 10W-30 – API SH/CG4 |
Hydraulic Circle Time
| Raise Time | 2.7 sec |
| Lower Time | 2.3 sec |
| Dump Time | 1.7 sec |
| Roll Back Time (Curl) | 1.5 sec |
| Total Hydraulic Circle Time | 8.2 sec |

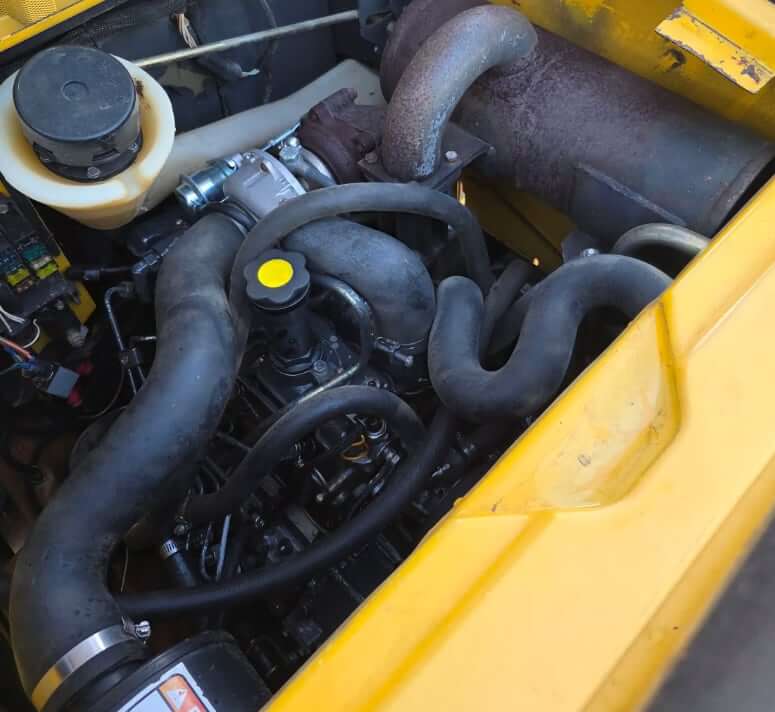

New Holland LS170 Filters
| Air Filter (Primary Element) | NH #86504145 |
| Air Filter (Safety Element) | NH #86504143 |
| Inline Fuel Filter | NH #9611973 |
| Inline Water Trap | NH #86504140 |
| Engine Oil Filter | NH #86546618 |
| Hydraulic Oil Filter (Spin-on Canister) | NH #9842392 |
Service Refill Capacities
| Fuel Tank Capacity | 14 gal (52.9 L) |
| Engine Oil Capacity (w/ filter) | 2.2 gal (8.3 L) |
| Cooling System Capacity | 2.7 gal (10.3 L) |
| Hydraulic System Capacity (w/ tank) | 8.6 gal (32.6 L) |
| Hydraulic Tank Capacity | 3.9 gal (14.8 L) |
| Transferbox Fluid Capacity | 0.25 gal (0.95 L) |
| Chain Case w/ Gearbox Capacity (each side) | 1.8 gal (6.8 L) |
